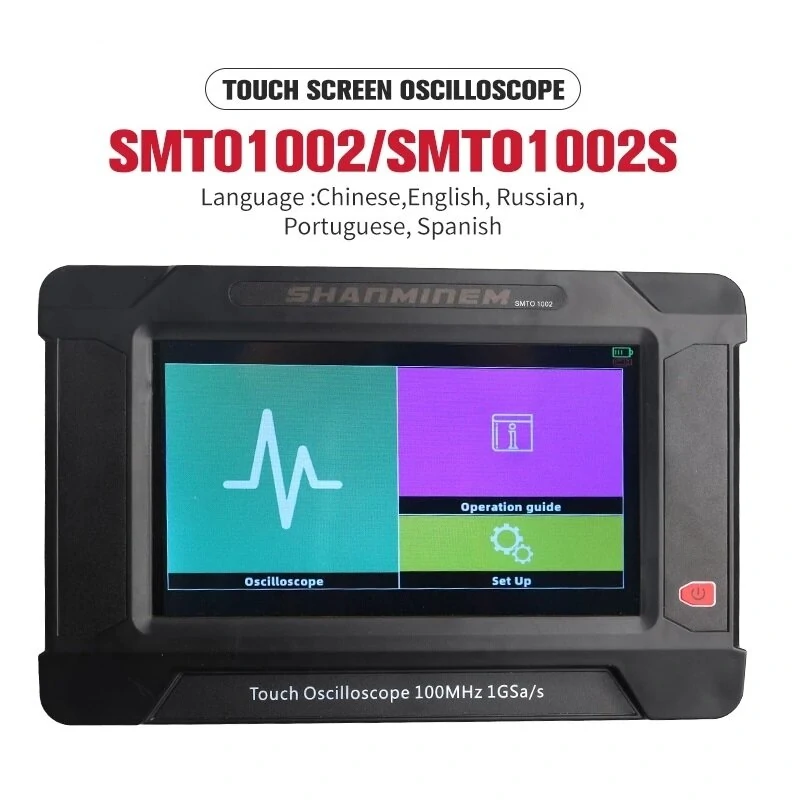

SMT01002 Dual Channel Touch Screen Oscilloscope - 100M Bandwidth & Signal Generator

Product Description

Product Description:

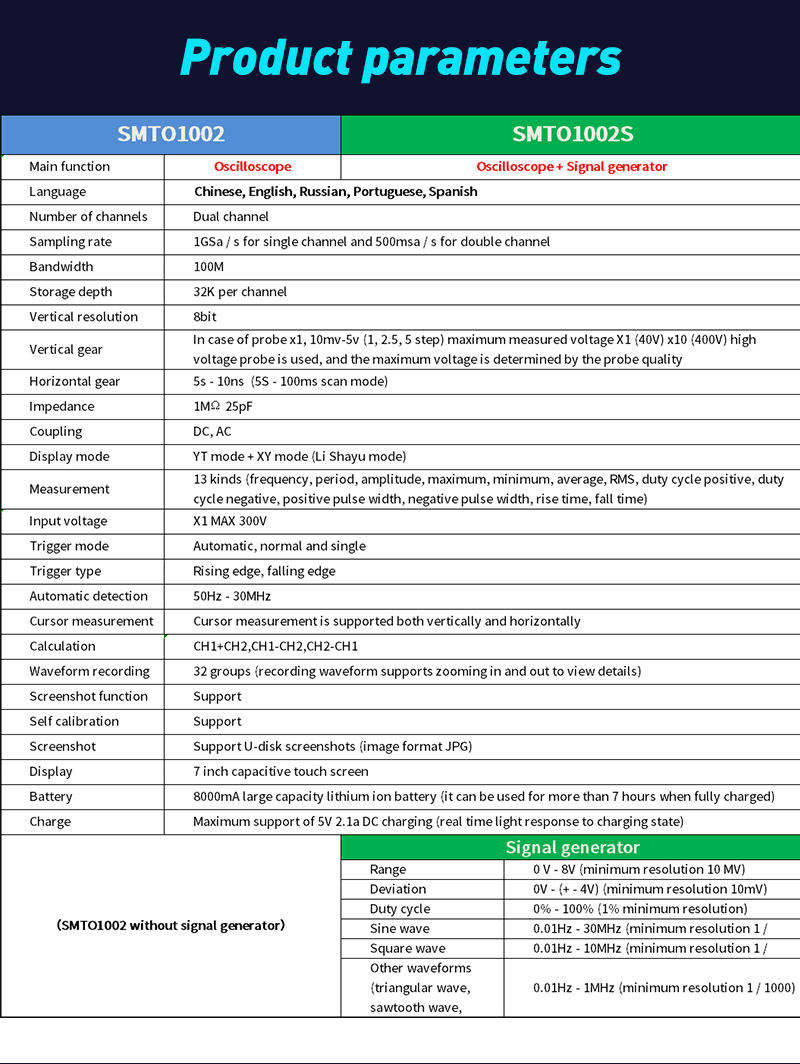

SMTO1002, SMTO1002S touch screen oscilloscope, is a 7-inch touch paneloscilloscope, supporting multi touch. ADI high performance sampling chip isadopted, It provides real-time sampling rate of 1G Sa /s and maximum bandwidth of 100M. It supports automatic measurement of 13 parameters, with a maximum storage depth of 32K per channel, fully meeting the requirements of waveform zooming and zooming under stop,32 groups of original wave- form storage (the stored waveform can be enlarged and reduced to view the details); Support automatic, normal, single trigger mode, tiggeir position can be ad justed itelligently or manually to meet different needs; It supports the basic mathematical operation of waveform and XY display mode.One key automatic 50 Hz-30 MHz waveform is convenient and fast.Scan mode at low sampling rate makes low frequency wave- form display more accurate. The measurement channel supports a minimum voltage of 10mV, which makes small signal measurement more accurate. The measurement channel supports AC/DC coupling, and the waveform is displayed in reverse phase, which makes the waveform view more convenient. Built in quick guide, easy to use skills.

The SMT1002S also has a powerful signal generator function:

??Maximum output 30MHz chord wave (square iwave 10MHz, other waveforms 1MHz); ??The minimum output of full waveform is 0.01Hz; ??The accuracy of full waveform output frequency is 1/1000; ??Square iwave supports 0-100% duty cycle ad justment; ??Full waveform supports 0 8V voltage output (minimum resolution up to 10mV);(some wave- forms will be attenuated at high frequency) ??The full waveform supports the maximum 0-(+-)4V offset (the minimum resolution is 10mV)(the high frequency of some waveforms will be attenuated)

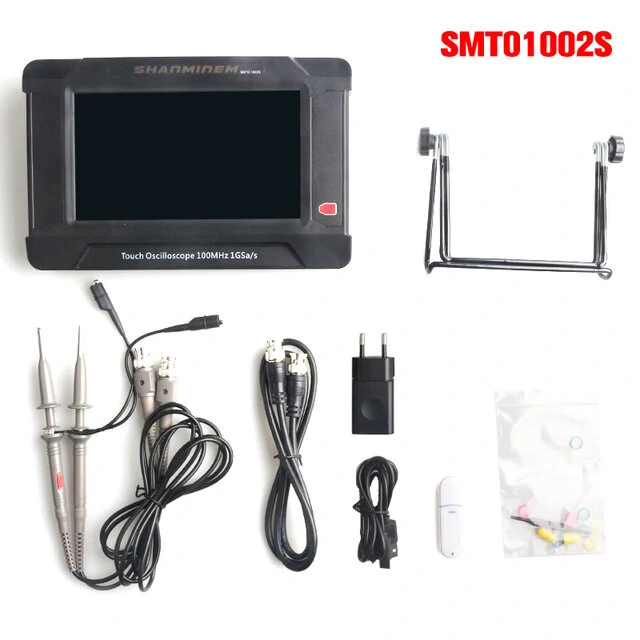

Package includes:

1 x Host

2 x Probes p6100

1 x Bracket

1 x USB flash disk

1 x Charging head (5V 1A)

1 x Data line (Type-C)

1 x Probe calibration kit

1 x BNC to BNC connection line (Only SMT01002S)

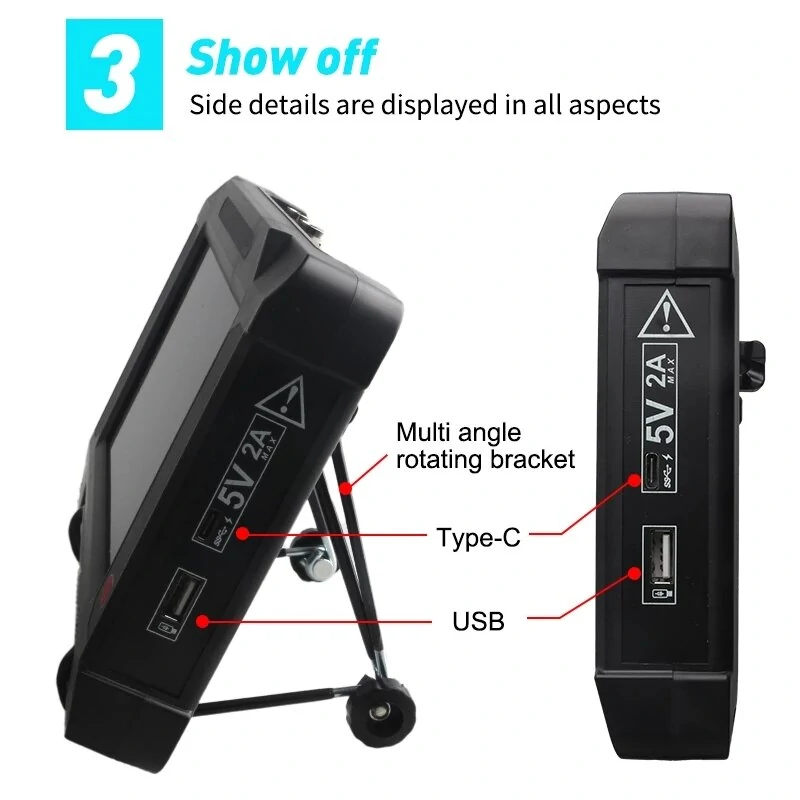

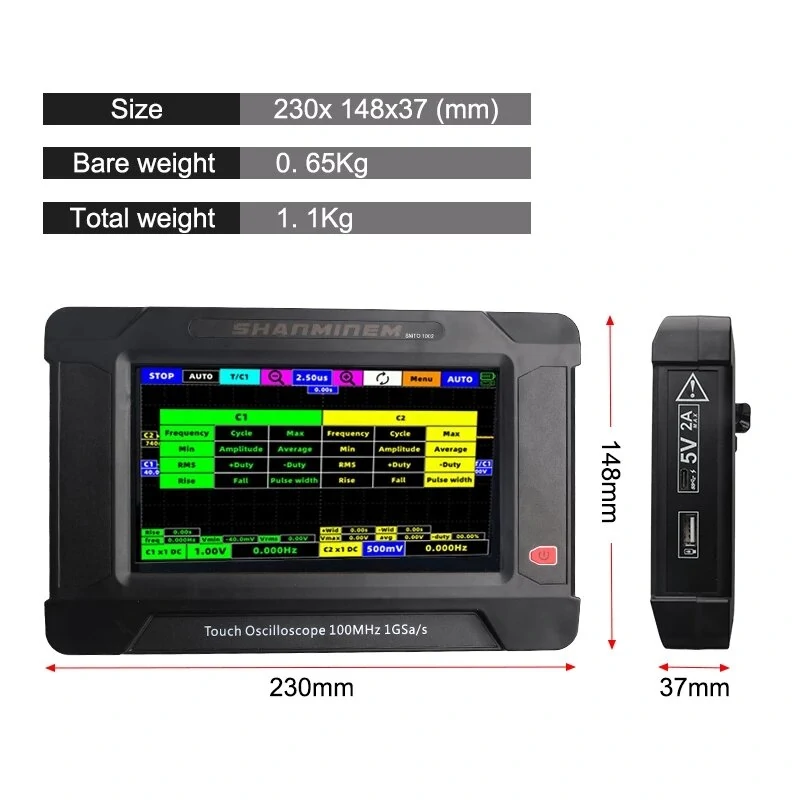

Details pictures:
