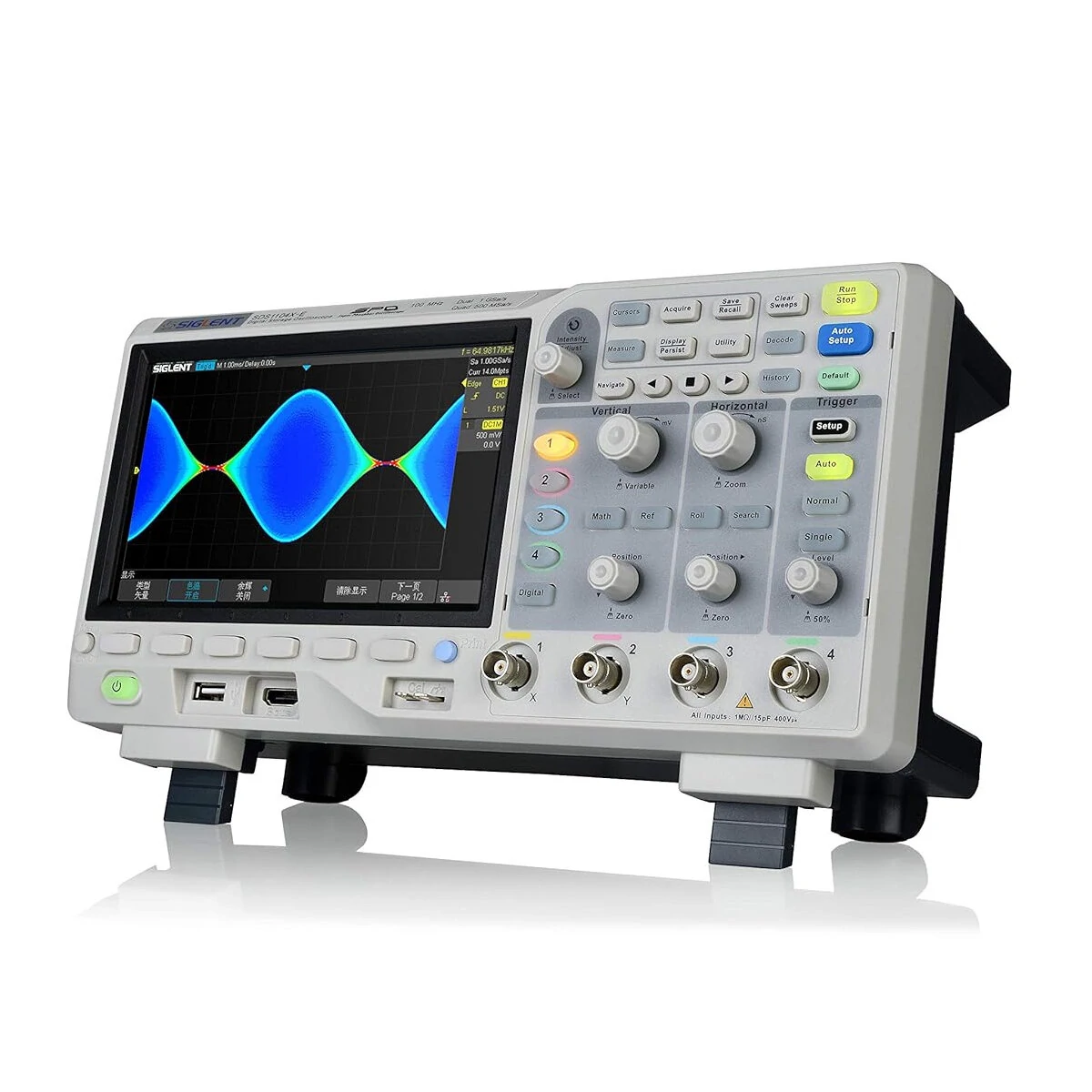

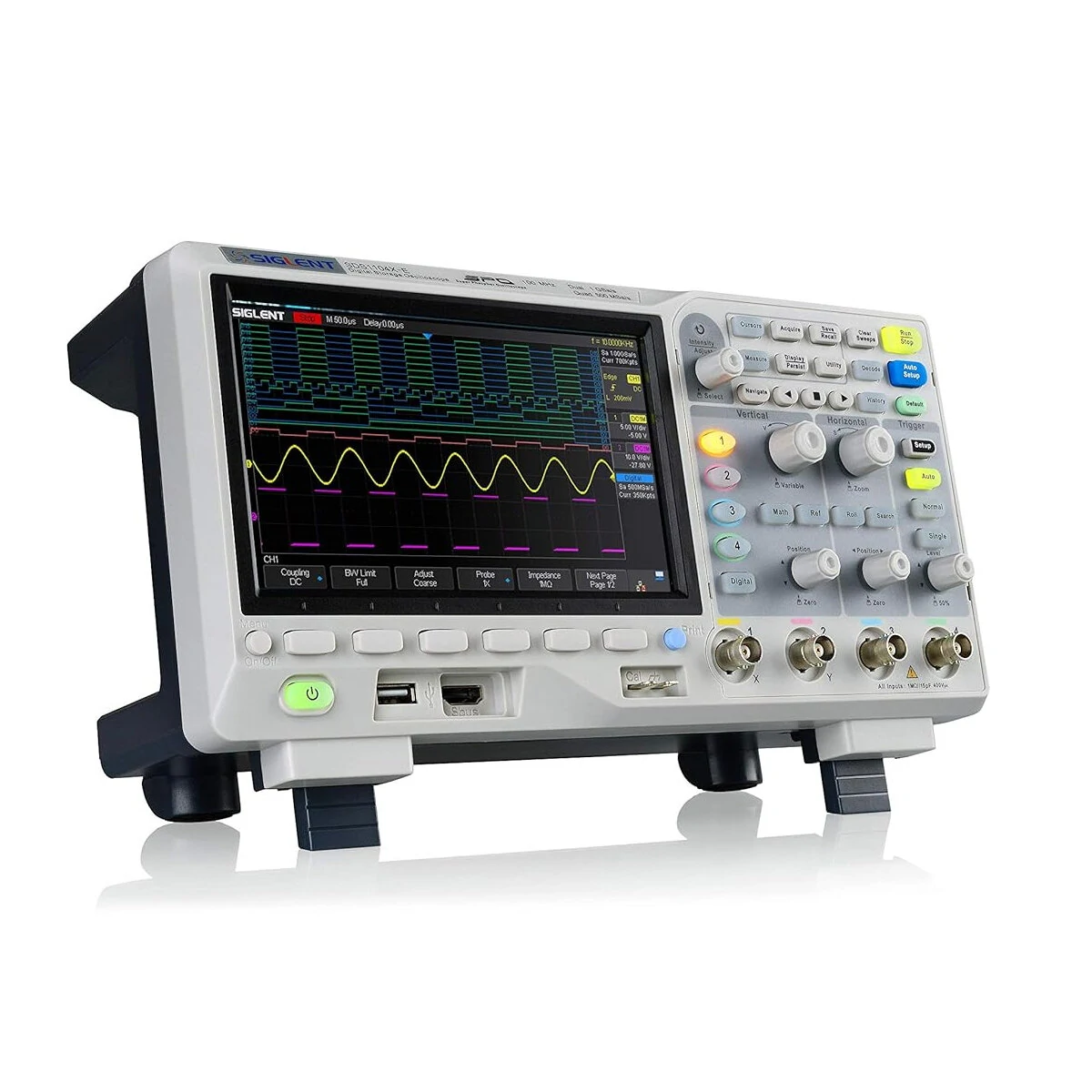

Siglent SDS1104X-E Oscilloscope - 100MHz 4 Channel | Large Display & WiFi

Product Description

Features:
1. High-Bandwidth Performance: The SDS1104X-E Digital Oscilloscope from Siglent Technologies features a bandwidth range of 100MHz-200MHz. With a real-time sampling rate of 1 GSa/s, this oscilloscope ensures precise data measurements and improved analysis.
2. Multiple Channels: This oscilloscope is equipped with 4 channels, allowing you to monitor and compare multiple signals simultaneously. This capability can dramatically increase efficiency for complex systems analysis.
3. Advanced Triggering System: It comes with robust triggering options like edge, slope, pulse width, window, runt, interval, dropout, pattern, and video, offering you flexibility and efficiency in detecting signal anomalies.
4. High Capacity & Capture Rate: With a memory depth of upto 14 Mpts/CH, the SDS1104X-E Digital Oscilloscope can retain a higher quantity of data for thorough data analysis. It also boasts a high waveform capture rate of up to 400,000 wfm/s (sequenc mode), ensuring faster and accurate wave analysis.

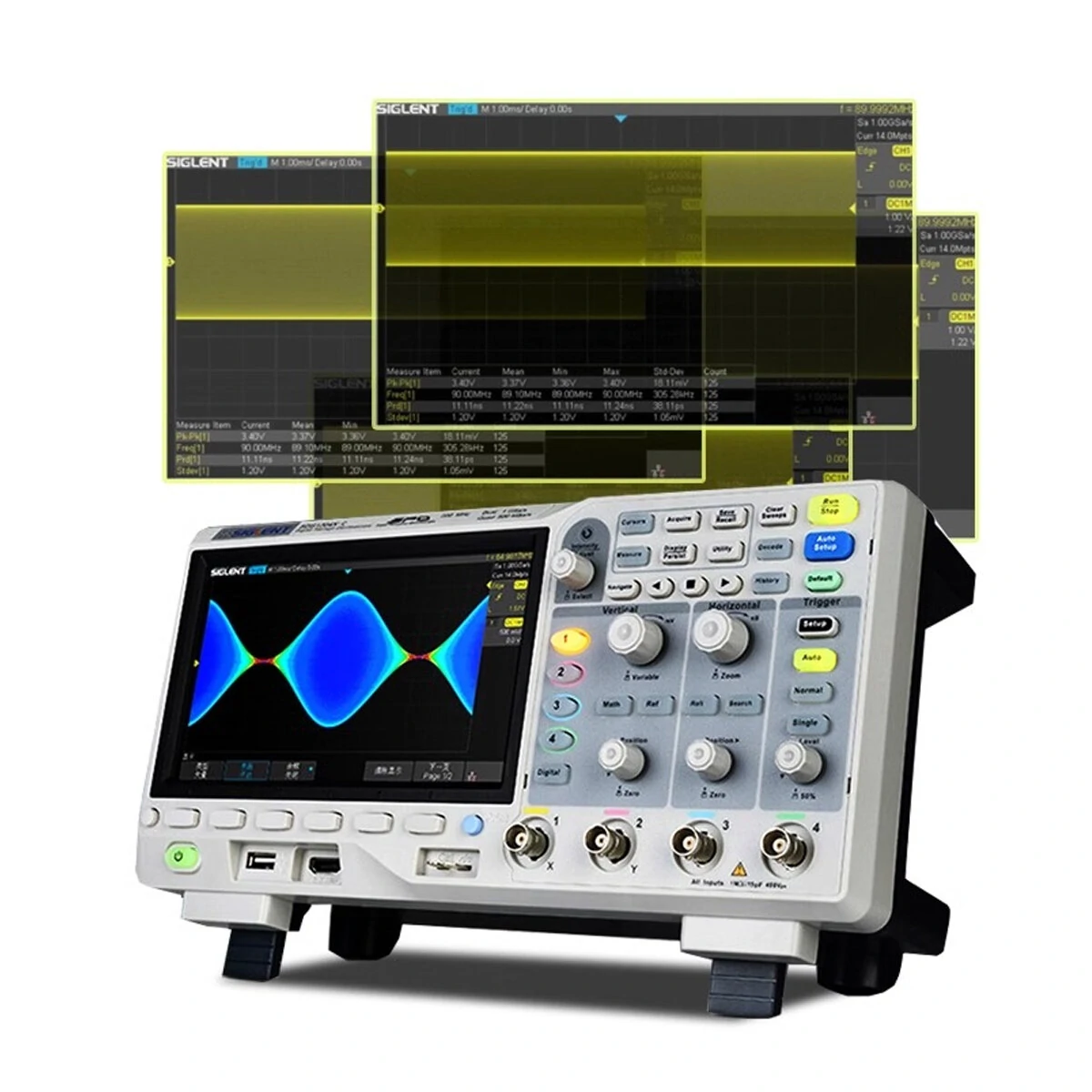

5. Enhanced Display & Control: This model features a large 7-inch TFT-LCD display with 800 * 480 resolution, facilitating a clear and detailed view of waveforms. The built-in WiFi control and on-screen Bode plot offer convenient operation and data management.

Specifications:
- Brand: Siglent Technologies
- Model: SDS1104X-E

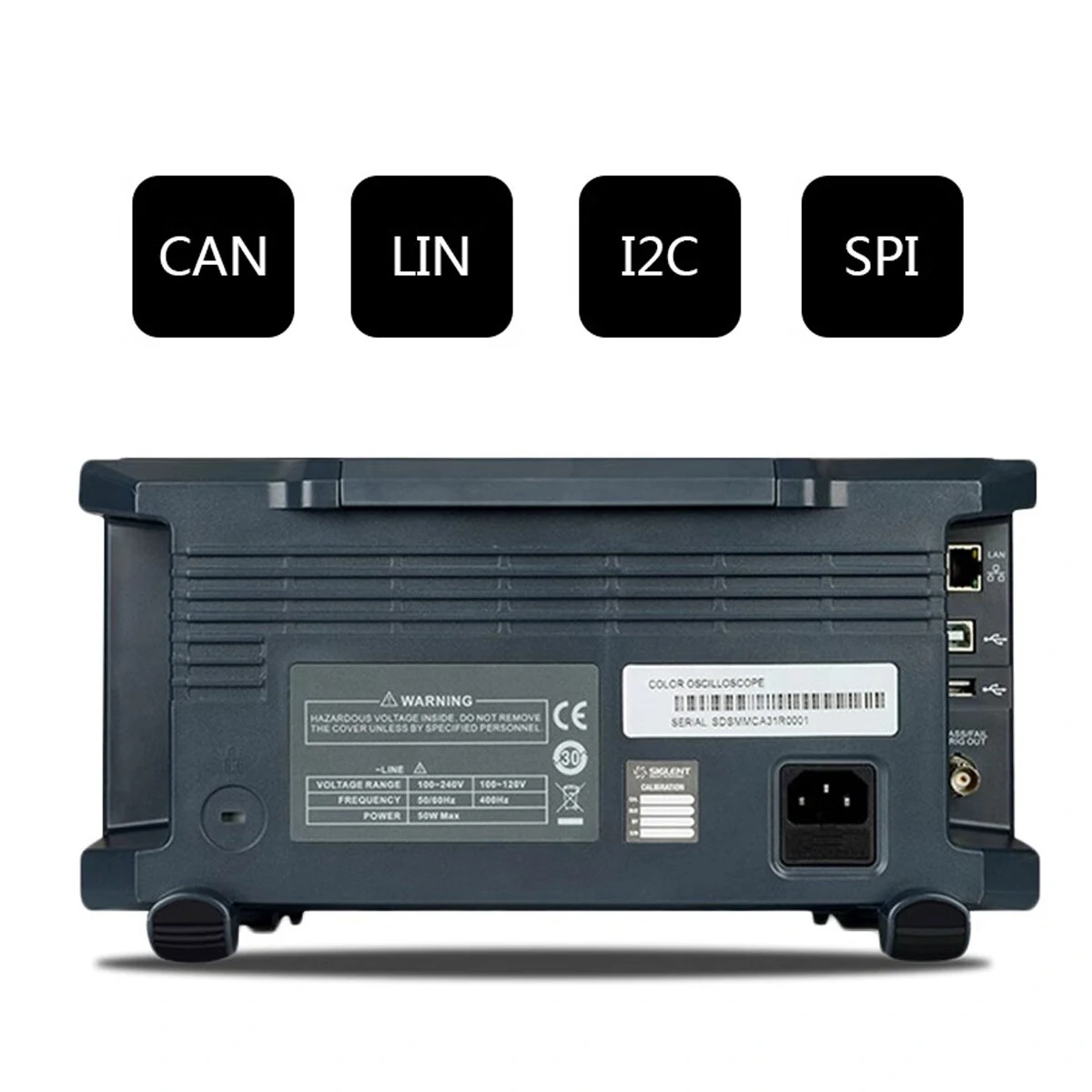

- Style: Decoder
- Color: Grey
- Bandwidth: 100MHz-200MHz
- Channels: 4
- Real Time Sampling Rate: 1 GSa/s
- Max Memory Depth: 14 Mpts/CH
- Trigger Type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
- Capture Rate: 400,000 wfm/s (sequenc mode)
- On-screen Bode plot and web-browser control
- Display: 7-inch TFT-LCD display with 800 * 480 resolution

Package included:
1 x SDS1104X-E Digital Oscilloscope
1 x Power Cord (EU Plug)
1 x User Manual
