Precision Worker Oscilloscope Pen - Voltage Tester & Thermal Imager | Resistance & Diode

Product Description

Features:

Oscilloscope Functionality: The Multi-function Oscilloscope Pen provides accurate frequency measurement with ??1% accuracy and a 400KHz bandwidth. The one-key AUTO display waveform simplifies usage, and a storage depth of 4Kbit ensures reliable data recording.

Precise Voltage Measurement: The device measures voltage with ??1.5% accuracy and a resolution of 0.1V. It supports a maximum input voltage of 24V and features an integrated voltage alarm for enhanced safety.

Comprehensive Resistance Measurement: This tool offers resistance measurement ranging from 10?? to 5M?? with ??2% accuracy, making it versatile for various electronic applications.

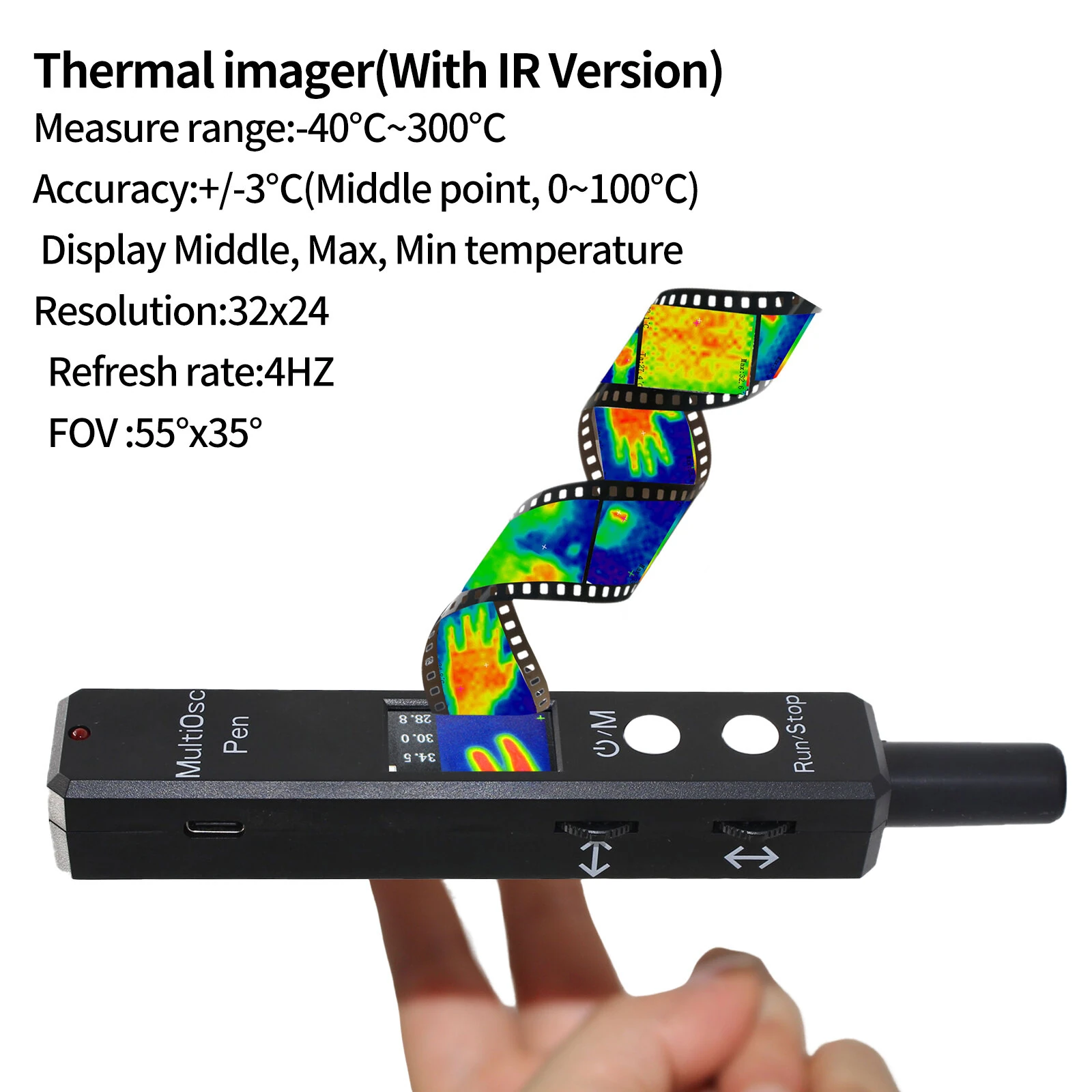

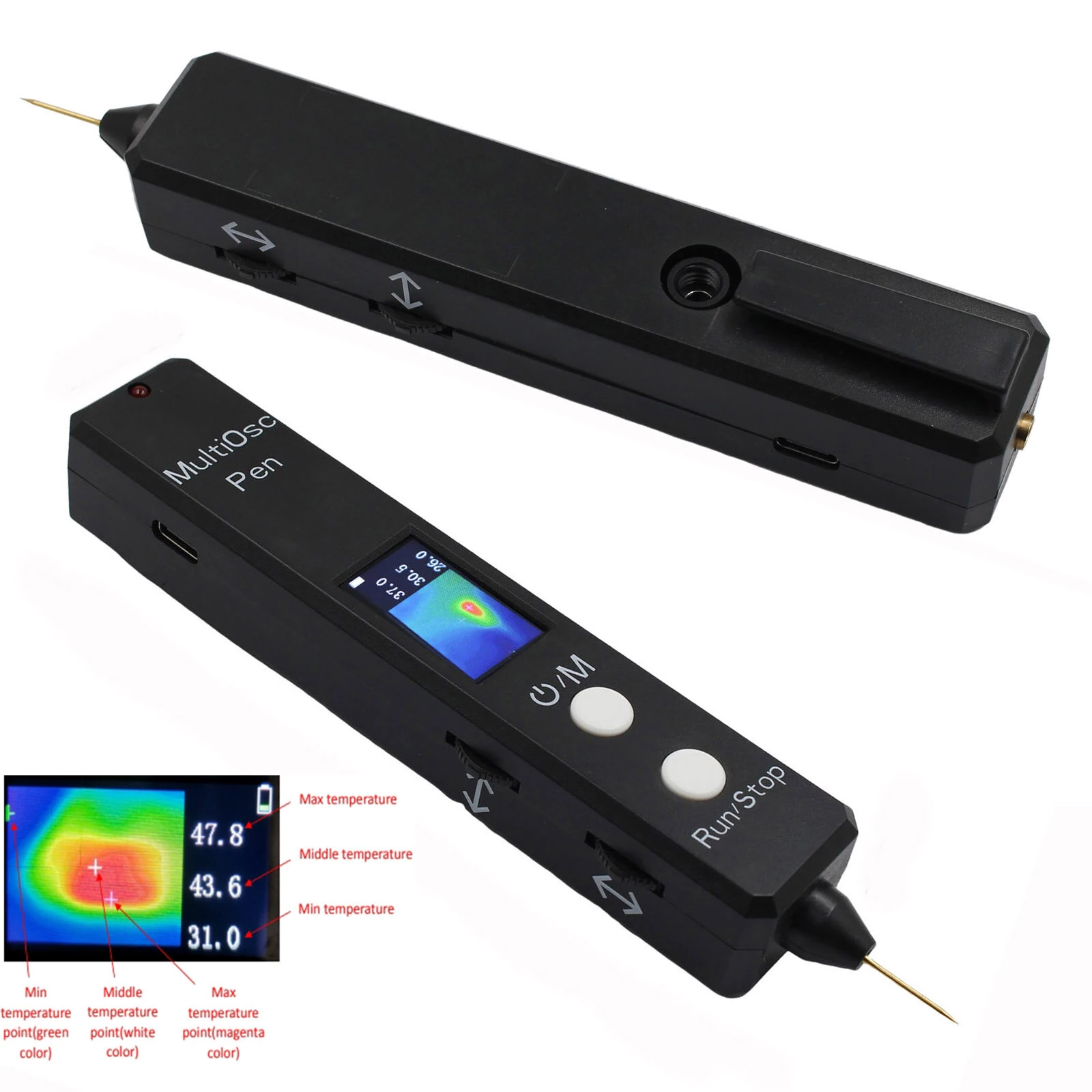

Integrated Thermal Imager: The built-in thermal imager has a measurement range of -40??C to 300??C and can display middle, maximum, and minimum temperatures with a resolution of 32x24 and a refresh rate of 4Hz.

Diode and On/Off Testing: This feature simplifies diode testing, along with an on/off measure functionality, enhancing its usability for troubleshooting and diagnostics in electrical and electronic circuits.

Specifications:

Oscilloscope Frequency Accuracy: ??1% Max

Sampling Rate: 2MSa/s

Oscilloscope Bandwidth: 400KHz

Storage Depth: 4Kbit

Voltage Measurement Range: Up to 24V

Voltage Resolution: 0.1V

Resistance Measurement Range: 10?? to 5M??

Resistance Measurement Accuracy: ??2%

Thermal Imager Measurement Range: -40??C to 300??C

Thermal Imager Accuracy: ??3??C (0-100??C range)

Thermal Imager Resolution: 32x24

Thermal Imager Refresh Rate: 4Hz

Display: 1.14 inch 135x240 TFT, Rechargeable

Battery Size: 160x27x26mm

Package Included:

1 x Multi-function Oscilloscope Pen

1 x Probe Clip

1 x USB Charging Cable

1 x User Manual
