PDS833 Handheld Digital Oscilloscope | 1MHz Bandwidth, 8.33Msa/s | 2.8 Portable

Product Description

Specifications:

Sampling Rate: 8.33Msa/s

Bandwidth: 1 MHz

Vertical Sensitivity: 10mV/Div - 10V/Div

Time Base Range: 3 - 10 seconds

Voltage Range: X1: ??40V (VPP: 80V), X10: ??400V (VPP: 800V)

Trigger Mode: Auto/Timed/Single

Trigger Edge: Rising/Falling

Coupling Mode: AC/DC

Screen Size: 2.8 inches 320 ?? 240

USB Charging: 5V/1A

Battery Capacity: 1200mAh

Dimensions: 130x80x25mm

Weight: 145g

Features:

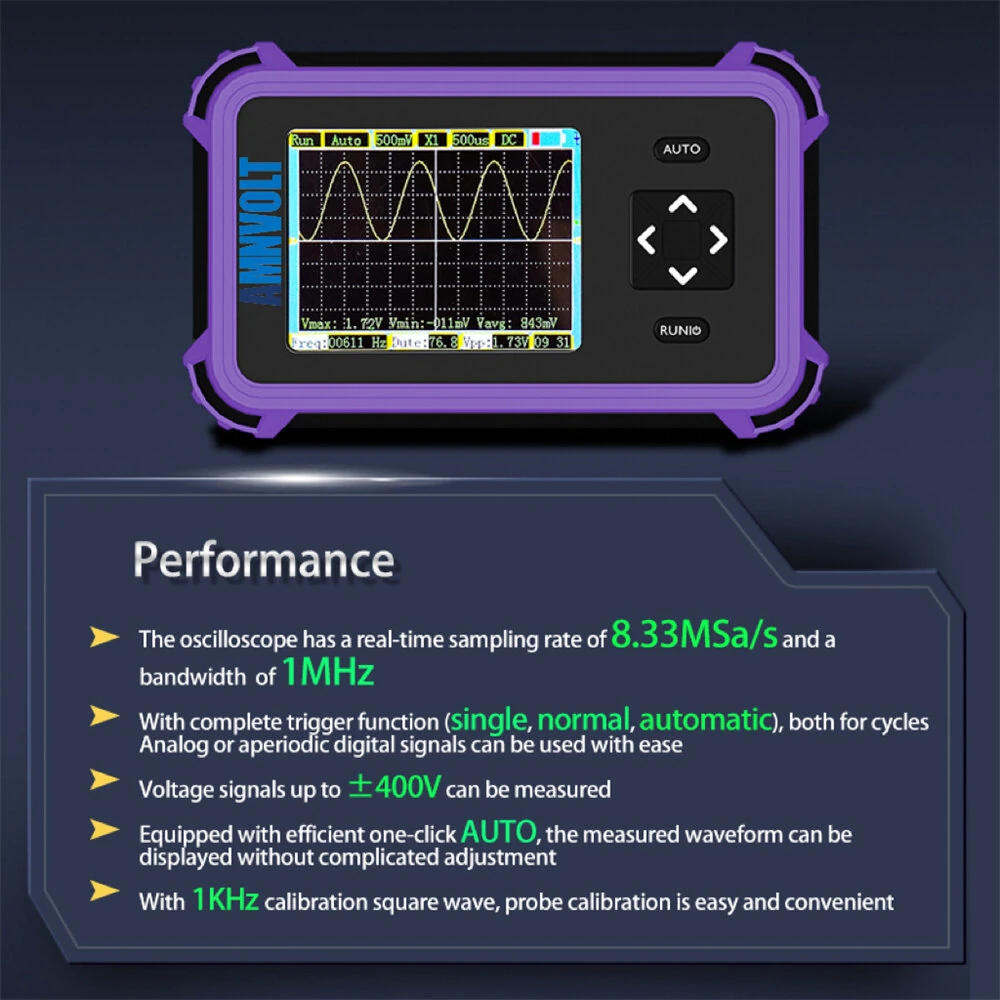

High Sampling Rate: With an 8.33Msa/s sampling rate and 1 MHz bandwidth, this oscilloscope provides precise and accurate measurements.

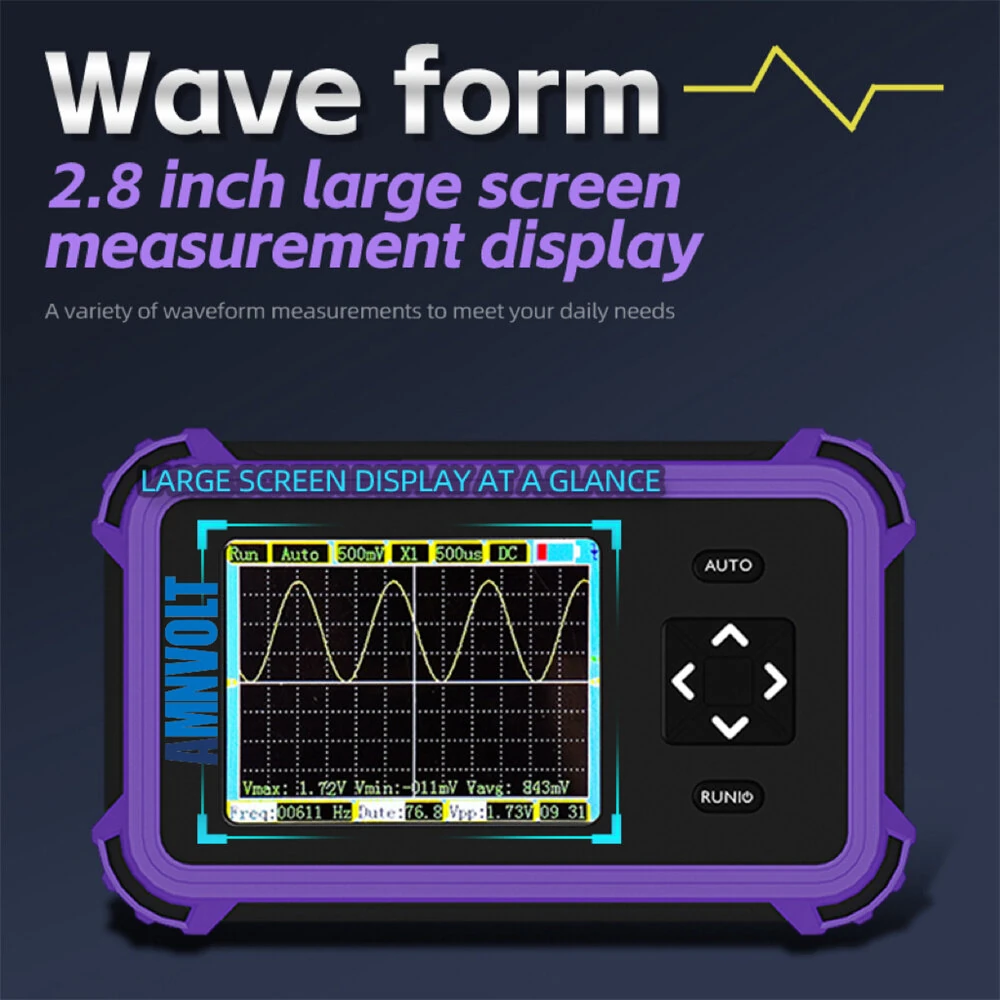

HD Color Screen: Equipped with a 2.8-inch HD color screen, ensuring a clear and user-friendly interface.

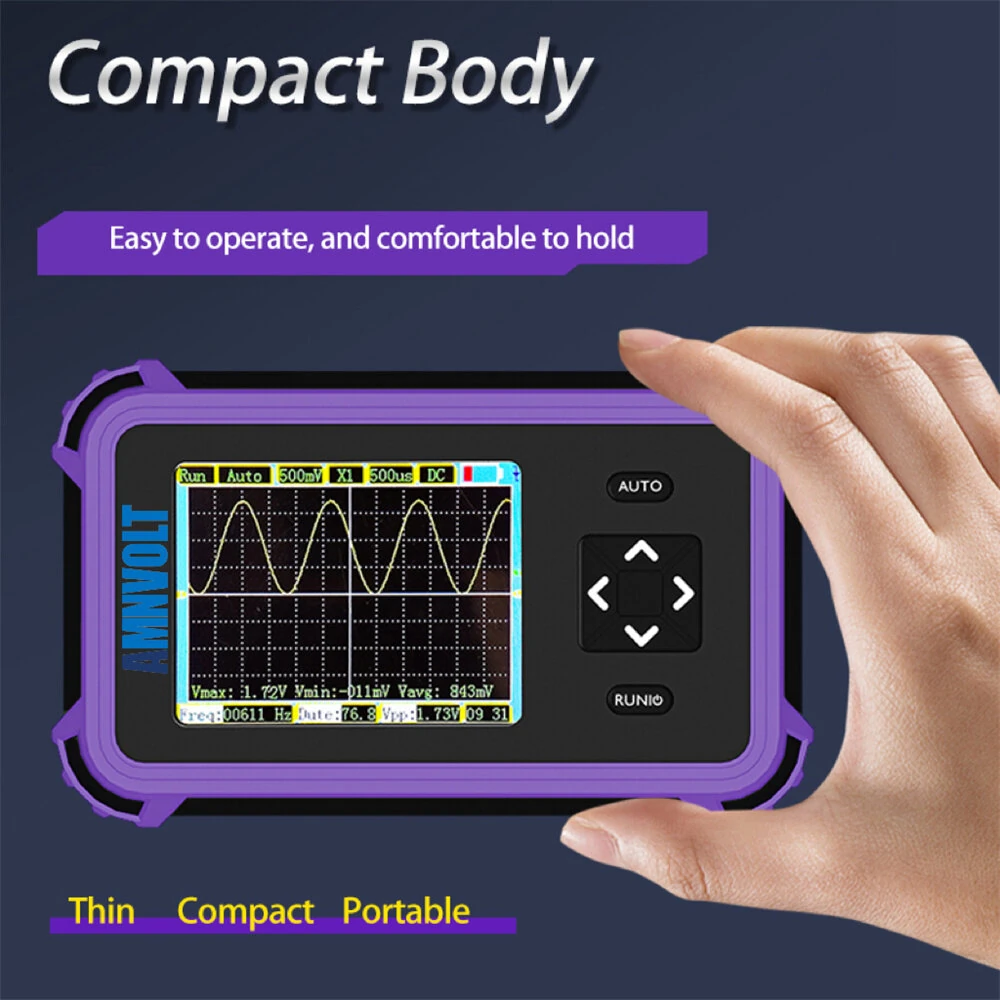

Compact and Portable: Pocket-sized design with dimensions of 130x80x25mm and weight of 145g for easy portability.

Wide Voltage Range: Measures a broad range of voltages from ??40V to ??400V (VPP: 80V to 800V) with high precision.

Versatile Trigger Modes: Features auto, timed, and single trigger modes along with rising and falling trigger edges for flexible measurement options.

Package Included:

Type A: Standard Configuration

1 x Main Unit

1 x Test Clip

1 x User Manual

Type B: Advanced Configuration

1 x Main Unit

1 x Test Clip

1 x 10X High Voltage Probe

1 x User Manual
