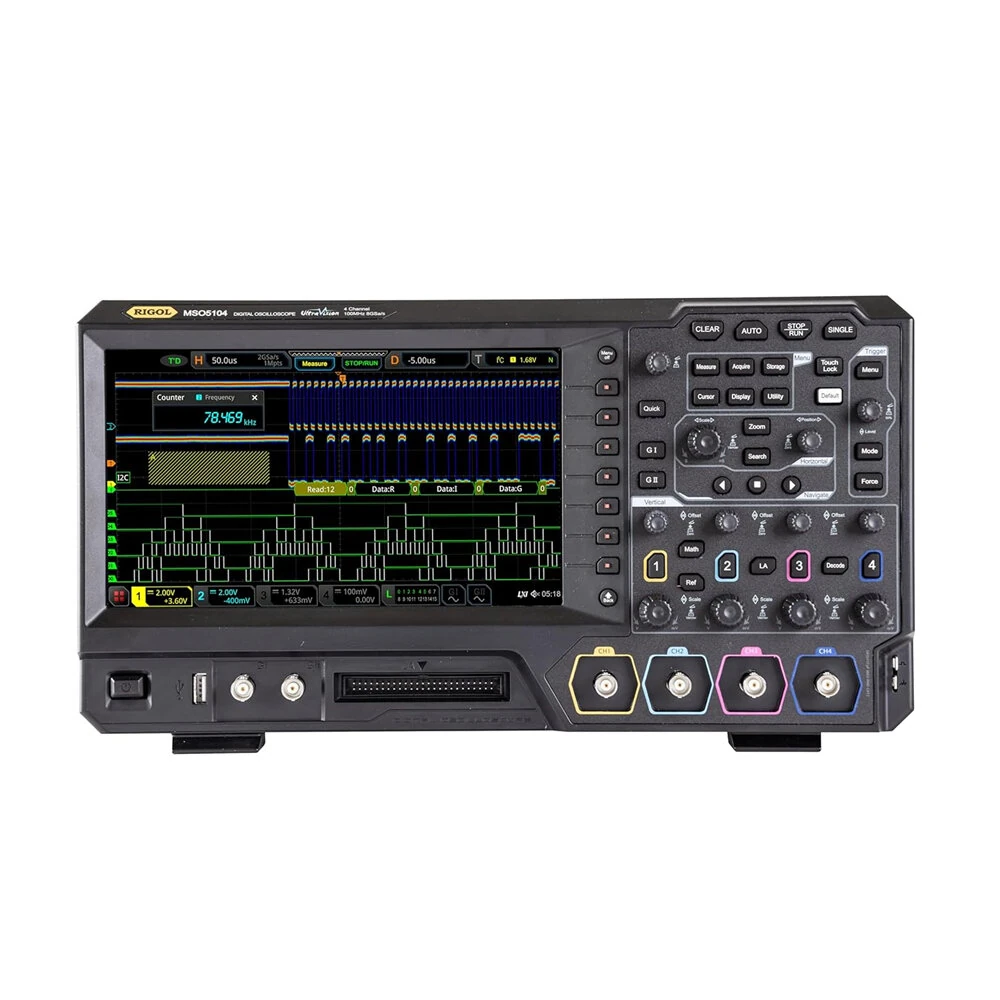

MSO5104 Mixed Signal Oscilloscope - 100 MHz, 4 Analog & 16 Digital Channels | 8 GSa/s

Product Description

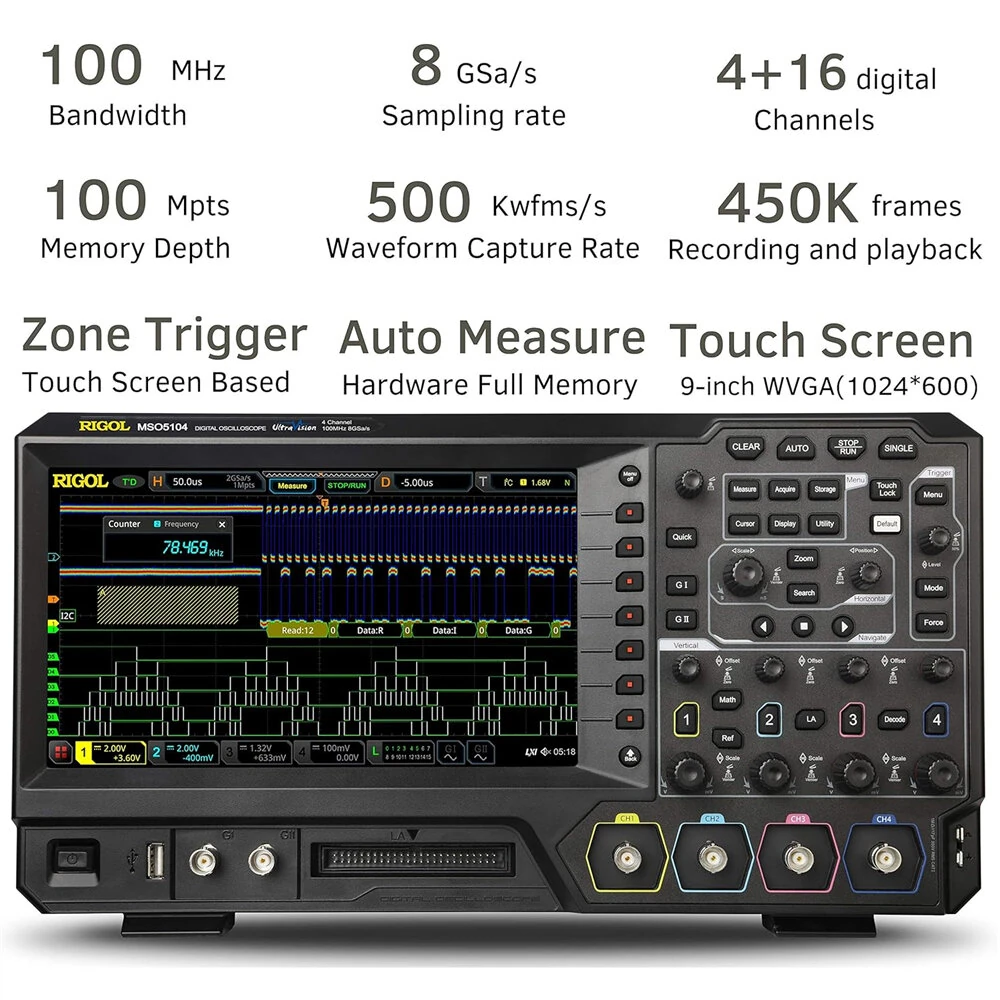

Specifications:
Analog Bandwidth Options: 100 MHz (default), upgradable to 200 MHz, 350 MHz, or lower to 70 MHz
Sample Rate: Up to 8 GSa/s real-time sample rate
Memory Depth: Supports up to 200 Mpts memory depth (optional upgrade)

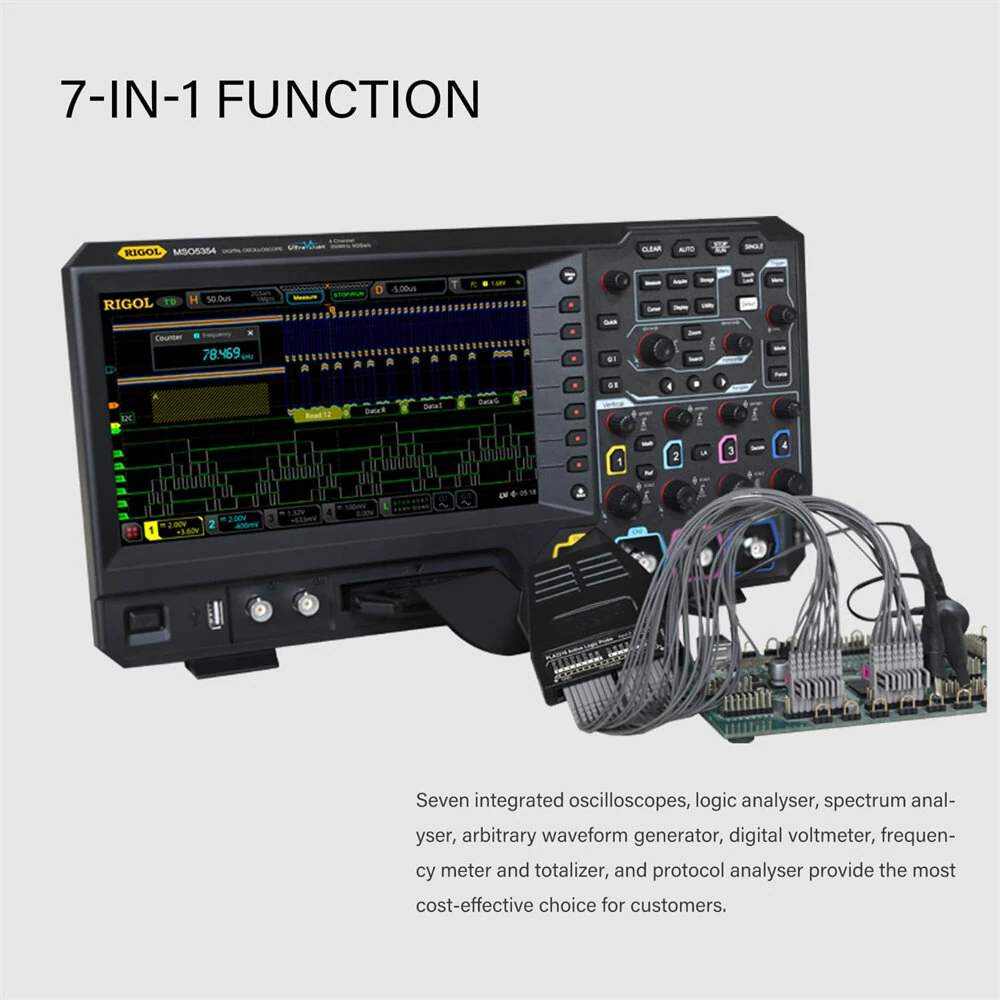

Channel Configuration: 4 analog channels + 16 digital channels (requires additional LA probe)

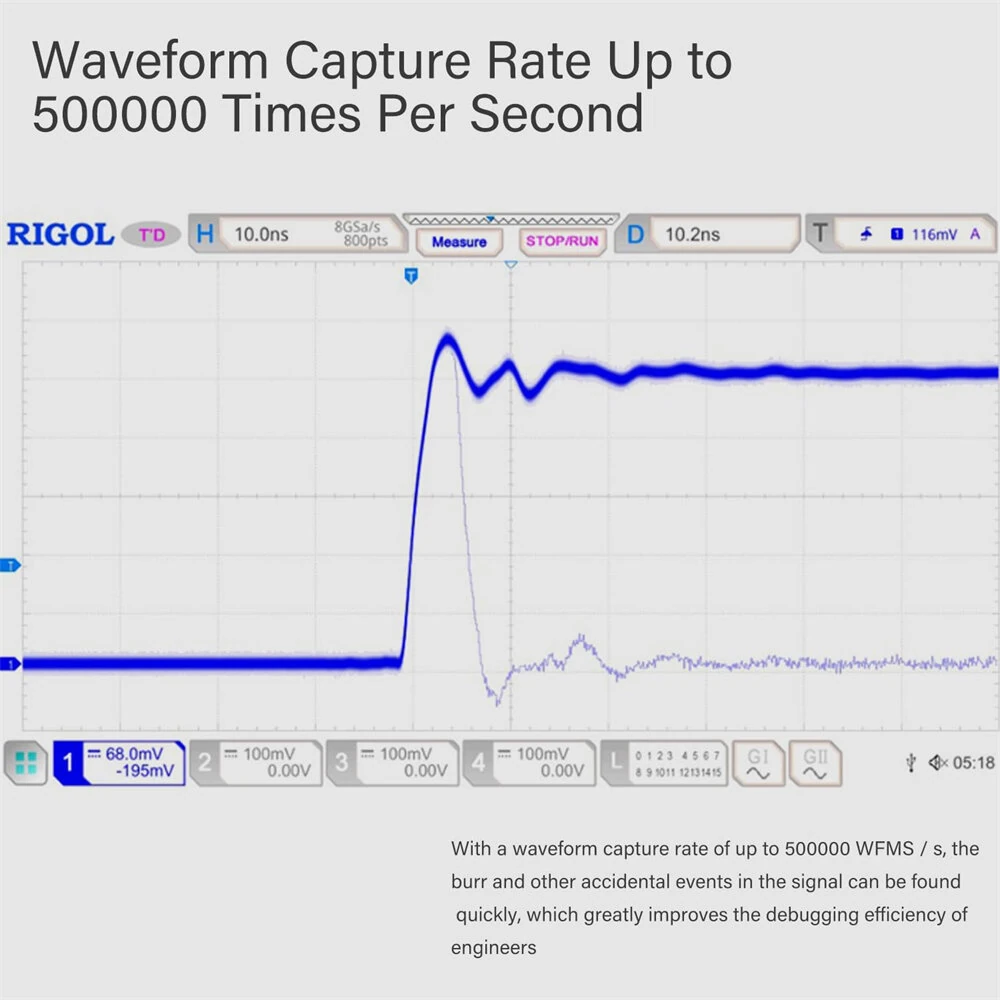

Waveform Capture Rate: Over 500,000 waveforms per second (wfm/s)
Display: 9-inch WVGA capacitive touchscreen (1024??600)
Trigger System: Supports Zone Trigger with touchscreen interaction
Storage and Playback: Up to 450,000 frames for recording and playback
Features:
1.Upgradable Bandwidth for Extensive Performance Needs:
The MSO5104 supports flexible bandwidth options starting at 100 MHz and upgradable to 350 MHz, delivering unparalleled adaptability for varied testing applications.
2.Deep Memory Depth for Seamless Testing:
Achieve reliable signal capture with up to 200 Mpts memory depth, allowing greater precision during high-speed analog and digital debugging.
3.Advanced Multi-Channel Analysis:
With 4 analog and 16 digital channels, this oscilloscope enables synchronized testing across multiple signals for advanced circuit troubleshooting.
4.High-Speed Signal Acquisition:
Its 8 GSa/s real-time sampling rate and 500,000 wfm/s waveform capture rate ensure rapid and accurate data visualization for dynamic signal environments.

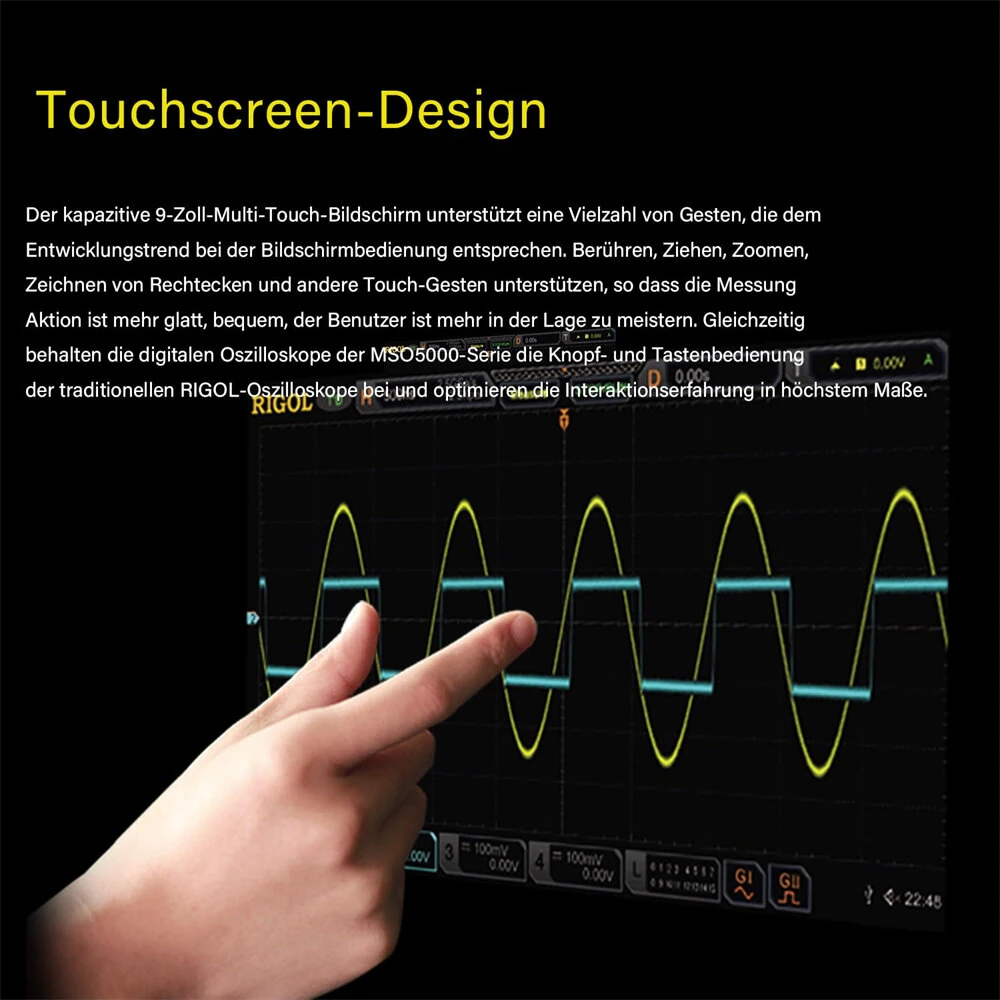

5.Intuitive Touchscreen Display:
The 9-inch WVGA capacitive touchscreen offers effortless gesture-based operation and smooth user interaction, ensuring efficient control and detailed signal analysis.
Package Included:
1 x MSO5104 Oscilloscope (100 MHz bandwidth)
4 x Probes (350 MHz standard)
1 x Power Cable (approx. 1.5m long)
1 x Data Cable (length 1.5m)
