Micsig STO1152C Smart Oscilloscope | 150MHz 2CH Handheld - Automotive Scopemeter
$745.00
$916.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

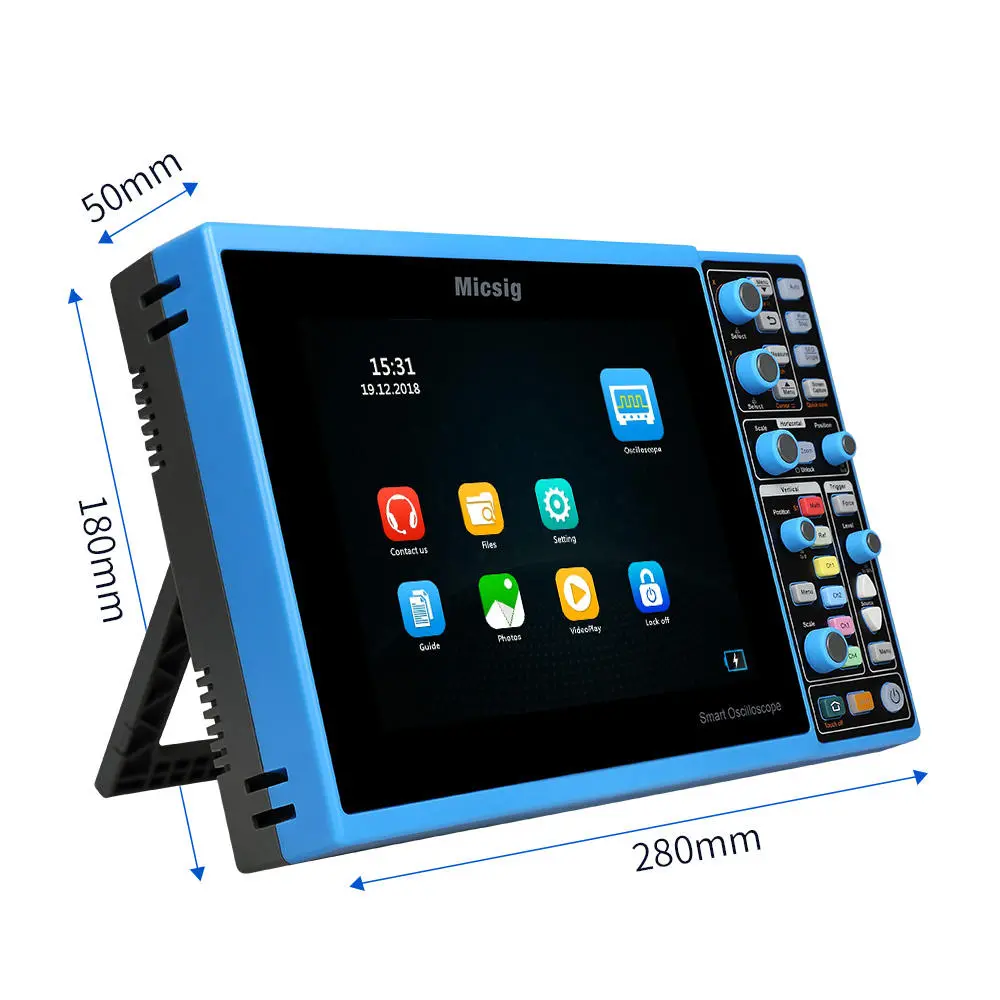

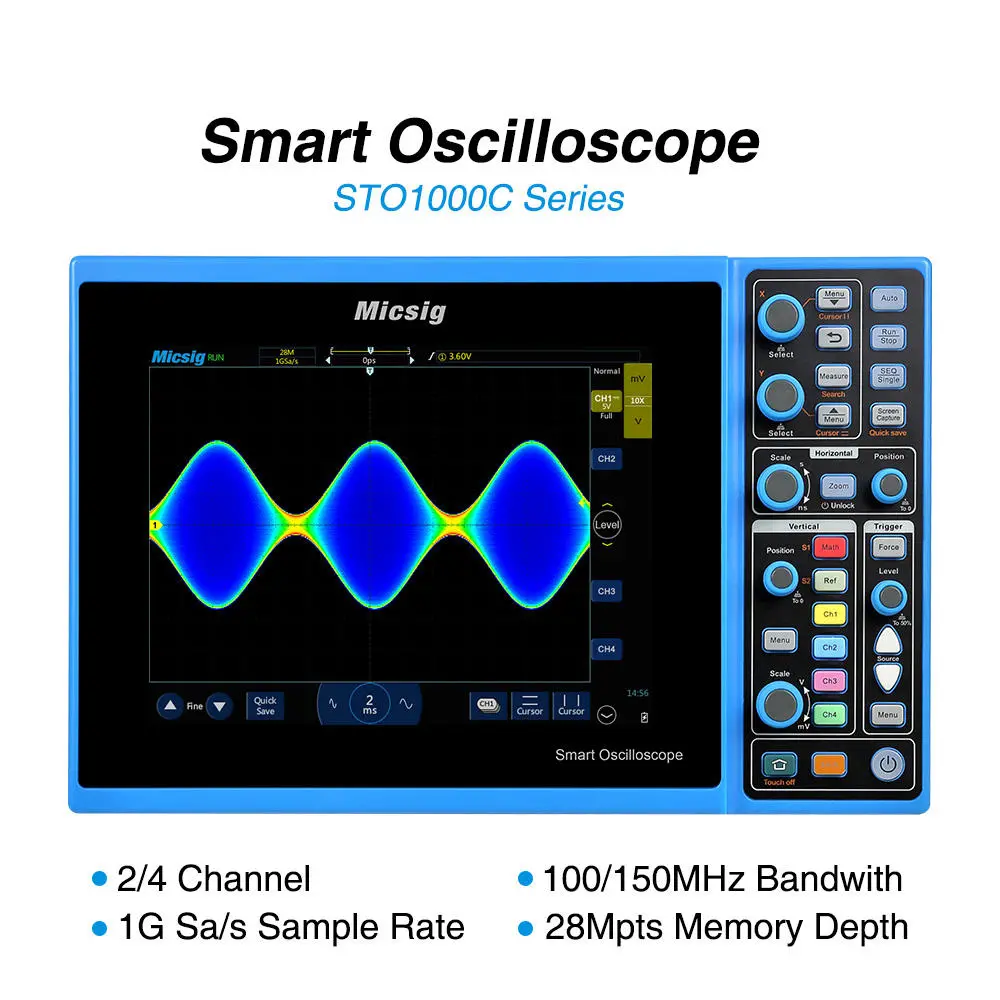

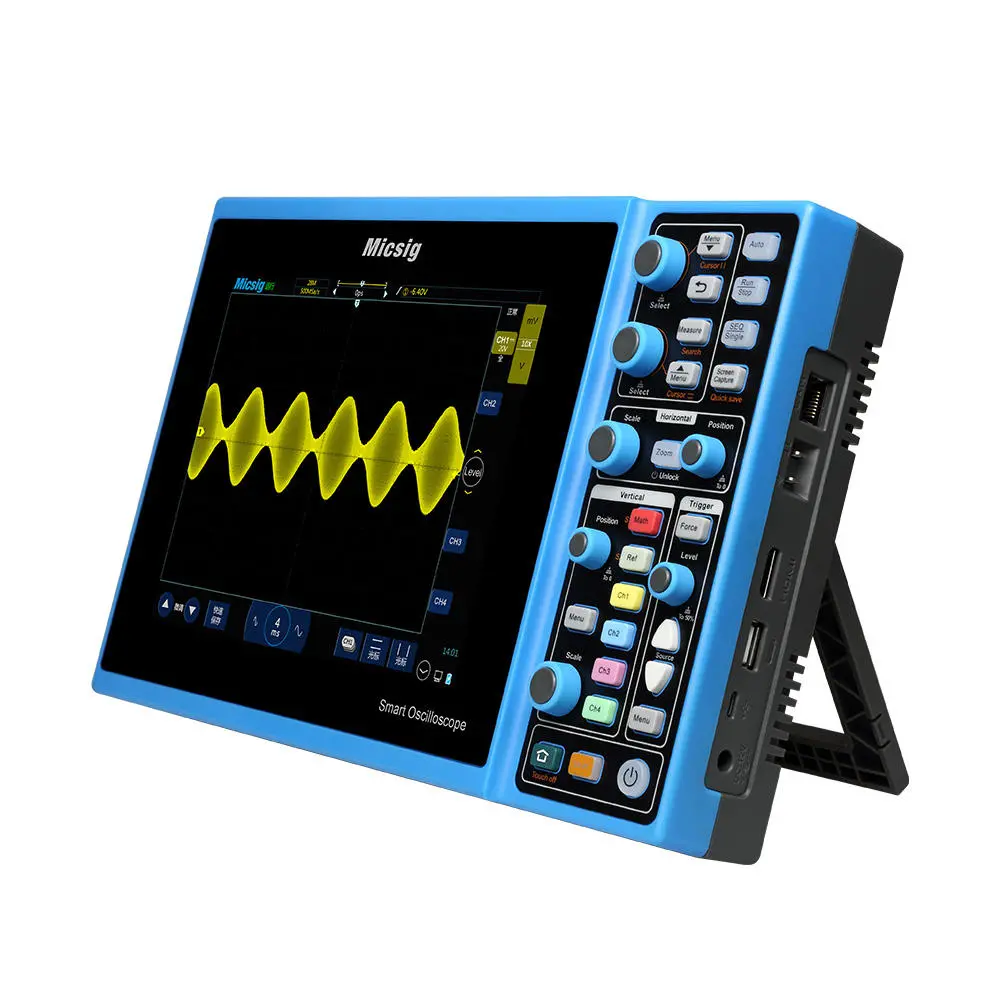

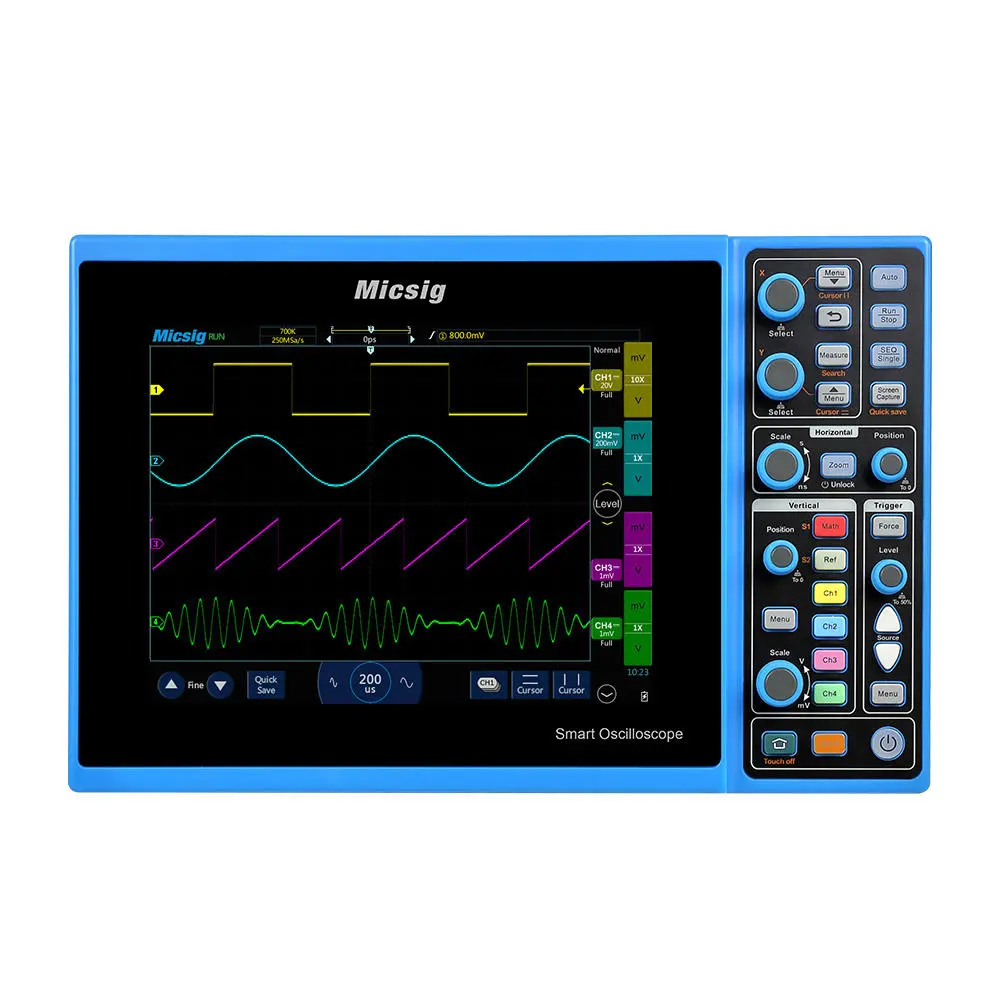

Features: Bandwidth up to 150MHZ, 1 Gsa/s Sample Rate. Up to 28mpts Sample Memory Depth, 2 Channel 80, 000 Waveforms per Second 8 inch Full Capacitive Touch Display 256-level Intensity Grading and Color Temperature Display. High Quality Buttons and Knobs for Simple and Smart Operation 8GB Flash Memory with Unique File Management System for Easy Waveform Data Storage and Transfer Video Recording Function Ethernet and Wifi Network Access HDMI Port for External Display Remote Control using ios and Android APP Specifications: Brand: Micsig Size: 280*180*50MM Bandwidth:150MHZ Input channel:2 Sample rate:1G Sa/S Memory depth:28mpts Max capture rate:80,000wfm/s Bandwidth limitation:20MHZ, high pass, low pass Interface:WI-FI, LAN, HDMI, USB Host, USB Device, DC power, Trigger out Screen:8 inches TFT LCD, 800*600 pixels display resolution, 14"10 grids Battery(optional):Built-in lithium battery, working time is up to 5 hours continuously Package included: 1 X STO1152C Smart oscilloscope 4 X Probes 1 X Power adaptor 1 X Power plug 5 X Color BNC cap Notes: 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks! Details pictures:Customer Reviews
No reviews yet. Be the first to review this product!
