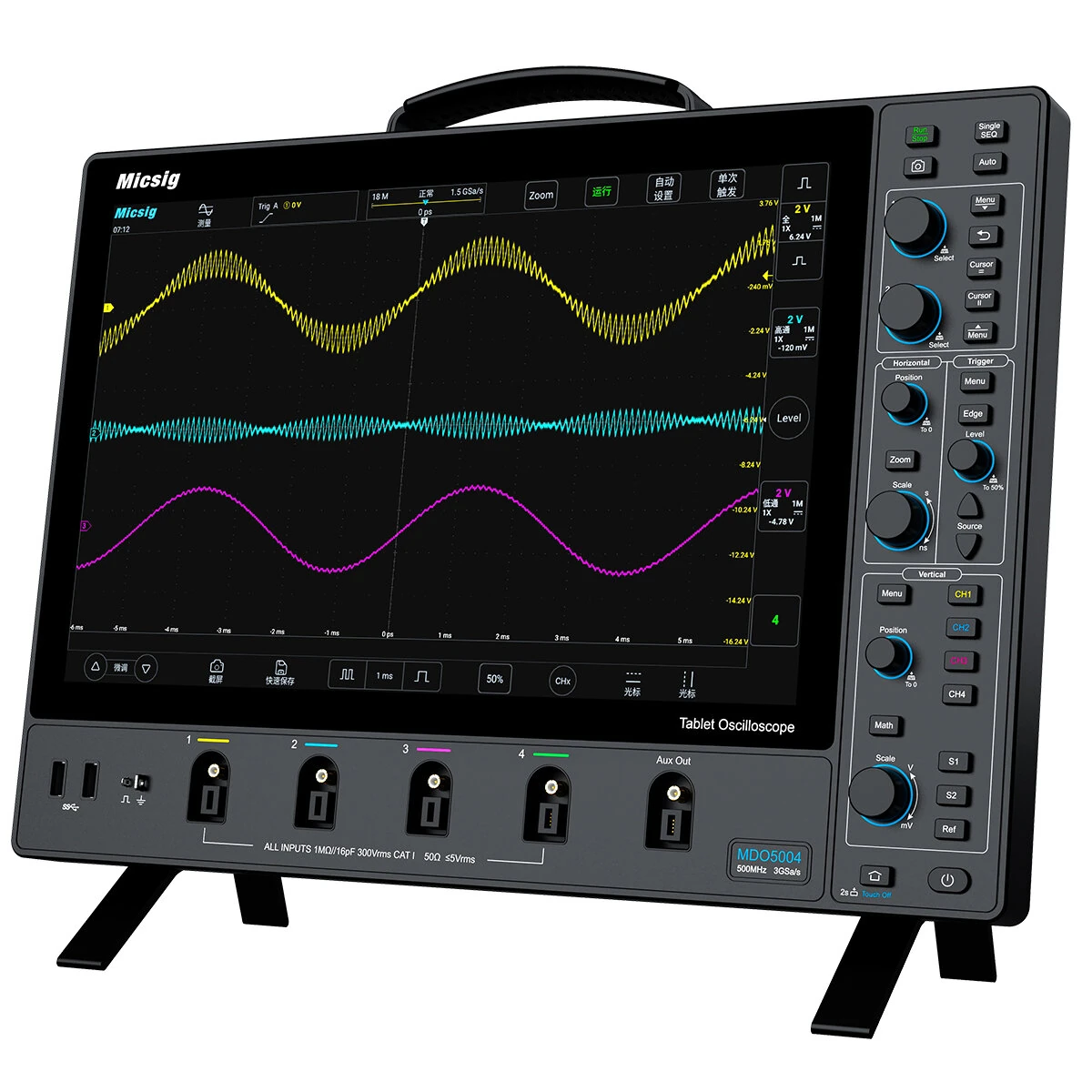

MICSIG MDO5004 Digital Oscilloscope | 500MHz 4-Channel | 14 Touch Screen

Product Description

Please click here to download the instruction manual

Features:
High Bandwidth: Experience unparalleled signal fidelity with up to 500MHz bandwidth, ensuring precise measurements on a wide range of signals.

Fast Sampling Rate: Capture detailed signal information with a sampling rate of 3GSa/s, facilitating accurate and exhaustive waveform analysis.

Extensive Memory Depth: Handle complex waveforms effortlessly with 360Mpts memory depth, allowing extended data capture and analysis without compromising accuracy.

User-Friendly Interface: Navigate and interact seamlessly on a 14" TFT LCD touch screen with 1920*1200 resolution, making waveform inspection intuitive and efficient.

Versatile Connectivity: Connect and export data effortlessly through various interfaces including USB 3.0 Host, USB type-C, LAN, High-Definition Multimedia Interface, and Trigger out, ensuring versatile data handling and integration options.

Specifications:
Model Options: MDO5004, MDO3504, MDO2504
Bandwidth: 500MHz (MDO5004), 350MHz (MDO3504), 250MHz (MDO2504)
Rise Time: ?? 0.7ns (MDO5004), ?? 1ns (MDO3504), ?? 1.4ns (MDO2504)
Analog Channels: 4
Sampling Rate: 3GSa/s
Memory Depth: 360Mpts
Waveform Capture Rate: 230,000 wfms/s
Vertical Resolution: 8 bits
Noise: < 90??Vrms
Bus Decoding (Std.): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B
Interfaces: USB 3.0 Host, USB type-C, LAN, High-Definition Multimedia Interface , Trigger out
Display: 14" TFT LCD touch screen, 1920*1200 resolution
Trigger Types: Edge, Pulse Width, Nth Edge, Runt, Slope, Time Out, Video, Serial

Package Included:
1 x Digital Oscilloscope (Model as your choice)
1 x Power Cord (EU Plug)
4 x Probes
1 x USB Cable
1 x LAN Cable
1 x High-Definition Multimedia Interface Cable
1 x User Manual
