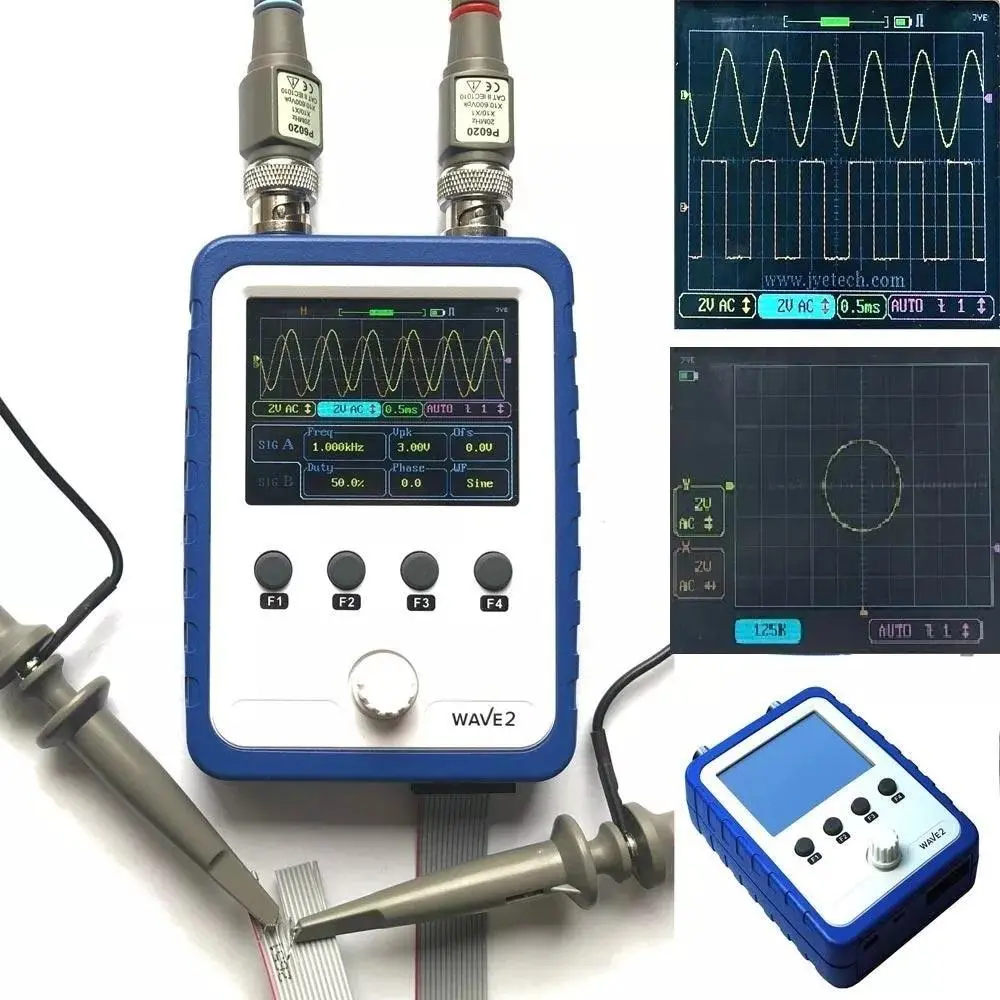

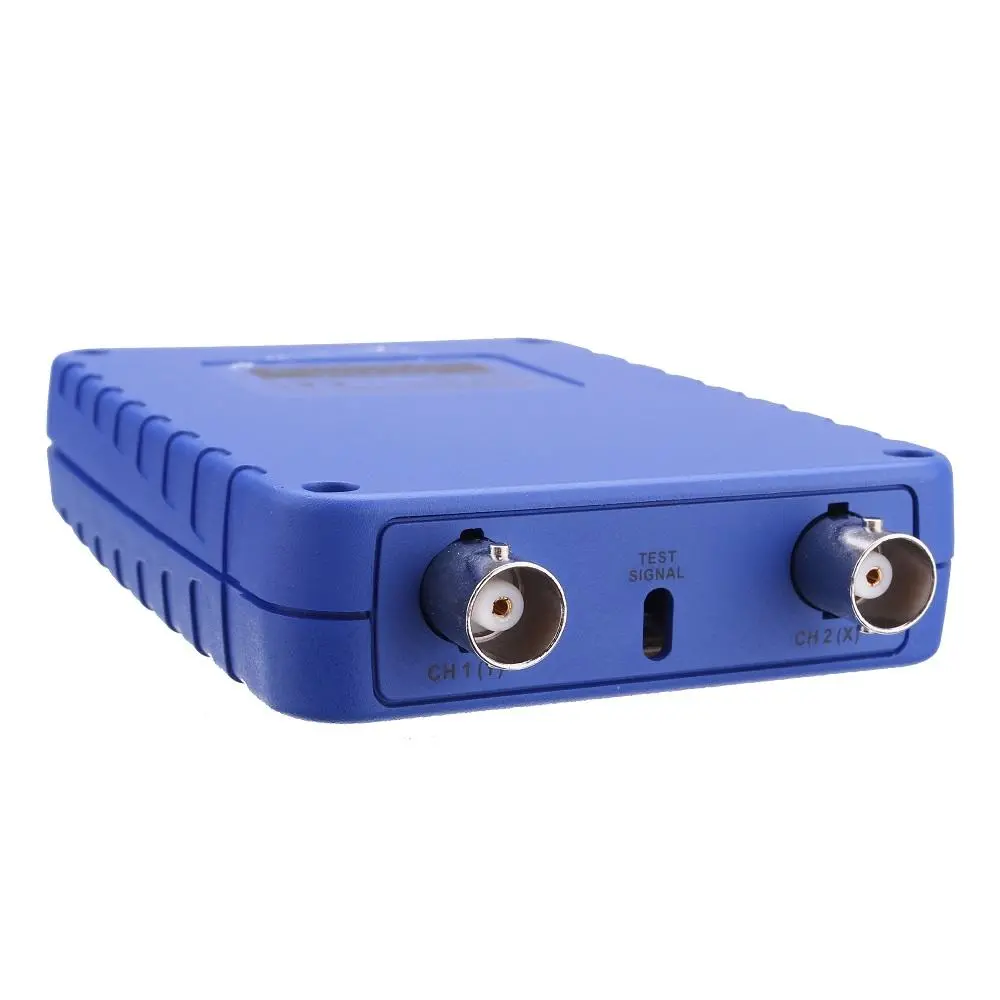

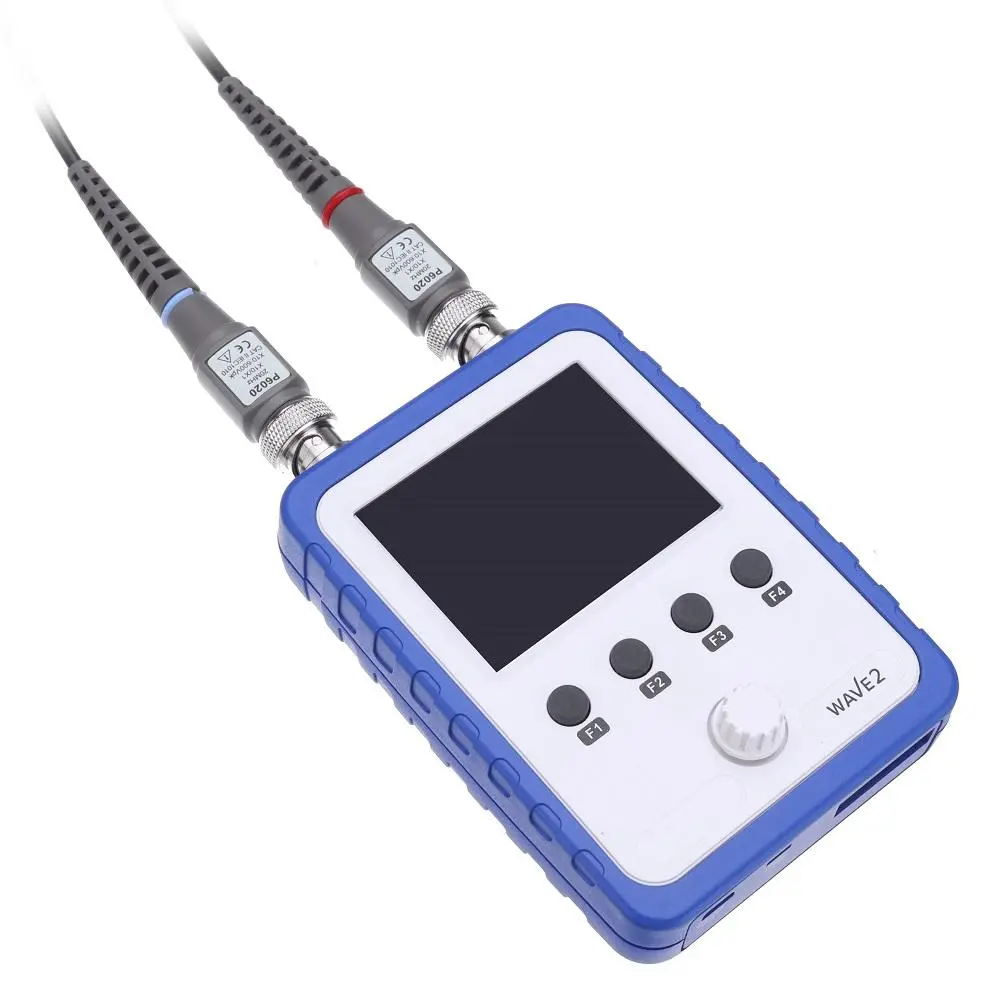

JYE Tech DSO150 Digital Oscilloscope - Dual Channel Touch Screen & DDS Function Generator
$117.00
$143.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

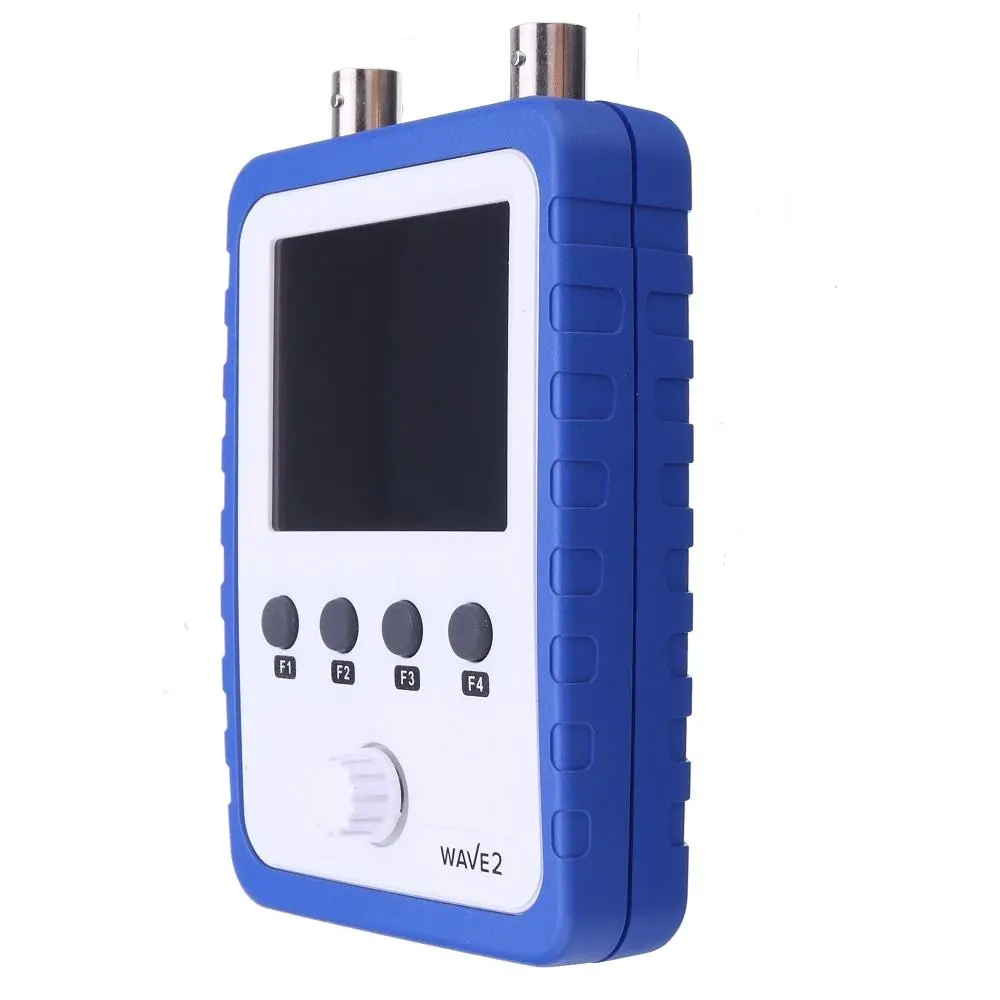

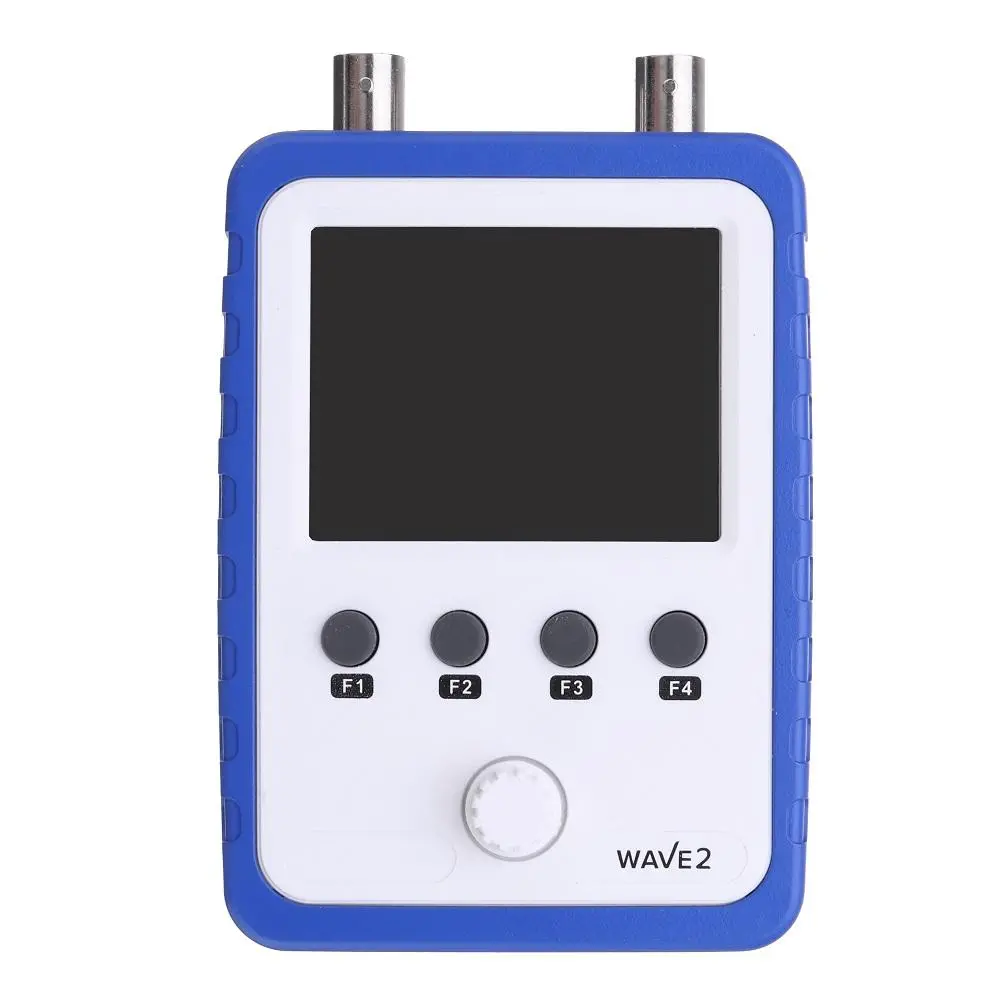

Description: JYE TECH WAVE2 is the latest 2-Channel Oscilloscope on the market, catered to hobbyists, educational institutions and professionals in the field of electronics and mechatronics. Featuring a bright and easy-to-use color touch screen display with access to many features only advance oscilloscopes offer such as built-in function generator and X-Y plotting. With an optional battery, it is portable enough to be taken wherever the jobs that need to be done is. Its an exciting project for any DIY-er, or can be purchased fully assembled for those who are looking to start using it right away. It comes with everything you need out of the box, with a micro-USB cable and two high-quality BNC probes. Enjoy and start creating!For data transfer and program update, please buy product ID: 1597439 Features: Channels: 2 Bandwidth: 0-200KHz per channel Sensitivity range: 5mV/DIV-20V/DIV (using x1 probe) Maximum input voltage: 50Vpk (using x1 probe) Maximum real time sampling rate: 1MS/s Time Base range 10us/DIV-500s/DIV X-Y Display Feature: Yes Function Generator Capability: Built-in 0 ?C 20KHz (sine) dual channel DDS function generator Display Resolution: 320 x 240 Color display Display Size: 2.4?? Touch Display Capability: Yes General: Touch panel operation Y-X mode available Built-in 2-channel DDS function generator Light weight and portable Vertical: Number of Channel: 2 Analog Bandwidth: DC-200KHz Sensitivity: 5mV/Div - 20V/Div (with x1 probe) Sensitivity error: < 5% Resolution: 12-bit Input Impedance: 1M ohm / 25pF Maximum Input Voltage: 50Vpk Coupling: DC, AC Horizontal: Max Real-time Sampling Rate: 1Msps (per channel) Timebase: 10us/Div - 500s/Div Record Length: 1024 points Trigger: Trigger Modes: Auto, Normal, Single Trigger Types: Rising/falling edge Trigger Position: 1/2 of buffer size Trigger Source: Ch1, Ch2, External Maximum external trigger voltage: 15V External trigger threshold Function Generator: Number of channel: 2 Waveform type: Sine, Square, Saw-tooth, Stair Frequency range: DC-20KHz (Sine) Amplitude range: 0-3V (peak value) Offset: 0V or +3.3V Duty Cycle: 0- 100% Phase: -360~360 degree Power Supply: Powered on 3.7V Li-ion battery or USB(battery included) Current consumption: ~300mA @ 3.7 ?C 5V Automatic power off on battery Battery running time: Appr. 3hrs (when fully charged) Other Features: Y-X display mode On-screen measurement display Save / recall up to 4 captures Serial output of captured data Serial port format: LVTTL, 115200bps, 8N1 Built-in 1KHz/3.3V test signal Package included: 1 x WAVE2 oscilloscope 2 x BNC x1/x10 selectable probes
Details Pictures:
