Hantek 6254BD 4CH 250MHz USB Oscilloscope | 1GSa/s, 64K Depth, AWG & FFT

Product Description

Specifications:
Model: Hantek 6254BD
Bandwidth: 250MHz
Channel: 4CH
Real-Time Sampling Rate: 1GSa/s
Memory Depth: 64K
Time Base Precision: ??50ppm
Time Base Range: 2ns/div - 1000s/div
Input Impedance: 1M?? 25pF
Input Sensitivity: 2mV/div - 10V/div
Vertical Resolution: 8 bits
Trigger Mode: Edge, Pulse, Video, Alternative
Waveform Generator: 25MHz, Arbitrary Waveform Generator mode
Waveform Generator Vertical Resolution: 12 bits
Waveform Generator Sampling Rate: 200MSa/s
Dimensions: 175mm x 105mm x 25mm
Weight: 0.9kg
Supported Operating Systems: Windows 7, Windows 8, Windows 10

Features:
1.High-Performance Oscilloscope with 4 Channels
This device offers 1GSa/s maximum real-time sampling rate and a bandwidth of up to 250MHz, ensuring precise signal analysis for advanced engineering applications.
2.Function/Arbitrary Waveform Generator
Equipped with a 200MSa/s DDS, it has a 12-bit resolution capable of generating precise standard and customizable waveforms for varied signal testing needs.

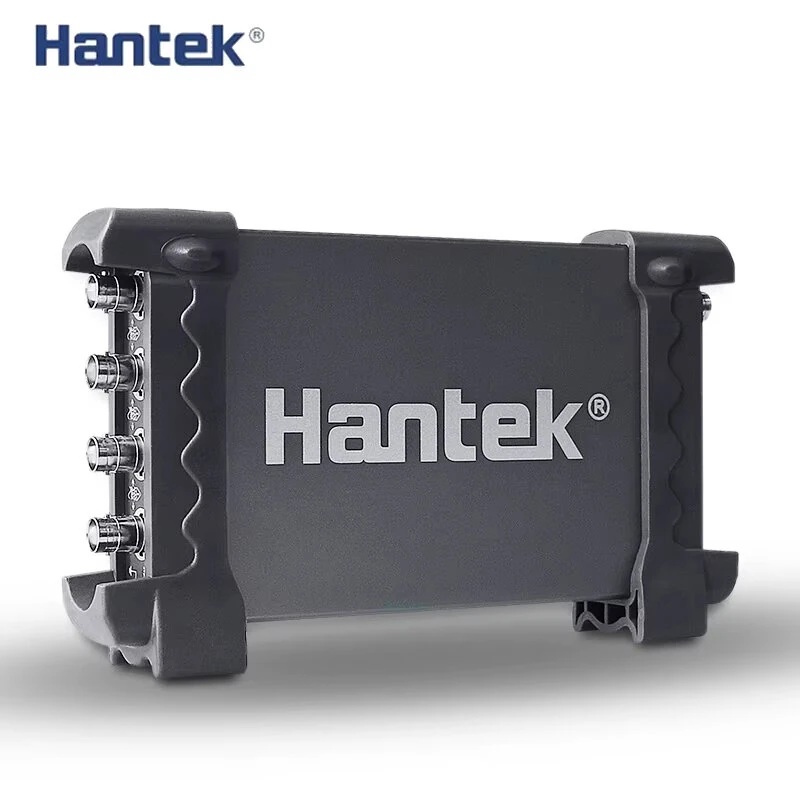

3.Compact and Lightweight Design
The anodized aluminum casing enhances heat resistance while maintaining a sleek appearance. Its portable form factor makes it ideal for mobile labs and production environments.
4.Comprehensive Measurement Features
Includes over 20 automatic measurement functions, dynamic cursor tracking, and advanced mathematical tools like FFT spectrum analysis for detailed signal insights.
5.Versatile Connectivity with USB2.0 Interface
Enabled for Plug-and-Play operations, it supports waveform export to Excel, BMP, and JPG formats, allowing seamless integration with engineering workflows.

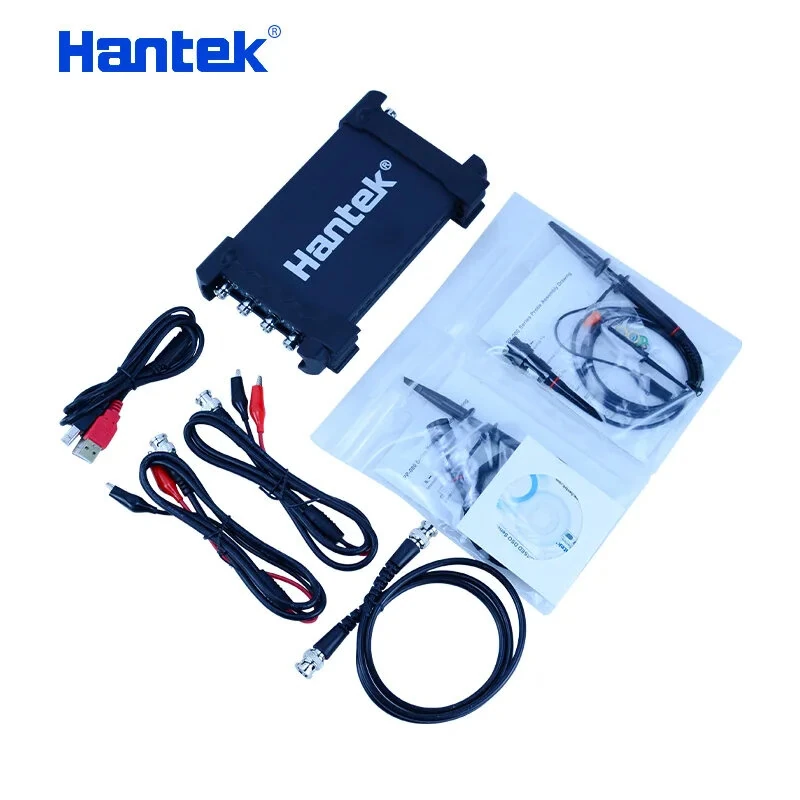

Package Included:
1 x Oscilloscopes
2 x Passive Probes
2 x Gator Clip Lines
1 x BNC to BNC Cord
1 x USB Cable
1 x Software CD
1 x User Manual
