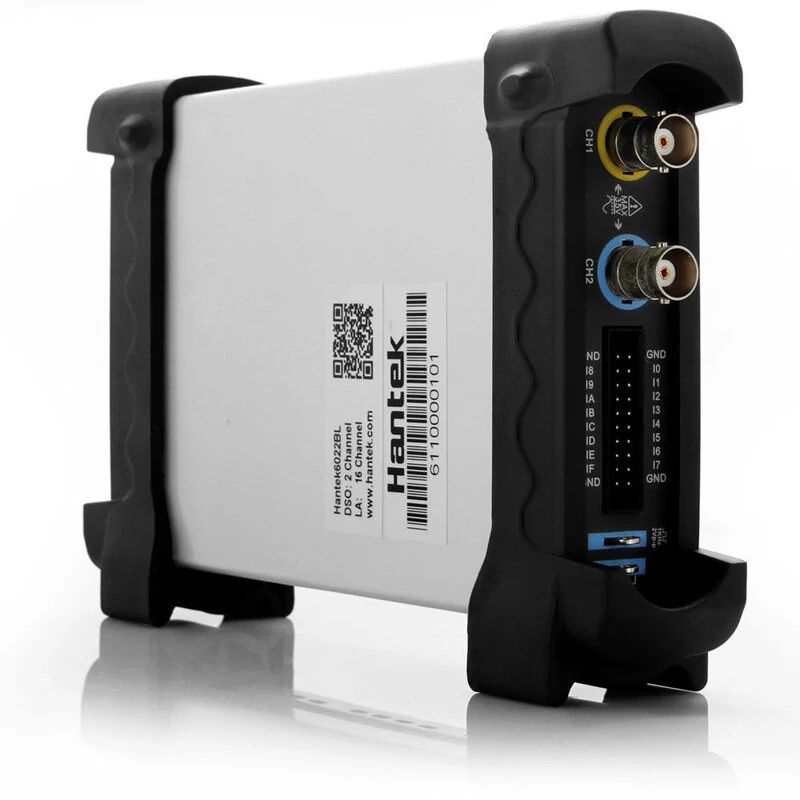

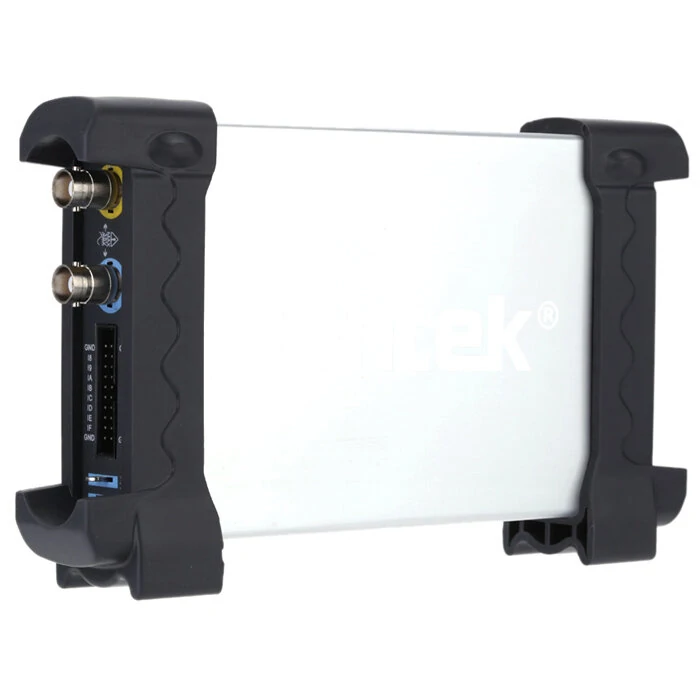

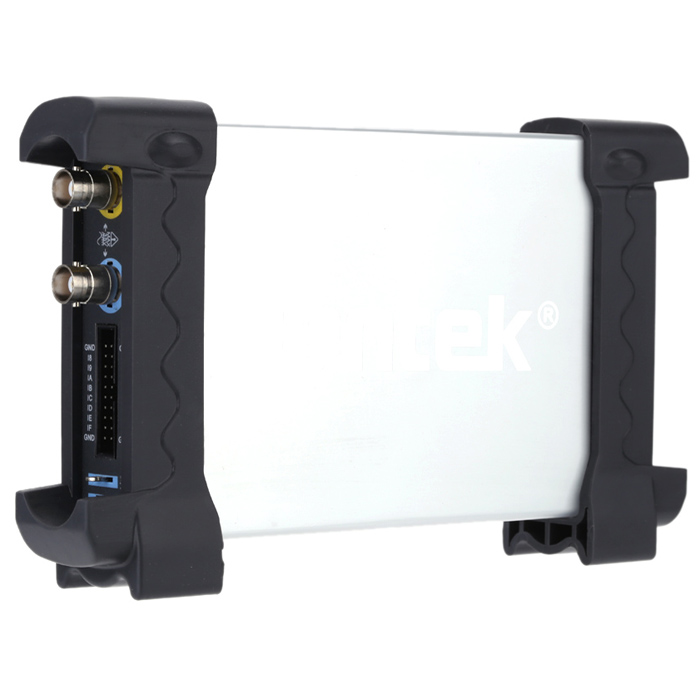

Hantek 6022BL USB Oscilloscope - 2 Channels 48MSa/s | 16CH Logic Analyzer
$146.00
$179.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

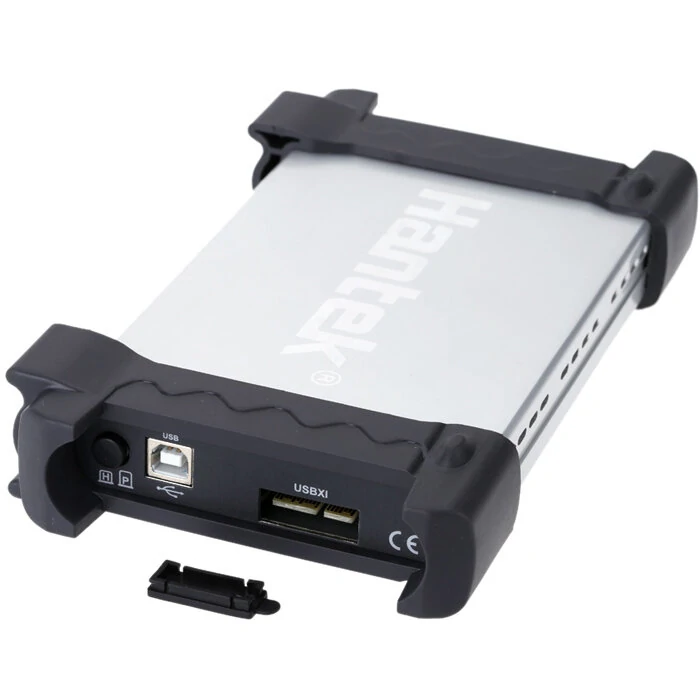

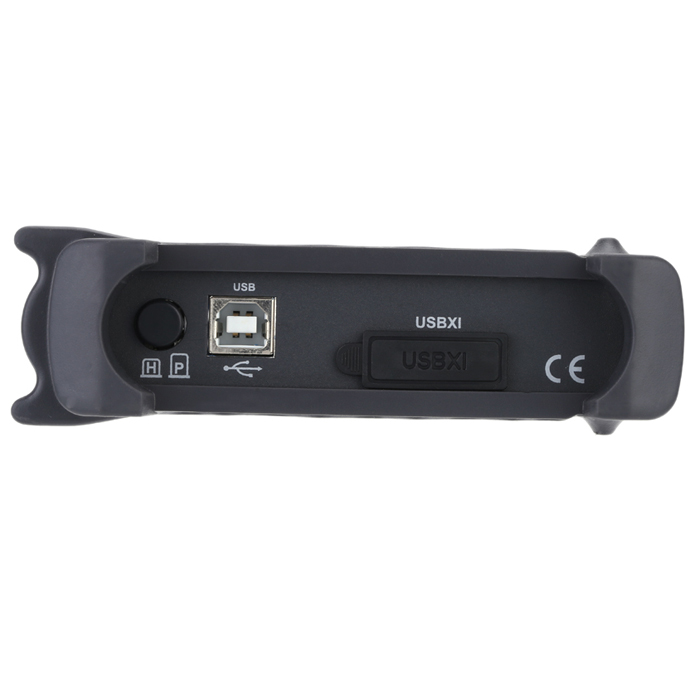

Features:-Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. -Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. -USB2.0 interface, no external power source required, easy to use. -Be suitable for notebook computer, product line maintenance, be used easily on business. -Dimensions (mm): approx. 205(L) x120(W) x35(H). -High performance, 48MS/s real-time sampling, 20MHz bandwidth. -16Channels Logic Analyzer, 20MHz Bandwidth.
-Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA. -23 measurement functions, PASS/FAIL Check, be suitable for technical application. -Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot. -Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. -FFT. -One computer can connect many DSO, extend channel easily. -PID/VID Second Design instance.
Specifications:
| Model | Hantek6022BL |
| Oscilloscope Features | |
| Bandwidth | 20MHz |
| Channel | 2(Digital)+16(Logic) |
| Sample Rate | 48MSa/s |
| Memory Depth | 1M |
| Rise Time | 17.5ns |
| Time Base Precision | 50ppm |
| Time Base Range | 4ns/div-1h/div (Step by1-2-4) |
| Input Impendence | 1M 25pF |
| Input Sensitivity | 10mV/div-5V/div |
| Vertical Resolution | 8Bit |
| Vertical Position Range | 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; 1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe |
| DC Accuracy | 3% |
| Bandwidth Limited | 20MHz |
| Trigger Type | Edge, Alternative |
| Trigger Source | CH1, CH2, EXT, EXT/10 |
| Math | +,-,x,??,FFT, Invert |
| Cursor Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Logic Analyzer Features | |
| Channel | 16 |
| Max. Impendance | 1M(C=7.5pF) |
| Max. Voltage | 0V~5.5V |
| Max. Sample | 48M |
| Bandwidth | 10MHz |
| Compatible Input | TTL, LVTTL, CMOS |
| Memory Depth | 1M/CH |
| General Features | |
| Power | USB Port |
| Dimensions | 205mm x 120mm x 35mm |
| Weight | 0.382KG |
| Standard Probe | 2 x PP80 |

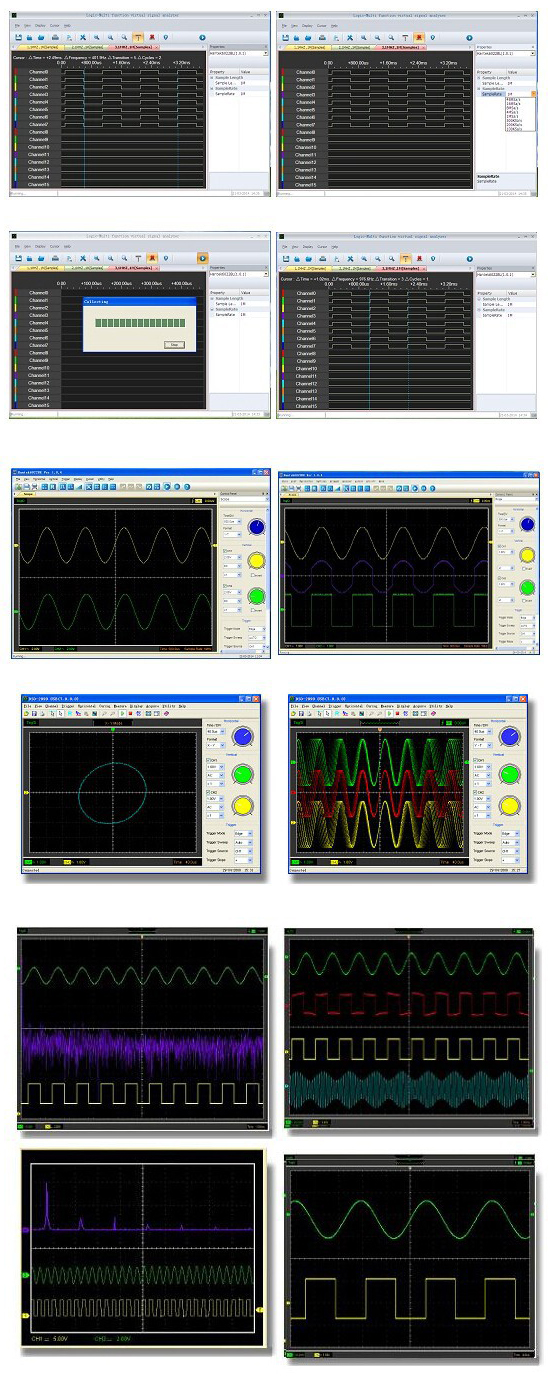

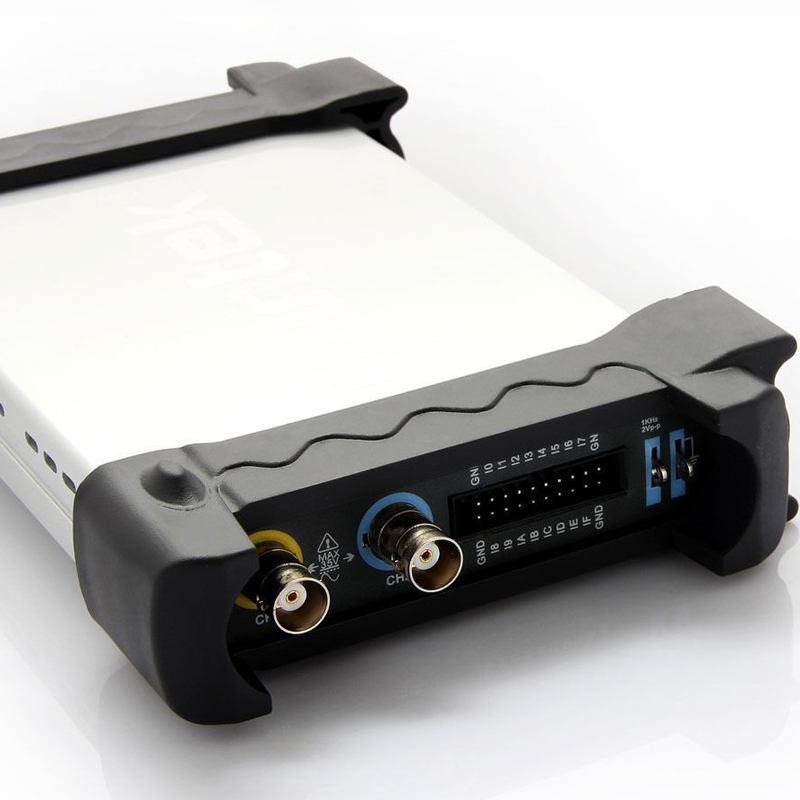

Function Picture:
Pacakge included:

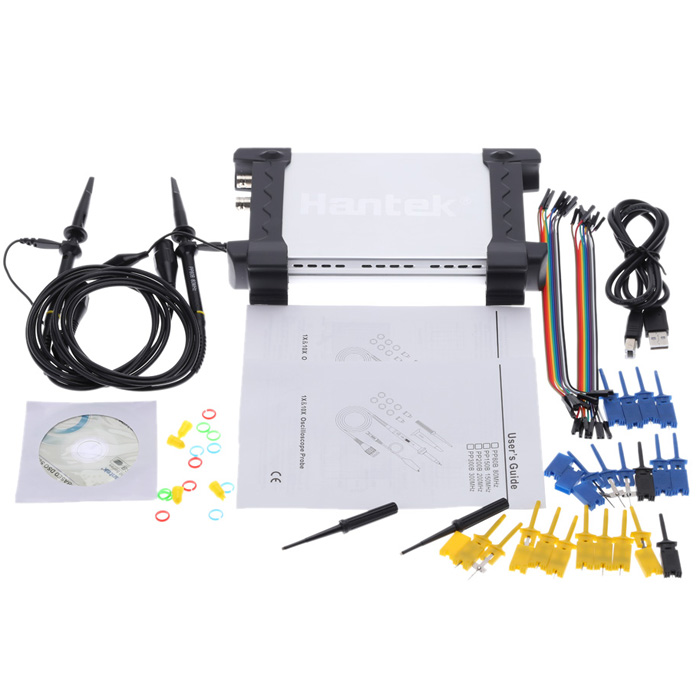

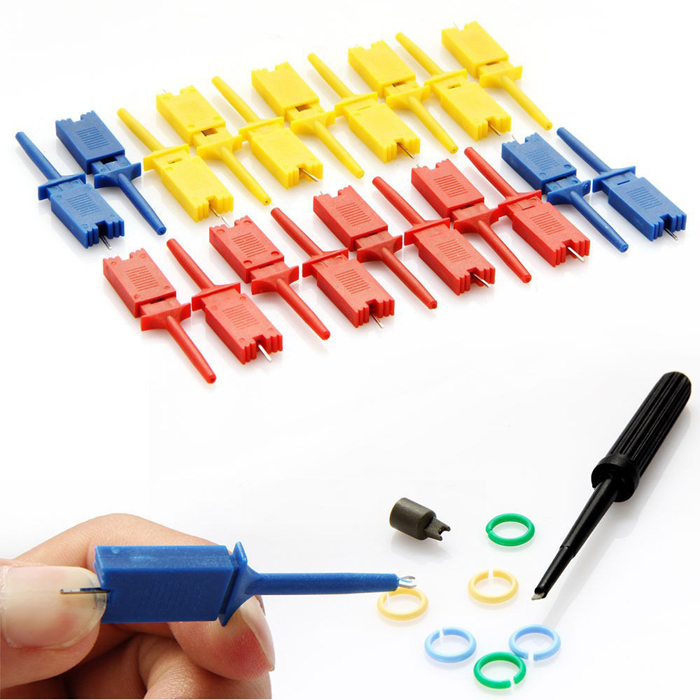

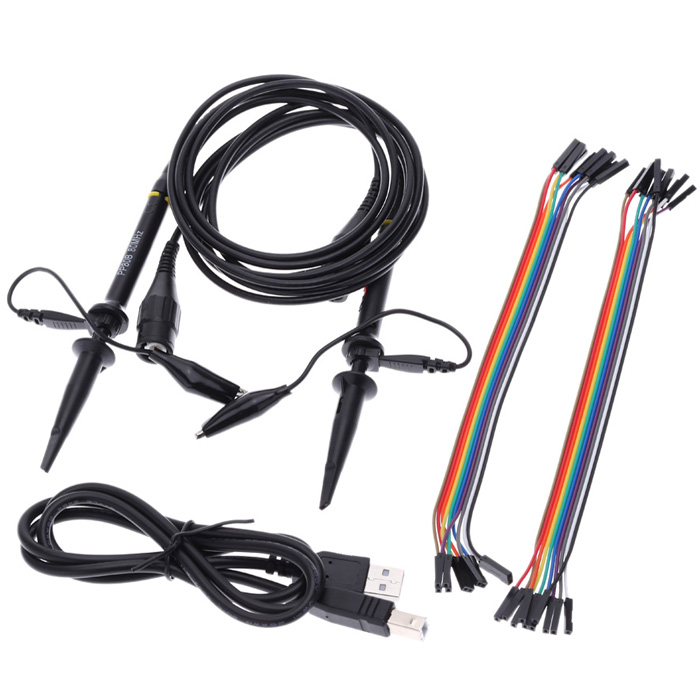

1 x 6022BL Oscilloscope 2 x Oscilloscope Probe 1 x USB Cable 1 x Jumper Clip Set (Color is Random) 2 x Jumper Cable 1 x CD(manual etc.)
