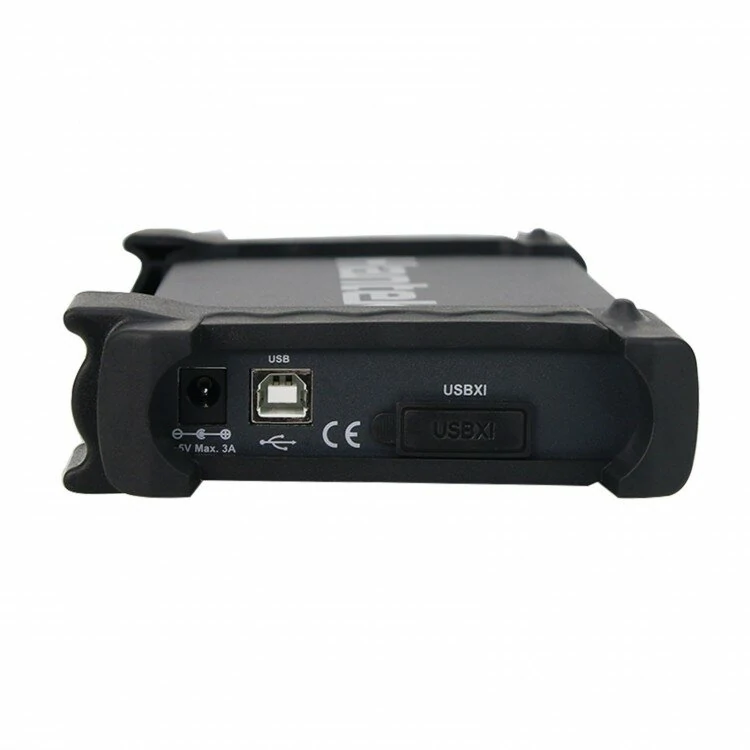

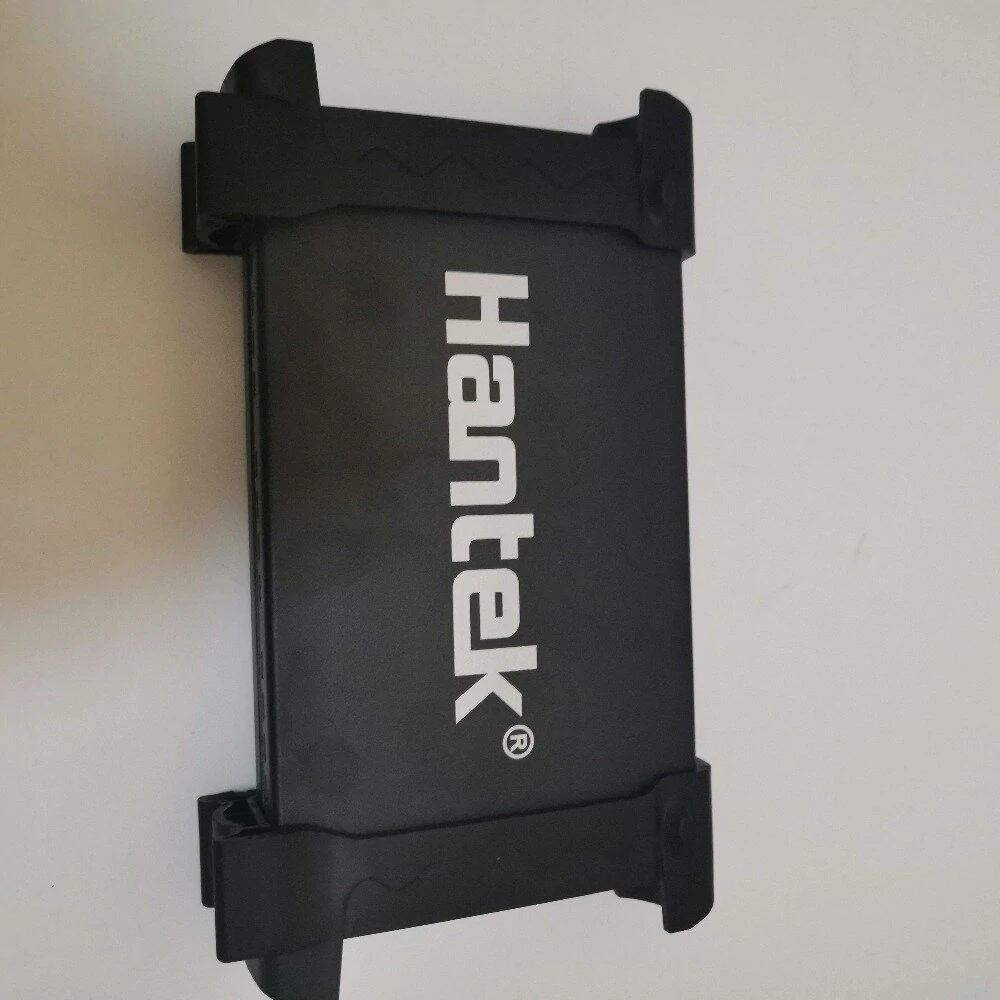

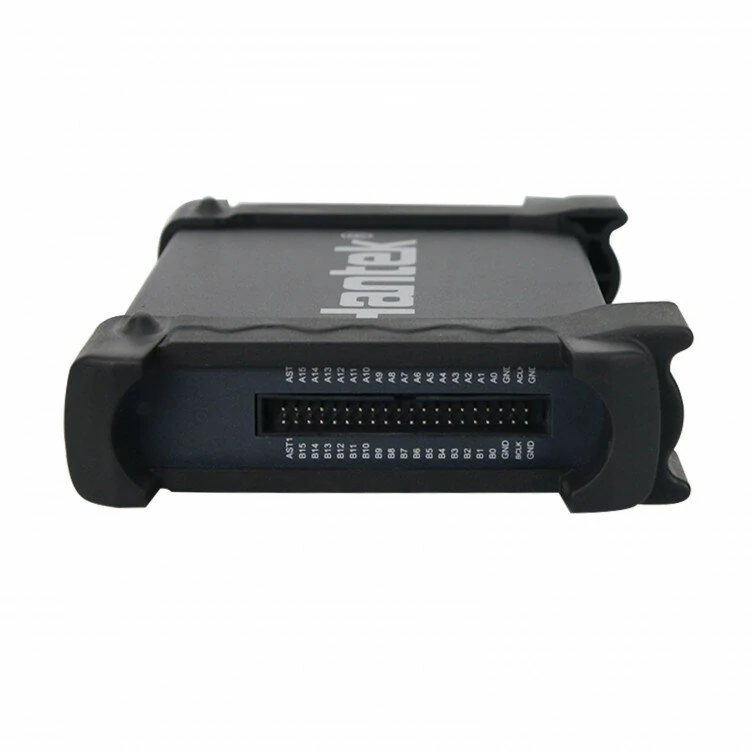

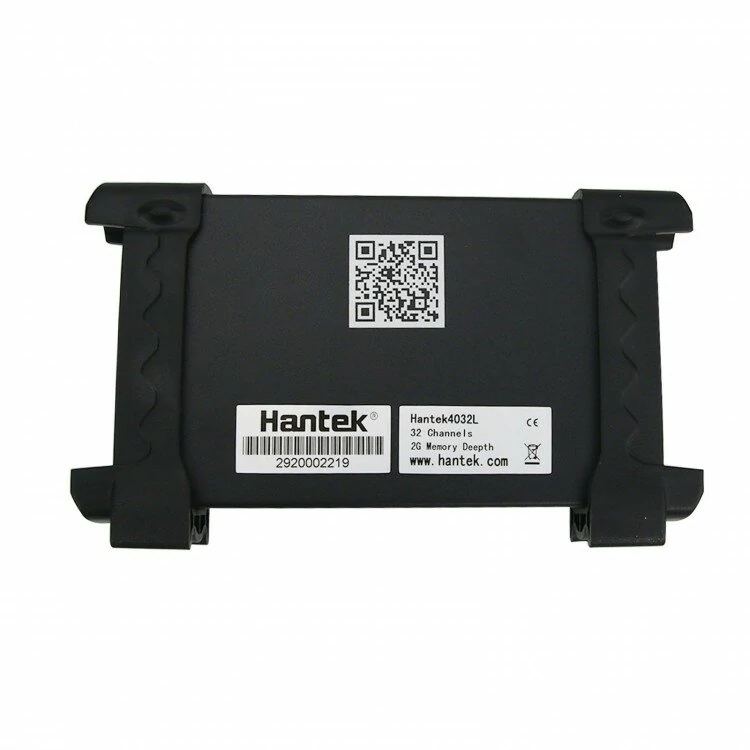

Hantek 4032L 32Ch USB Oscilloscope | 2G Memory Depth | Handheld Logic Analyzer
$286.00
$351.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:The storage depth 2Gbit (DDR2), sampling frequency, 150MHz bandwidth 400MS/s to meet your various needs.Innovative trigger mode and new analysis of measuring means, make you in the measurement of the process more efficient and simple.Hantek4032L can be set in different edge, level, bus, data width trigger mode, easy to use.Innovative data analysis function, makes you more relaxed in the analysis of UART, SPI, I2C and other data.Analysis of two powerful protocol, can ex port CSV, TXT, DOC format, easy to use other tools two analysis.USB2.0 high speed interface, plug and play.Excellent industrial design, similar to desktop oscilloscope interface, easy to use. Specification:
The number of channels: 32The input impedance: 200K(C=10p)Input voltage range: -6V~60VVoltage threshold: -6V~6VThe maximum sampling rate: 400MHzThe maximum input signal bandwidth: 150MHzThe minimum time resolution: 2nsSampling depth: 64M SampleThe storage depth: 2G bitsCompatible inputs: TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIAElectrostatic protection area: 15KVThe host interface: USB PortWorking voltage: 4.5V~5.5VEnergy consumption: Max. 3.5WTemperature range:Operation: -10 ~60 Storage: -40 ~60 Operating system: WinXP/2000/Win7 Package Included:
1 x 4032L USB Oscilloscope
2 x Transfer Plug1 x Wire18 x Measure Clip1 x Cable Line1 x Power Adapter Details Pictures:
