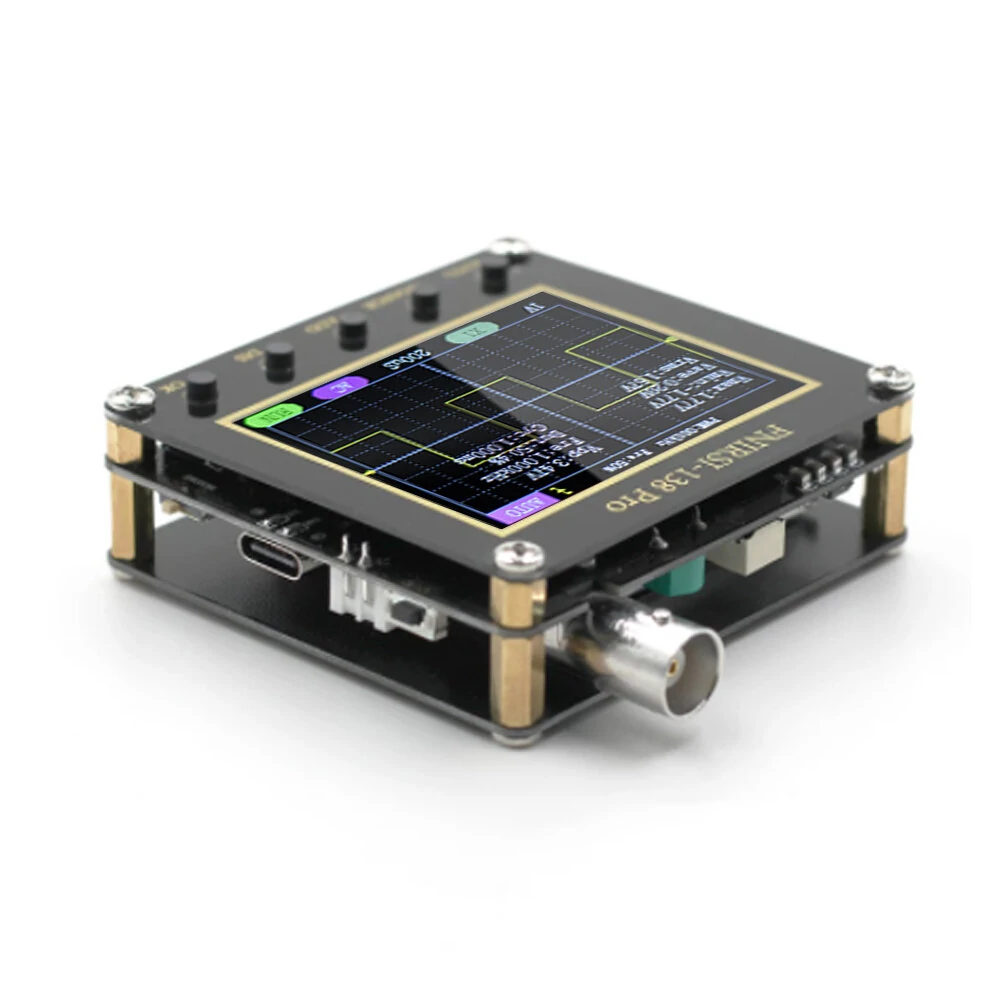

FNIRSI 138Pro Digital Oscilloscope - 2.4 Display | Auto PWM & Square Wave Output

Product Description

Features:

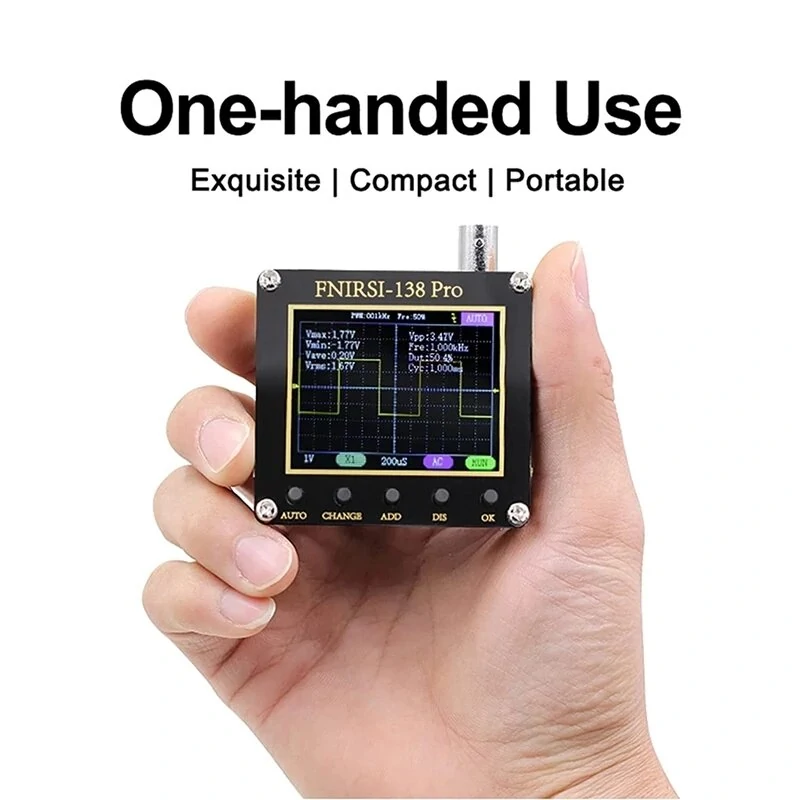

Portable Oscilloscope: Compared with traditional oscilloscopes,this oscilloscope with smaller size and more suitable for carrying around.

One Button Auto Adjust: One button AUTO setting all parameters and quick waveform measurement. Long press AUTO button to quick calibration baseline.

3 Trigger Modes: The singles trigger mode for tests unexpected non-periodic signals, the automatic trigger modes for test period analogs signals and normal trigger is for tests digital logics signals.

PWM Square Waves Output: This oscilloscope with the PWM square waves output function, 0-80kHz frequency ranges and 0-100% duty cycle.

Wide Applications: This oscilloscope is suitable for car repairing, DIY, home appliance maintenance, experiment teaching, etc.

Specifications:

Sampling rate: 2.5MS/s

Bandwidth: 200KHz

Voltage ranges:

X1: ??40V(Vpp:80V)

X10: ??400V(Vpp:800V) (only type3&4)

Trigger modes: Single, Automatic, Normal

Coupled mode: AC/Direct current

PWM output: 3.3V

Frequency: 0-80kHz

Duty cycle: 0-100%

Material: PCB

Battery: 1 * lithium battery, 1250mAh (built-in)

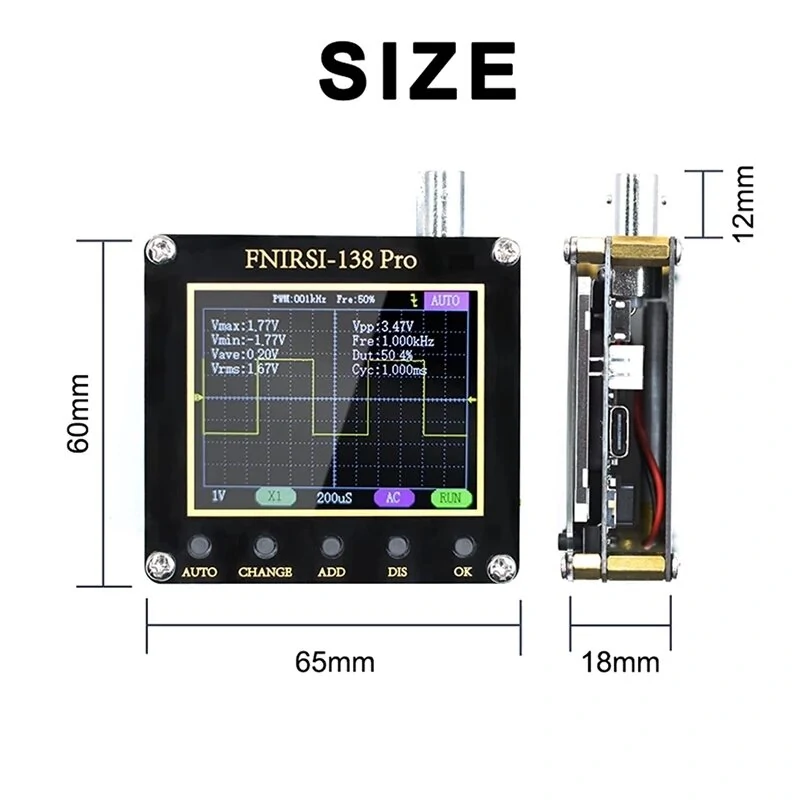

Package size: 65 * 60 * 18mm / 2.6 * 2.4 * 0.8in

Package weight: 72g / 2.5ounce

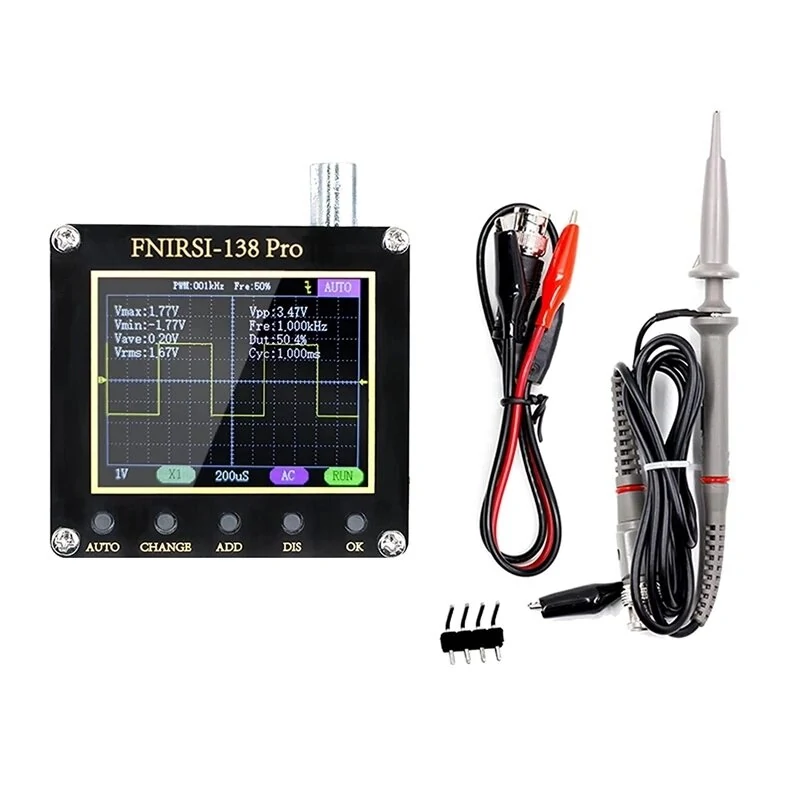

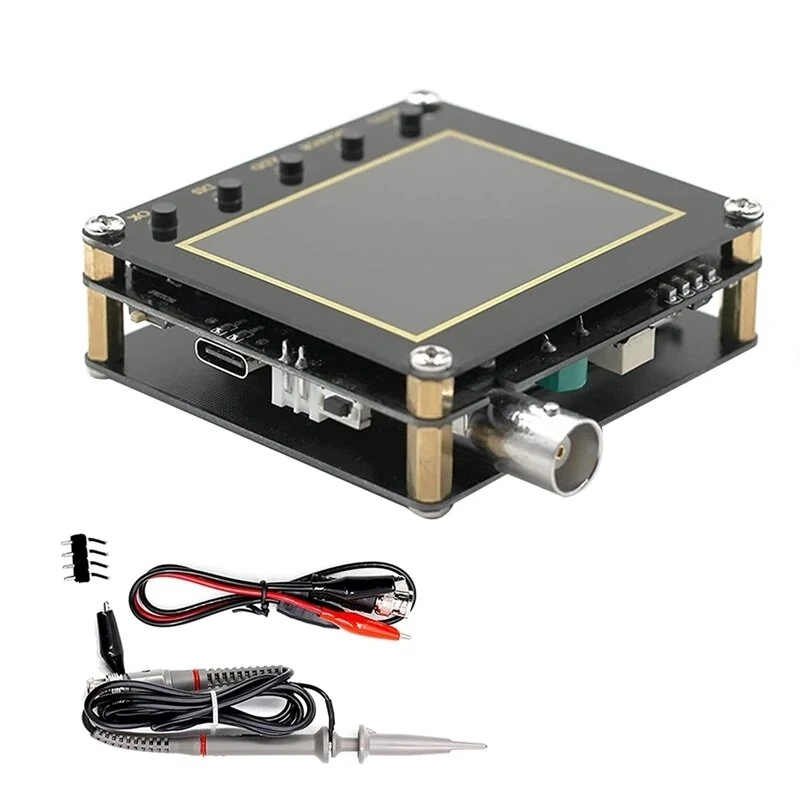

Packing includes:

1 * Digital Oscilloscope(built-in lithium battery)

1 * BNC-clip cable

1 * 10X P6100 probe (Only Type B)
