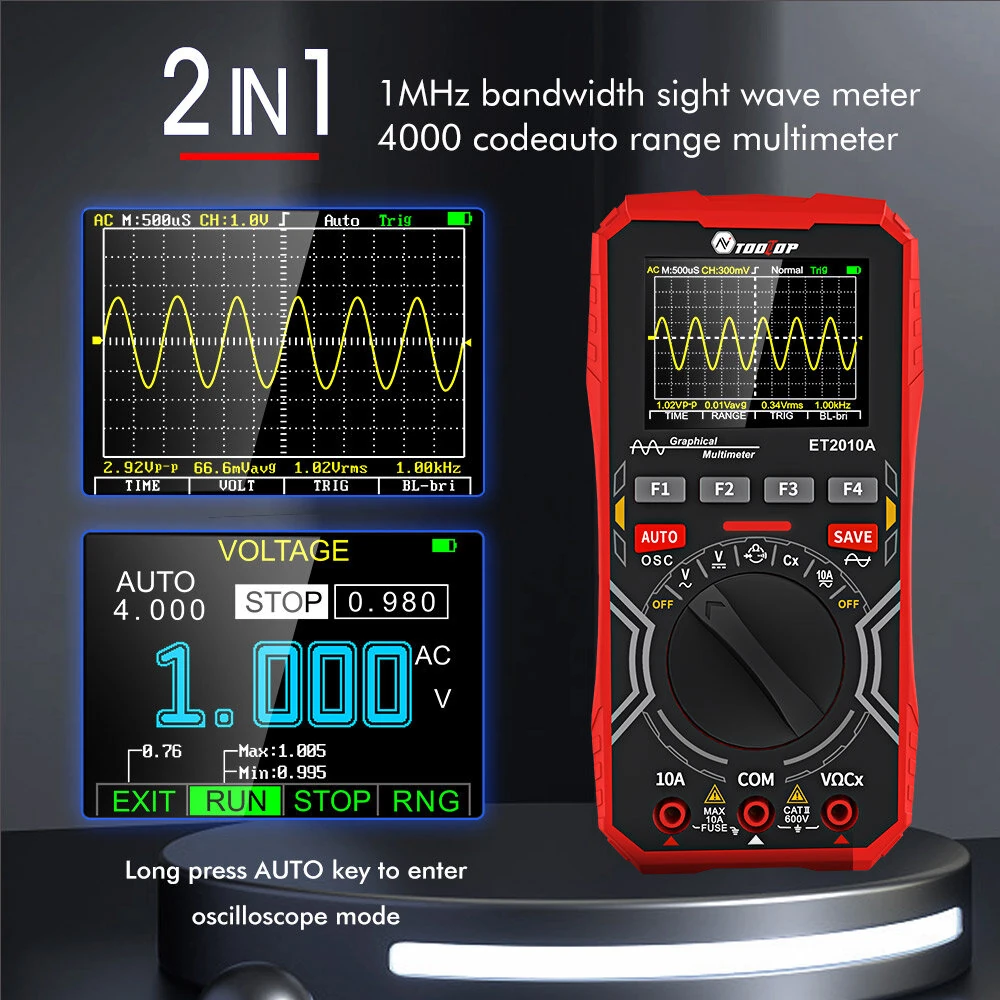

ET2010A Oscilloscope Multimeter | 1MHz Bandwidth 2-in-1 Digital Tester | 2.5Msps

Product Description

Specifications:
Bandwidth: 1MHz
Max Real-Time Sampling Rate: 2.5Msps
Display: 320??240 pixels, with white backlight
Battery: 3 x AA batteries
Storage Capacity: Stores up to 100 data sets and 10 waveforms
Fuse: 10A/250V
Dimensions: 77mm x 157mm x 25.5mm
Weight: Approx. 135g
Operating Environment: Temperature: 0??C ?C +40??C; Humidity: ??75% RH
Storage Environment: Temperature: -10??C ?C +60??C; Humidity: ??90% RH
DC Voltage Range: 400mV?C600V
AC Voltage Range: 400mV?C600V
DC Current Range: 4A?C10A
AC Current Range: 4A?C10A
Resistance Range: 400???C40.0M??
Capacitance Range: 51.2nF?C100??F
Frequency Range: 5Hz?C5MHz
Duty Cycle Range: 0%?C100%
Vertical Sensitivity Range: 300mV?C1000V/div
Timebase Range: 2.5??s?C10s/div
Input Resistance: Approx. 10M??
Waveform Measurement Functions: Vp-p, Vavg, Vrms, Hz
Trigger Modes: Auto, Single, Normal
Trigger Edge Selection: Rising/Falling edge

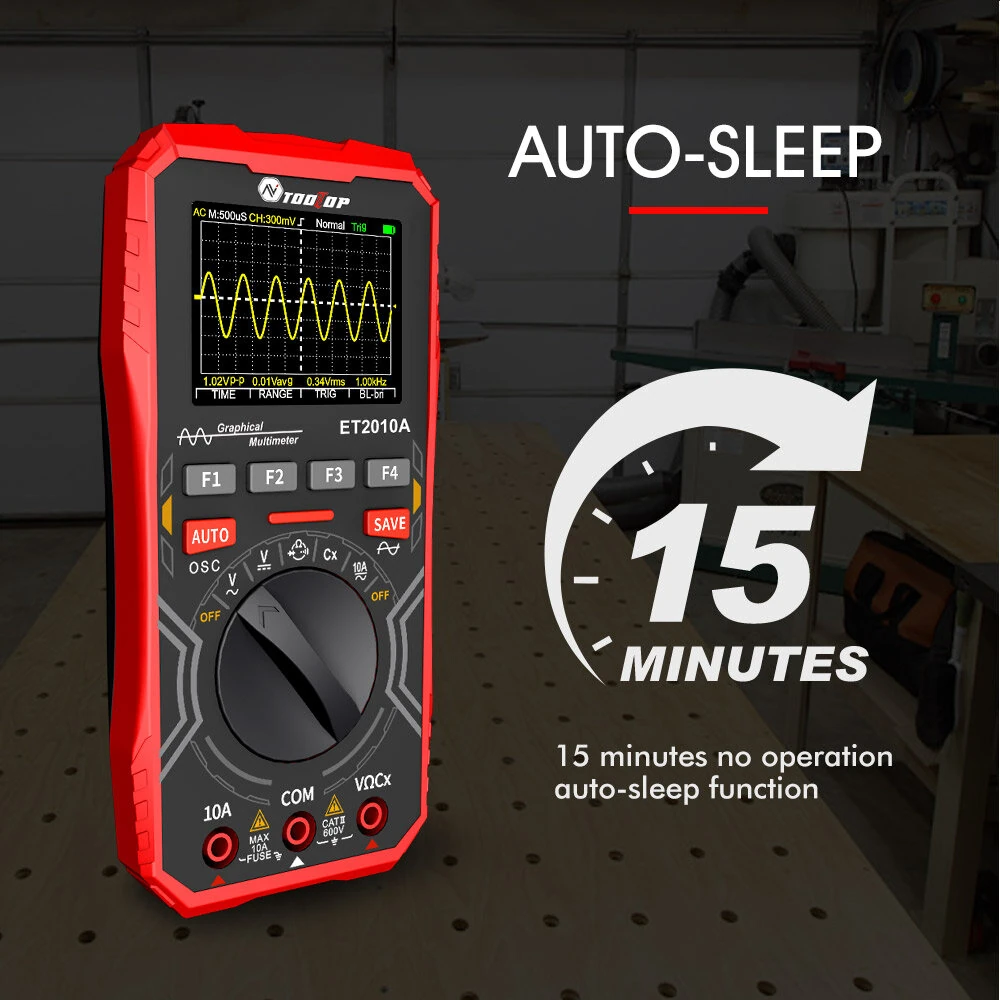

Automatic Sleep: After 15 minutes (optional disable feature)

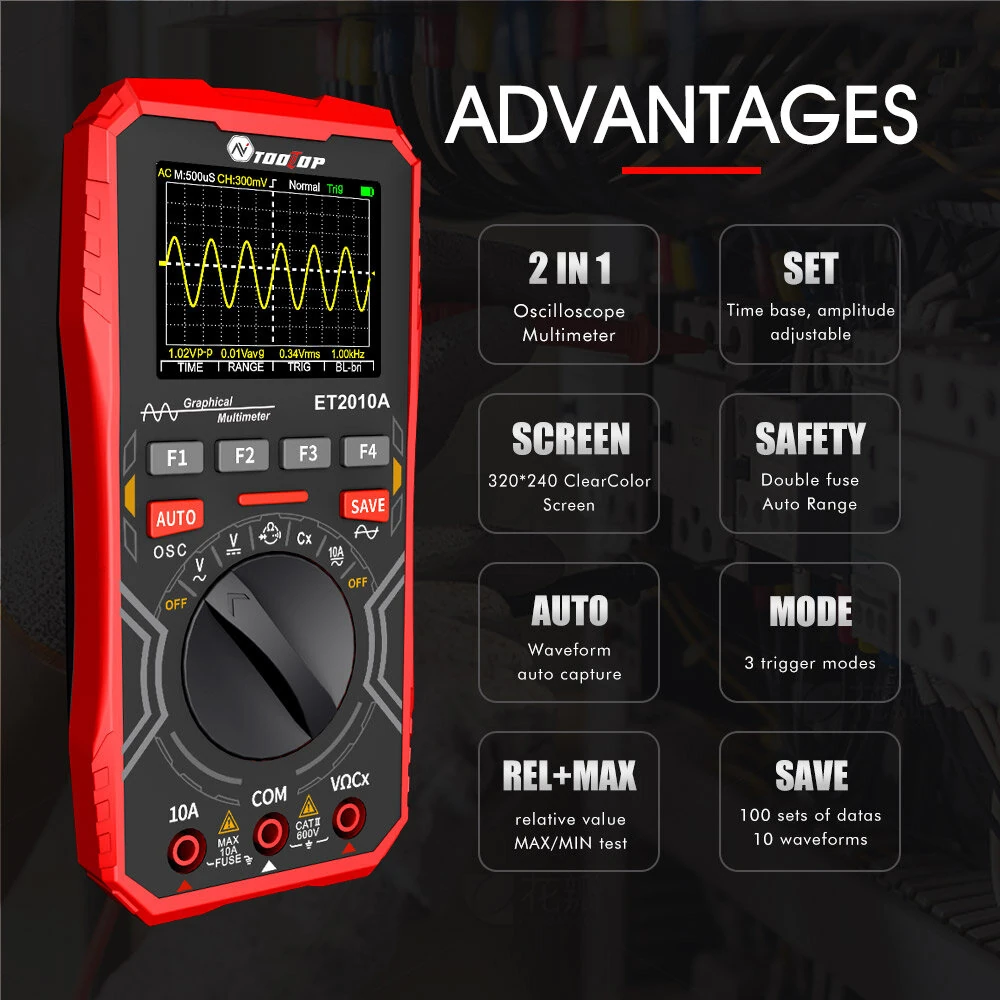

Features:
1)2-in-1 Functional Design: Combines an oscilloscope and multimeter, making it highly versatile for both waveform analysis and electrical measurements. Suitable for a wide range of professional applications.
2)High-Resolution Display: Equipped with a 320x240 pixel clear color screen featuring white backlight for effortless data visualization, even in low-light settings.
3)Efficient Waveform Capture: Supports real-time sampling at a maximum rate of 2.5Msps, enabling accurate and rapid waveform measurements across various scenarios.

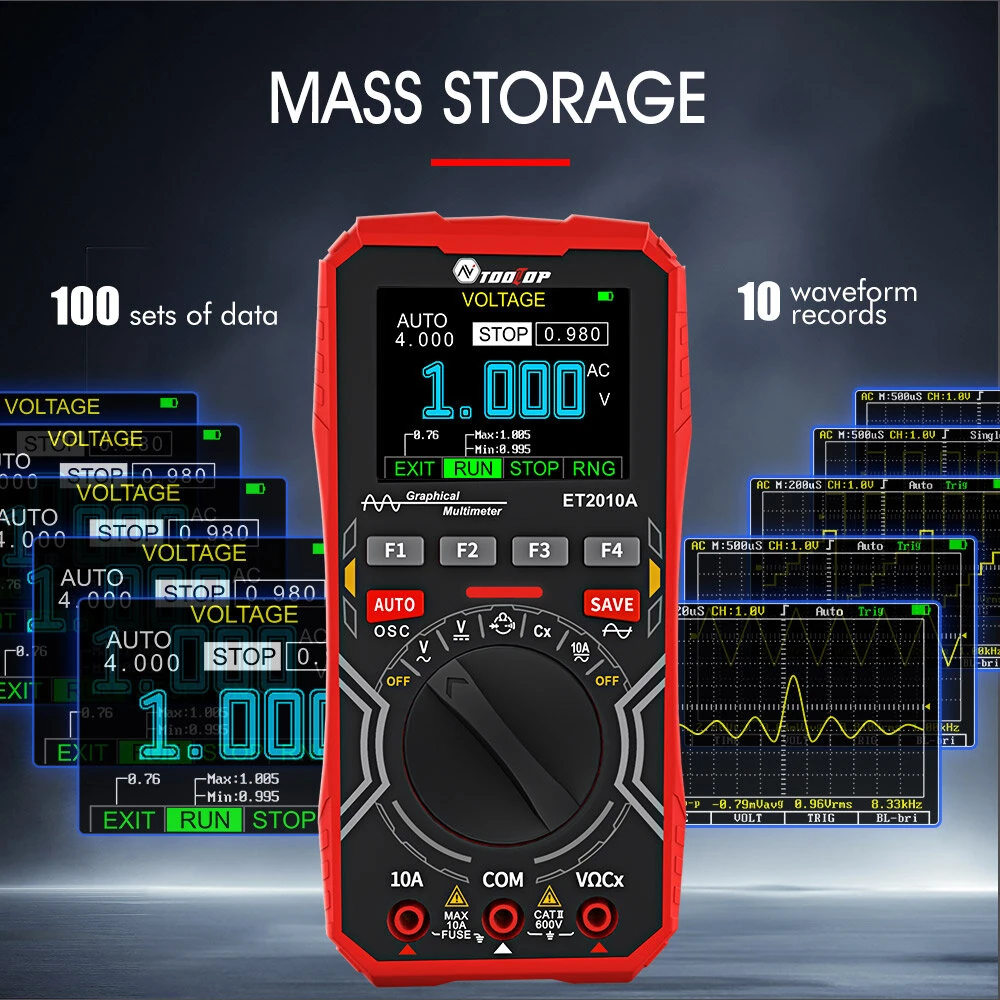

4)Easy Storage and Retrieval: Capable of storing up to 100 data sets and 10 waveforms, ensuring seamless data management for repetitive tests or analysis.
5)Safe and User-Friendly Design: Dual-fuse protection enhances operational safety, while the ergonomic compact design (weighing only 135g) makes it convenient to handle and transport.
Package Included:
1 x ET2010A Oscilloscope Multimeter
2 x Test Probes
1 x User Manual
1 x Protective Carrying Bag
