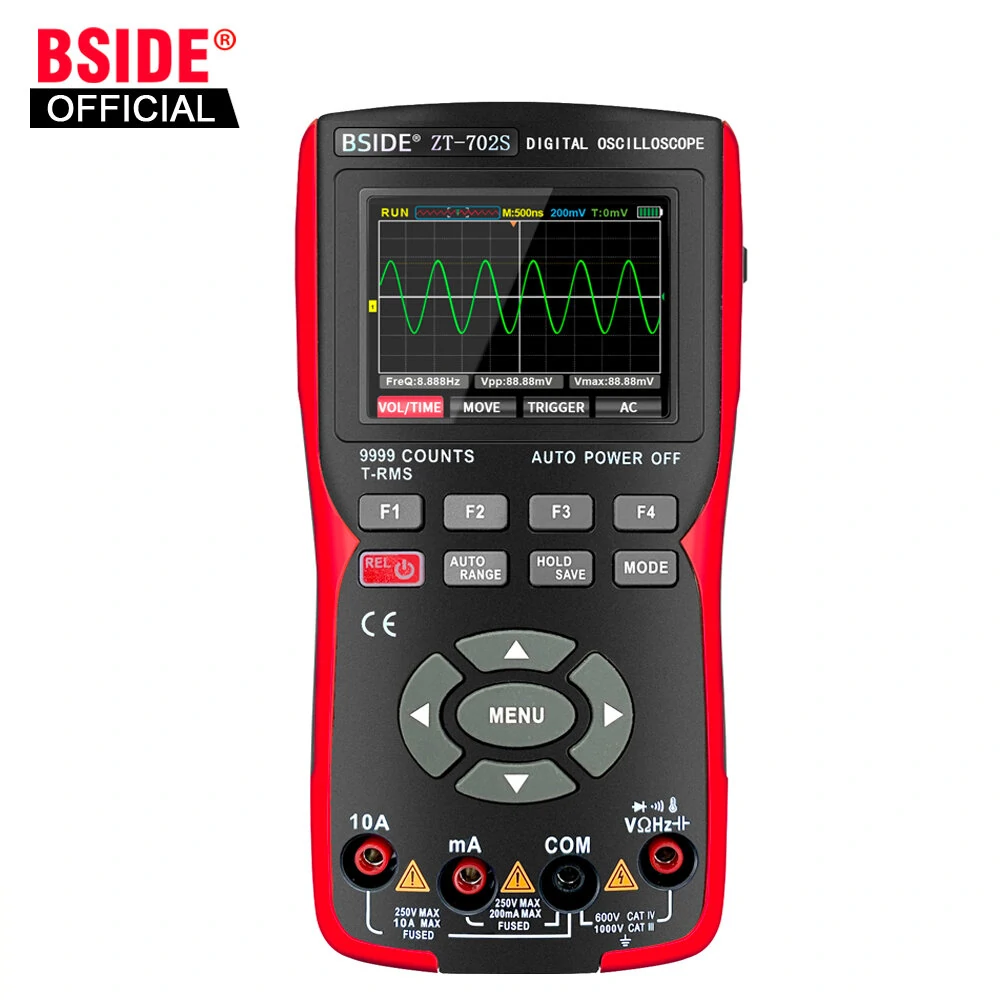

BSIDE ZT702S Multimeter & Oscilloscope - True RMS, 48M/S, 10MHz, PC Data Storage

Product Description

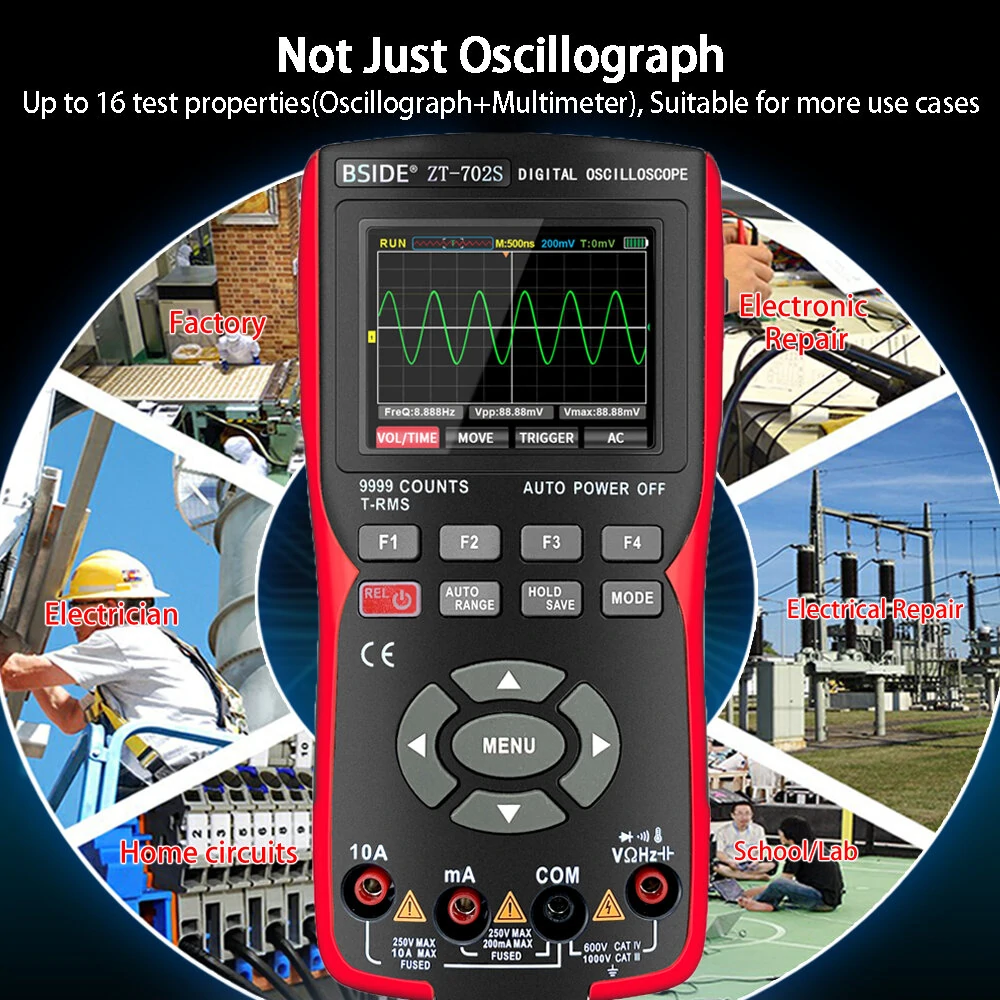

ZT702S is a fully functional, practical and cost-effective handheld Multimeter Oscilloscope newly launched by BSIDE.

>>Please click here to download the Chinese and English manual<<

Features:

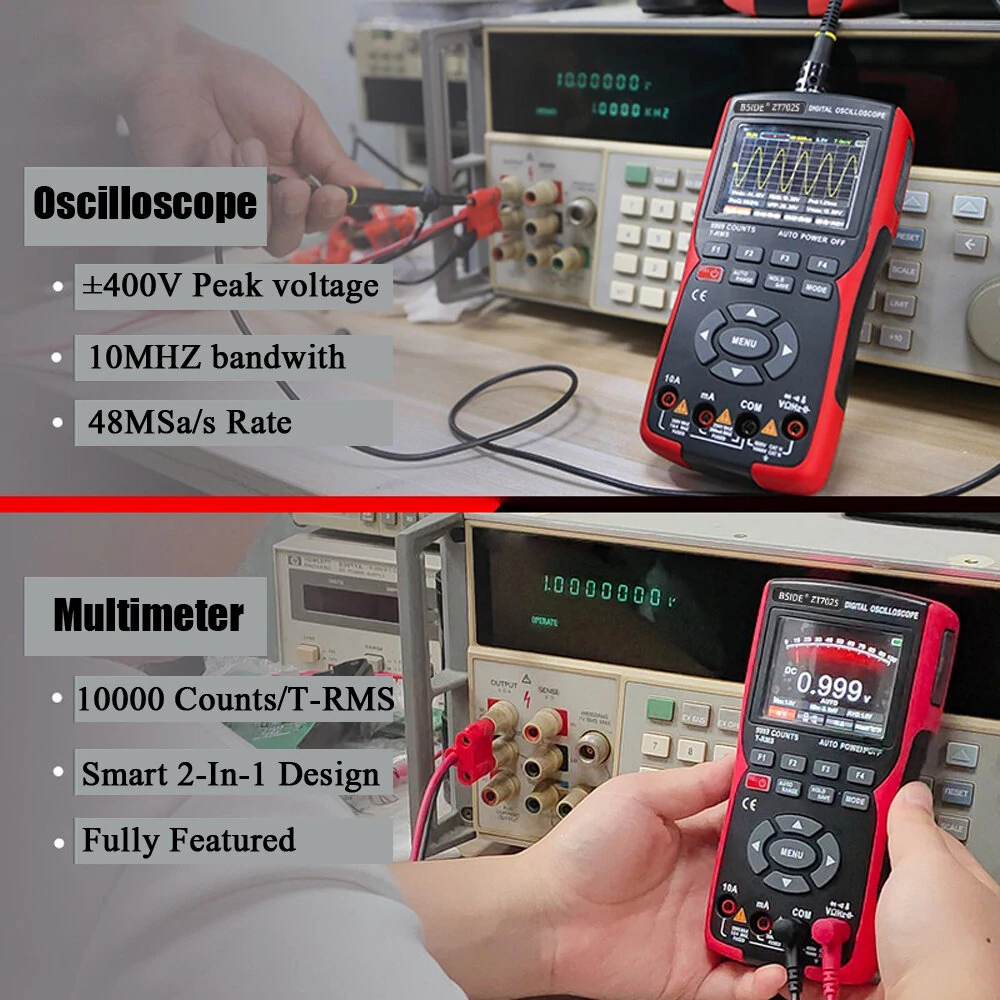

[Scope Mode]: 2.8" IPS color LCD oscilloscope, 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.

[Multimeter Mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.

[Data Saved and Transfer]: The tested data can be saved and transfered.

[Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.

[Rechargeable]: Come with a rechargeable 18650 battery & charging cable, you will never worry about power problem.



Specification:

Display: 9999 counts

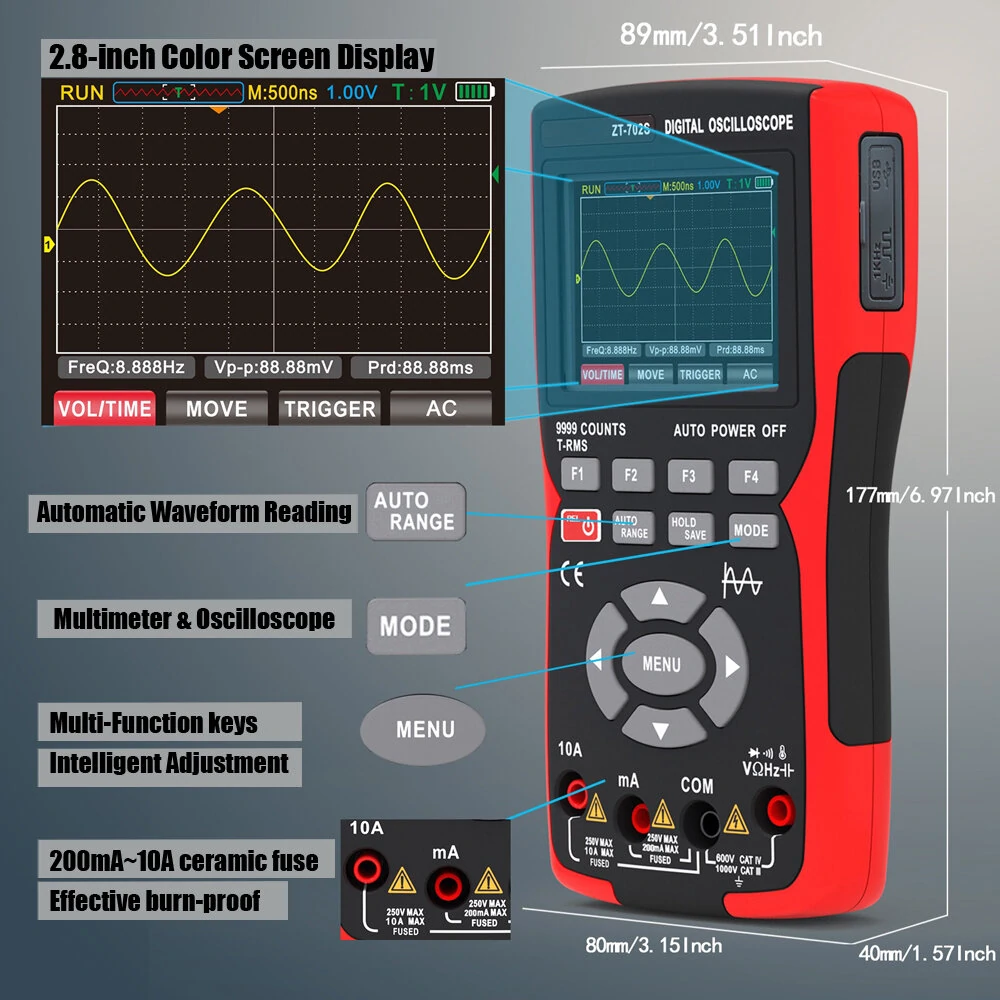

Screen Size: 2.8 inch

Bandwith: 10MHz

Real-time smaple rate: 48MSa/s

Input Impedance: 1M??,@16pf

Maximum input voltage: 400V (DC+AC peak)

Horizontal SEC range: 50ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

DC voltage:

9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ??(0.5%+3)

AC voltage:

9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ??(1.0%+3)

DC current:

9999??A/99.99mA 1??A/0.01mA ??(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ??(1.0%+3)

AC current:

9999??A/99.99mA 1??A/0.01mA ??(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ??(1.2%+3)

Resistance:

99.99??0.01?? ??(1.0%+3); 999.9??/9.999k??/99.99K??/999.9K?? 0.1??/0.001K??/0.01K??/0.1K?? ??(0.5%+3);

9.999M?? 0.001M????(1.5%+3); 99.99M?? 0.01M?? ??(3.0%+5)

Capacitance: 9.999nF 0.001nF ??(5.0%+20);

99.99nF/999.9nF/9.999??F/99.99??F/999.9??F 0.01nF/0.1nF/0.001??F/0.01??F/0.1??F ??(2.0%+5);

9.999mF 0.001mF ??(5.0%+5)

Frequency:

99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ??(0.1%+2) Temperature: -20??-1000??/-4?H-1832?H ??(2.5%+5)

Diode: Yes

Continuity: Yes

Power: 18650 battery



Package Included:

1 x Oscilloscope

1 x Test Leads

1 x Oscilloscope probe

1 x Thermocouple

1 x Carrying Case

1 x Screwdriver

1 x User Manual
