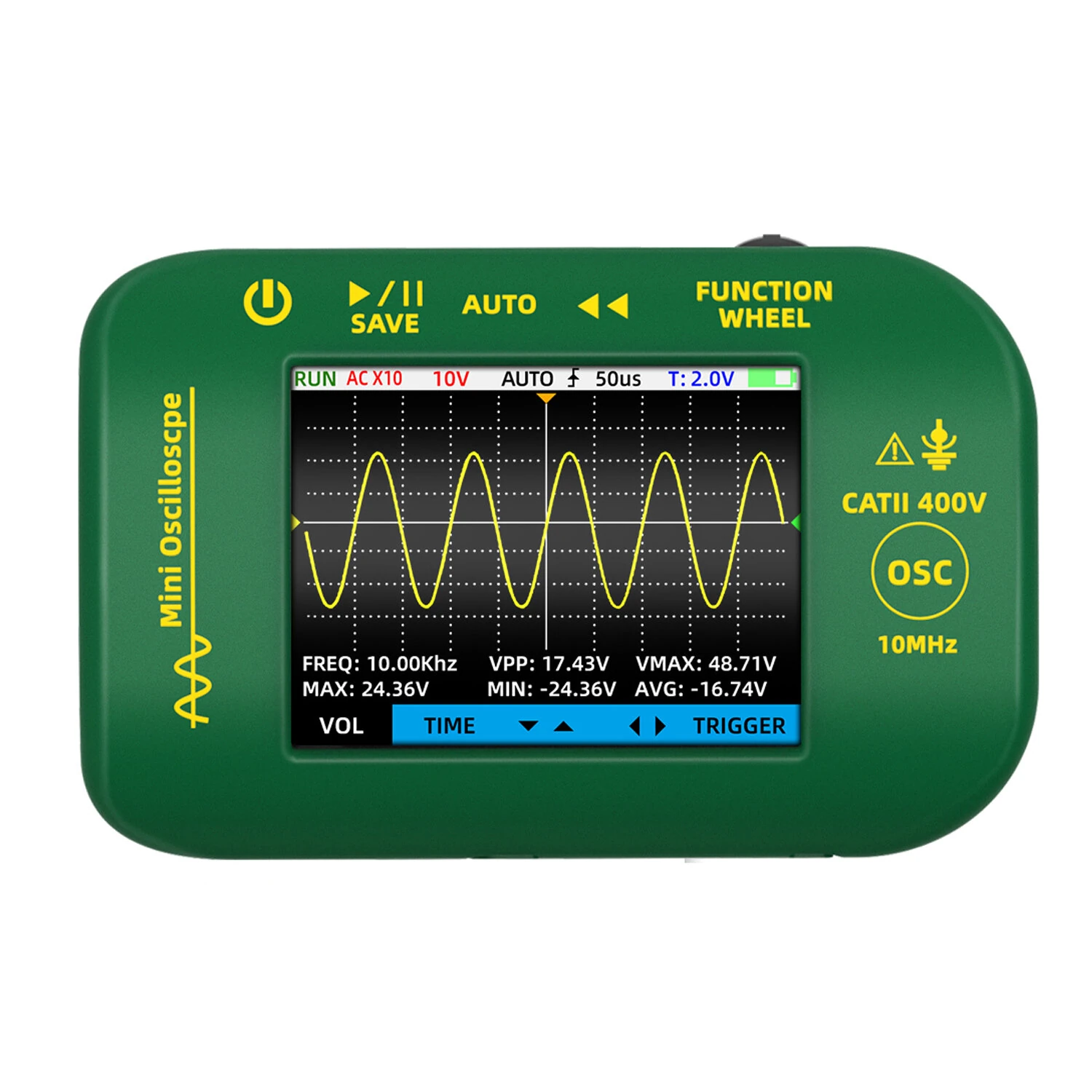

BSIDE OT2 10MHz Digital Oscilloscope - 48MSa/s 2-in-1 Signal Generator | Portable Electronics Repair Tool

Product Description

Features:

Real-Time Sampling: This oscilloscope supports dual-channel real-time sampling, allowing you to capture intricate details in your electronic signals. With a sampling rate of up to 48MSa/s, it ensures accurate and precise data acquisition.

Wide Sampling Rate Range: The device offers a flexible sampling rate range from 1.55Sa/s to 48MSa/s, complemented by waveform interpolation using the (sinx)/x algorithm. This range provides the versatility needed for a variety of signal analysis applications.

High Input Voltage Tolerance: Equipped to handle maximum input voltages of ??40V at x1 probe attenuation and ??400V at x10 probe attenuation (DC + AC peak), this oscilloscope caters to a wide range of testing scenarios, ensuring both safety and versatility.

Extensive Horizontal Sweep Range: Featuring a comprehensive sweep range from 100ns/Div to 20s/Div and a time base accuracy of 20ppm, the oscilloscope offers extensive flexibility for different signal observation demands, ensuring precise time measurements.

Robust Storage Depth and Sensitivity: With a deep memory storage of 728K bytes and sensitivity ranging from 20mv/Div to 10v/Div, the oscilloscope provides ample storage for detailed signal analysis and fine-tuned sensitivity to capture even the smallest variations in your signals.

Specifications:

Product Name: Real-Time Sampling Oscilloscope

Bandwidth: 10MHz

Real-Time Sampling Rate: 48MSa/s

Channels: Dual

Input Coupling: DC/AC

Input Impedance: 1M?? @16pF

Probe Attenuation: x1, x10

Maximum Input Voltage: x1: ??40V, x10: ??400V (DC + AC peak)

Sampling Rate Range: 1.55Sa/s to 48MSa/s

Waveform Interpolation: (sinx)/x

Horizontal Sweep Range: 100ns/Div to 20s/Div

Time Base Accuracy: 20ppm

Storage Depth: 728K bytes

Sensitivity: 20mv/Div to 10v/Div

Optional Version: Standard Version / Upgraded Version

Package Included:

Type A: Standard Version

1 * Oscilloscope

1 *Clip Probe

1 * Cable

1 * Guideline

1 * Storage Bag

Type B: Upgraded Version

1 * Oscilloscope

1 * Test Probe

1 * Cable

1 * Set of Accessory

1 * Guideline

1 * Storage Bag
