AV Tooltop ET120M Digital Oscilloscope - 120MHz 500MSa/s Dual Channel | Portable TFT LCD Display

Product Description

Specification:

ET120M:
Display: 320??240 LCD screen with white backlight (8 levels of brightness)
Display Area: 50mm ?? 40mm
Waveform Bandwidth: 120MHz
Maximum Test Voltage: 1X: 80Vpp, 10X: 800Vpp
Signal Outputs: 1kHz, 10kHz, 100kHz, 1MHz
Voltage Accuracy: ??10%
Frequency Accuracy: ??1%
Input Impedance: 1M??
Vertical Sensitivity: 50mV-100V
Time Base Range: 6nS to 50S

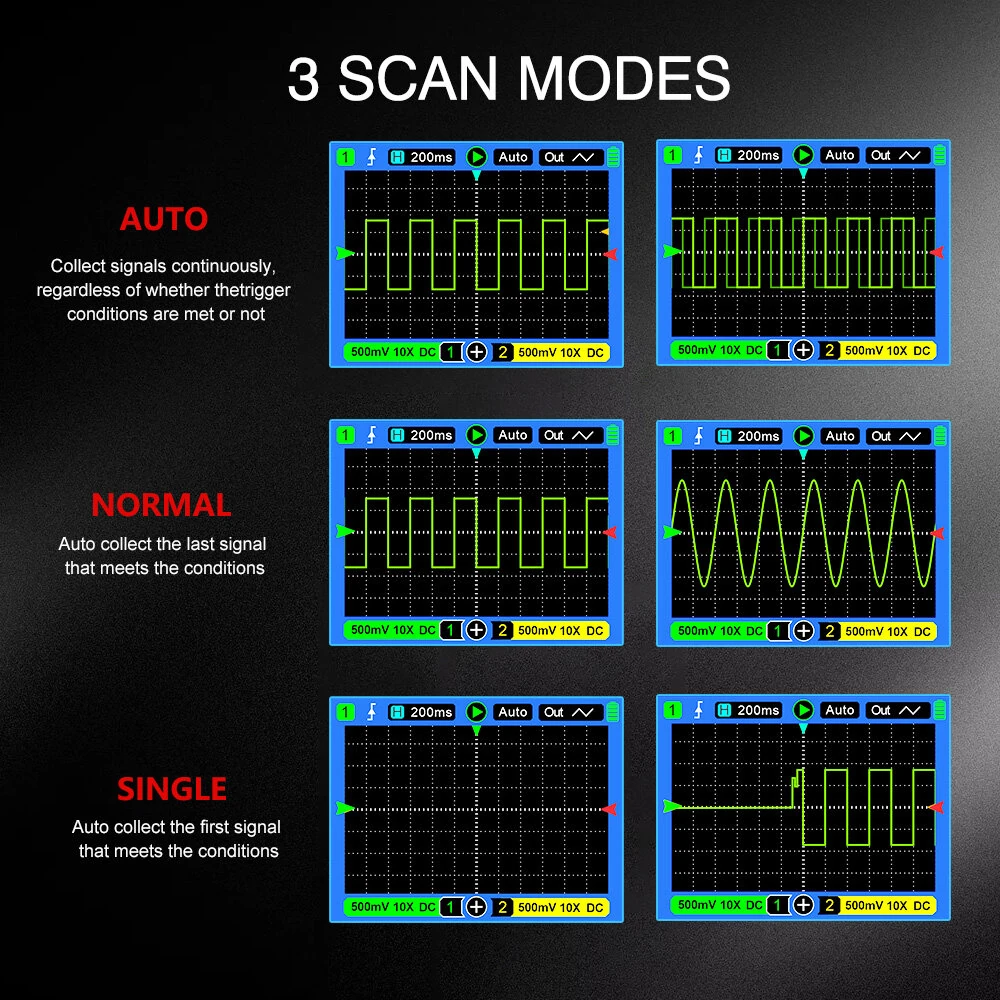

Trigger Modes: Auto/Normal/Single
Rising Time: <3nS
Maximum Sampling Rate: 500MSps
Storage Depth: 12.8div
Screen Resolution: 320??240 pixels
Battery: Lithium battery
Charging: DC5V/1A/2A
Size: 124 ?? 80 ?? 35mm
Weight: About 180g
Environmental Conditions:
Operating temperature: 0??C?C40??C; humidity <75%RH
Storage temperature: -10??C?C60??C; humidity <90%RH
Auto Configuration: Automatic time base and vertical sensitivity setting
Automatic Measurement Functions: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-
ET120MC2:
Screen: 320??240 LCD color display
Display Size: 50mm ?? 40mm
Display Technology: TFT, 8 brightness levels
Waveform Bandwidth: 120MHz
Channels: 2
Maximum Sampling Rate: 500MSa/s
Voltage Measurement Range: 1X: 80Vpp | 10X: 800Vpp
Vertical Sensitivity: 50mV ?C 100V
Storage Depth: 12.8 div
Input Impedance: 1M??
Trigger Modes: Auto/Normal/Single
Time Base Range: 6nS ?C 50S
Rise Time: <3nS
Functions: Auto measurement (Vpp, Vrms, Vavg, etc.), signal output
Signal Output: 10Hz ?C 100KHz sine/triangle waves, adjustable frequency
Charging Requirement: DC5V/1A/2A
Battery Type: Rechargeable lithium, approximately 4-hour standby time
Dimensions: 124mm ?? 80mm ?? 35mm
Weight: Approx. 187g
Operating Conditions: 0??C to 40??C (<75% RH)
Storage Conditions: -10??C to 60??C (<90% RH)

Features:
1. High-Definition TFT Screen
Equipped with a 320??240 LCD color display, this device provides sharp visuals and enhanced readability for various environments.
2. Wide Bandwidth with Dual Channels
Supporting 120MHz bandwidth and 500MSa/s sampling rate, the oscilloscope offers precise measurements across two channels.
3. Compact and Lightweight Design
Designed with dimensions of just 124mm ?? 80mm ?? 35mm and a weight of 187g, it is portable and easy to handle for on-the-go applications.
4. Intuitive Automatic Functions
Streamline operations with automatic measurement capabilities such as Vpp, Vrms, and Vavg, ensuring quick and accurate results.
5. Multi-Signal Output Options
Generate sine and triangle waves with adjustable frequencies of 10Hz ?C 100kHz, supporting a variety of test scenarios.

Package Included:
1 x Oscilloscope ??optional??
1 x Oscilloscope Probe
1 x Charging Cable
1 x User Manual
1 x Carry Bag
1 x MCX-to-Crocodile Cable Adapter
