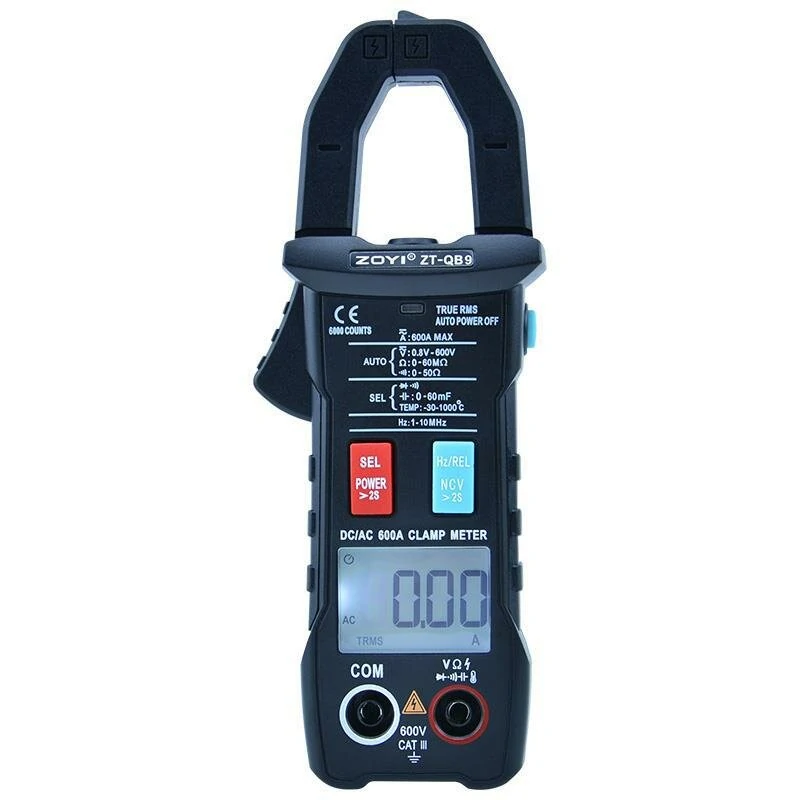

ZT-QB9 TRMS Clamp Meter - 600A AC/DC Current Tester | Auto-Ranging Voltage Ammeter

Product Description

Features:

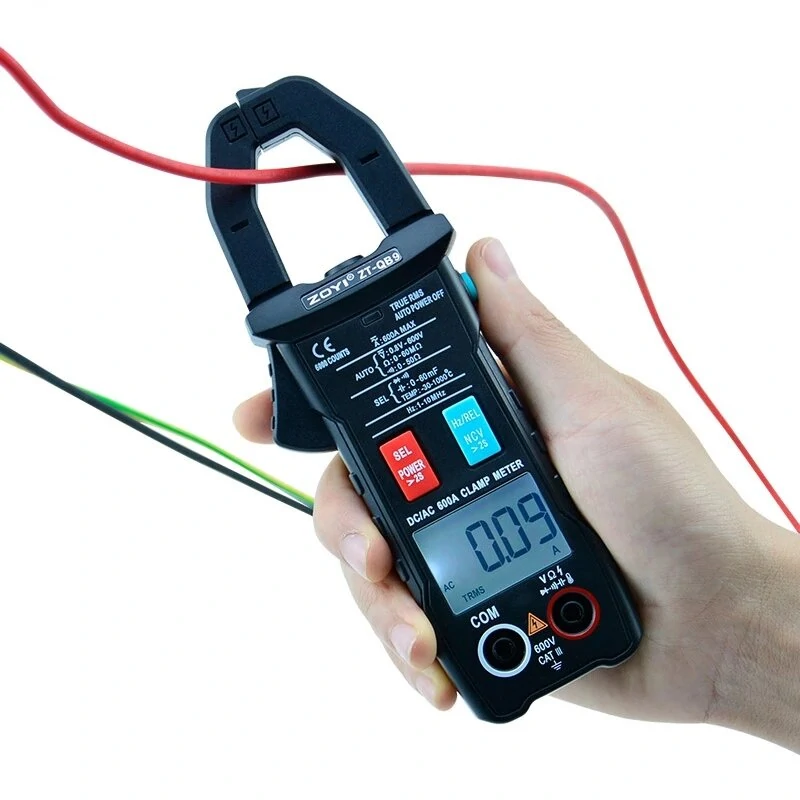

[600A DC/AC clamp meter]: The clamp meter measures DC/AC current up to 600A without damaging the circuit.

[Auto Identification]: Designed with beginner in mind-bside intelligent technology make this multimeter can automatically identify the tested parameters and choose your required range.

[Inrush current test and peak hold function]: the inrush current function is designed to capture inrush current accurately; Peak hold function makes testing and recording more convenient.

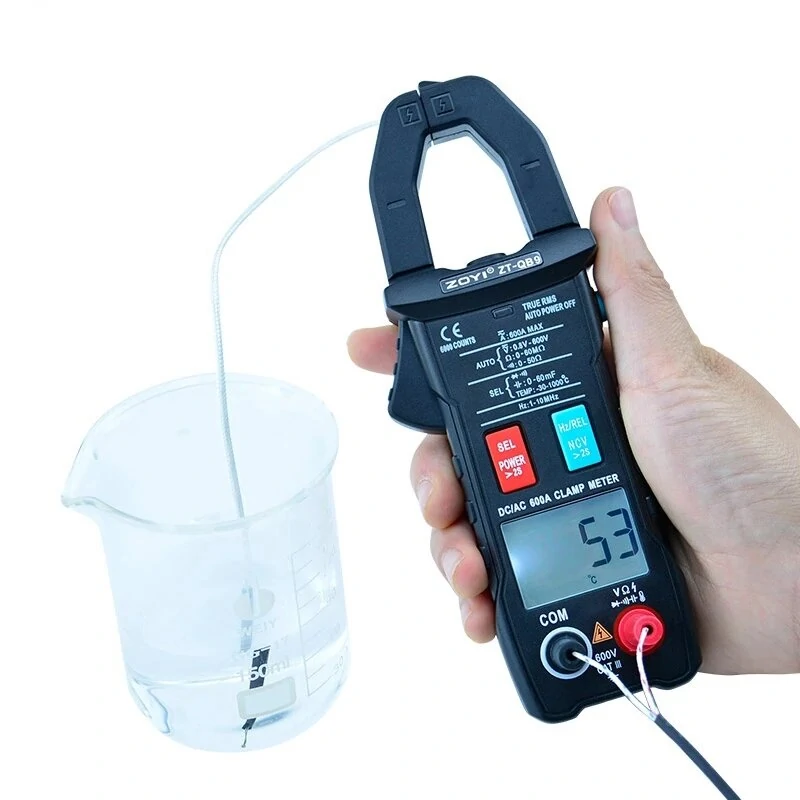

[Capacitance, Diode and Temperature Test]: This real RMS clamp meter can test capacitance, diode, temperature, etc.

[Flashlight Design]: Upgraded flashlight can change the dark environment. Hanging hole design make it more portable.

Specifications:

Display: 6000 counts

DC current: 60a/600a ??(2% + 3 counts)

AC current: 60a/600a ??(2% + 3 counts)

DC voltage: 6v/60v/600v ??(0.5% + 3 counts)

AC voltage : 6v/60v/600v capac( 1.0% + 3 counts)

Capacity: 6nf/60nf/600nf/6 ff/60 ff/600 ff/6mf/60mf (2.0% + 5 counts); 6mf/60mf (5.0% + 5 counts)

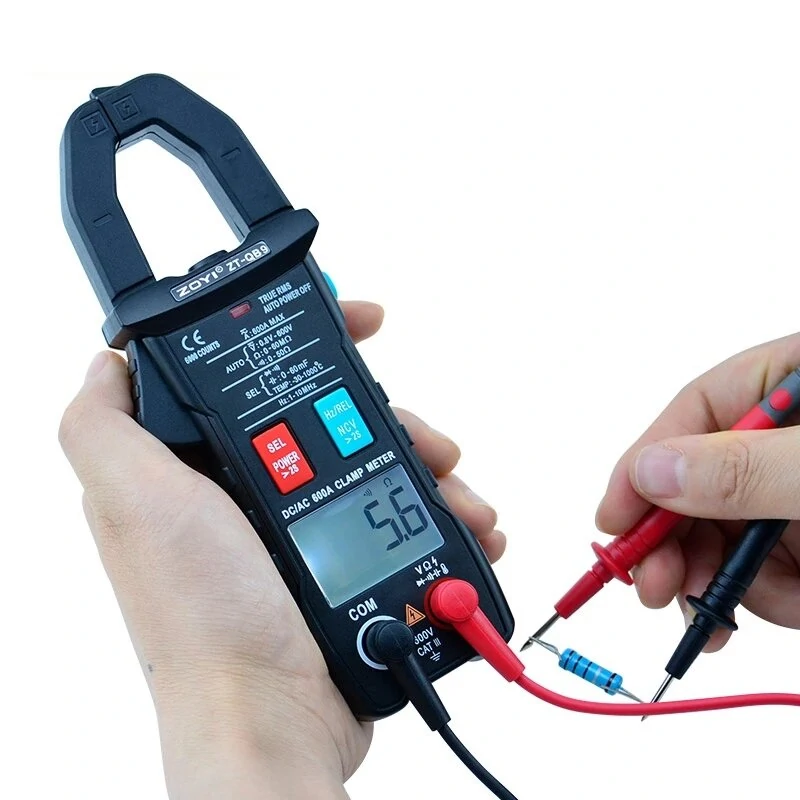

Resistance: 600??/6k?? ??(1.5% + 3 counts); 60k ??/600k ??/6M?? ??(0.5% + 3 counts); 60M?? ??(1.5% + 3 counts)

Temperature: -30~1000??/-22~1832?H ??(2.5% + 5 counts)

Frequency: 6hz/60hz/600hz/6khz/60khz/600khz/6mhz/10mhz

Diode (0.1% + 2 counts): Yes

Buzzer: if resistance less than 30??, the continuity beep sounds

Jaw capacity: 25mm

Power: 1.5v (AAA) x 2

Size: 172mm x 64mm x 32mm

Weight: 172g

The package includes:

1 x smart clamp meter

1 x alligator clips

1 x probes

1 x carrying case

1 x wrist lanyard

1 x user manual

Note:

Batteries are not included in the package due to aviation security verification.
