VC8045 4 1/2 Digit True RMS Desktop Multimeter | Bench Top Precision DC/AC Voltage Current
$169.00
$207.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:
1. 4 1/2 digit large LCD display with backlight;
2. With the DCV,ACV,DCA,ACA,??,CAP,Hz,hFE,diode and continuity test function;
3. Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
4. Max. current measuring: 20A,polarity automatic switch,data hold,backlight
5. AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring
6. Color: Beige.
Specification:
| Basic Function | Range | Basic Accuracy |
| DCV | 200mV/2V/20V/200V/1000V | ??(0.05%+3) |
| ACV | 200mV/2V/20V/200V/750V | ??(0.8%+80) |
| DCA | 20mA/200mA/2A/20A | ??(0.35%+10) |
| ACA | 200mA/2A/20A | ??(0.8%+80) |
| Resistance | 200??/2k??/20k??/200k??/2M??/20M?? | ??(0.1%+5) |
| Frequency | 20kHz/200kHz | ??(1.0%+20) |
| Capacitance | 20nF/2uF/200uF | ??(3.5%+20) |
| Special Function | VC8045 | |
| Diode test | ?? | |
| hFE test | ?? | |
| True RMS | ?? | |
| Continuity alarm | ?? | |
| Overload protect | ?? | |
| Input protect | 10M?? | |
| Sampling rate | 3times/s | |
| AC Frequency response | 40Hz-50kHz | |
| Operation way | Manual range | |
| Max. display | 19999 | |
| Power | AC 220V/110V 50Hz/60Hz | |
Packing Includes:
1*Bench type multimeter
1*Test leads
1*Power cord(EU Plug)
1*English user manual
Note:
We will send you a plug adapter according to your country.

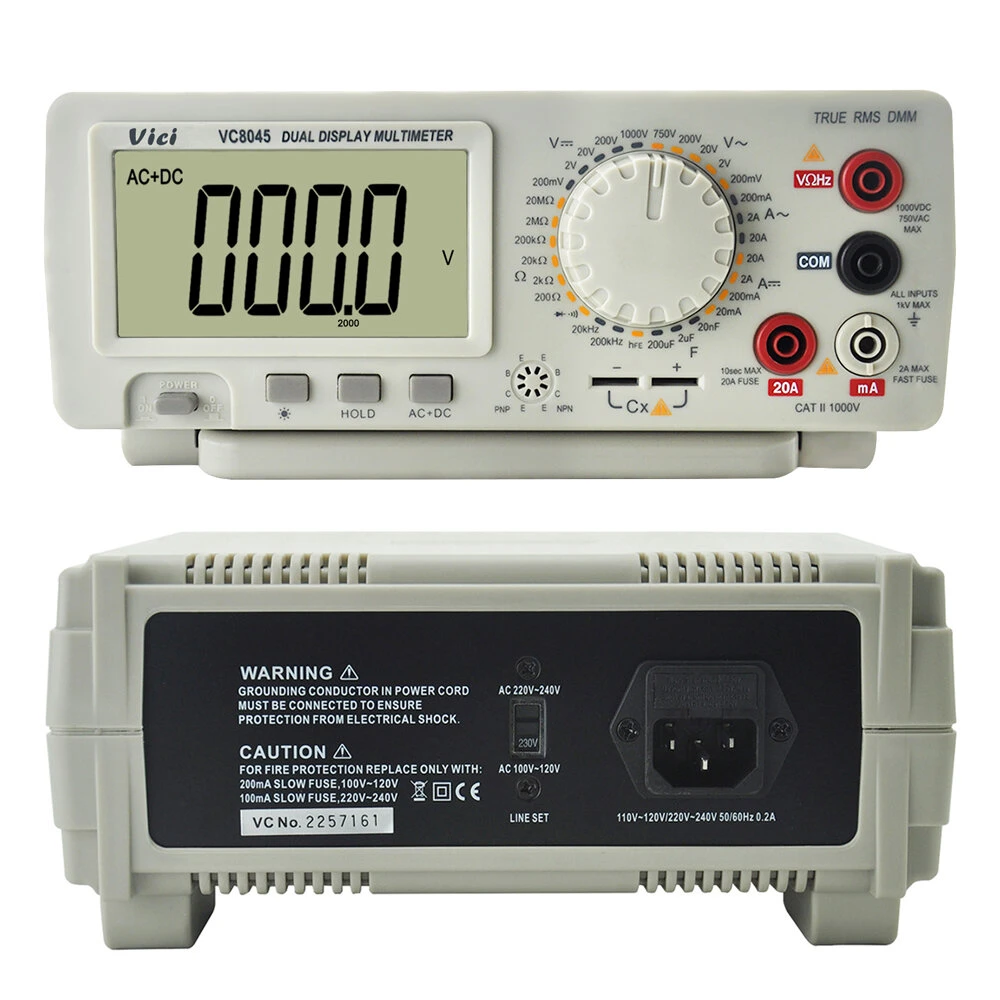

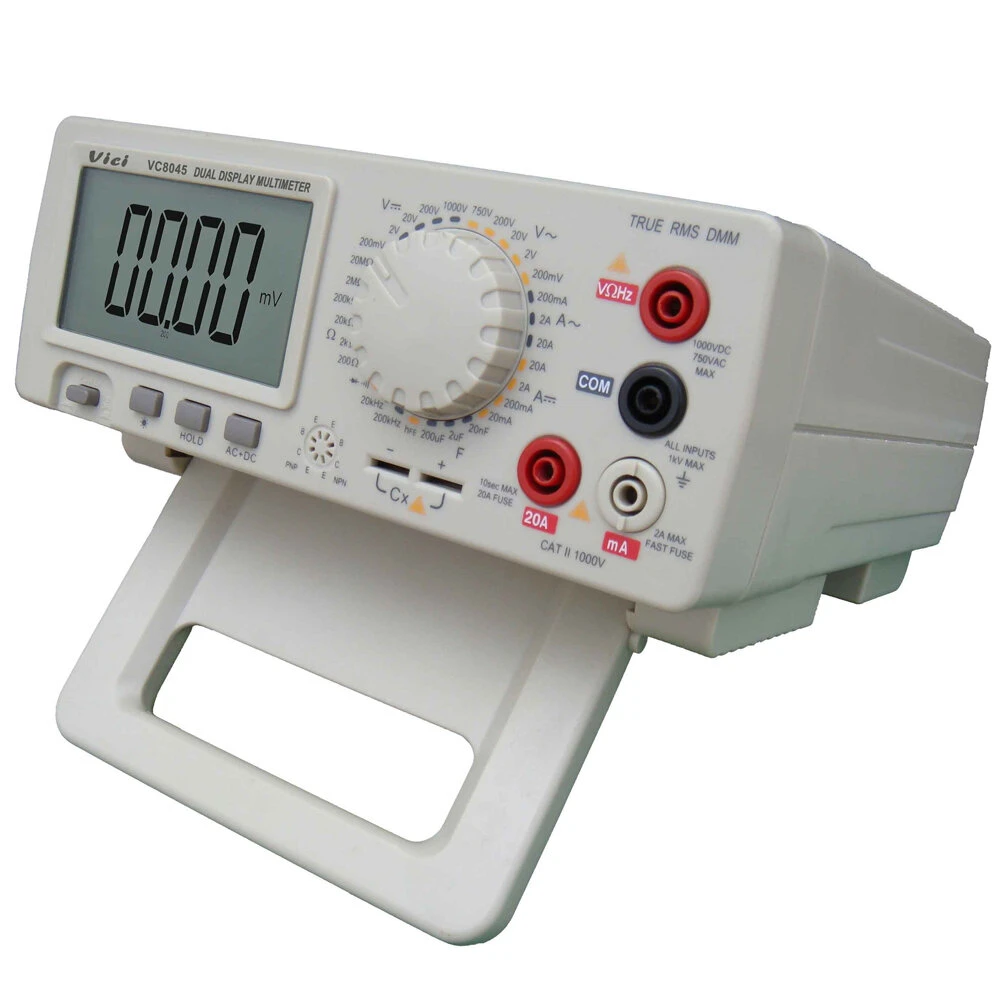

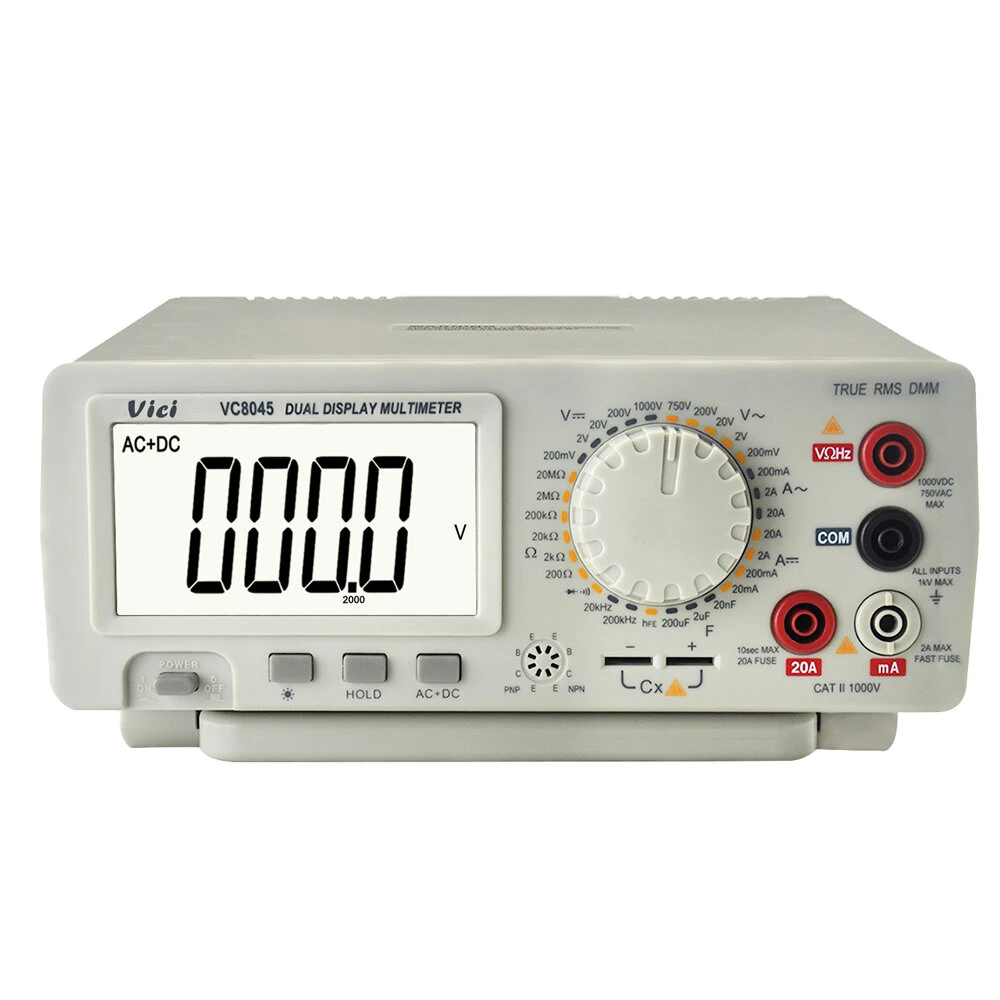

Details Pictures:
Customer Reviews
No reviews yet. Be the first to review this product!
