PTM6A Digital Multimeter - Automatic Range, Backlight, Measures AC/DC Voltage
$21.00
$25.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Measurement methodsMeasuring DC/AC voltage1. Turn the dial to the center.2. Press the function key SEL to switch between AC and DC.3. Use the test probe to touch the correct test point on the circuit.4. Read the voltage value displayed on the display.
Measuring resistance1. Turn the dial to the right.2. Touch the test point of the desired circuit with a probe probe.3. Read the resistance value measured on the display.
Test continuity1. Turn the dial to the right.2. Press the function key SEL to adjust to the on-off position.3. Connect the two points of the circuit to be tested with the test probe.4. If the resistance value is less than 50??, the buzzer will sound, and the indicator light of this product will be always on.
Measuring diode1. Turn the dial to the right2. Press the function key SEL twice to adjust to the diode level.3. Connect the two points of the circuit to be tested with the test probe.4. Measure whether the forward voltage drop of the diode is 0.5V-0.7V. If OL appears, it means that the diode test lead is reversed or the diode is damaged.

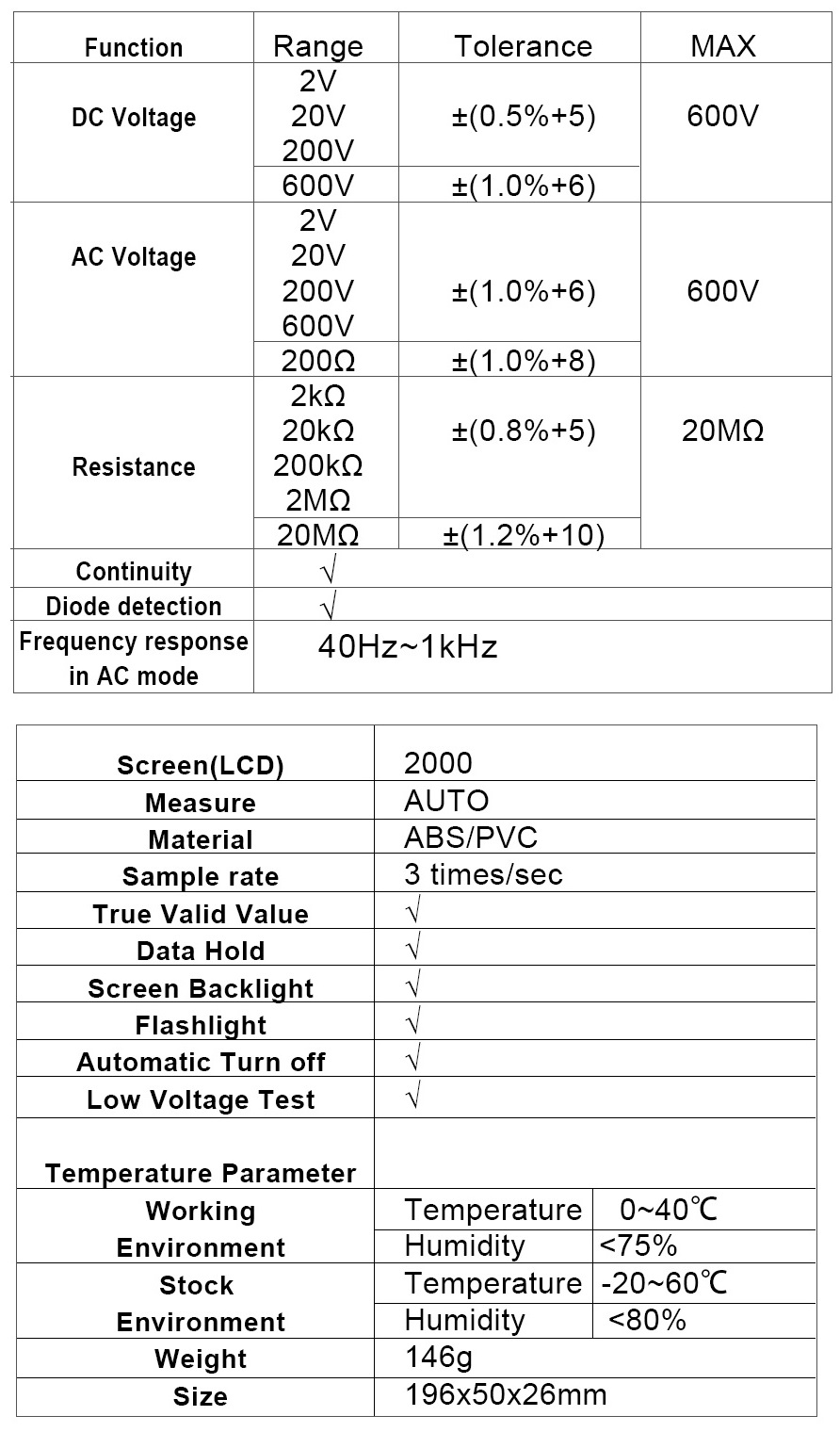

Specification:
Package included:
1 x Multimeter1 x English user manual

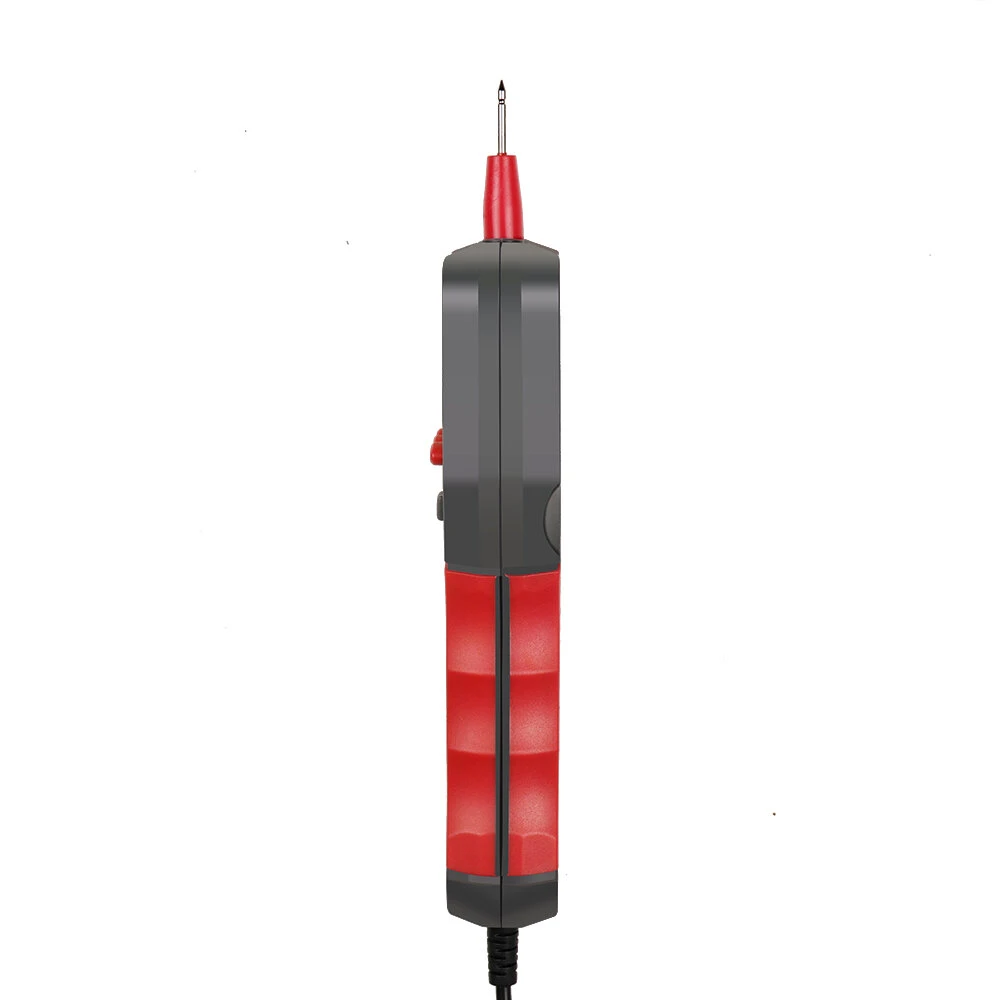

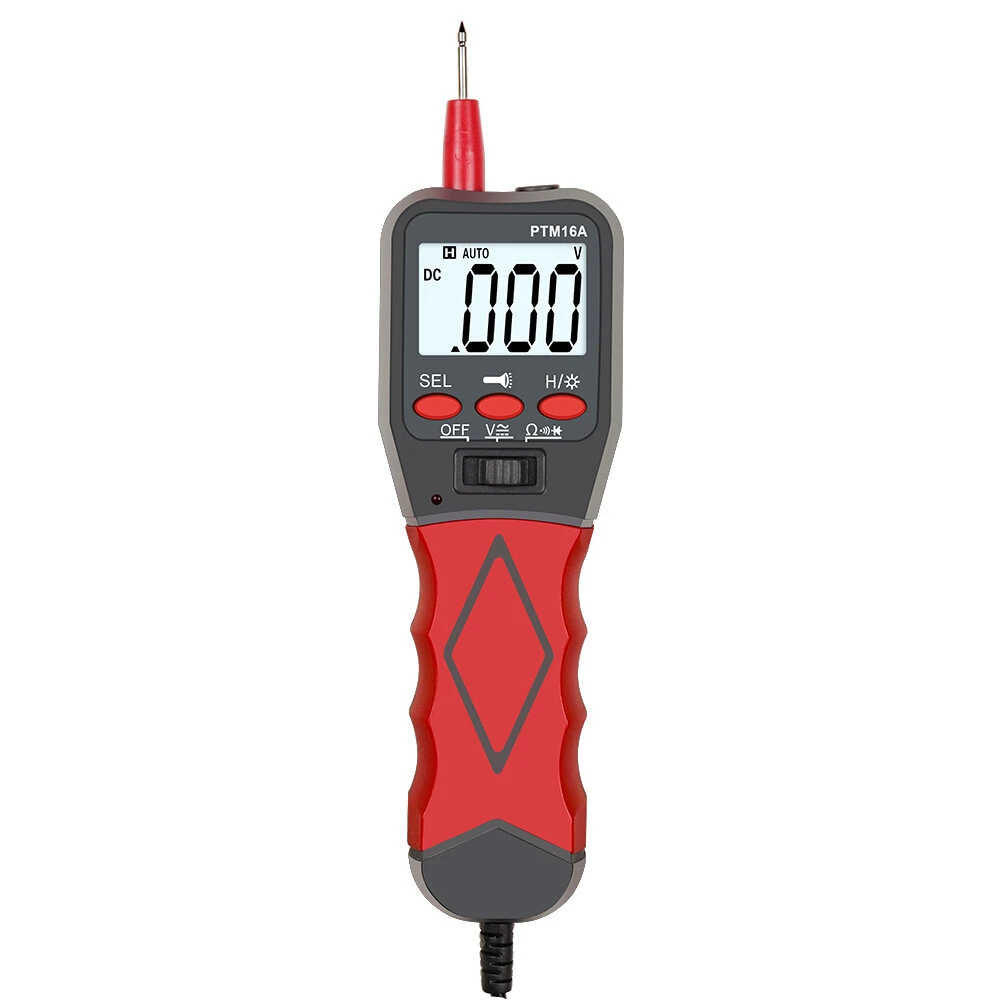

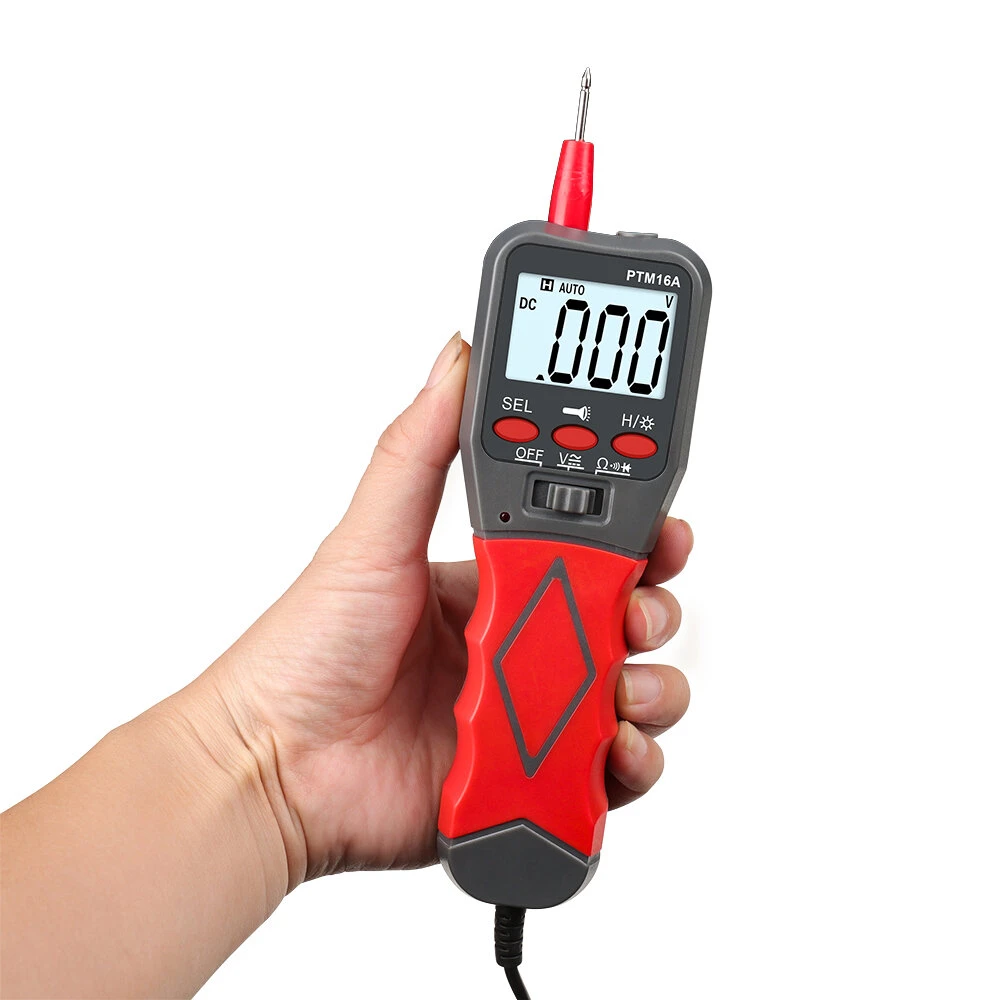

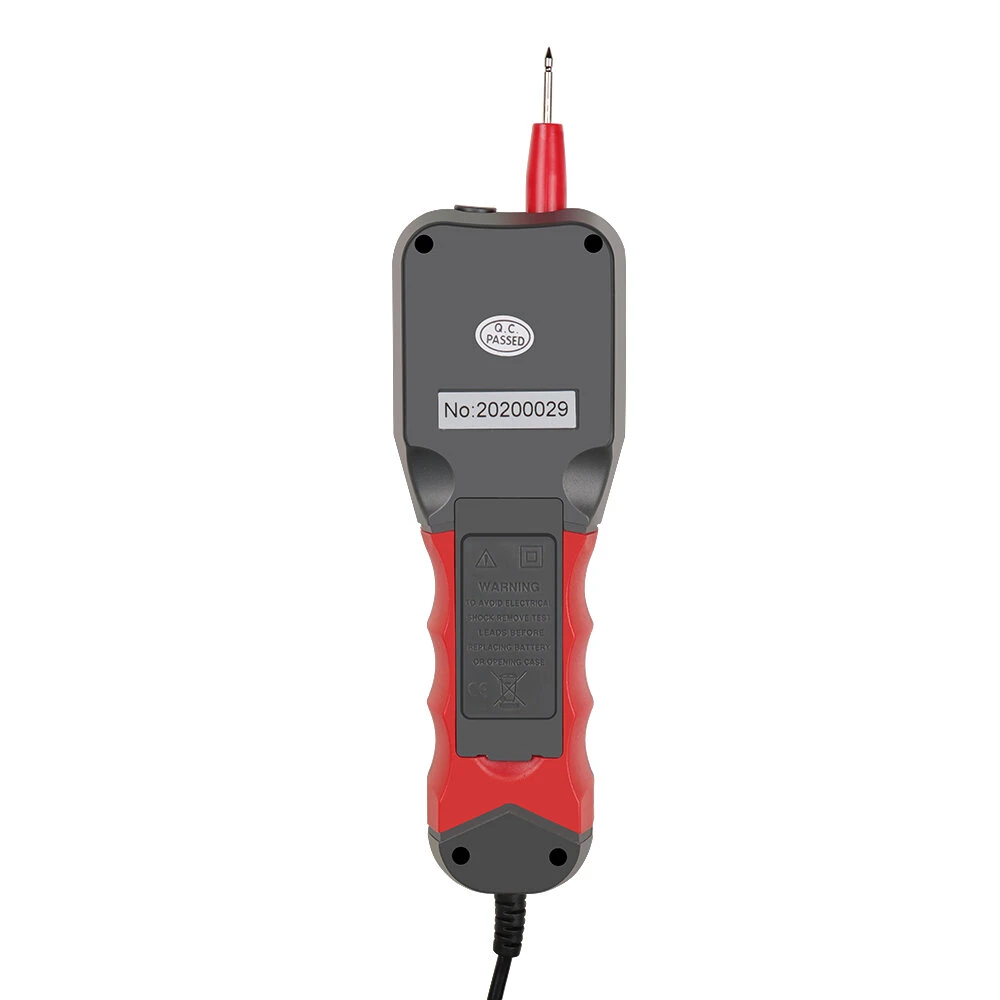

Details Pictures:
