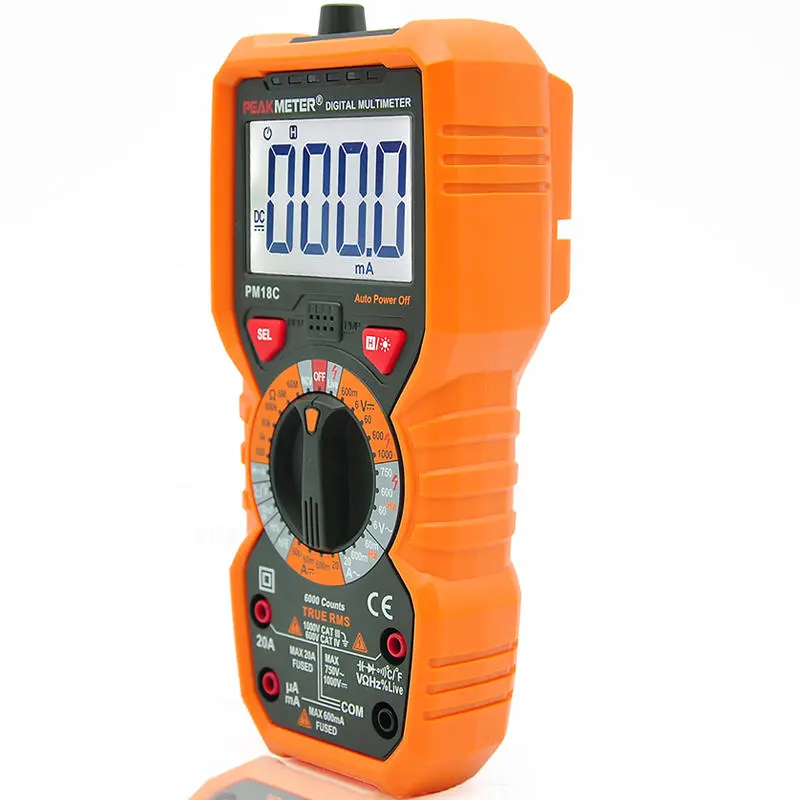

PeakMeter PM18C Digital Multimeter - Voltage Tester with NCV, Capacitance & Temperature
$60.00
$73.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

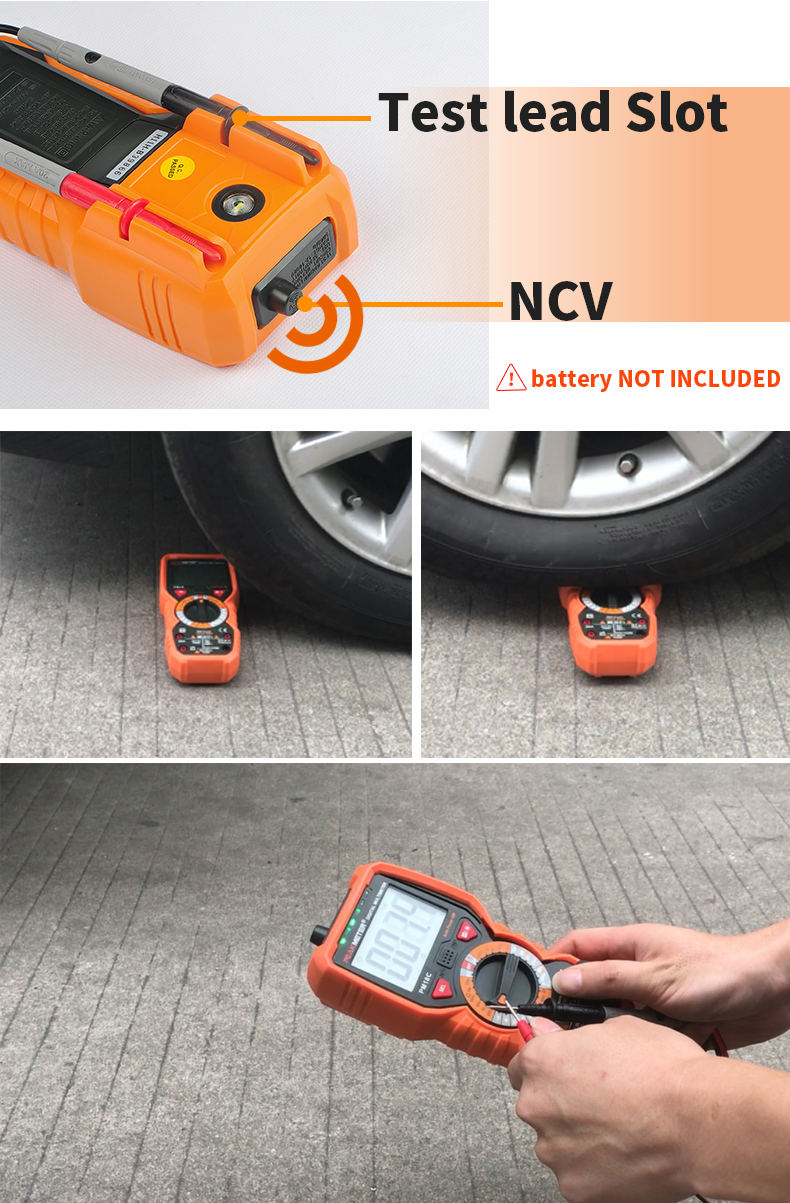

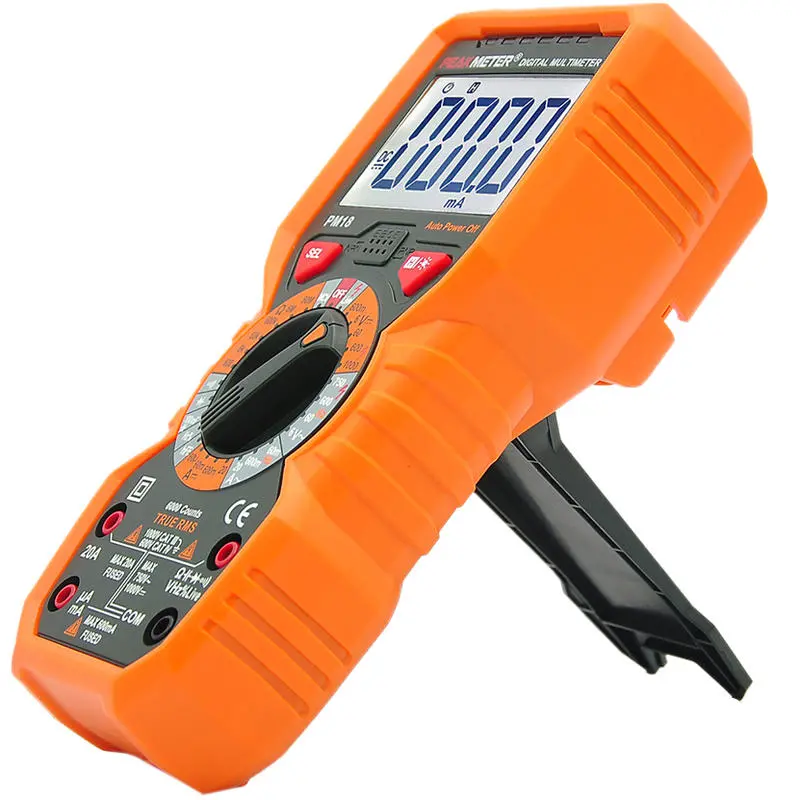

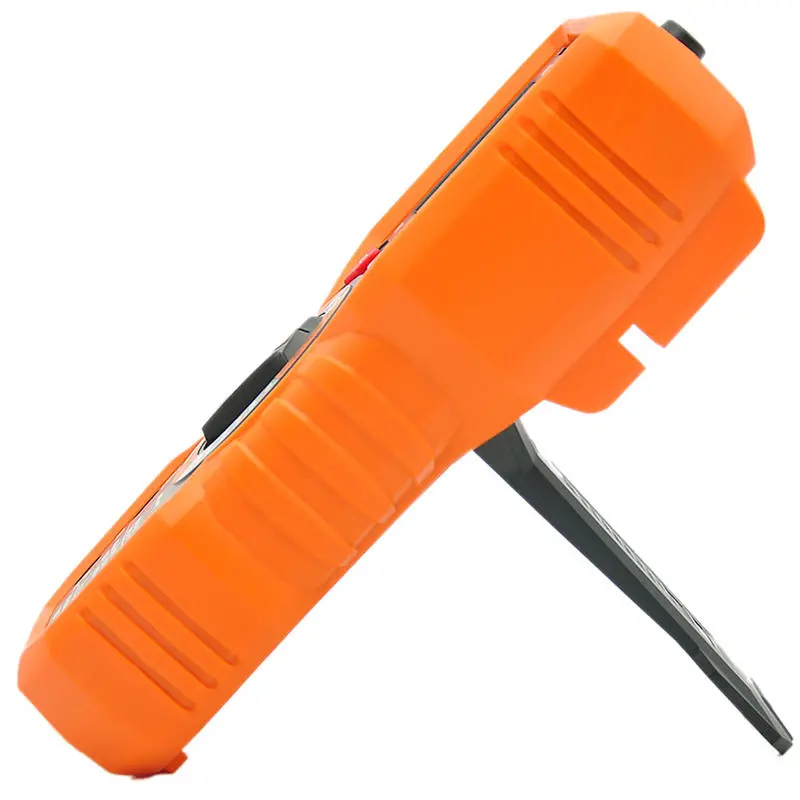

Description:This multifunctional multimeter with high precision and high performance can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio. It also can test NCV(non-contact voltage), live line, diode, transistor and continuity. With a bracket on the back, convenient to place it on the table and read the values.
Features:

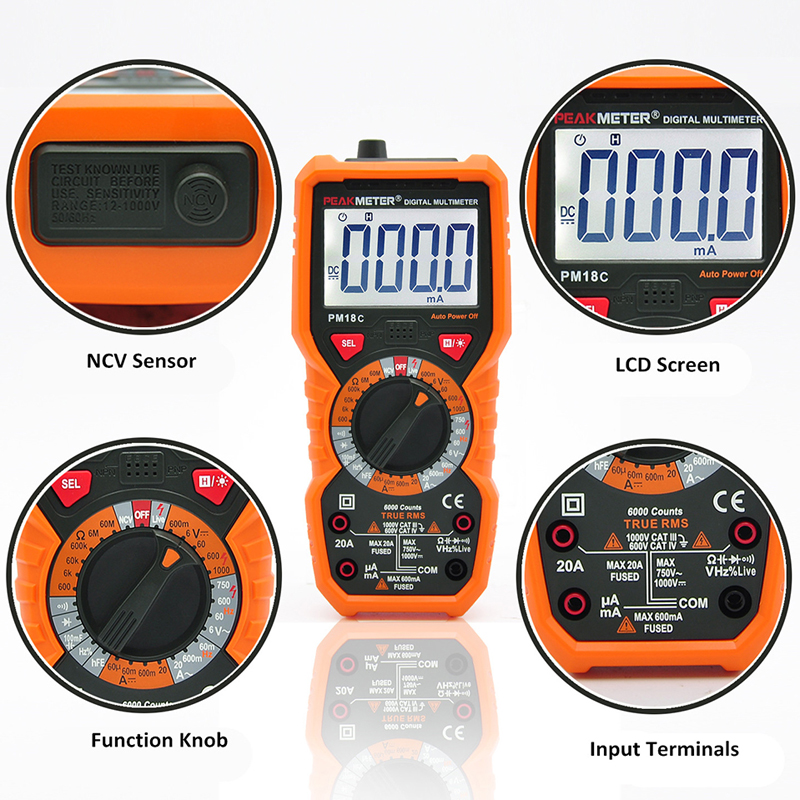

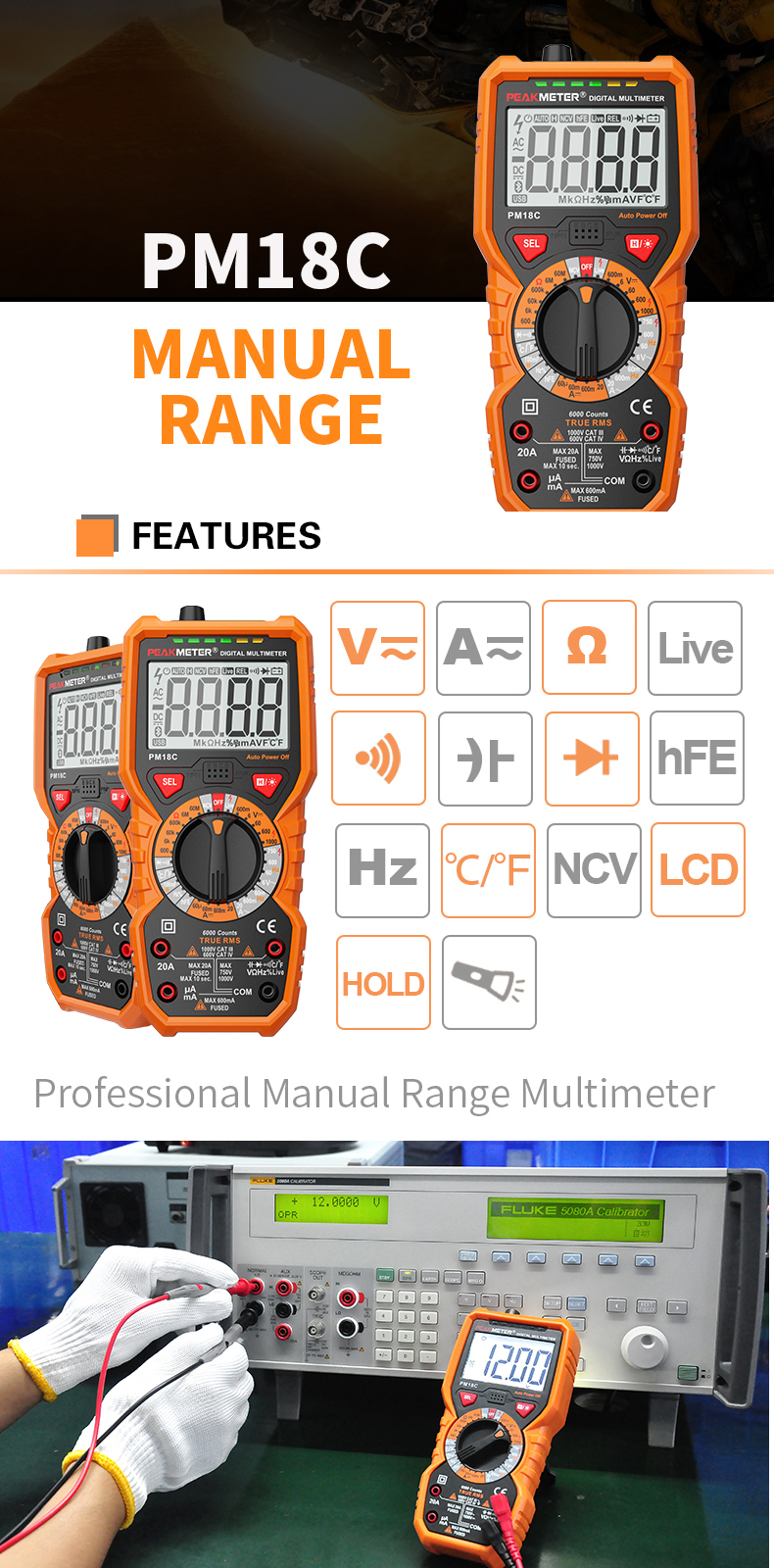

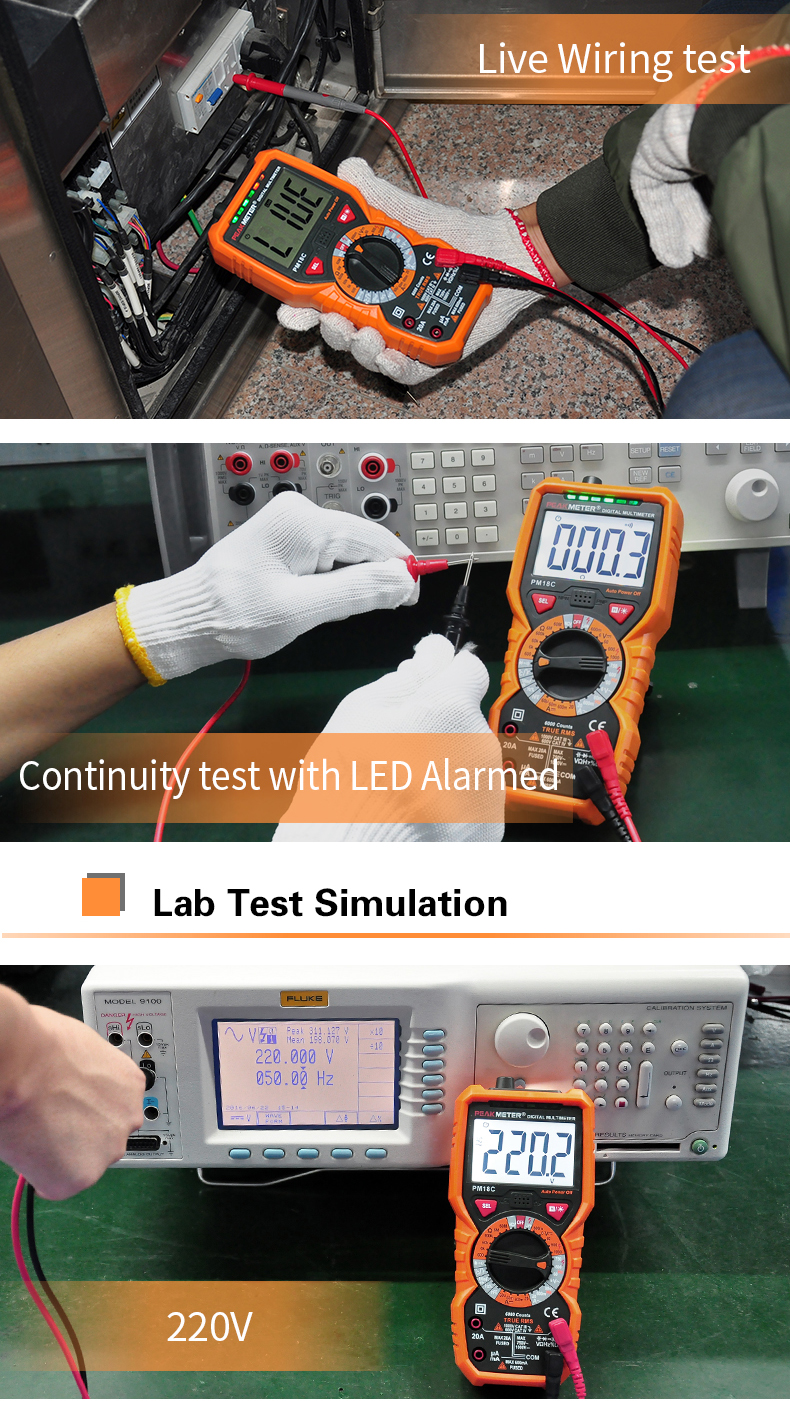

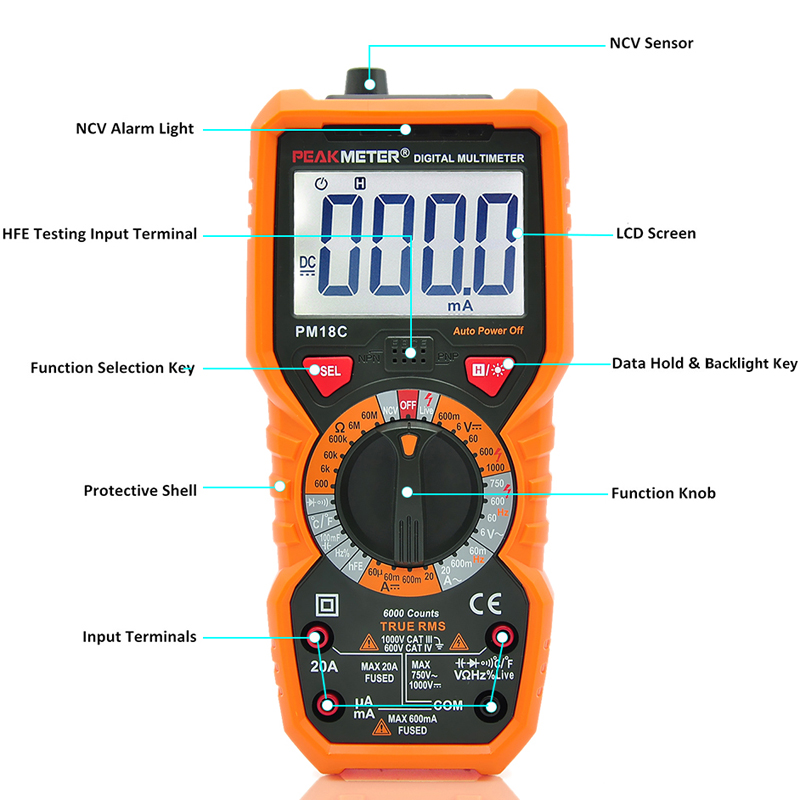

Can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio. Also can test NCV(non-contact voltage), live line, diode, transistor and continuity. PM18C is specially designed with temperature measurement function. Data hold function, "SEL" key for some functions selection. LCD display with backlight and lighting, convenient to use. Powered by 4 batteries(not included). Auto power off.

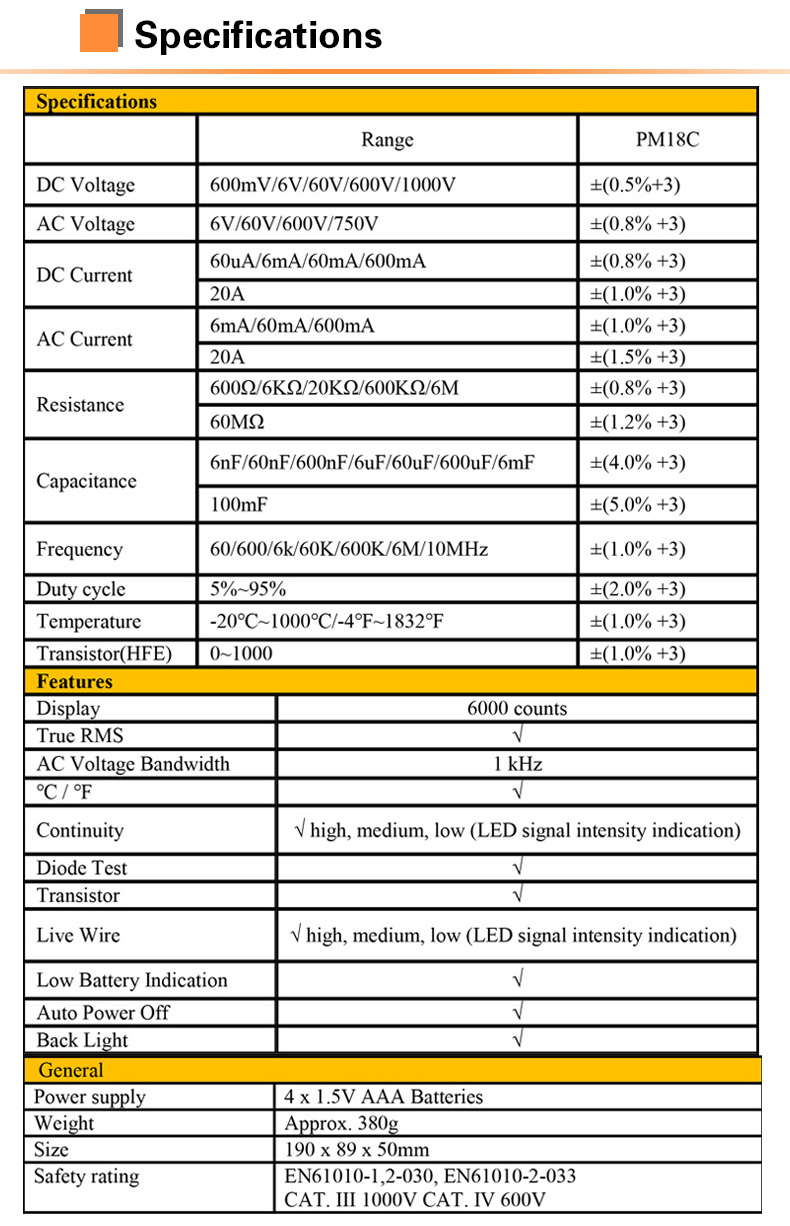

Specification:
Display: LCD Display with Backlight, 6000 counts Operating Environment: 600V CAT IV and 1000V CAT III
DC Voltage Range: 600mV/6V/60V/600V/1000V DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 6V/60V/600V/750V AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 60??A/60mA/600mA/20.00A DC Current Resolution: 0.01??A/0.01mA/0.1mA/10mA
AC Current Range: 60mA/600mA/20A AC Current Resolution: 0.01mA/0.1mA/10mA
Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz/0.001MHz
Resistance Range: 600??/6k??/60k??/600k??/6M??/60M?? Resistance Resolution: 0.1??/1??/10??/100??/1k??/10k??

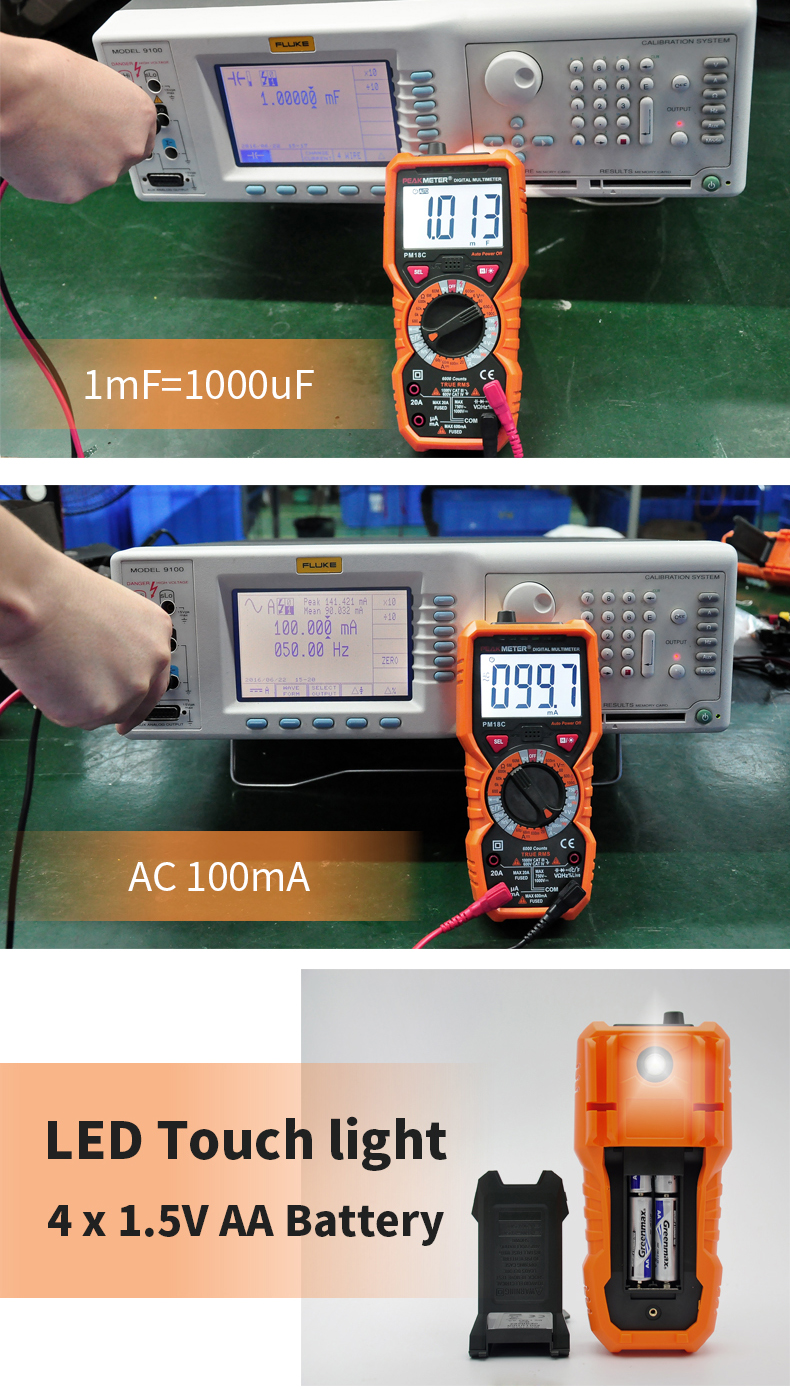

Capacitance Range: 6nF/60nF/600nF/6??F/60??F/600??F/6mF/100mF Capacitance Resolution: 0.001nF/0.01nF/0.1nF/1nF/10nF/100nF/0.1??F/0.001mF
Temperature Range: -20~1000??C / -4~1832??F(only for PM18C) K Type Thermocouple Range: Max.250??C(only for PM18C)

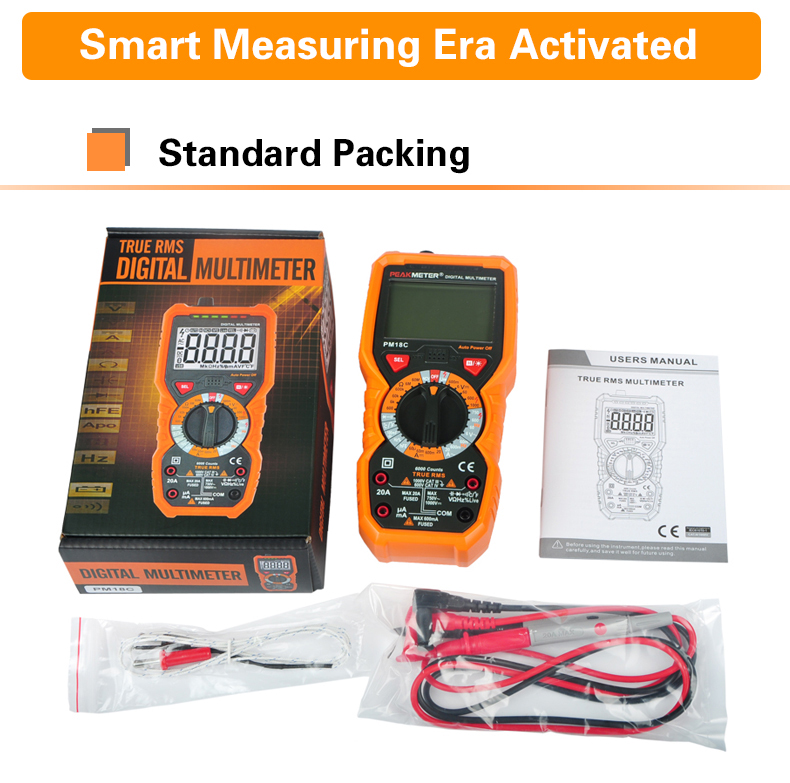

Working Temperature/Humidity: 0~40??C; <80%RH Storage Temperature/Humidity: -10~60??C; <70%RH Power Supply: 4 x 1.5V AA Batteries(not included) Item Size: 19 x 8.5 x 5.5cm / 7.48 x 3.35 x 2.17in Item Weight: 328g / 11.59oz Package Size: 21 x 12.5 x 5.5cm / 8.27 x 4.92 x 2.17in Package Weight: 509-518g / 17.97-18.29ozPackage includeds:
1 x PEAKMETER PM18C Digital Multimeter 1 x Pair of Test Probe 1 x Temperature Probe(only for PM18C) 1 x User Manual(English) Details pictures:
