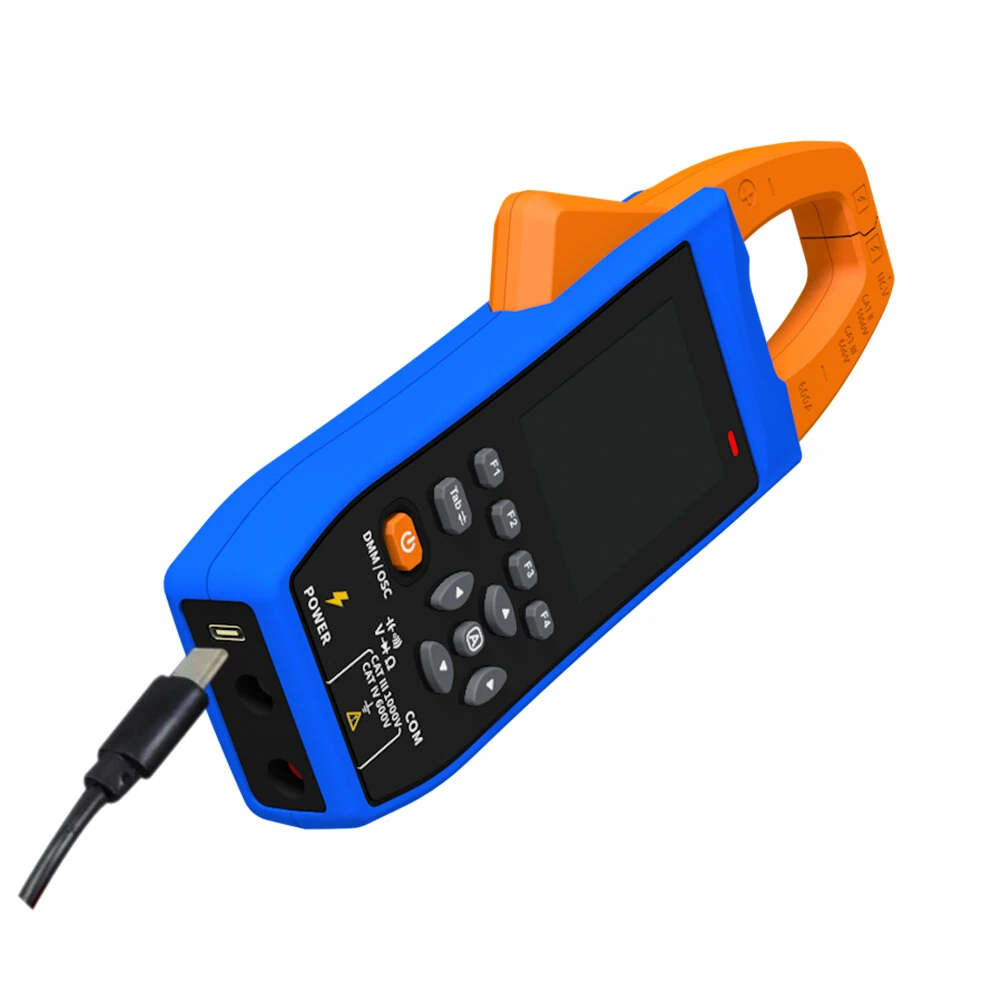

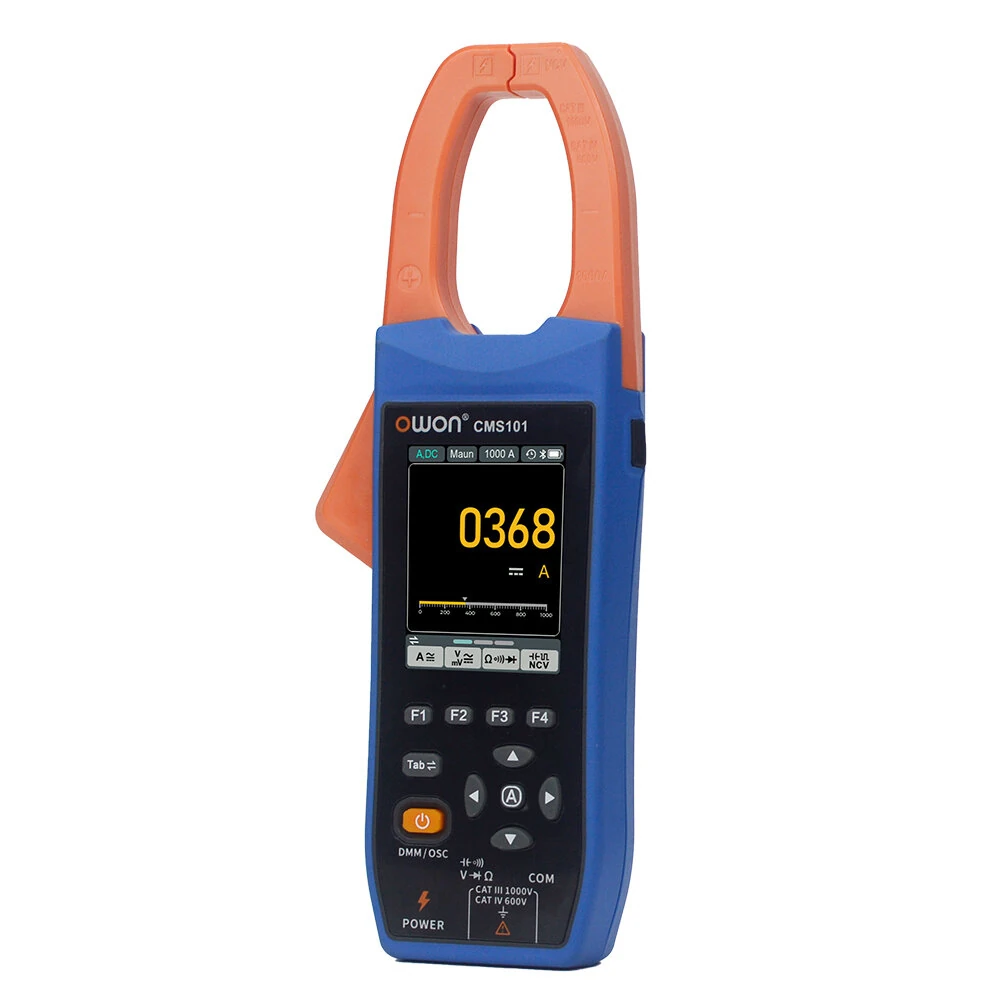

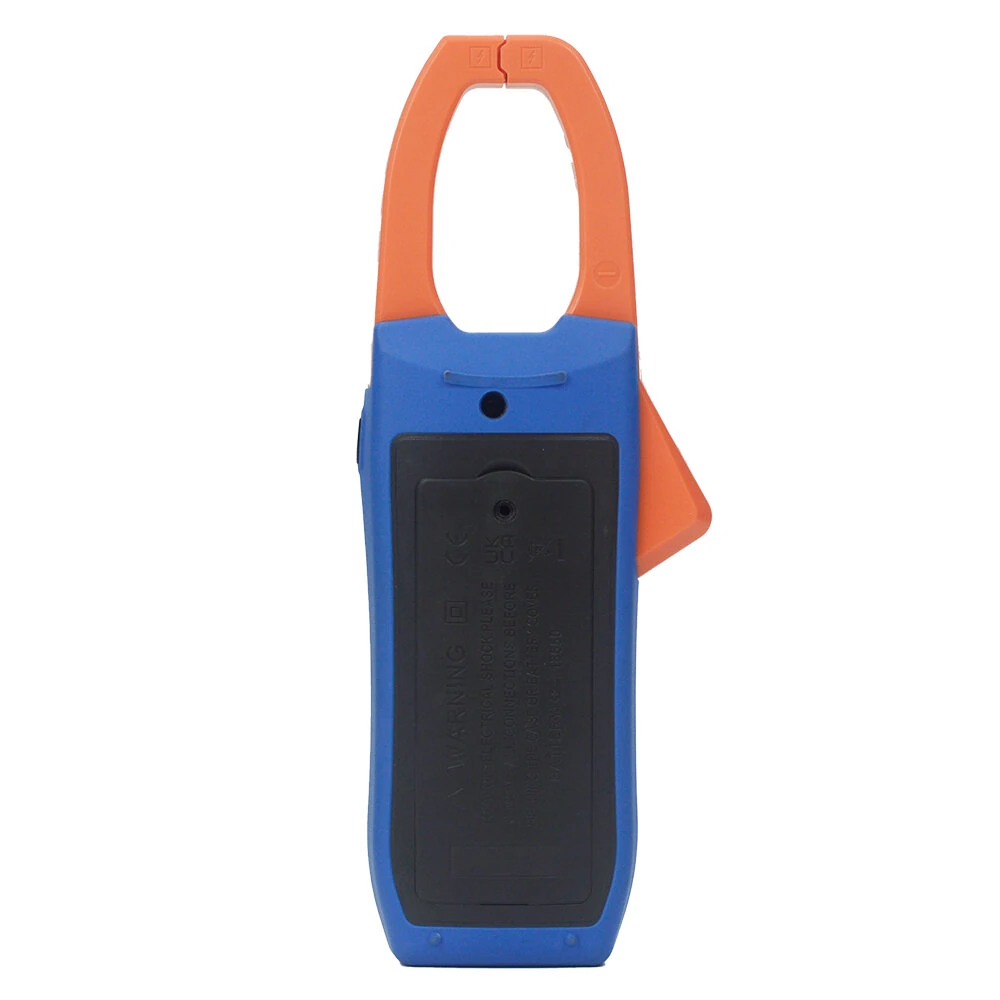

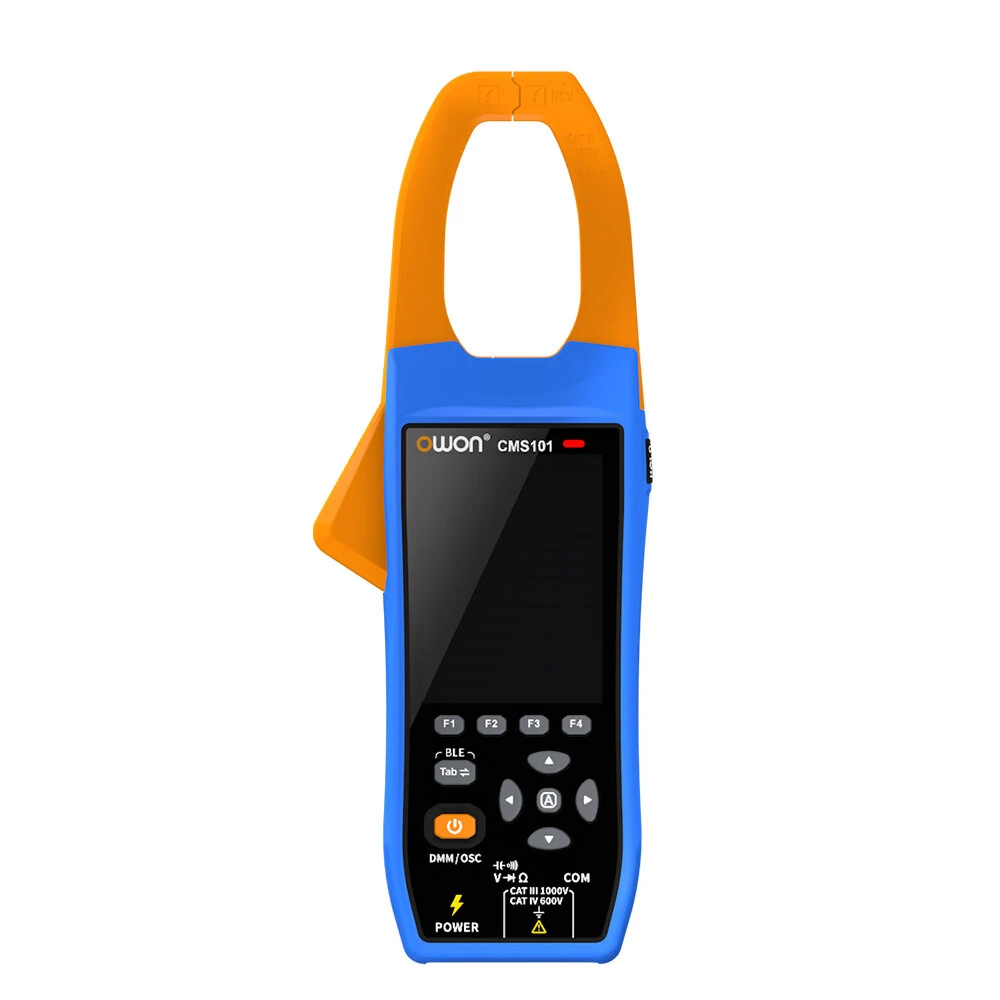

OWON CMS101 3-in-1 Clamp Meter Multimeter Oscilloscope | 1000V 1000A AC/DC

Product Description

Features:
Multi-functional Usage: Combines multimeter, oscilloscope, and current recorder functions to suit various measurement needs.
High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.
Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.
Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.

User-Friendly Interface: Intuitive design with simple button layout for convenient operation and quick access to functions.
Specifications:
Brand: OWON
Model: CMS101 / CMS061 ??optional??
Multimeter Specification
DC Voltage (V):
200.00mV, ??(0.1%+6d)
2.0000V/20.000V/200.00V/1000.0V, ??(0.1%+5d)/??(0.15%+5d)
AC Voltage (V):
200.00mV/2.0000V/20.000V/200.00V, ??(0.6%+10d)
1000.0V, ??(0.8%+10d)
CMS101 DC Current (A):
20.00A, ??(2.0%+10d)
200.0A/1000A, ??(2.0%+5d)
CMS101 AC Current (A):
20.00A, ??(3.0%+10d)
200.0A/1000A, ??(2.5%+5d)

CMS061 DC Current (A):
20.00A, ??(2.0%+10d)
200.0A/600A, ??(2.0%+5d)
CMS061 AC Current (A):
20.00A, ??(3.0%+10d)
200.0A/600A, ??(2.5%+5d)

Resistance (??):
2.0000k??/20.000k??/200.00k??/2.0000M??, ??(0.3%+5d)
20.000M??, ??(0.5%+5d)
Capacitance (F):
2.00nF/20.0nF/200nF/2.00??F/20.0??F/200??F/2.00mF/20.0mF, ??(3.0%+10d)
Frequency (Hz):
200.0Hz/2.0000kHz/20.000kHz/200.000kHz/2.0000MHz/20.00Mhz, ??(0.1%+5d)
Duty Cycle:
0.1%-99.9% (Typical: Vrms=1V, f=100Hz), ??(1.2%+3d)
0.1%-99.9% (<1kHz), ??(2.5%+10d)
Oscilloscope Specification
Analog Bandwidth: 1kHz
Sample Mode: Real-time sample
Real-time Sampling Rate: 5.0MSa/S
Channel: 1
Input Impedance: 10M??
Maximum Input Voltage: 1000V
Maximum Sample Current: 1000A
Scan Speed: 2.5us/div to 10s/div
Time Base Accuracy: ??(0.01%+0.1div)
Sensitivity: 30mV/div to 500V/div
Displacement Range: ??3 grid
Sensitivity Accuracy: ??(5%+0.2div)
Measurement Value: Rms, Period, Freq, Max, Min, PK-PK
Trigger Mode: Auto
Trigger Type: Rise, Fall

Package Included:??optional??
A??
1 x CMS101 AC/DC Clamp Meter
1 x User Manual
1 x Test Lead Set
2 x AAA Batteries
1 x Carrying Case
B??
1 x CMS061 AC/DC Clamp Meter
1 x User Manual
1 x Test Lead Set
2 x AAA Batteries
1 x Carrying Case
