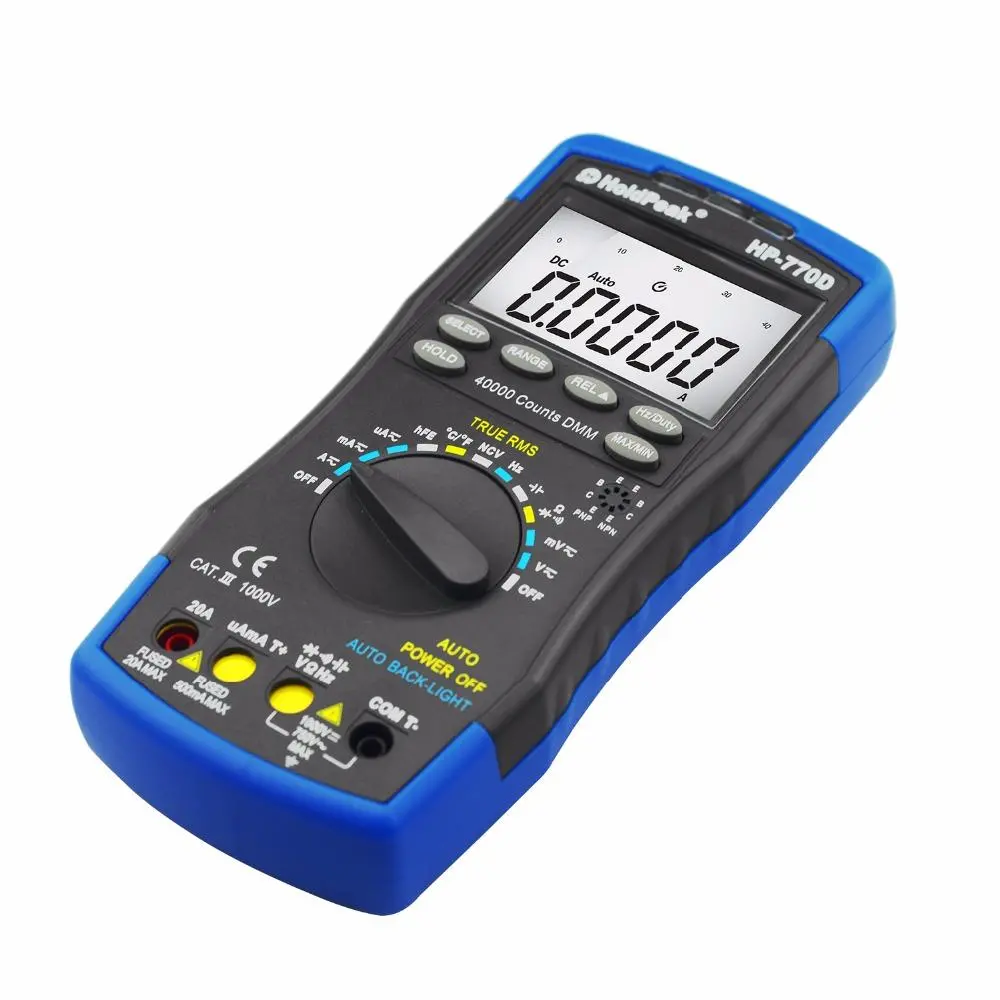

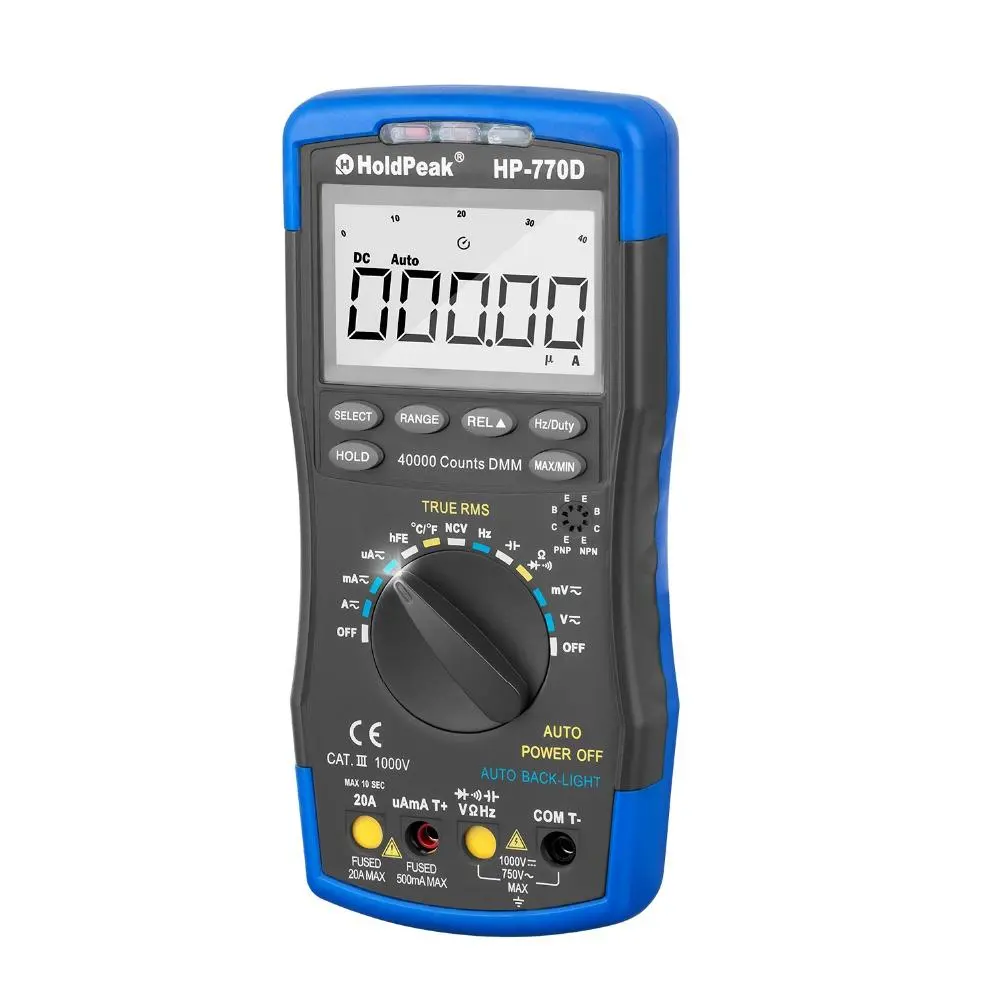

HoldPeak HP-770D 40000 Counts True RMS Multimeter Auto Range High Precision Ohm
$108.00
$132.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:??HP-770D is high-accuracy auto range digital multimeter, characterized at slim size, portable, stable performance and anti-dropping capacity.
??Using 40000 counts digit & analogue bar graph LCD monitor with character 16.5mm high, they offer clear readings.
??With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit,mechanical blocking system the meters give excellent performance and exquisite making as a handy utility instrument.
??HP-770D can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, duty cycle, temperature, transistor hFE, Non Contact AC Voltage (NCV) detection, positive diode voltage fall and audible continuity.
??HP-770D has a small measurement error value and accurate measurement values, which has been well received by customers. 2018, High precision Multimeter HP-770D withstand the test of the market, has been selling in the multimeter, it is a good choice.
Main measurements: DC/AC/Resistance/Capacitance/Frequency/Temperature
Test Diode/ hFE Test
Continuity Buzzer
Auto Back Light
Auto Shut Down
Temperature Unit Select
Function Switch Indicator Lamp
Mechaniacal Blocking System
True RMS/ Min Max/ Relative Value
NCV Feature ( Non-contact AC Voltage Test)
Specification:
DCV: 40mV/400mV/4V/40V/400V/1000V ??0.5%; 1000V ??0.8%
ACV: 40mV/400mV/4V/40V/400V/750V ??1.2%; 4/40/400/750V ??0.8%
DCA: 400uA/4000uA/40mA/400mA/4A/20A ??1.2%; 4/20A ??2.0%
ACA: 400uA/4000uA/40mA/400mA/4A/20A ??1.5%; 4/20A ??2.5%
Resistance: 400??/4K/40K/400K/4M??/40M?? ??1.0%; 40M?? ??1.5%
Frequency: 9.999Hz~9.999MHz ??0.1%
Capacitance: 9.999nF~99.99mF ??2.5%
Temperature: -20??~1000?? ??3%/-4?H~1832?H ??3.0%
Battery Power Test: ??1.5%
Duty Cycle: 0.1%~99.9%
Display: 40000 Counts digit LCD 0.05% + 2dgt

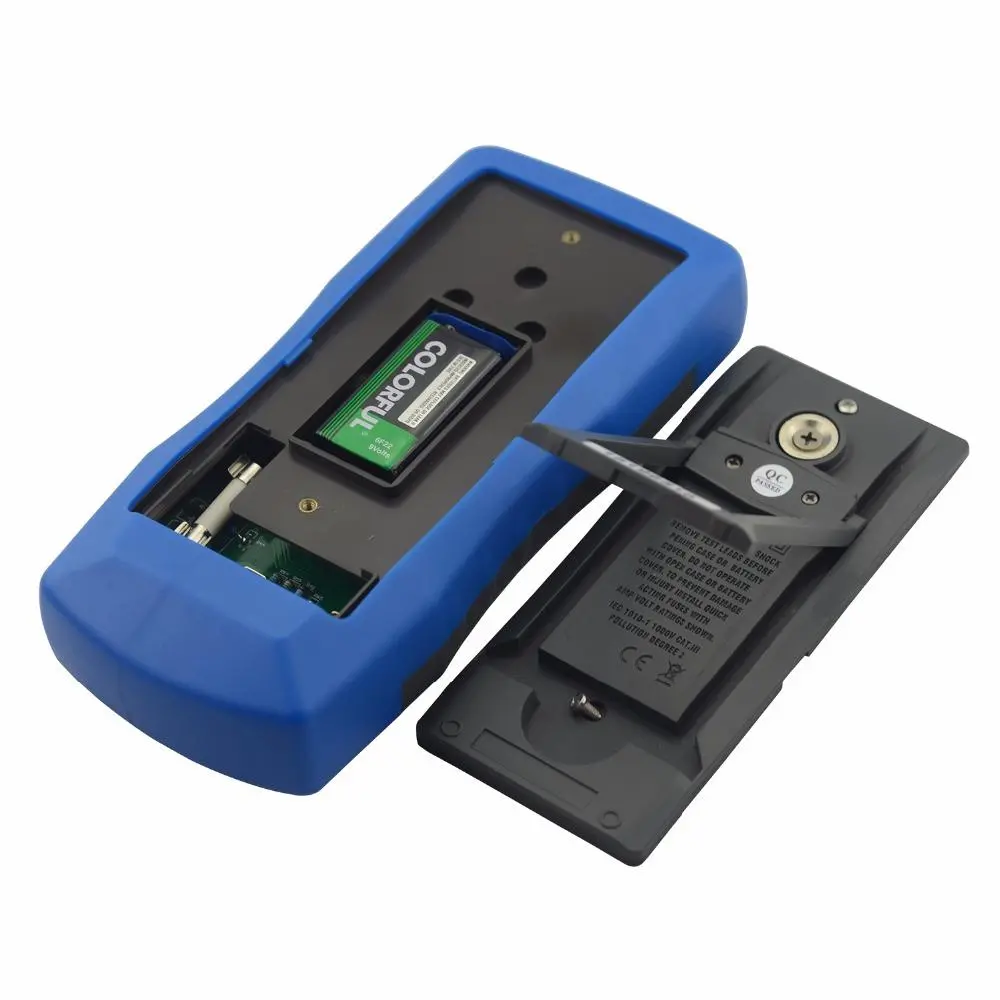

Power Supply: 1 * 9V/6F22 (not included)
Dimensios: 195 * 88 40mm
Item Weight: 350g
Package includes:
1 x HP-770D Digital Multimeter
1 x English Manual
1 x Test Leads
1 x Temperature Test Probe
1 x Carrying Case

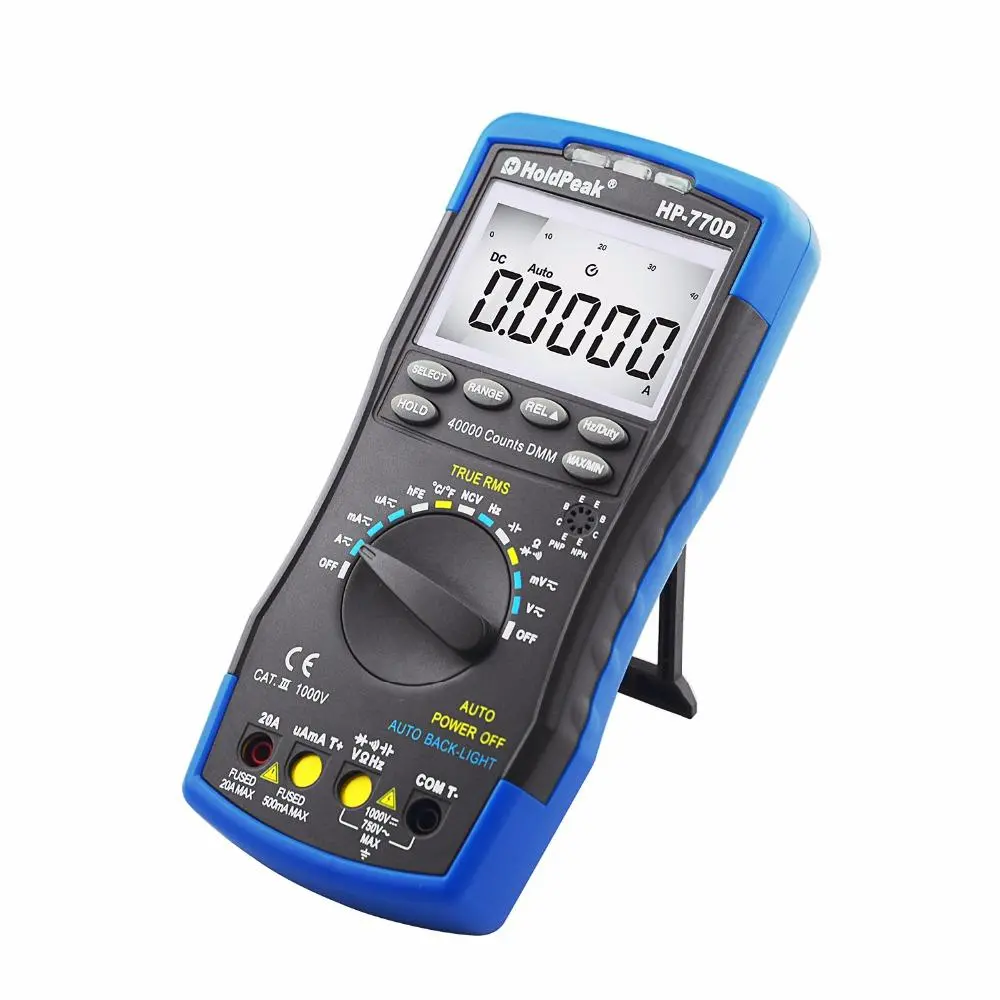

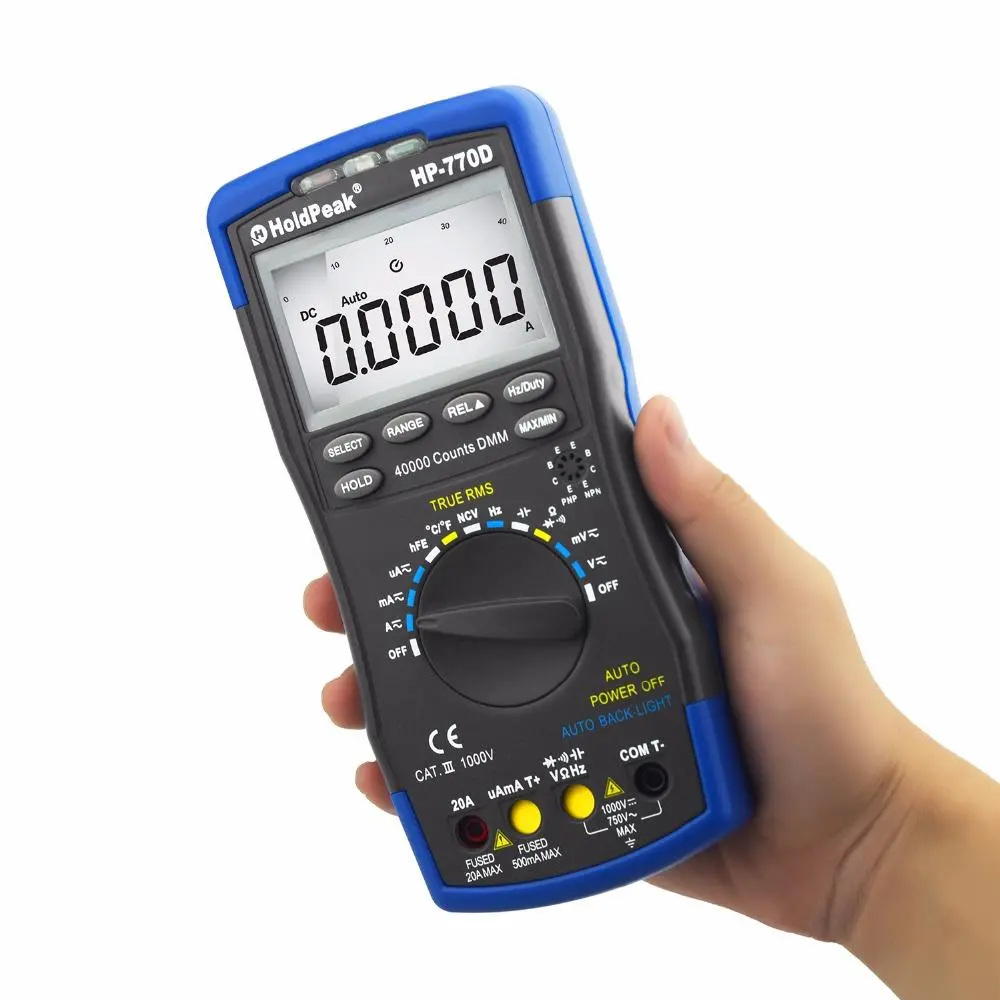

Details pictures:
