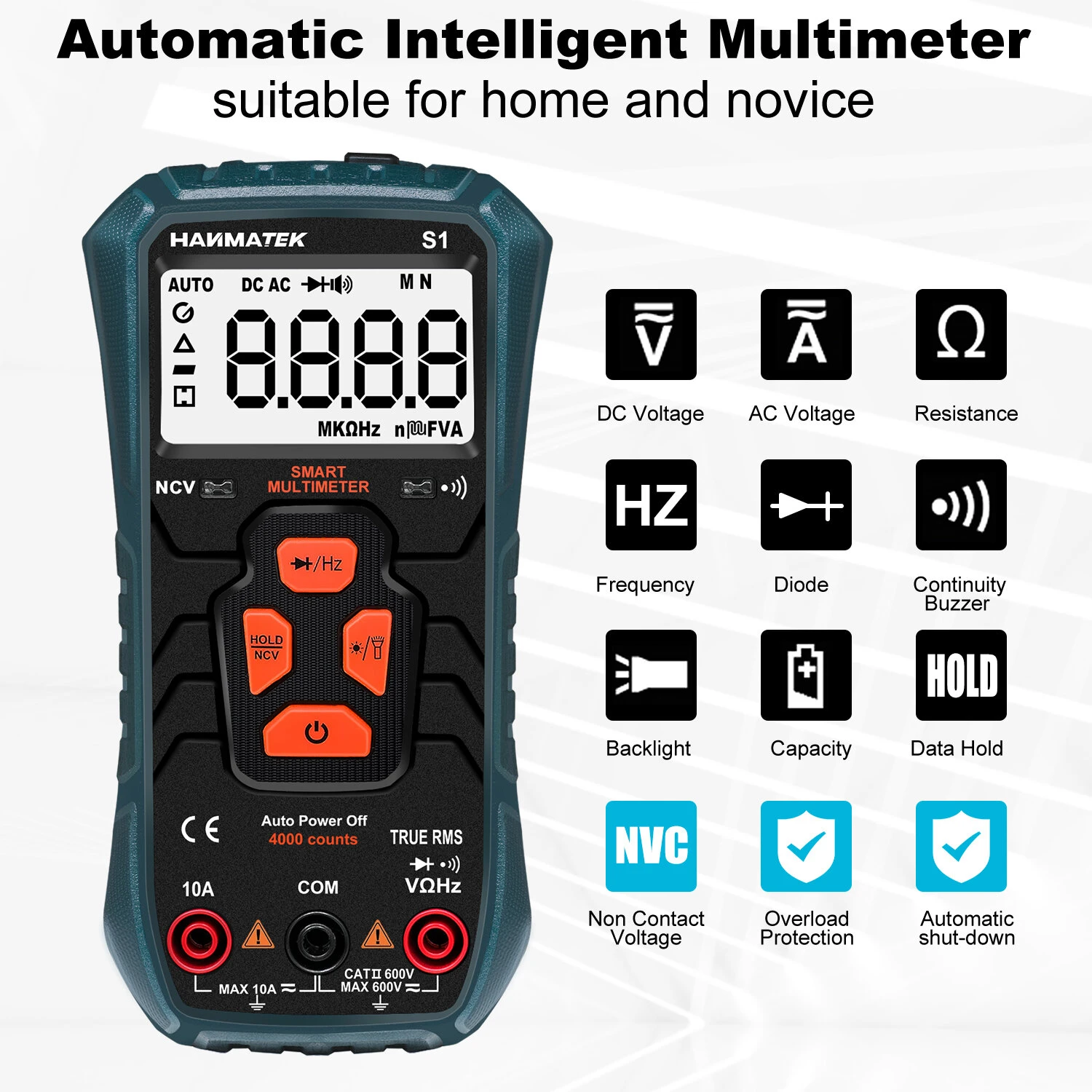

HANMATEK S1 Digital Multimeter | NCV Non-Contact Voltage & Backlit Display
$30.00
$36.78
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Specification:
| Gear | Range | Resolution | Accuracy | Remarks |
| DC voltage (DVC) | 0.8V-600V | 0.001V-0.1V | ??(0.8%+5) | Minimum input voltage: 0.8V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| AC voltage (ACV) | 1V-600V (50-60HZ) | 0.001V-0.1V | ??(1.0%+5) | Minimum input voltage: 1V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| Resistance (??) | 0.1-40M?? | 0.1??-10K?? | ??(1.0%+5) | Overload protection 600V AC / DC |
| Current (A) | 0.001A-10A | 0.001A | ??(2.0%+5) | 10A fuse protection |
| Frequency (Hz) | 10Hz-2000Hz | 0.01Hz-1Hz | ??(2.0%+5) | Vpp 1V or more effective value |
| Maximum display value | 4000 | |||
| Automatic shut-down | ?? | No operation delay 5 minutes | ||
| Backlight | ?? | Auto-off after 30 seconds delay | ||
| flashlight | ?? | Auto-off after 30 seconds delay | ||
| diode | ?? | 2.0V | ||
| buzzer | Internal resistance is less than 50?? | Overload protection 600V AC / DC | ||
| Buzzer indicator | ?? | |||
| NCV | ?? | ---- corresponds to the change of strength | ||
| NCV indicator | ?? | |||
| FireWire Discrimination | ?? | ---- corresponds to the change of strength | ||
| True effective value | ?? | 10-2KHz | ||
| Under voltage warning | ?? |
NOTE:In order to ensure transportation safety, we will ship without batteries!!!

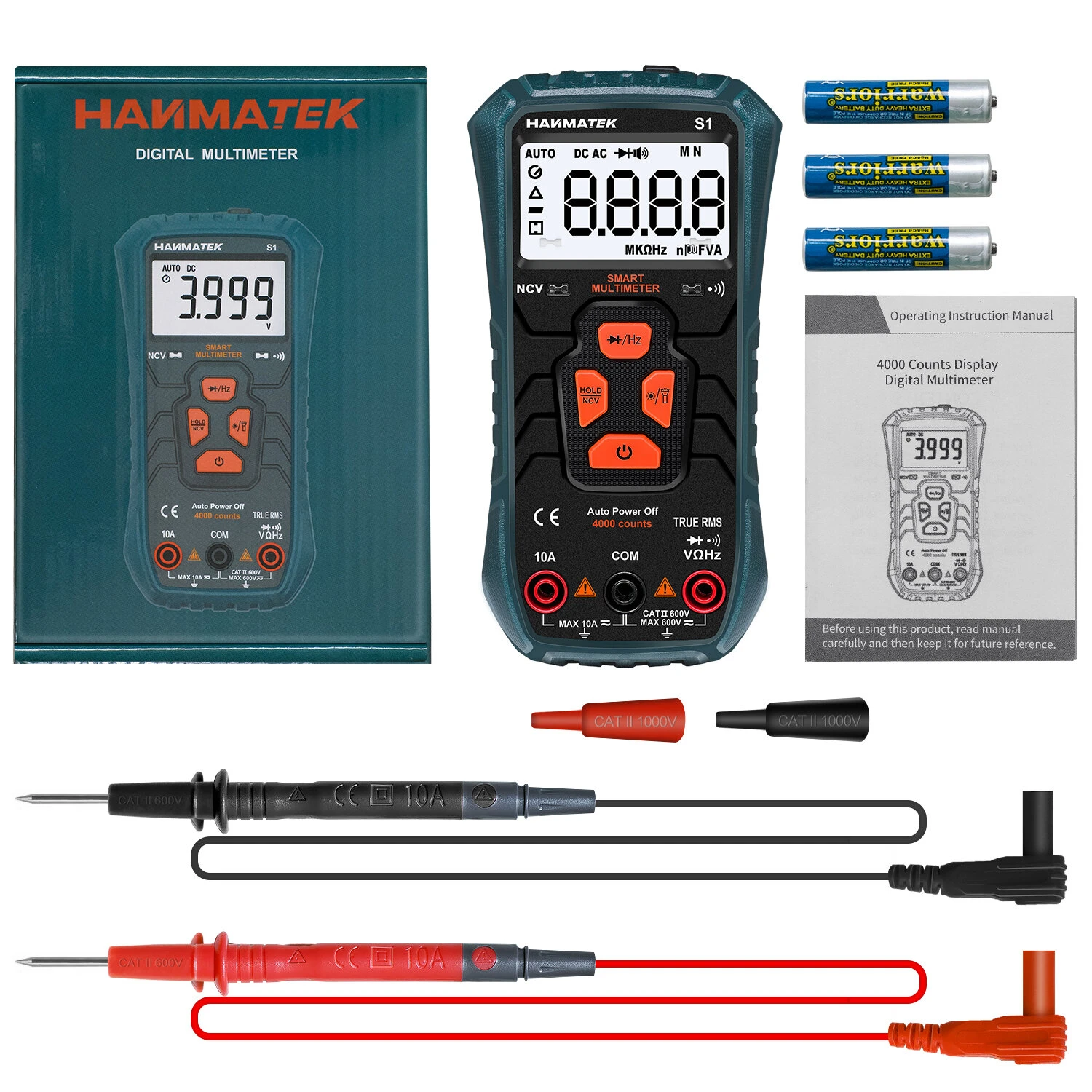

Package includes:
1 X HANMATEK S1 Multimeter
