FNIRSI DST-210 True RMS Multimeter | 119999 Counts | 10MHz Bandwidth & 48MSa/s

Product Description

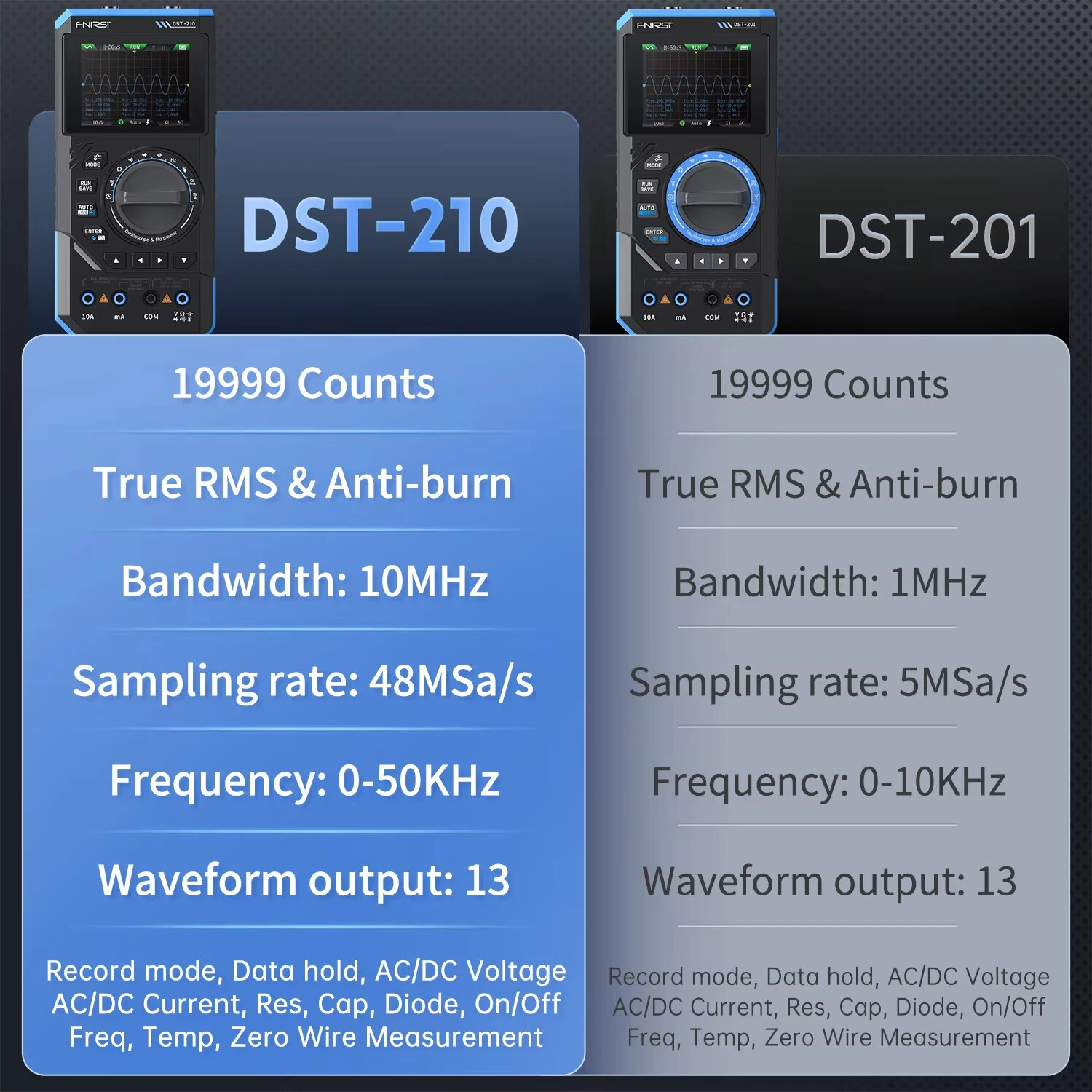

Specifications:

DST-210:

- 19999 Counts

- True RMS & Anti-burn

- Bandwidth: 10MHz

- Sampling rate: 48MSa/s

- Frequency: 0-50KHz

- Waveform output: 13

DST-201:

- 19999 Counts

- True RMS & Anti-burn

- Bandwidth: 1MHz

- Sampling rate: 5MSa/s

- Frequency: 0-10KHz

- Waveform output: 13

Features:

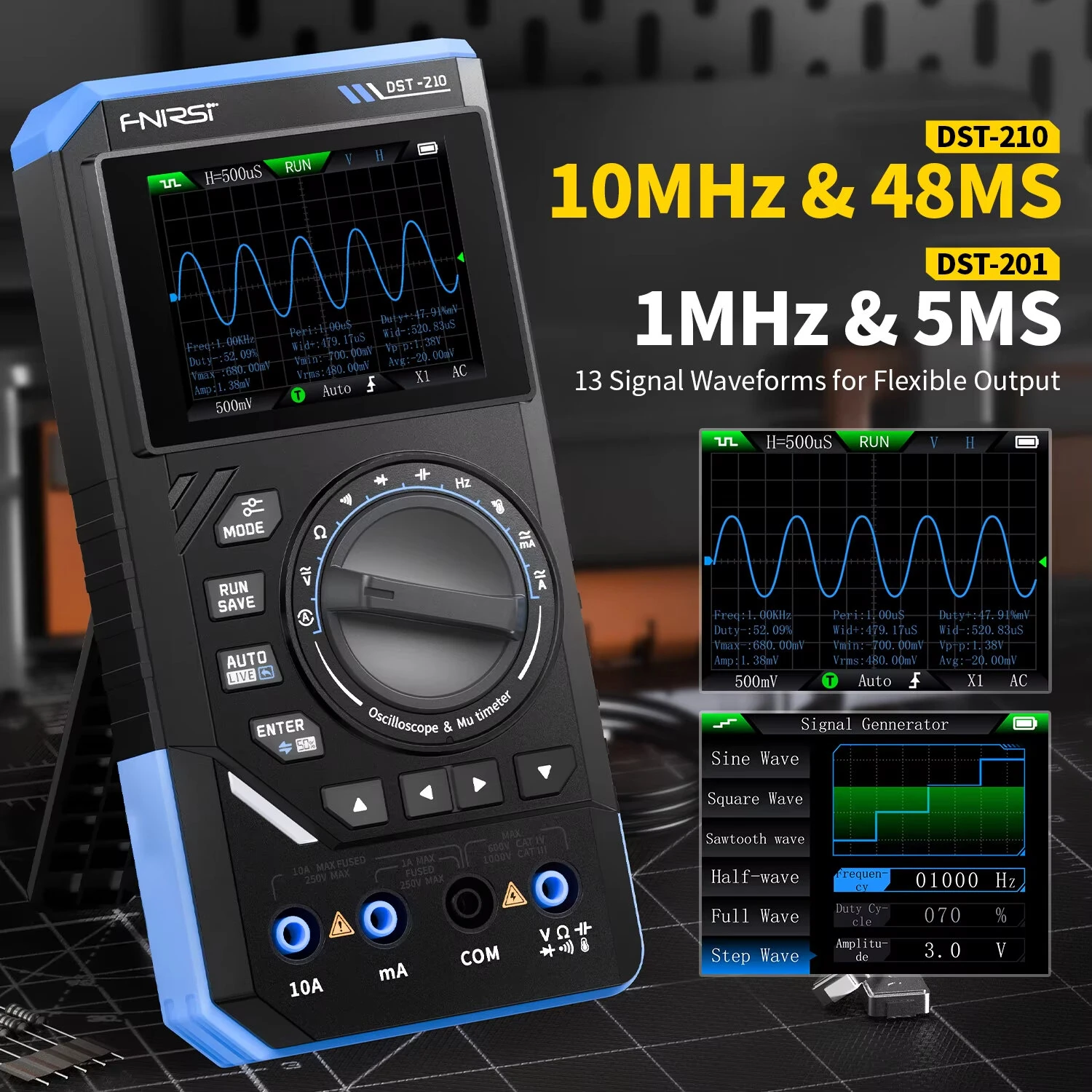

1.High-precision oscilloscope function:

FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ??400V, suitable for a wide range of applications.

2.Multi-function signal generator function:

Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.

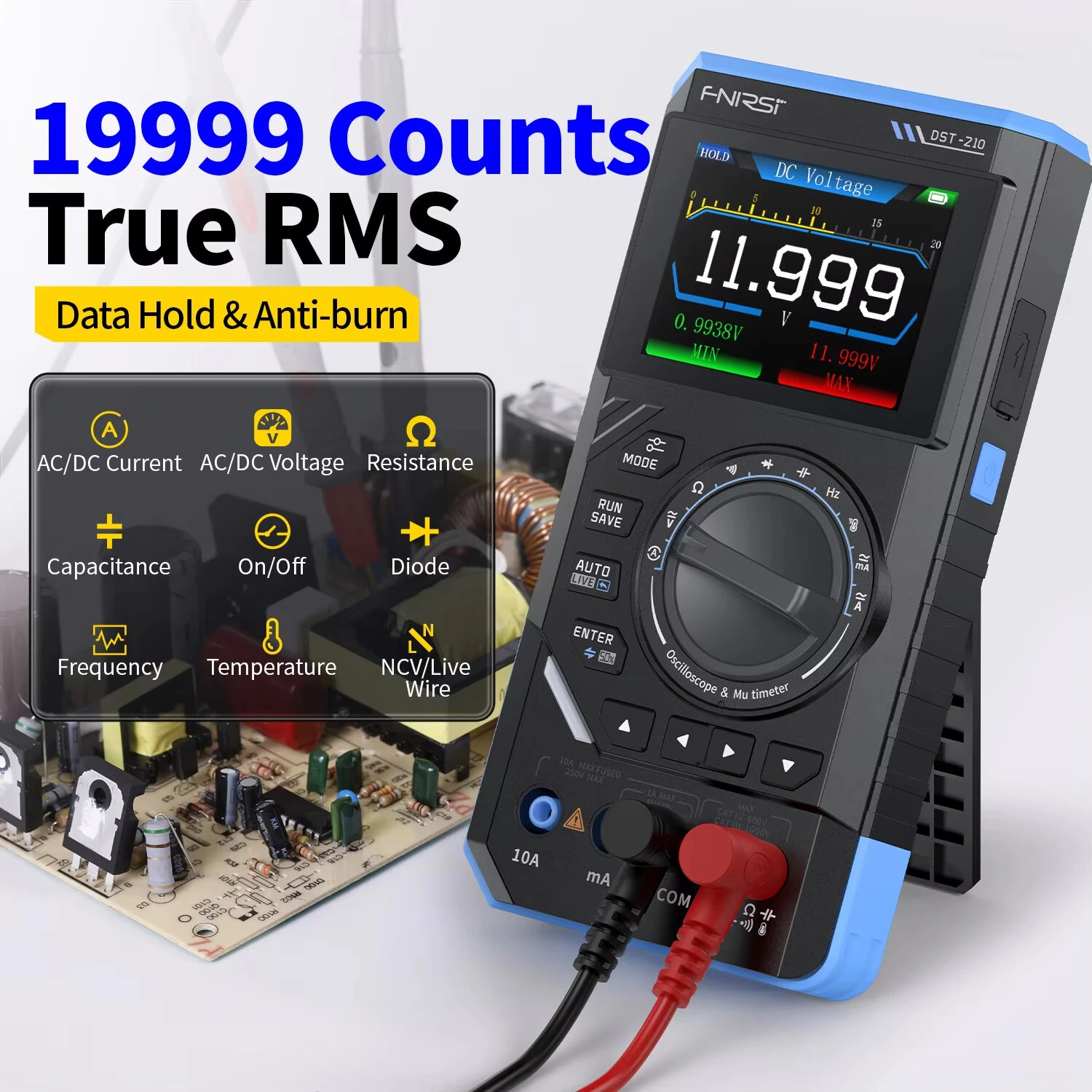

3.Comprehensive multimeter function:

FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.

4.Overload protection and portable design:

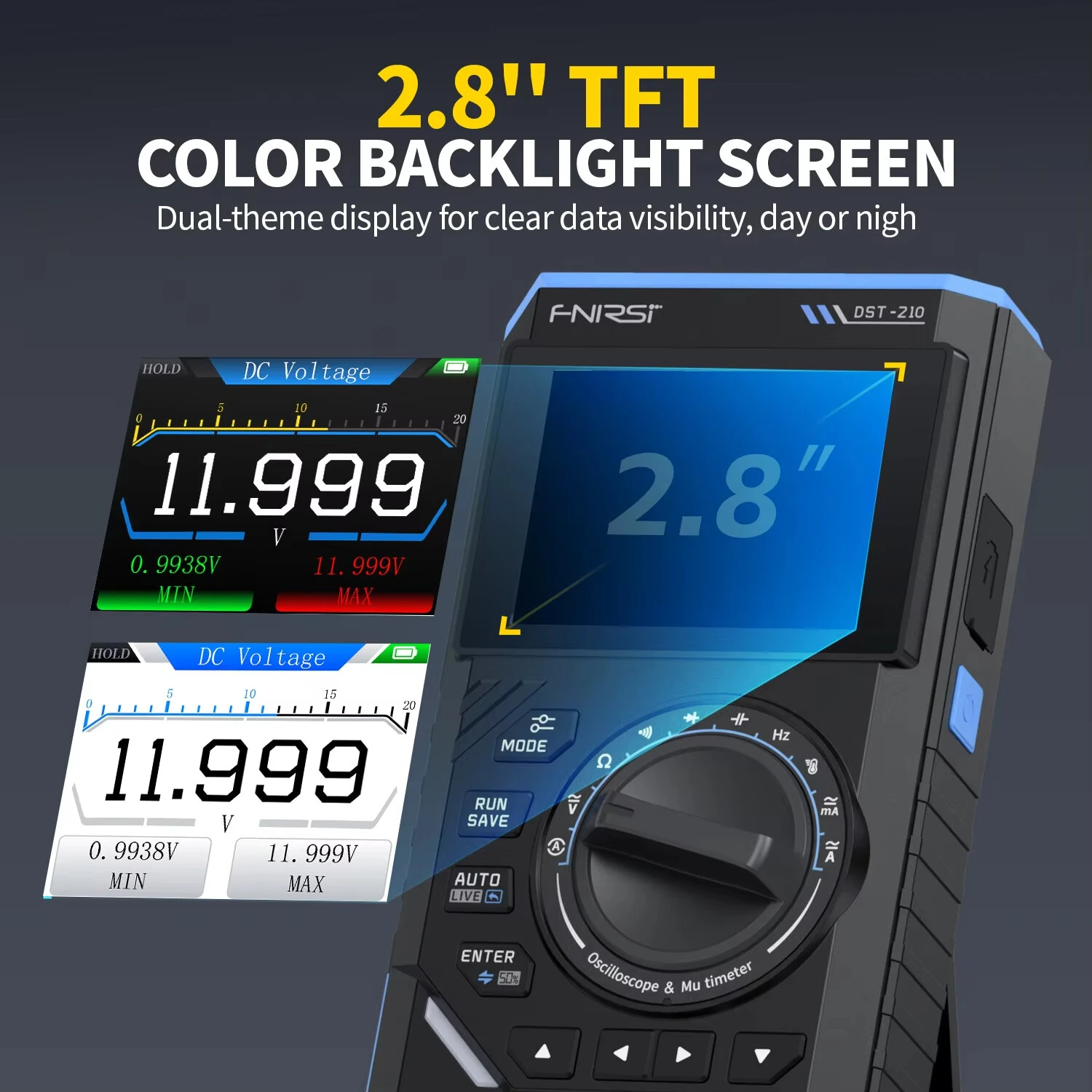

The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.

5.User-friendly and multifunctional:

FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.

Package Included:

1 x Multimeter

1 x Crocodile clip probe

1 x Multimeter Probe

1 x Charging cable

1 x User Manual

1 x Packing Box
