ETCR6100 Digital Clamp Meter - 1000A AC/DC Current Tester & Ammeter
Product Description
Description:
ETCR6100 AC/DC Clamp Current Meter is specially designed and manufactured for on-line measurement of below 600V AC/DC Clamp Current Meter. It adopts CT and digital integration technology, and the slim design of the clamp is especially suitable for densely packed places ( Power metering system, high-speed rail system, automotive circuit overhaul, etc.), non-contact measurement to ensure safe operation.
ETCR6100 AC/DC Clamp Current Meter also known as: AC/DC Clamp Current Meter. The instrument has functions of data retention, data storage, etc. It is equipped with RS232 interface, communication line and software. Historical data can be uploaded to the computer for easy reading, saving and printing.
Specification:
| Power Supply | 9V??6LR61?? (Not inlcude) |
| Size of clamp | 30mmx35mm |
| LCD | 32mmx15mm |
| Range | AC/DC 0.0A??1000A |
| Resolution | AC/DC 0.1A |
| Accuracy | ??2%rdg ??3dgt |
| data storage | 99 set |
| Data upload function | Store data can be uploaded to the computer, save and print |
| Auto Power-off | 5 minutes off automatically |
| Working environment | -10??~50?棻20%rh~80%rh |
| Store environment | -10??~60?棻below 70%rh |
| measurement method | Clamp CT??Non-contact measurement |
| Frequency response | AC: 45Hz??400Hz ?? |
| Peak hold | Peak hold function, long press HOLD during test to show peak value |
| Data Hold | Data retention function: "DH" symbol display |
| Overflow display | Overrange overflow function: "OLA" symbol display |
| Polarity indication | DC current detection automatically identified, display "-" sign |
| Line voltage | 600V and below circuit test |
| Shift | Automatic shifting |
| Measure time | 2 seconds/time |
| Voltage alarm | When battery voltage decreases to about 7.2V, battery voltage low icon will display |
| Insulation | AC2kV/rms(Between core and box) |
| Protection Type | IEC1010-1??IEC1010-2-032??Pollution 2??CAT ??(600V) |
| Weight | 200g (with battery) |
| Dimension | 175mm*70mm*38mm |
Package Includes:
1 x Clamp Meter (Battery Not Included)
1 x Cloth Bag

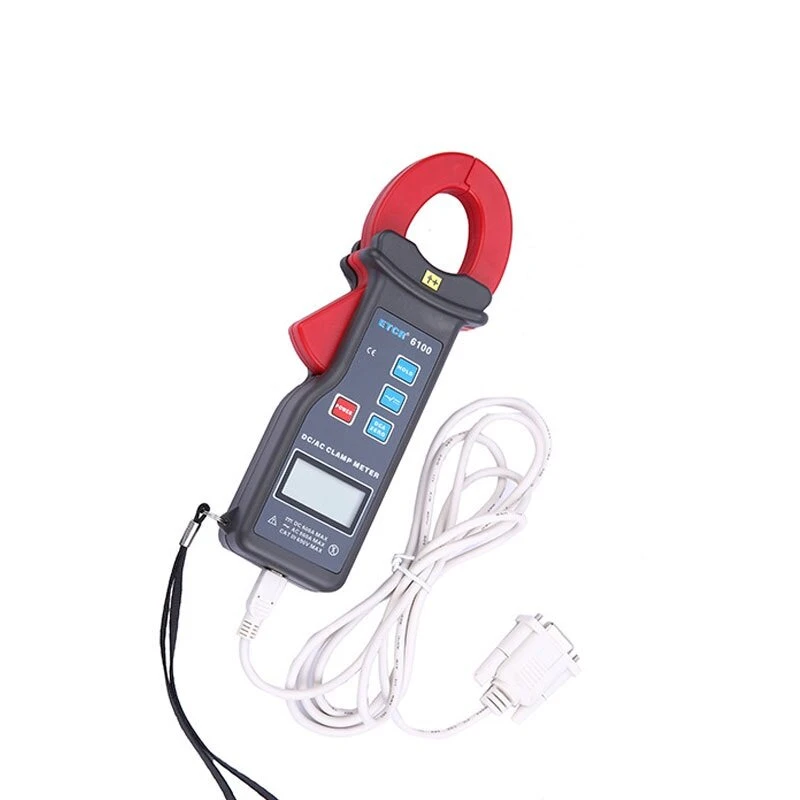

1 x RS232 Cable
1 x CD
1 x User Manual

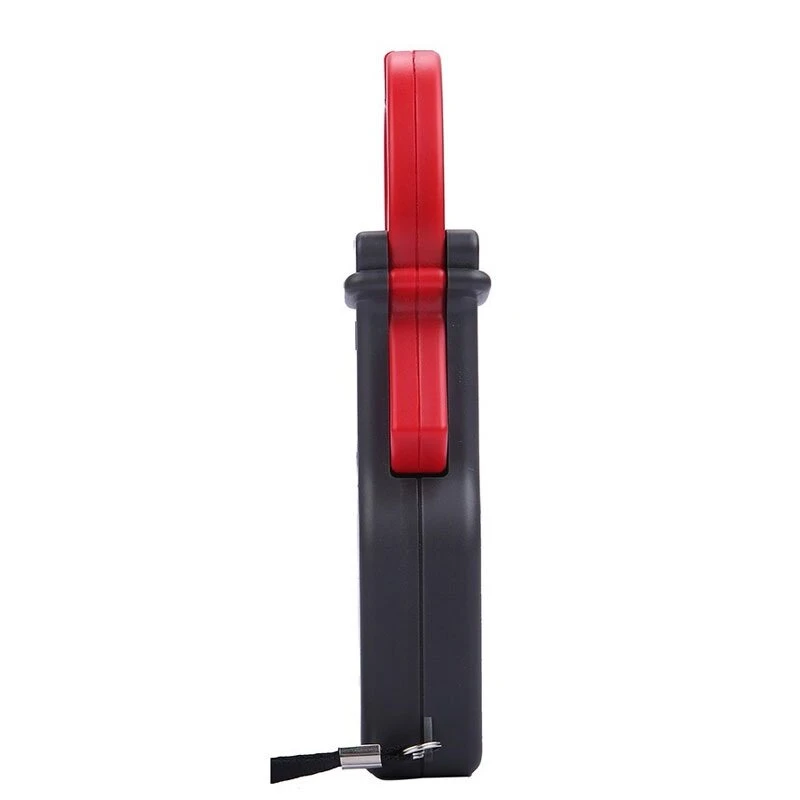

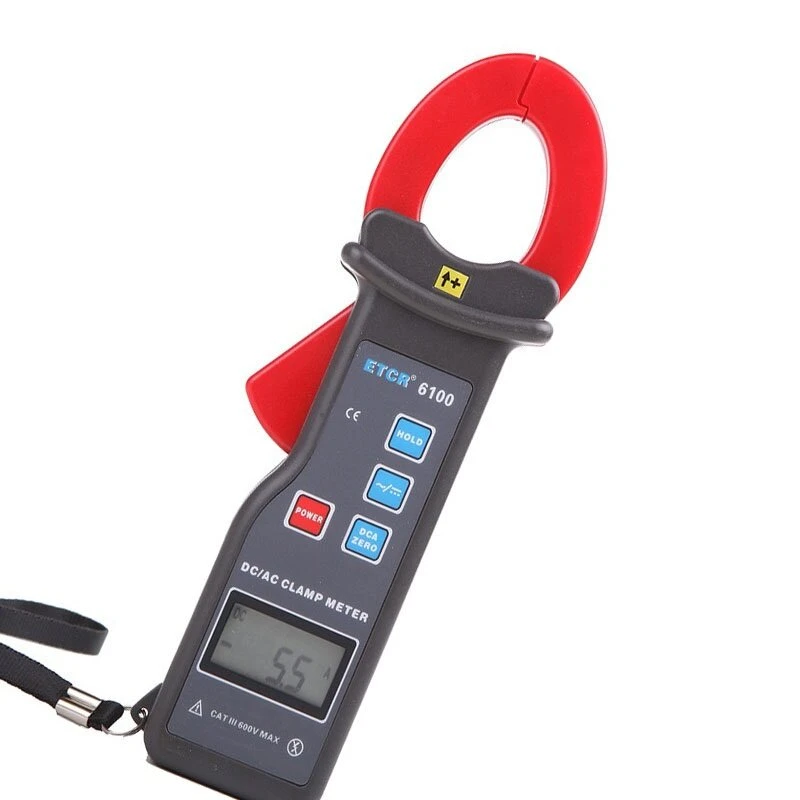

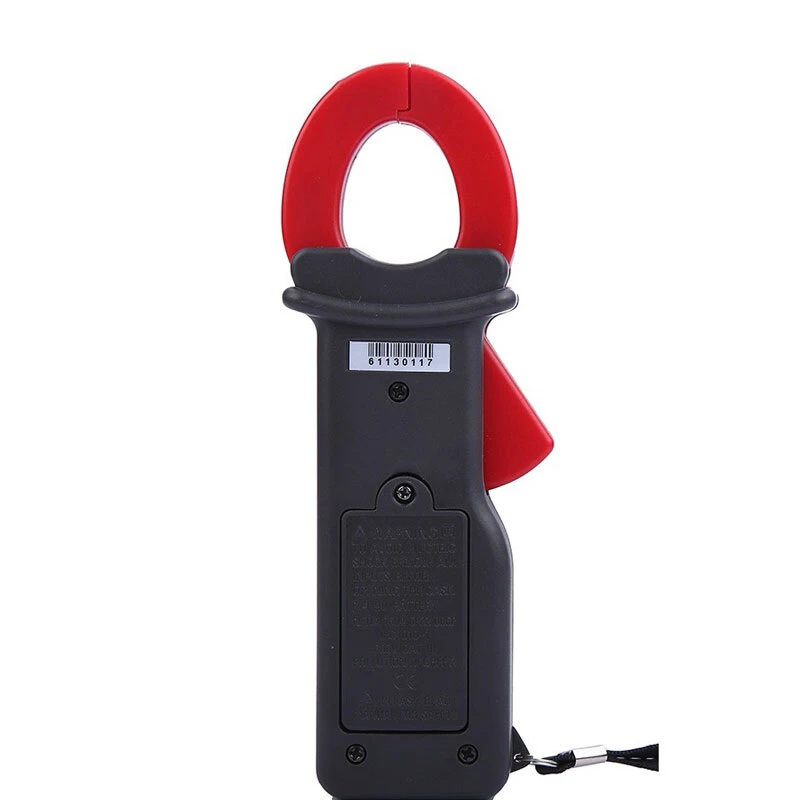

Details Picture:
