ETCR6000B Clamp Meter - 60A DC/AC Leakage Current Tester | Automotive
$140.00
$172.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Feature:1. AC and DC leakage current meter, support clamp CT, non?contact measurement, safe and reliable.2. Precise winding head design, range is 0mA?60.0A, high measurement accuracy.3. Slender jaw design, strong adaptability, fully automatic switching gears, suitable for line testing of 600V and below.4. Mainly measure automobile DC dark current, leakage current, etc., other AC and DC current, leakage current measurement.5. Support knob zero adjustment, strong anti?interference, support data retention, automatic shutdown.
Specification:
Item Type: Leakage Current TesterMaterial: ABSModel: ETCR6000BMeasurement Function: Automobile DC dark current, leakage current, etc., other AC and DC current, leakage current measurementPower Supply: 1 x 6F22 9V Battery, 100 hours of continuous use (Battery Not Included)Test Method: Clamp-on CT, non-contact measurementJaw Size: Approx. 16x18mm / 0.6x0.7inRange: 0mA-60.0A AC/DCResolution: 1mA AC/DCAccuracy: ??2%rdg??5dgt (23???5??, Below 75%Rh)Display Mode: 4-Digit LCD DisplaySampling Rate: 2 Times/SecFrequency Response: AC 45Hz-400HzPolarity Indication: Automatic recognition when DC current is detected, display "-" signWire Position: The wire to be detected is at the center of the jawsShifting: Fully automatic switchingLine Voltage: 600V and below line testUSB Interface: With a USB interface, the stored data can be uploaded to the computer, saved and printedCommunication Parameters: Baud rate 9600, data bit 8, stop bit 1, parity bit NONESupport Functions: Data retention, overflow display, automatic shutdown, battery voltageRS232 interface: with RS232 interface, the stored data can be uploaded to the computer, saved and printedData storage: 99 groups, flashing "FULL" symbol indicates that the storage is fullData retention: data retention function: "DH" symbol displayOverflow display: over-range overflow function: "OL A" symbol displayWorking Current: 10mAWorking Temperature and Humidity: -10??-50??; below 80%RHLimit Temperature Error: -10??-0?? and 40??-50??, the maximum error increases by 2%rdgStorage Temperature and Humidity: -10??-60??; below 70%RHInsulation Strength: AC 3700V/rms (between core and box)
How to Use:Get the product, open the back cover with a tool, install the battery, and the user can adjust the measurement range, and then you can use the measurement. The right knob is zeroed, which has strong anti-interference and better calibration to zero. HOLD is the data holding key. It is very convenient to measure by simply putting the wire into the jaws.

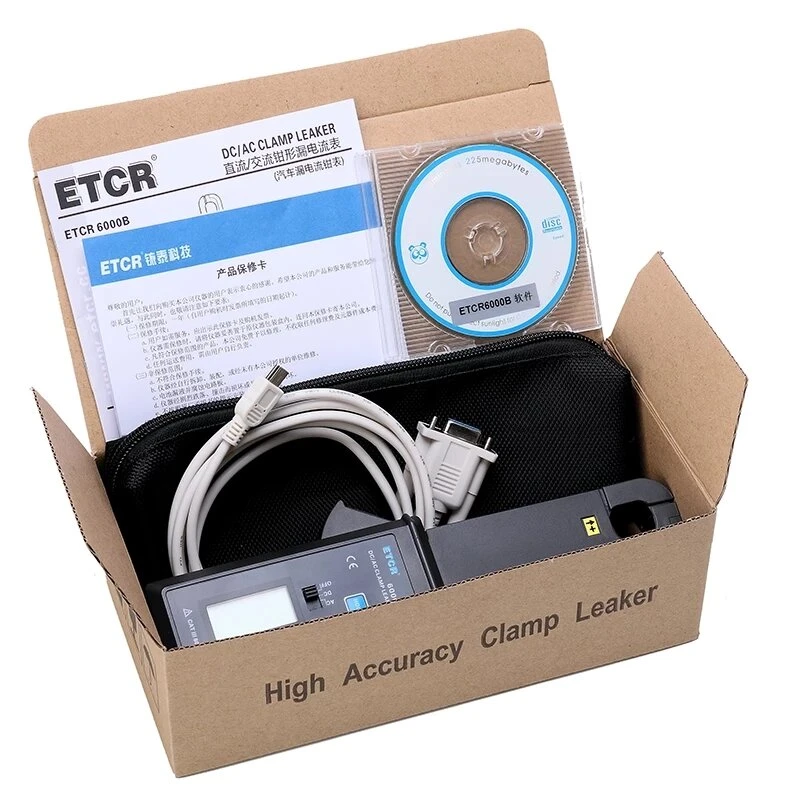

Package Includes:
1 x AC/DC Leakage Current Meter (Battery Not Included)1 x CD1 x USB Cable1 x Manual1 x Bag
Note:1. Please allow 0?1 inch error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

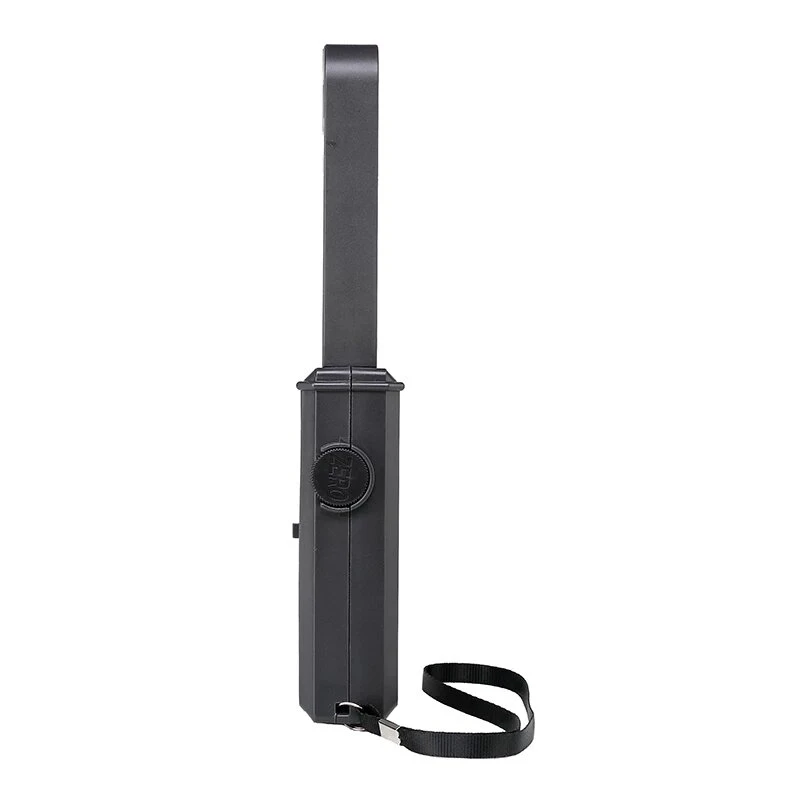

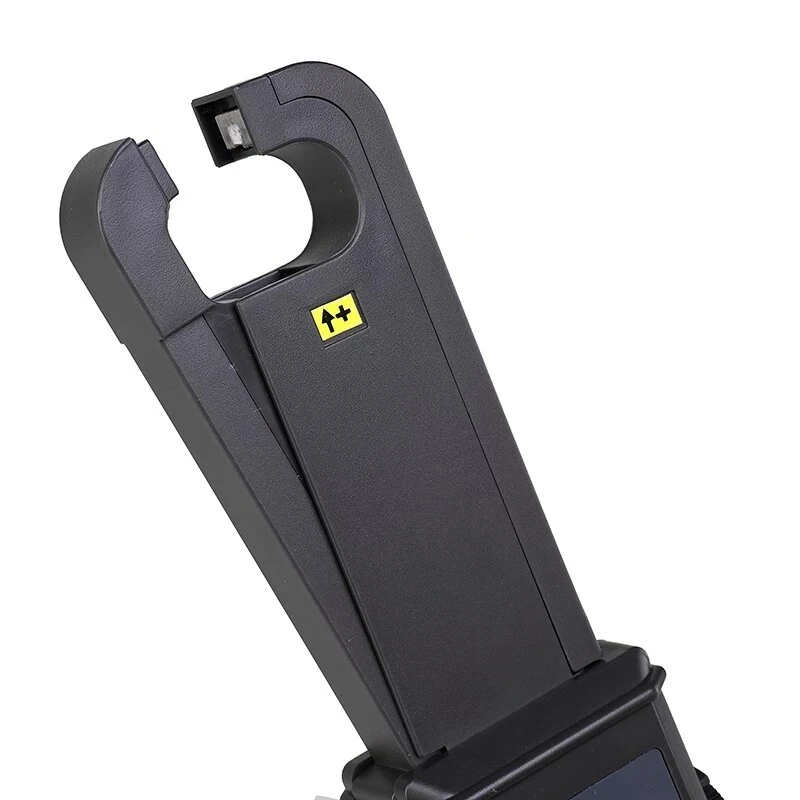

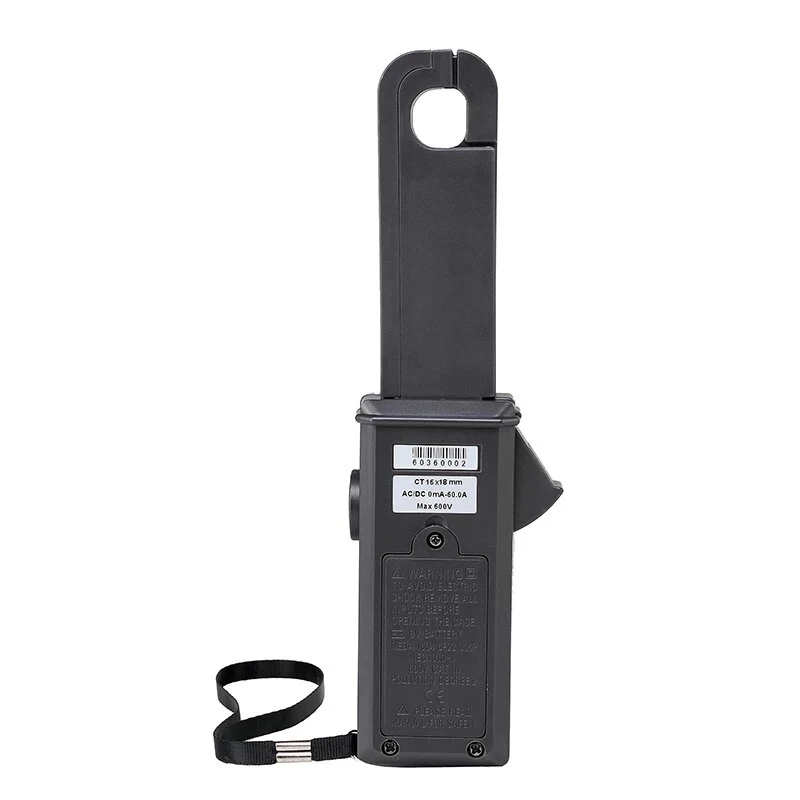

Details Picture:
