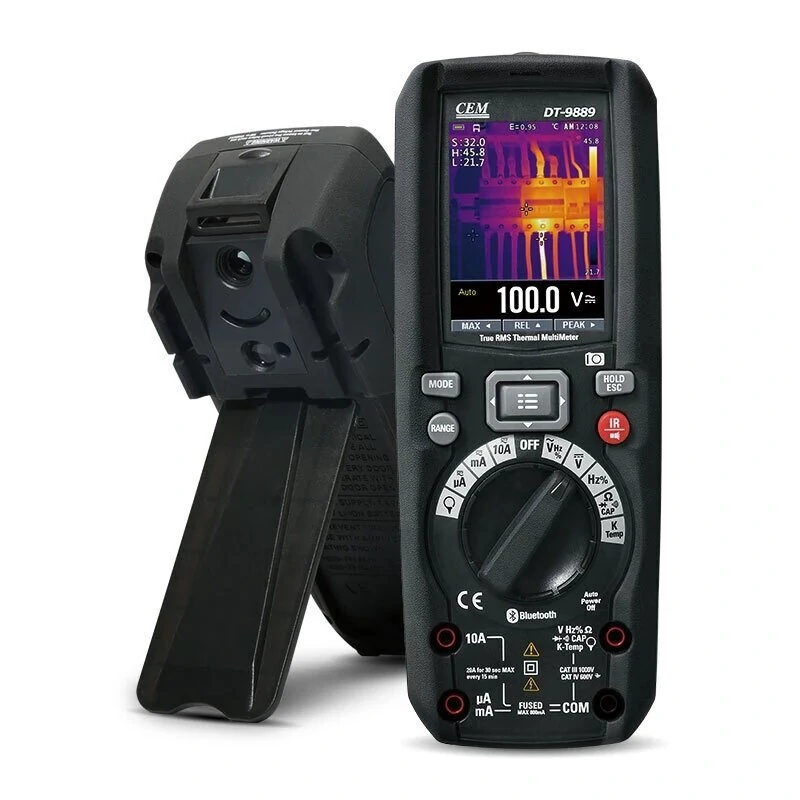

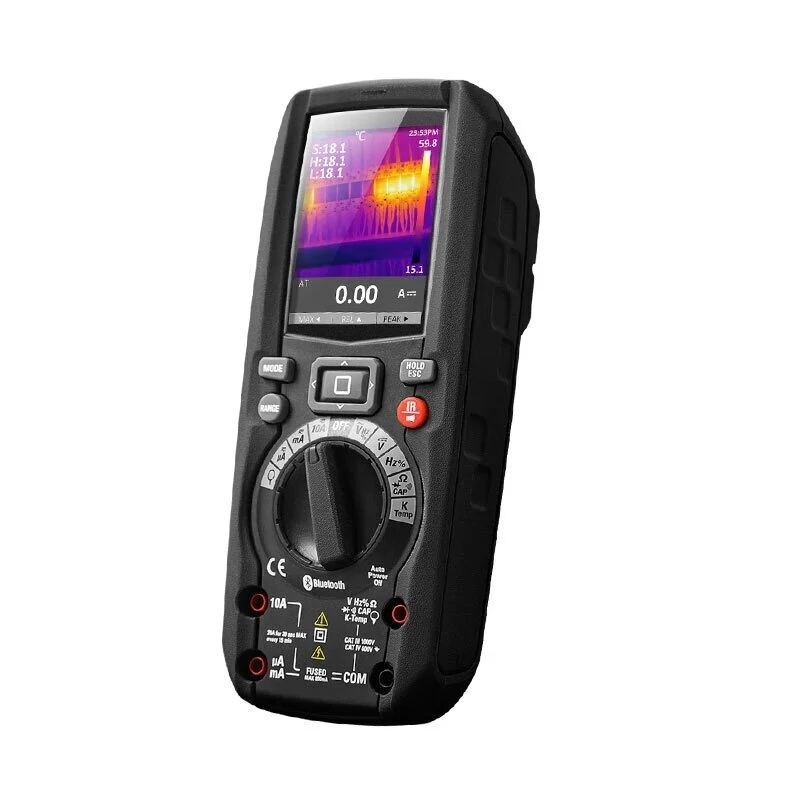

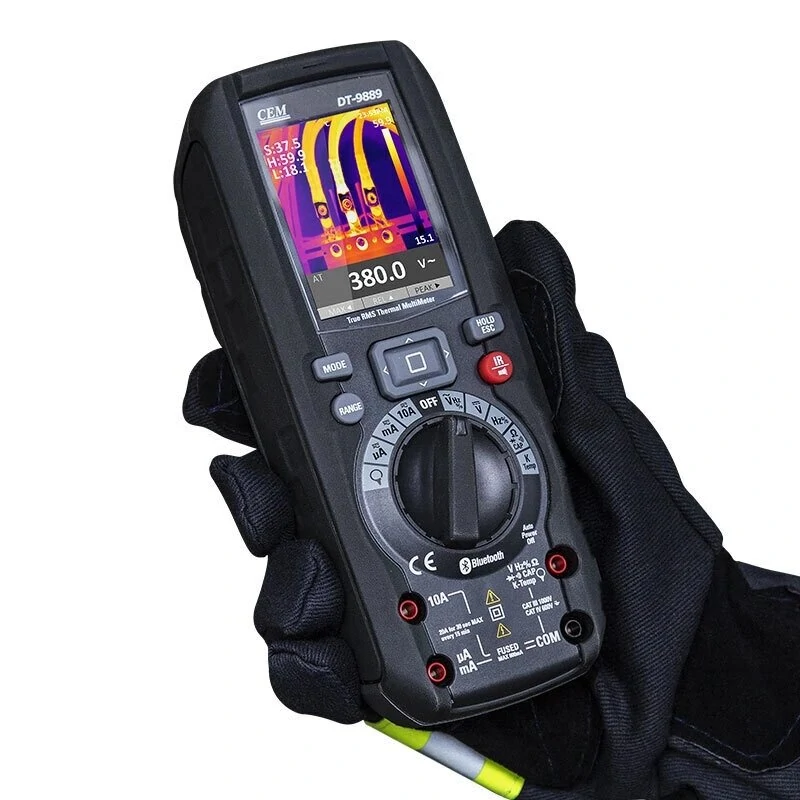

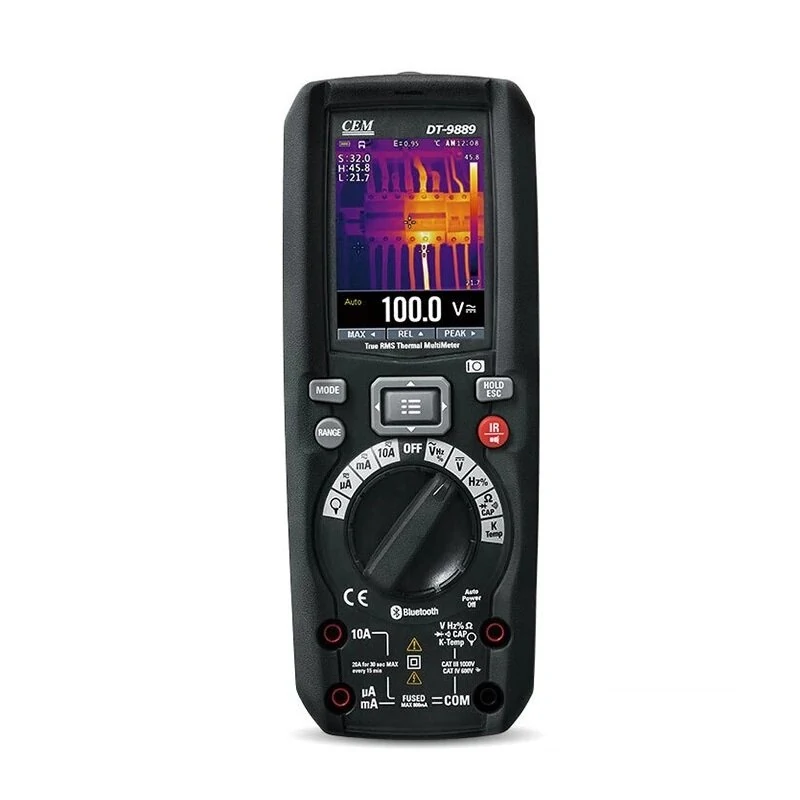

CEM DT-9889 2-in-1 Multimeter & Thermal Imager | True RMS | Bluetooth
Product Description
Features:Built-in Thermal Imager design quickly identifies hot spots without contact240 x 320 2.8" TFT color LCD displayLarge LCD display 6000 countsLogging function with Trend Capture for easy review of logged dataLow pass filter for accurate measurement of variable frequency drive (VFD) signalsLong work time with li-ion batteryAC, AC+DC true-RMS measurements & 1kHz ACV, ACA bandwidthA/D convert fast sampling time: 10 Times/sec.Peak capture (records transients as fast as 500??s)Min/Max/Average with Time stamp (records signal fluctuations)80 x 80 Infrared resolutionBluetooth BLE instant share functionEasy to view and analyze images quickly
Specification:
Model | DT-9889 | ||
IR Resolution | 80x80 pixels | ||
Field of view(FOV) | 21??x 21?? | ||
Thermal sensitivity/NETD | < 0.08??C /80mK | ||
Image frequency | 50Hz | ||
Object temperature range | range:?C20 to 260??C (?C4 to 500??F) | ||
Spectral range | 8?C14??m | ||
Color palettes | IRON/Rainbow/Grey/Grey Inverted | ||
Accuracy | ??2??C (??3.6??F) or??2% of reading | ||
True RMS Multimeter Functions | |||
Function | Maximum | Max, resolution | Accuracy |
Voltage DC | 1000V | 100mV | ??(0.1%+3) |
Voltage AC | 1000V | 100mV | ??(0.9%+20) |
Current DC | 10A | 0.1??A | ??(0.9%+2) |
Current AC | 10A | 0.1??A | ??(1.2%+5) |
Resistance | 60M?? | 0.1?? | ??(1.0%+2) |
Capacitance | 6000??F | 0.01nF | ??(2.5%+5) |
Frequency | 10MHz | 0.01Hz | ??(0.5%+1) |
Diode and Continuity | Yes | ||
PC Interface | Bluetooth | ||
Power Supply | 8 hours Li-ion rechargeable battery; AC Adaptor/charger | ||
Size(HxWxD) | 195mm x 80mm x 58mm | ||
Weight | 540g | ||
Package included:
1 x Digital Multimeter1 x Test probe1 x K-type temperature probe1 x Lithium battery1 x Power adapter1 x Manual
1 x Software CD1 x Toolbox1 x Color box
