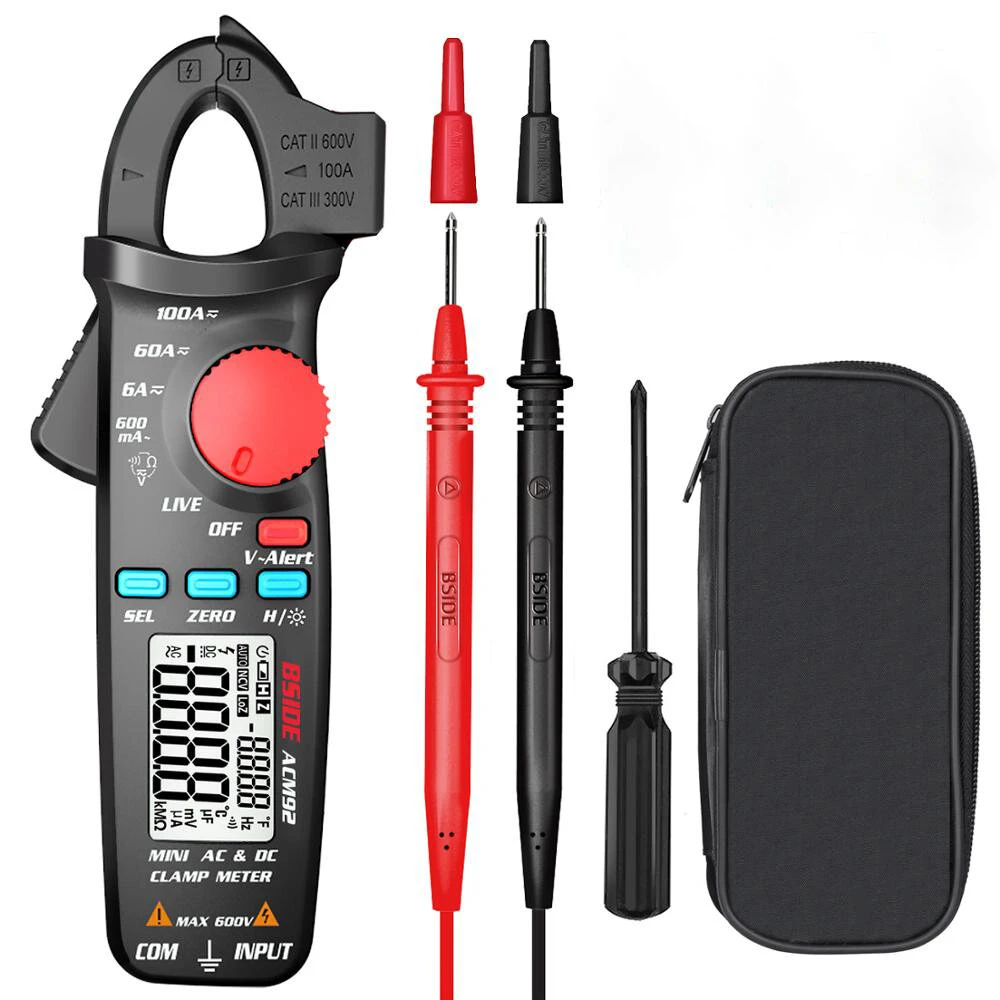

BSIDE ACM92 Clamp Meter - AC/DC Voltage, Resistance, Frequency, NCV
$53.00
$65.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Measure AC currentMeasure DC currentMeasure the AC/DC voltageV-alert measurement, live-wire verificationMeasurement of frequency, resistance and continuityFrequency clampAutomatic shutdown, data retention, low battery indication with backlightCat III class 300V of overvoltage protection, cat II 600V
Specification:
Function | Measuring range | Accuracy |
DC current | 6A/60A/100A | ?? (2.5% +10 Counts) |
AC current | 600mA | ?? (3.0%+10 Counts) |
6A/60A/100A | ?? (2.5% +10 Counts) | |
Frequency | 60.0Hz/1000Hz | ?? (1.5% +5 Counts) |
Frequency (ACA MODE) | 60.0Hz/1000Hz | ?? (1.5% +5 Counts) |
DC voltage | 600V | ?? (1.0% +5 Counts) |
AC voltage | 600V | ?? (1.0% +3 Counts) |
Resistance | 30??~6000?? | ?? (1.5% +5 Counts) |
Continuity | <30?? | If the resistance is less than 30??, |
General Parameters:
V-Alert: LCD display flashes and alarm buzzer sounds when detected AC voltageBuzzer: If the resistance is less than 30??, the continuity beeper soundsJaw Capacity: 20mmPower: 1.5V (AAA) x 2(not included)Size: 179 x 67 x 36 mmWeight: 137g
Package included:
1 x Clamp Multimeter1 x Probes1 x Carrying Case1 x Screwdriver1 x User Manual

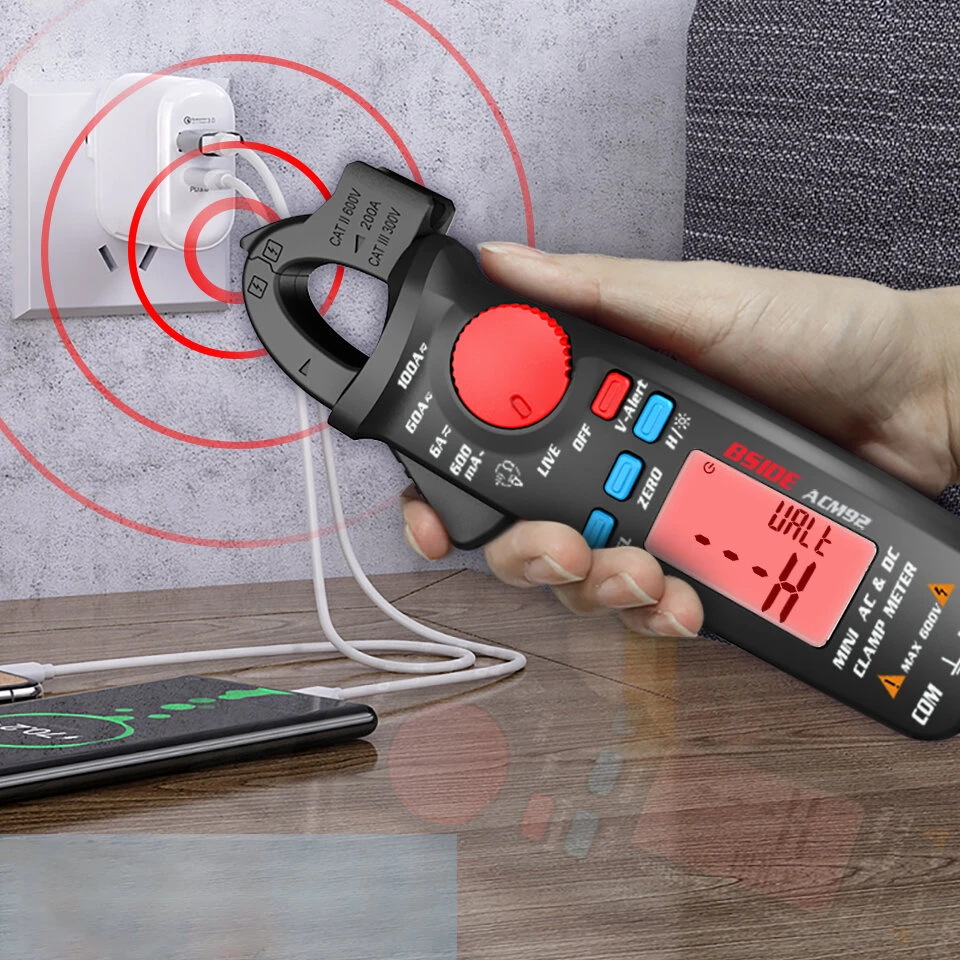

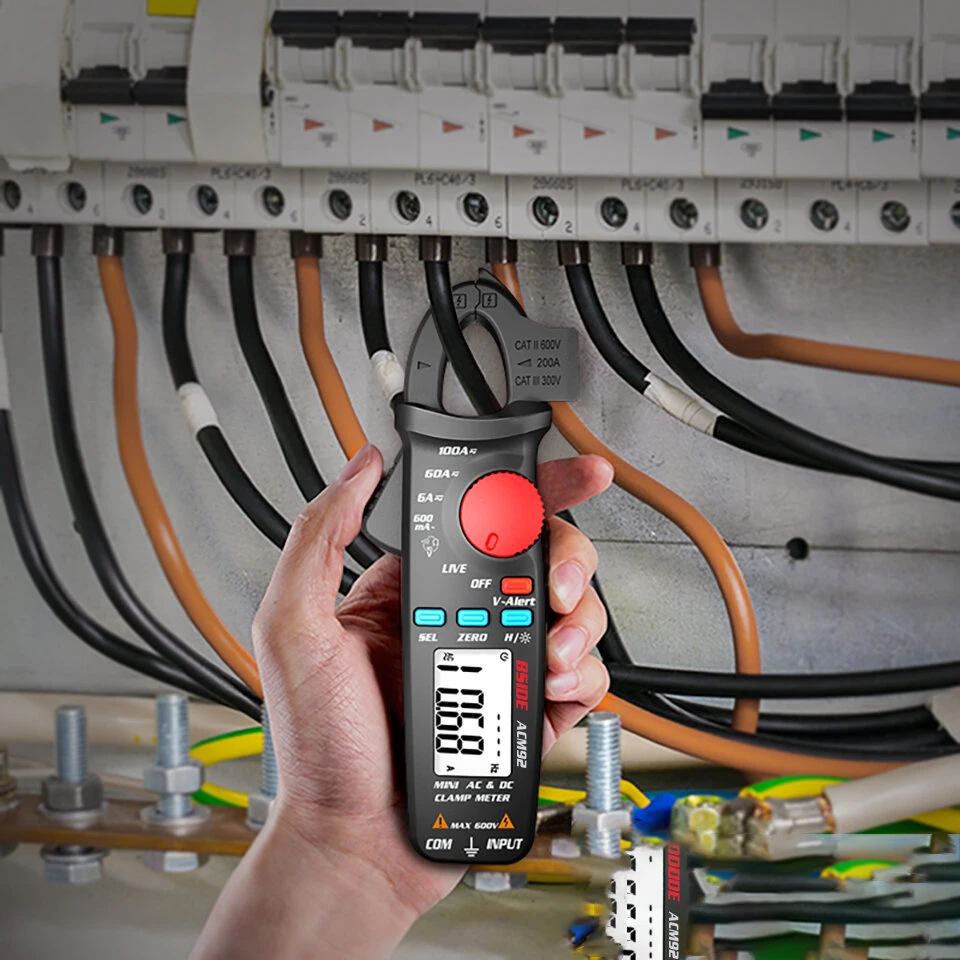

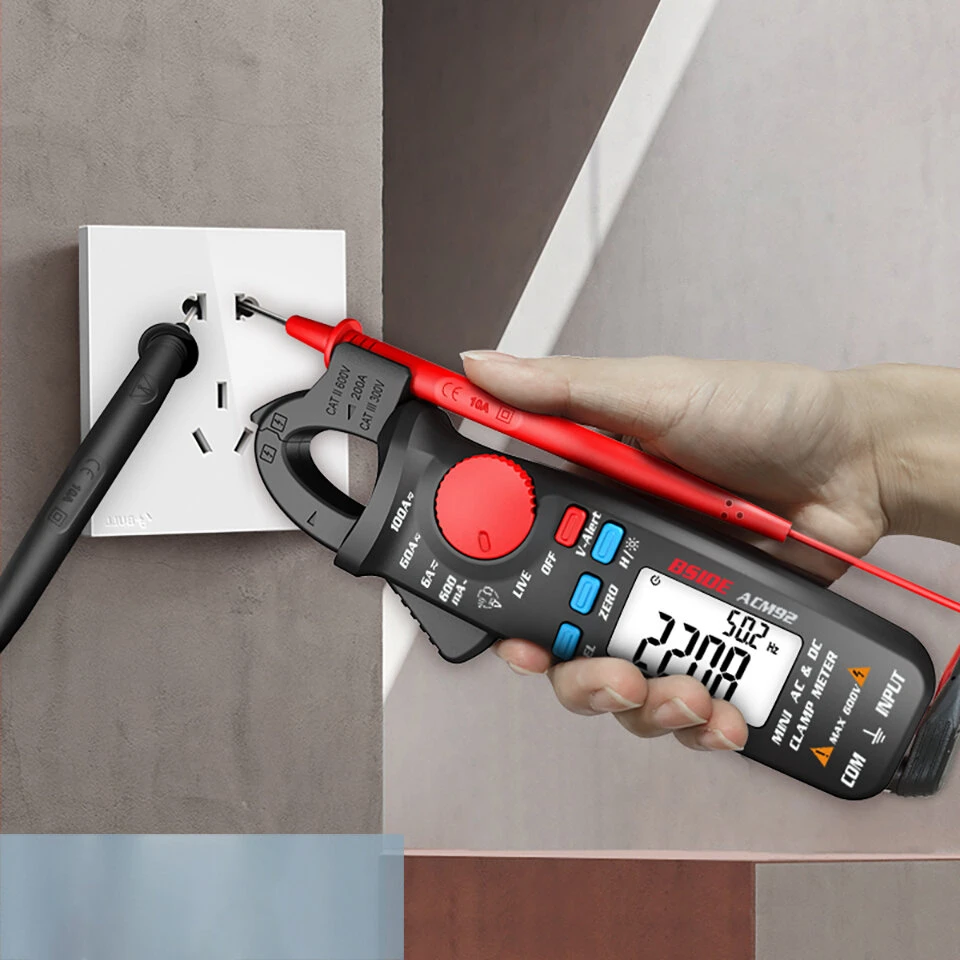

Details pictures:
