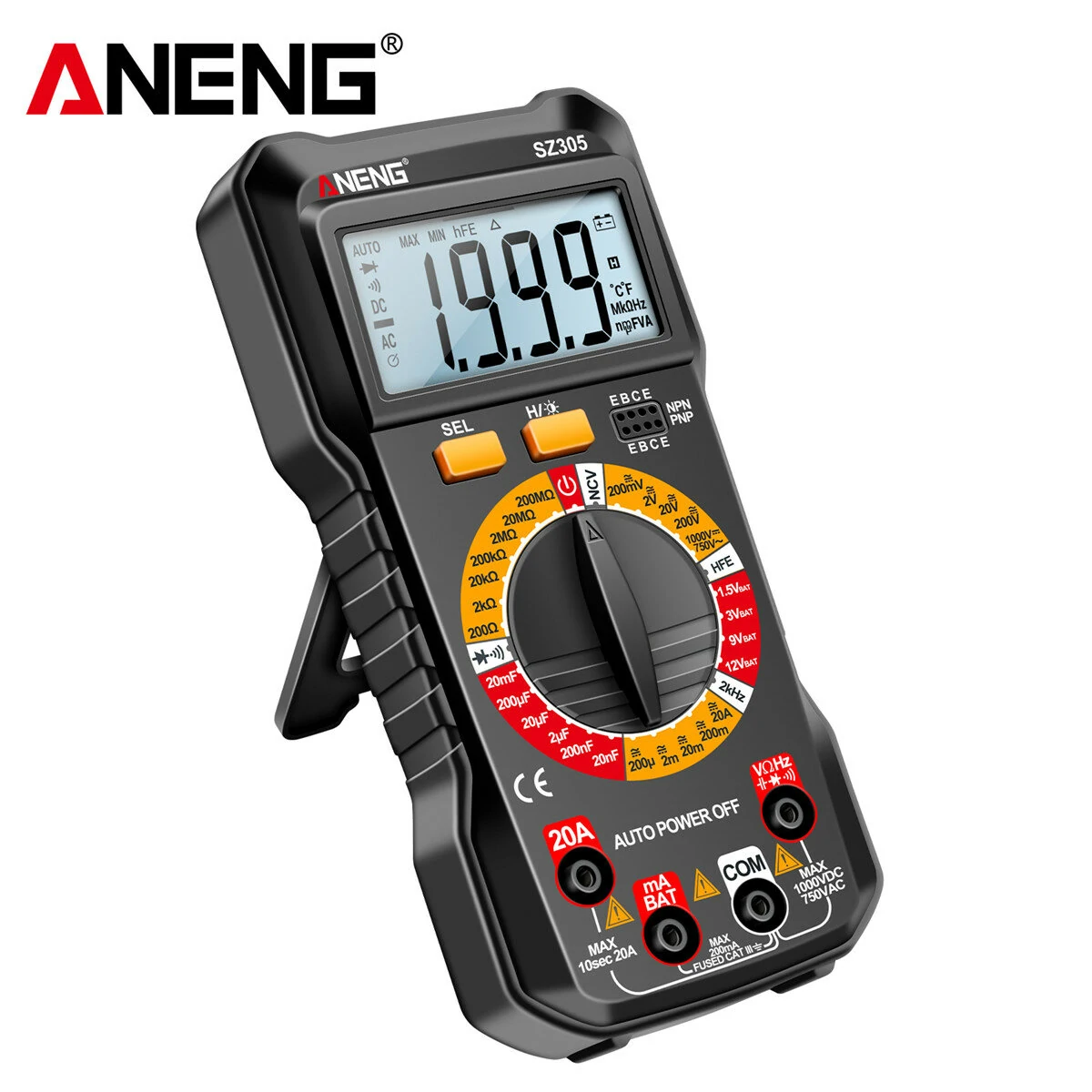

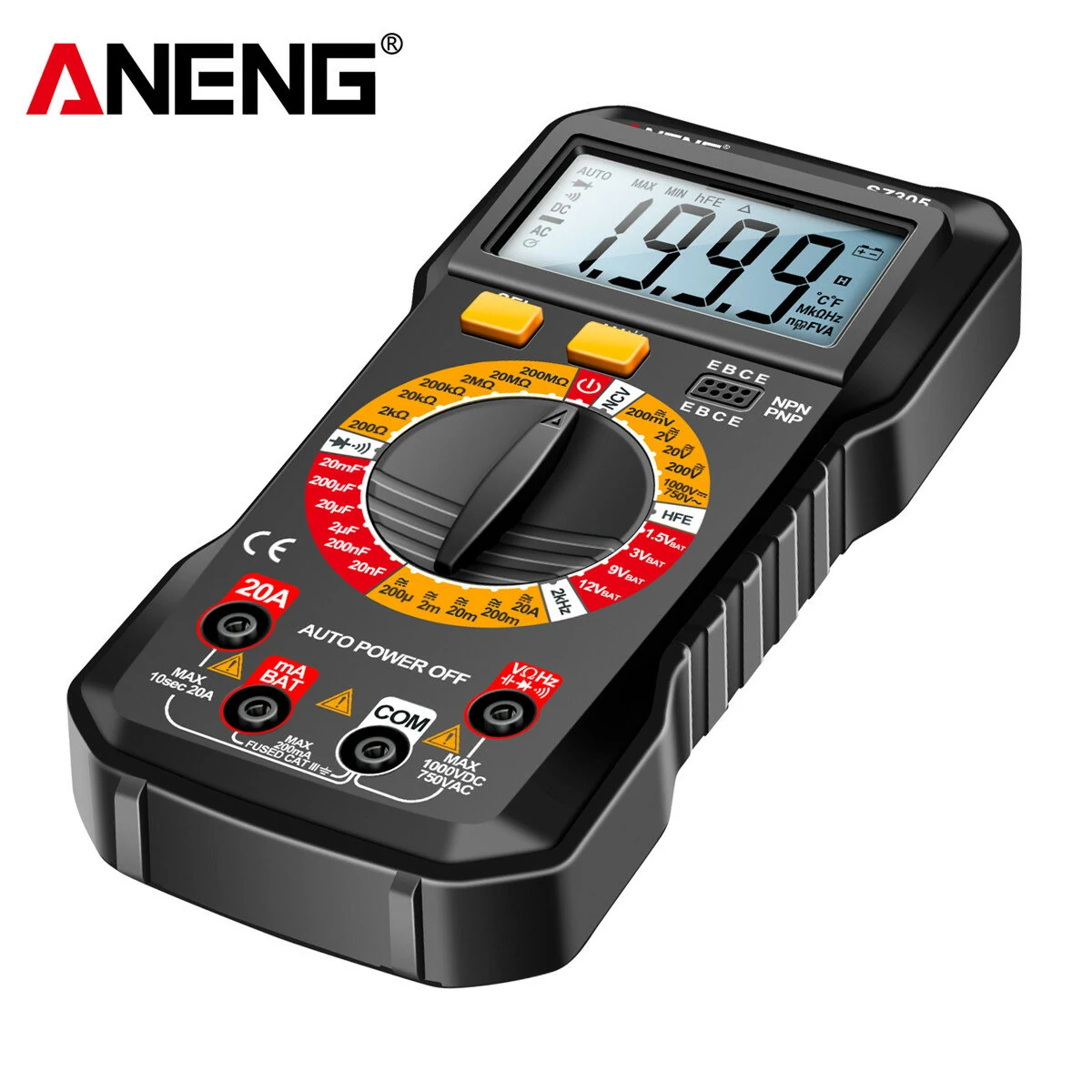

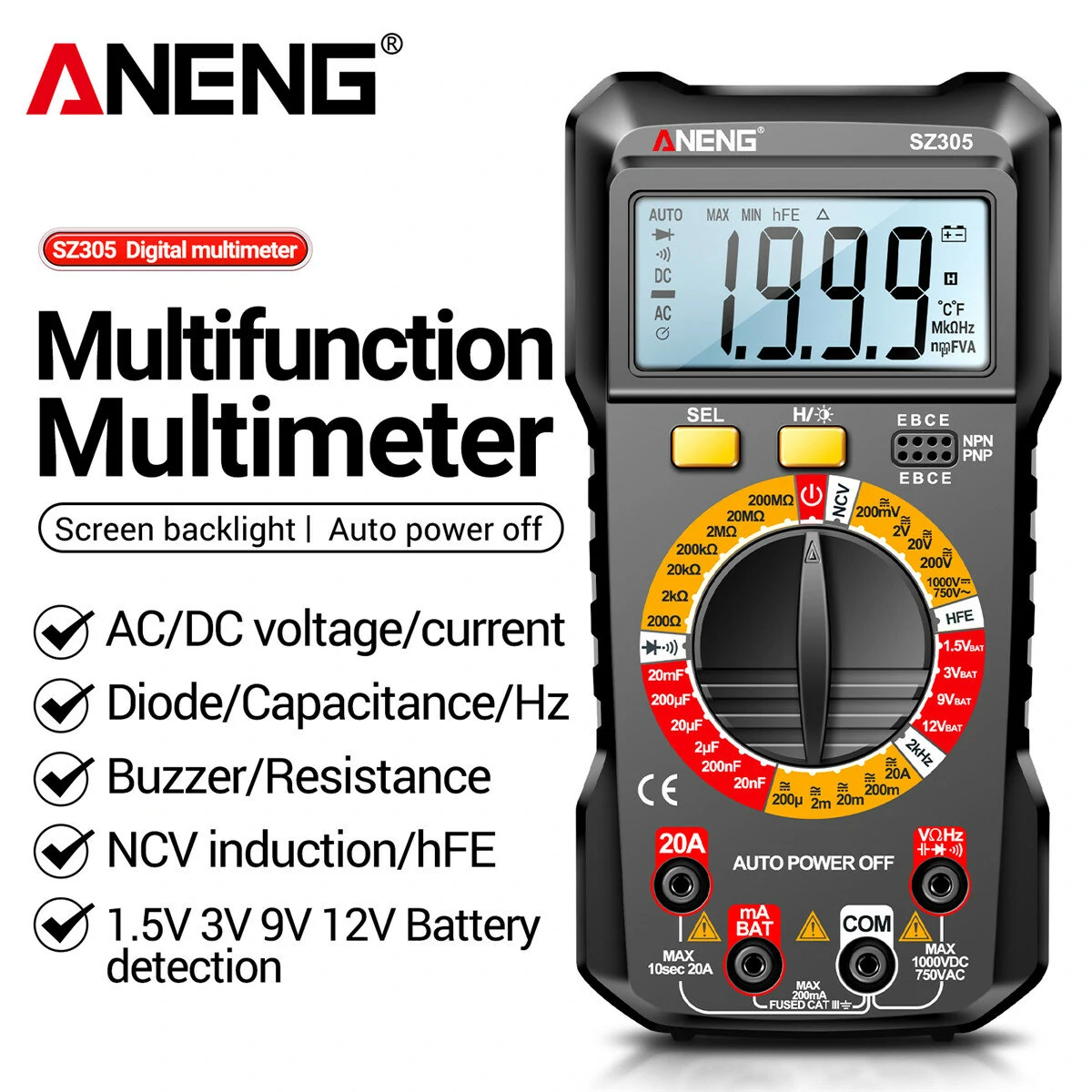

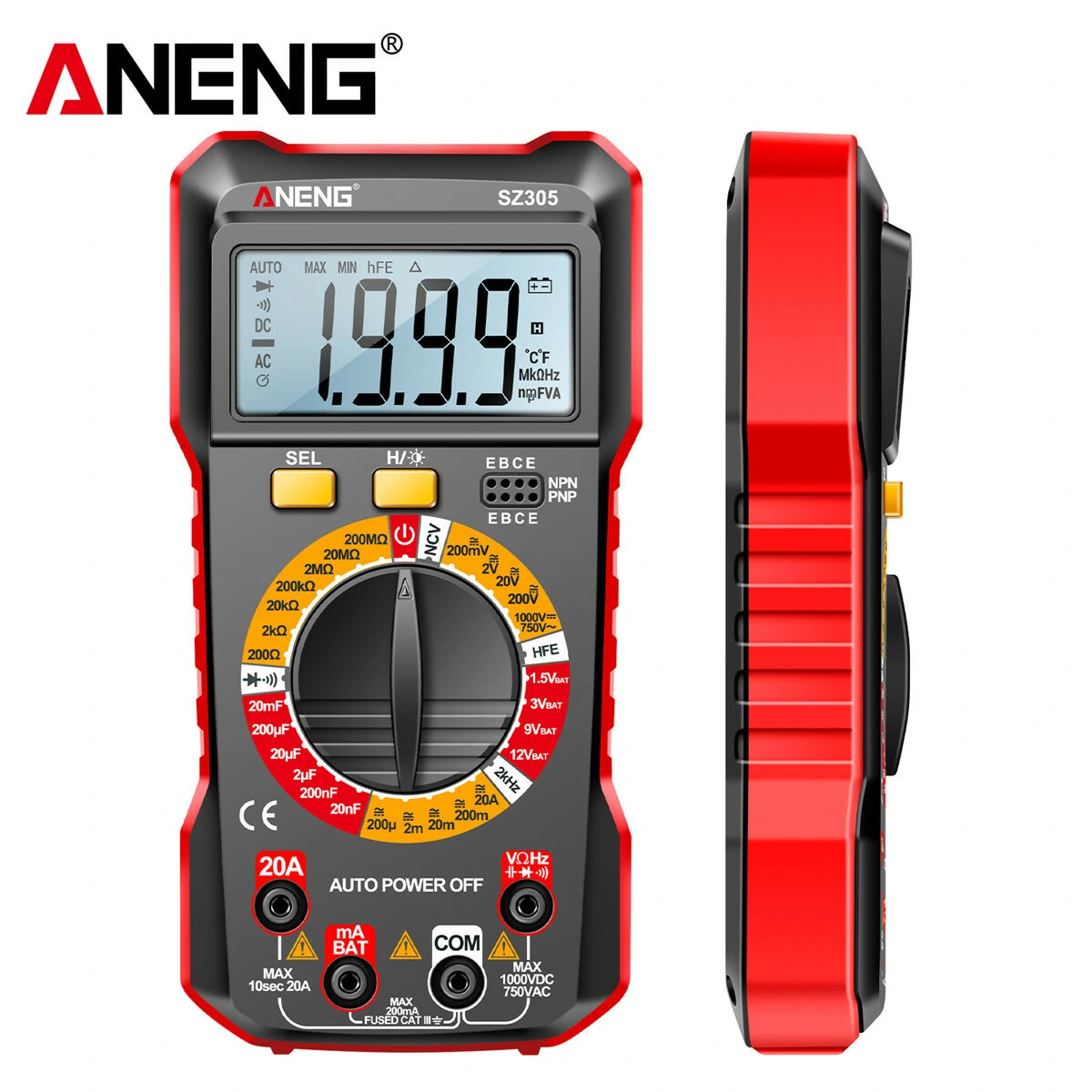

ANENG SZ305 1999 Counts Digital Multimeter | AC/DC Voltage Current Resistance
Product Description
Features:
Comprehensive Measurement Capabilities: The ANENG SZ305 Digital Multimeter is a robust device capable of measuring AC/DC voltage, AC/DC current, resistance, capacitance, and frequency, ensuring a wide range of electrical testing possibilities.
Enhanced Functionalities: The multimeter comes with diode data retention, hFE triode, a buzzer, and non-contact voltage (NCV) detection features. It also includes a comprehensive battery detection system for 1.5V, 3V, 9V, and 12V batteries.
User-Friendly Design: With a digital display with backlight for easy reading, automatic power-off for energy efficiency, data retention capability, and a low battery indication feature, the SZ305 offers a seamless user experience.
Durable and Lightweight: Made with durable ABS material and weighing just 158g, this multimeter combines longevity and convenience for everyday use.
Specifications:
Function | Resolution | Range | Accuracy |
AC Voltage | 0.1mV-1V | 200mV-750V | ??(1.5%+5d) |
DC Voltage | 0.1mV-1V | 200mV-1000V | ??(1.5%+10d) |
AC Current | 0.1uA-10mA | 200uA-10A | ??(2.5%+10d) |
DC Current | 0.1uA-10mA | 200uA-10A | ??(2.0%+10d) |
Resistance | 0.1??-100k?? | 200M?? | ??(5.0%+10d) |
Capacitance | 20mF | 0.01nF-10uF | ??(6.0%+20d) |
Frequency | 0.1Hz-1Hz | 2kHz | ??(1.5%+8d) |
Package Included:
1 x ANENG SZ305 Digital Multimeter
1 x User Manual
1 x Original Packaging Box
