ANENG DM850 Digital Multimeter | 1999 Counts Auto-Ranging | AC/DC Voltage Tester
Product Description
Description:
This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
Function | Range | Accuracy |
DC Voltage | 200mV | ??(2% of rdg+3D) |
2000mV/20V/200V | ??(2% of rdg+5D) | |
600V | ??(2.5% of rdg+5D) | |
AC Voltage | 200V/600V | ??(2% of rdg+10D) |
Frequency Range | 45Hz~450Hz | |
Audible Continuity Test | Yes | |
DC Current | 200uA/2000uA/20mA | ??(2% of rdg+2D) |
200mA | ??(2.5% of rdg+2D) | |
10A | ??(2.5% of rdg+10D) | |
Resistance | 200?? | ??(2.5% of rdg+10D) |
2000??/20k??/200k??/2000k?? | ??(2.5% of rdg+4D) | |
Temperature | -20?? to 1370?? | ??(1.0%+4) (up to 150??) |
-20?? to 1370?? | ??(1.5%+15) (over 150??) | |
Overload Protection | 15 second |
Package Includes:
1 x Digital Multimeter (Battery not included)
2 x Test Leads
1 x User Manual
1 x Packing Box

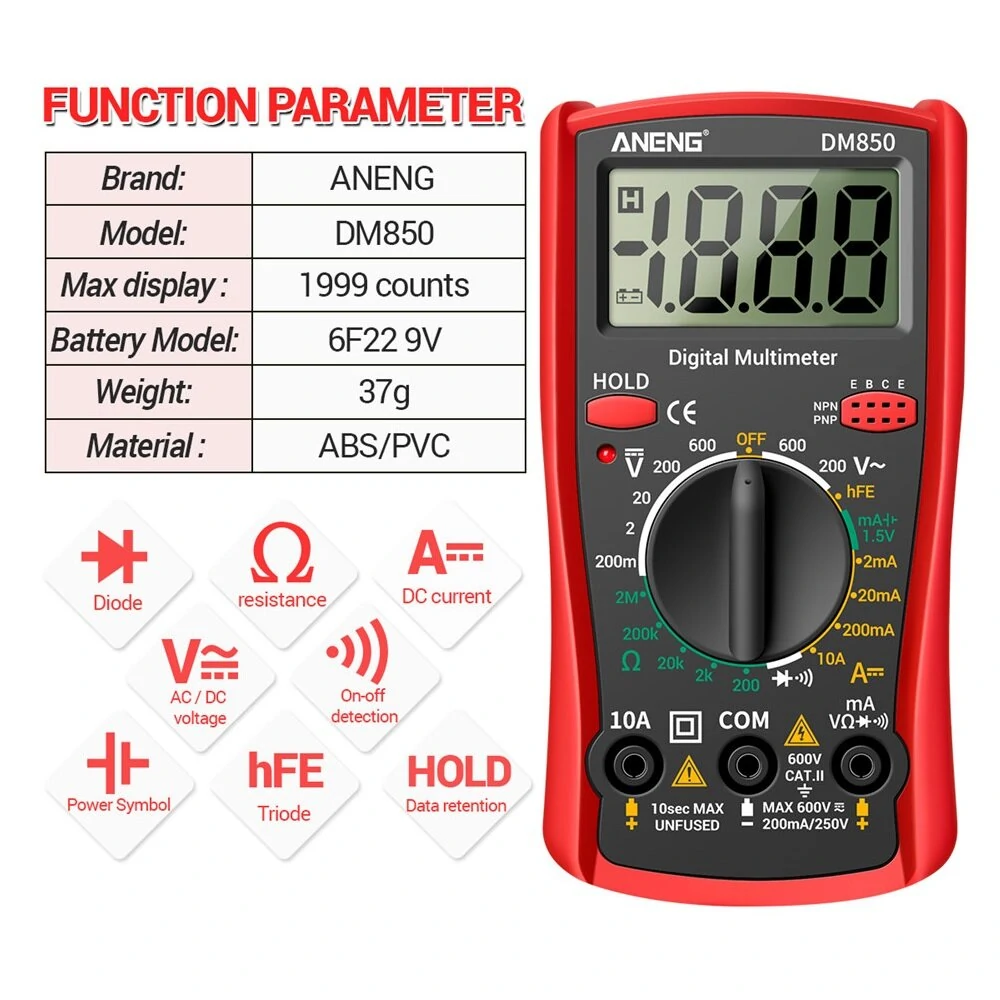

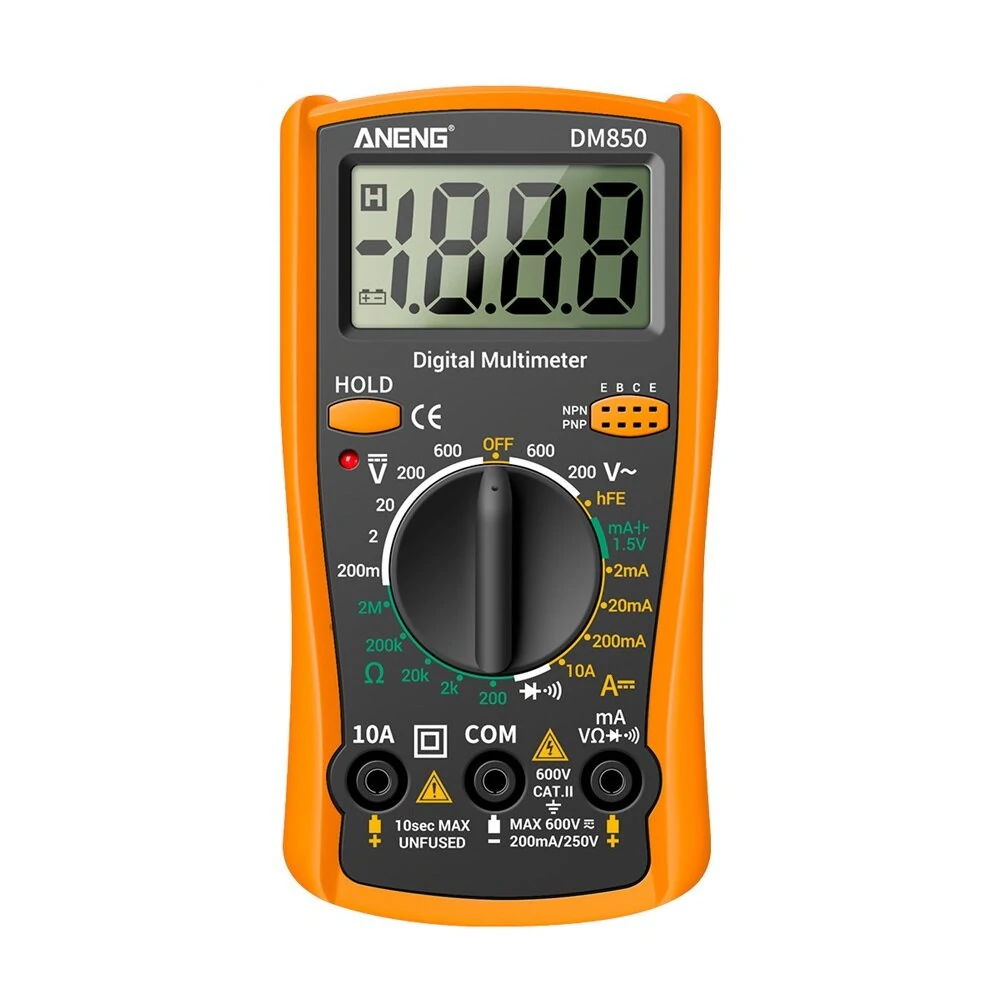

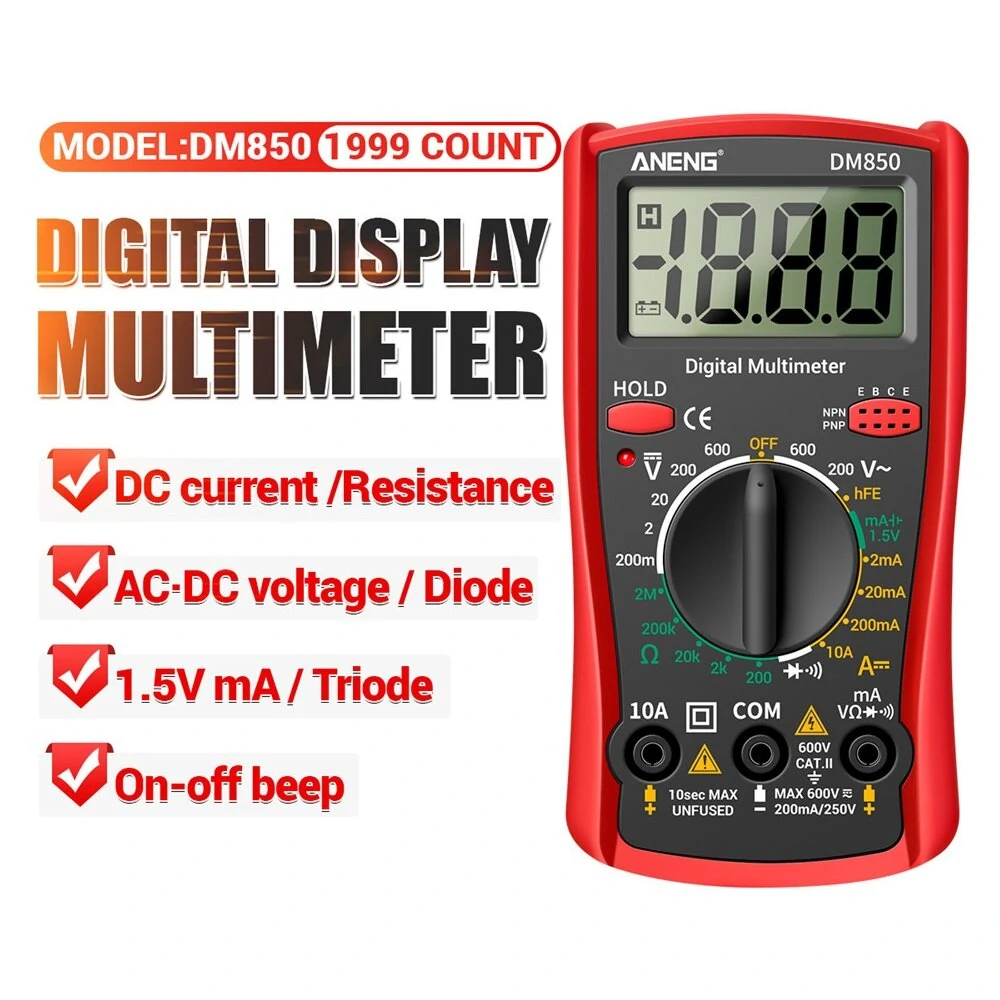

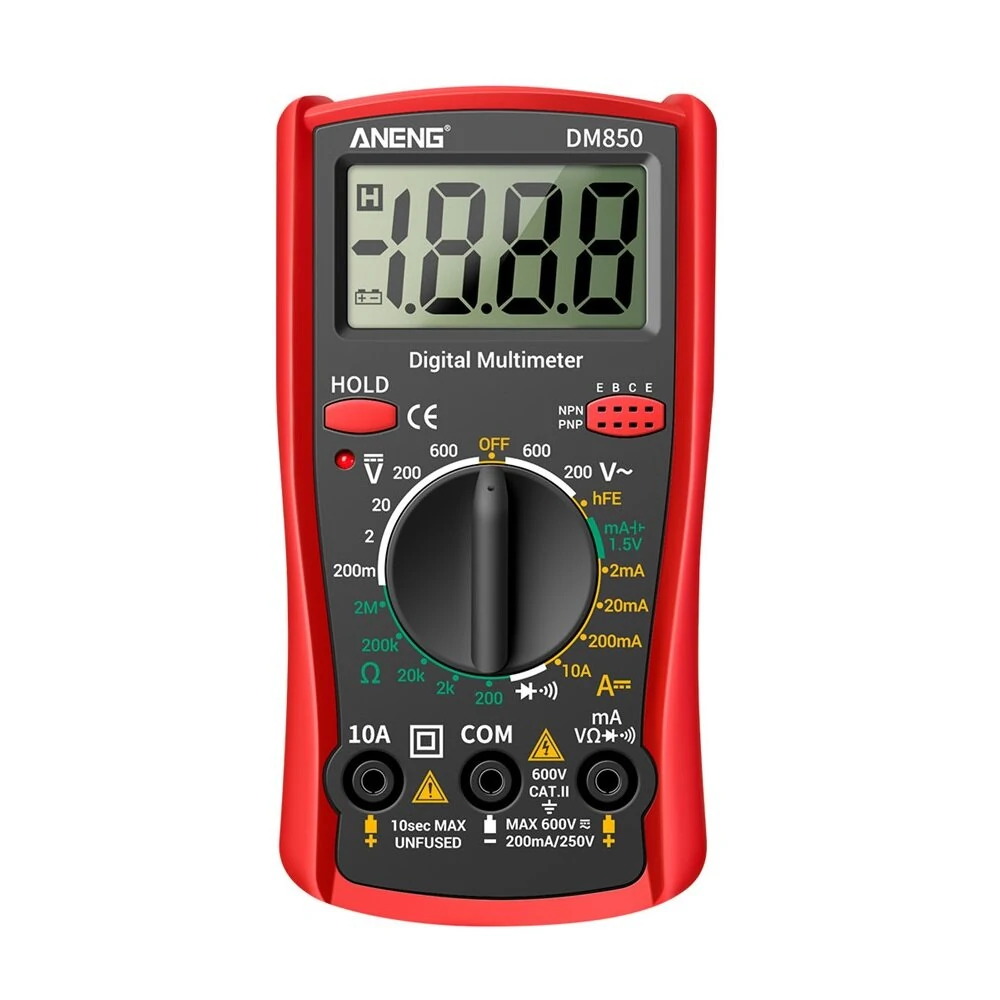

Details Picture:
