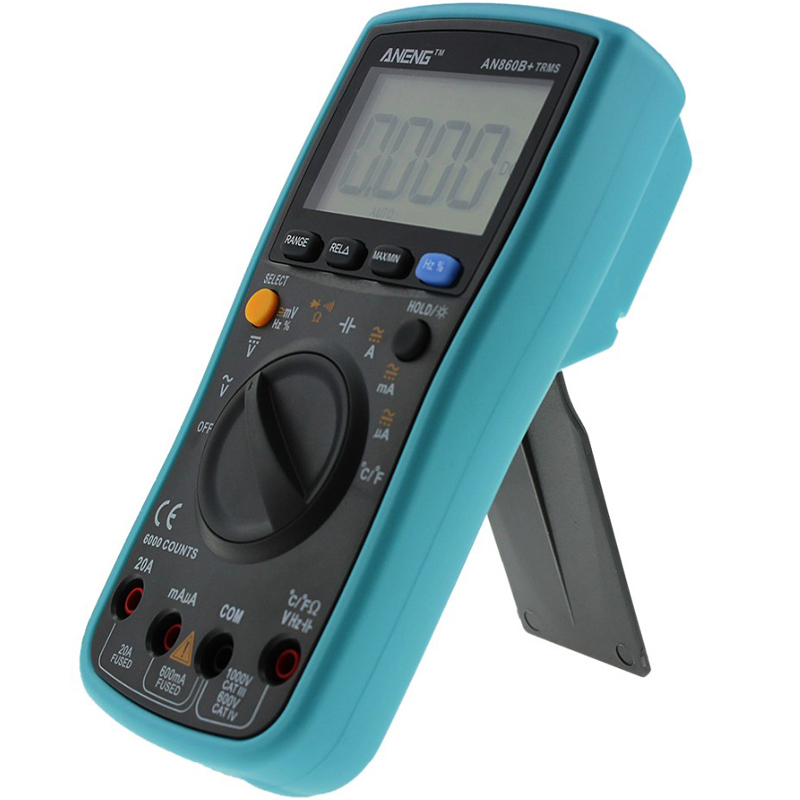

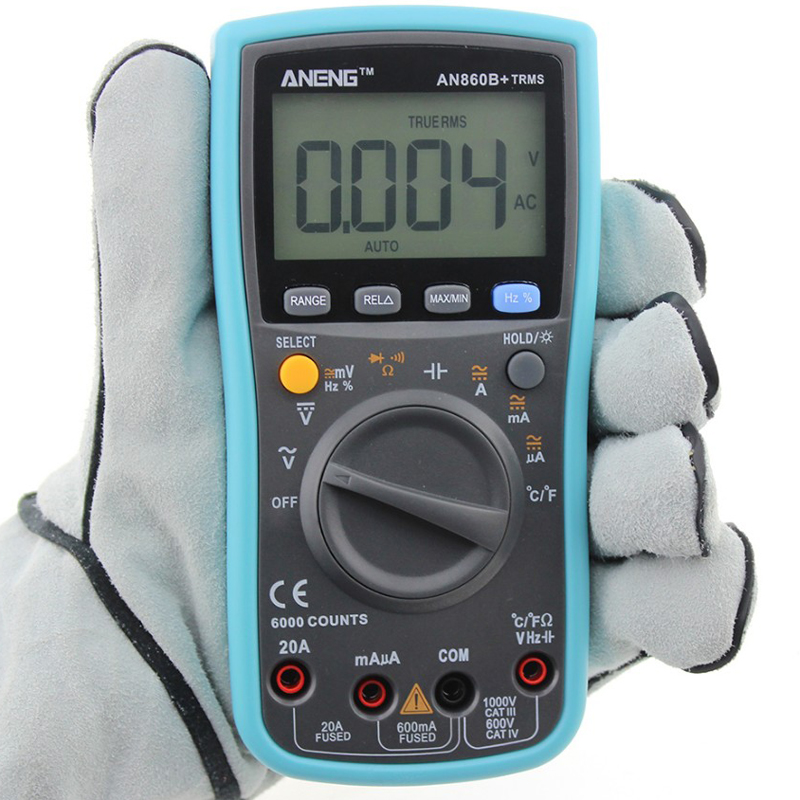

ANENG AN860B+ Digital Multimeter - AC/DC Voltage Current Resistance & Temperature Tester
$47.00
$57.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Auto/manual ranges. True RMS measurement. 550V protection in resistance and capacitance ranges. Large LCD display, MAX display 6000 counts. Sample rate: 3 times per second. Backlight. MAX/MIN data hold. Polarity identification. Low voltage indication. 20A high current measurement is available. Auto power off: can be cancelled manually. Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Temperature, Frequency and duty cycle.
Specification:
Frequency: 1Hz to 20MHz Temperature: -20?? to 1000?? (-4?H to 1832?H) Capacitance: 10pF to 6000uF AC volts: 0.1mV to 750V DC volts: 0.1mV to 1000V AC current: 0.1uA to 20A DC current: 0.1uA to 20A Resistance: 0.1?? to 60M?? Duty cycle: 1% to 99% Frequency: 5/50/500/5k/50k/500k/5M/20M (??0.1+3) Temperature: <400?? ?? (1.0%+5), ??400??? (1.5%+15) <752?H ?? (1.0%+5), ??752?H?? (1.5%+15) capacitance: 10nF (??5.0+20),100nF/1uF/10uF/100uF (??2.0%+5), 1000uF/10000uF (??5.0%+5) DC volt:600mV(??1.0%+10), 6V/60V/600V/1000V(??0.5%+3) AC volt:600mV(??3.0%+3), 6V/60V/600V/750V(??1.0%+3) ACA/DCA:600uA/6000uA(??1.5%+3), 60mA/600mA/20A(??1.5%+3) Resistance: 600??(??0.5%+3),6K/60K/600K/6M(??0.5%+2),60M??(??1.5%+3) Duty cycle:1% to 99%(??1%)

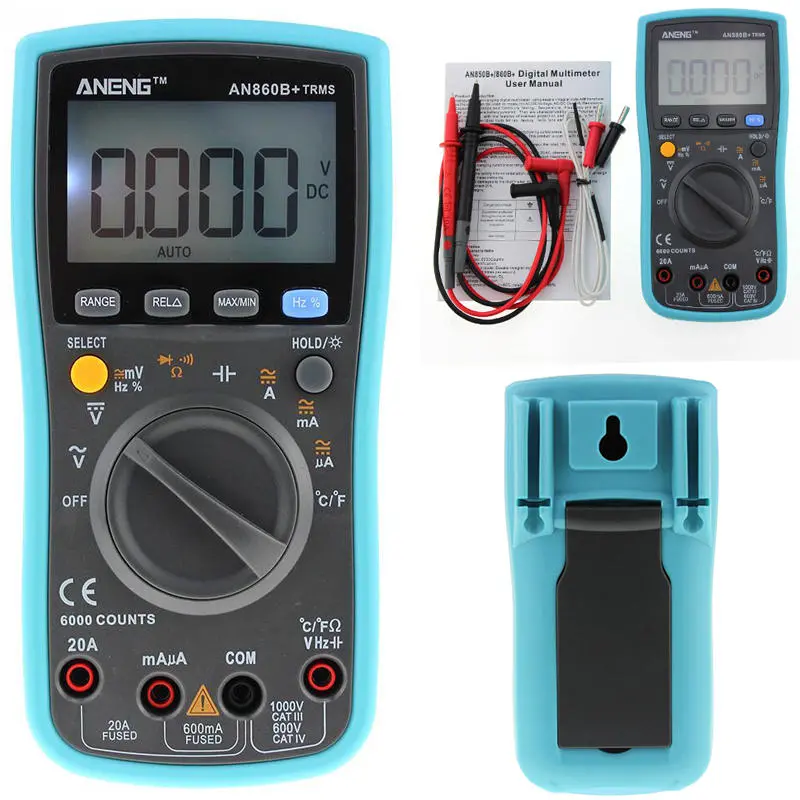

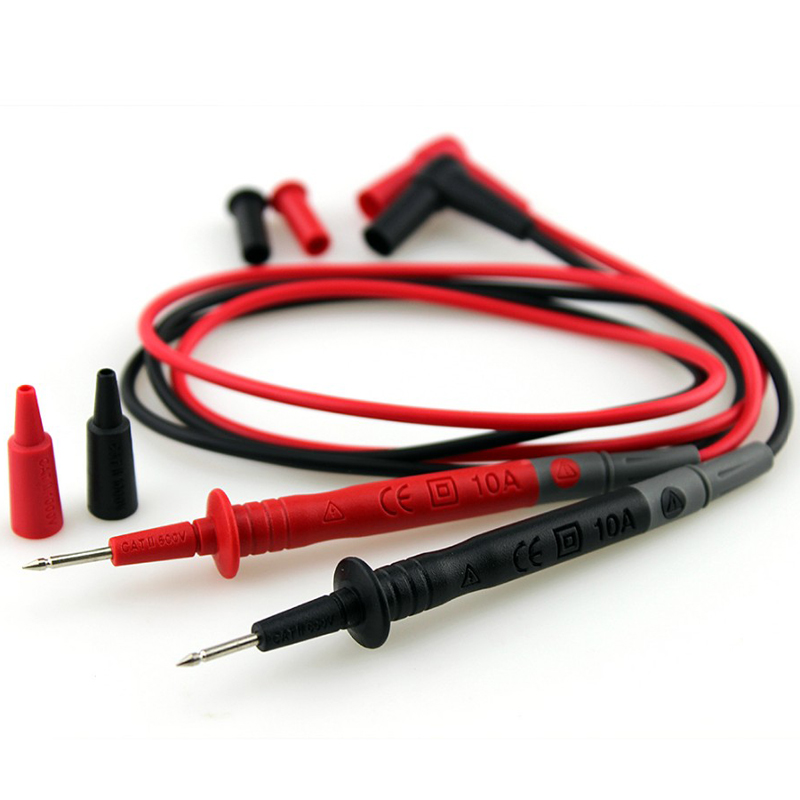

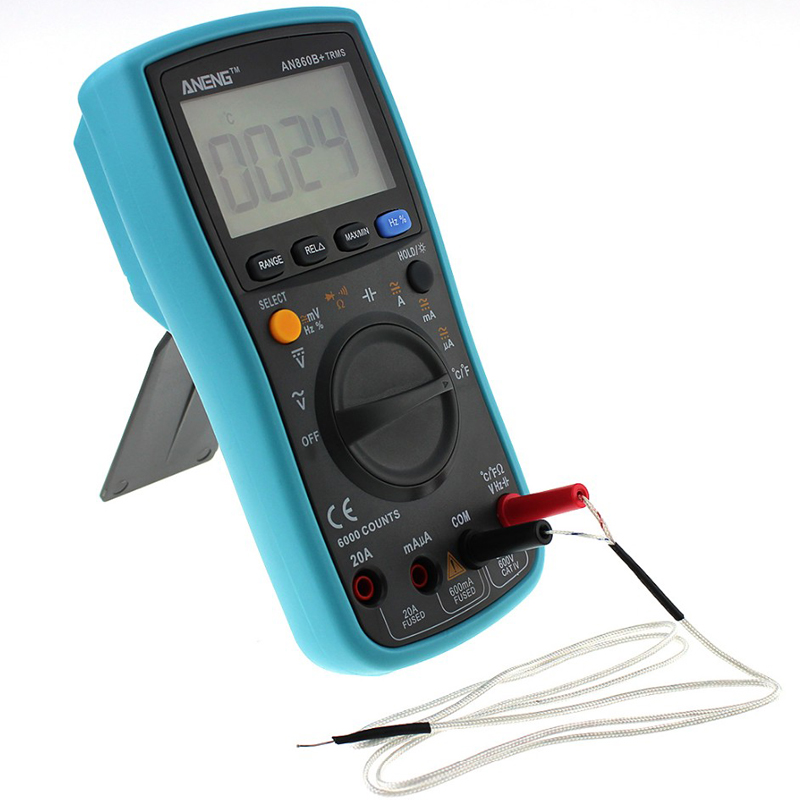

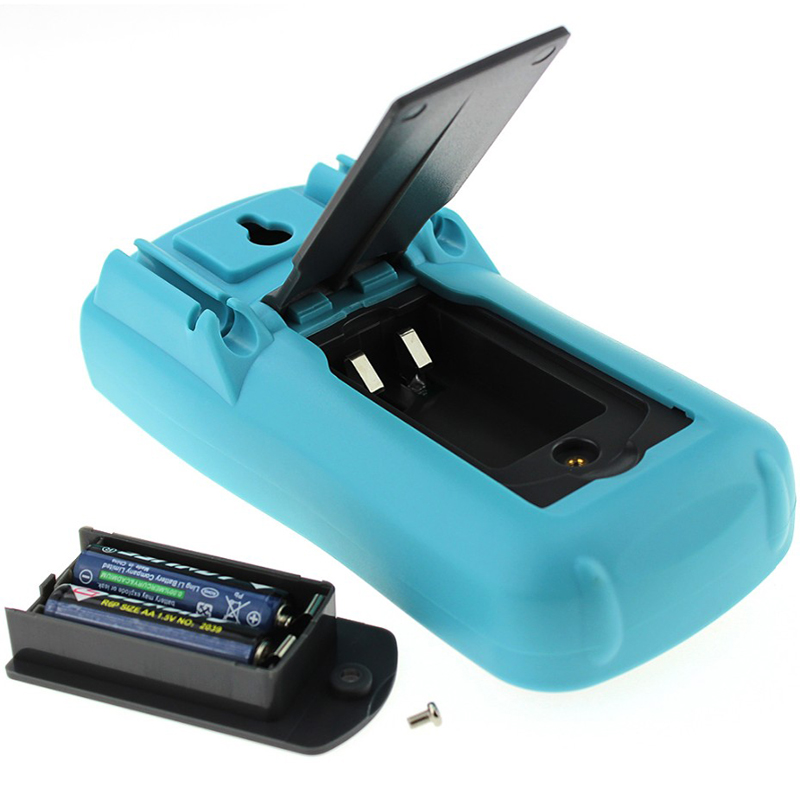

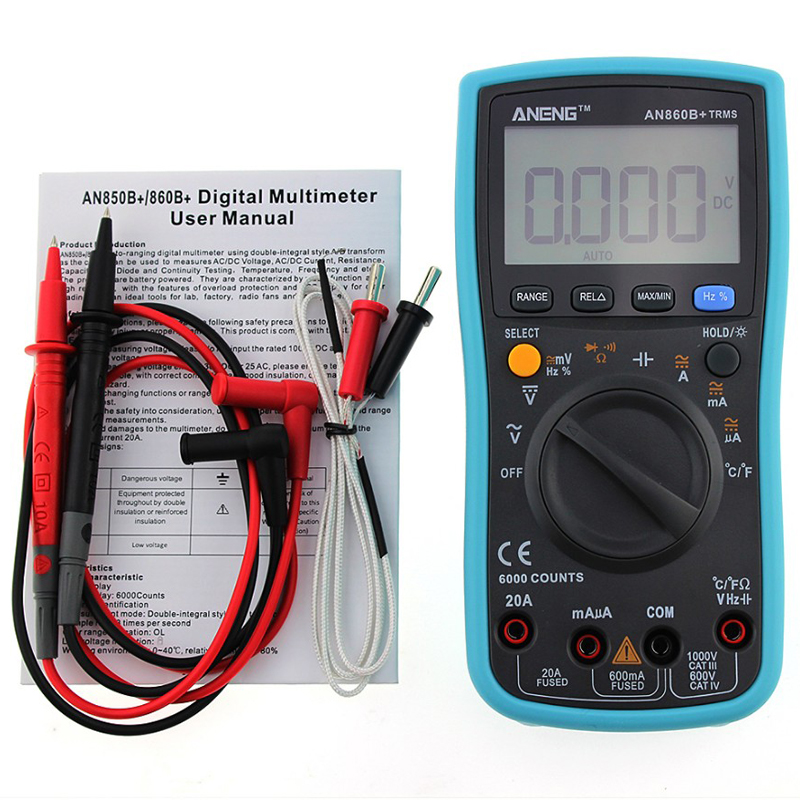

Measurement mode: Double-integral style A/D transform Over range indication: OL Working environment: 0~40??, relative humidity < 80% Supply power: 2 x AA batteries (Not included ) Dimension: 180 x 90.5 x 45mm Weight: 420g Package included: 1 x ANENG ANG860B+ Backlight Digital Multimeter 2 x Electronic Probe 1 x TP01K thermocouple
1 x English Manual

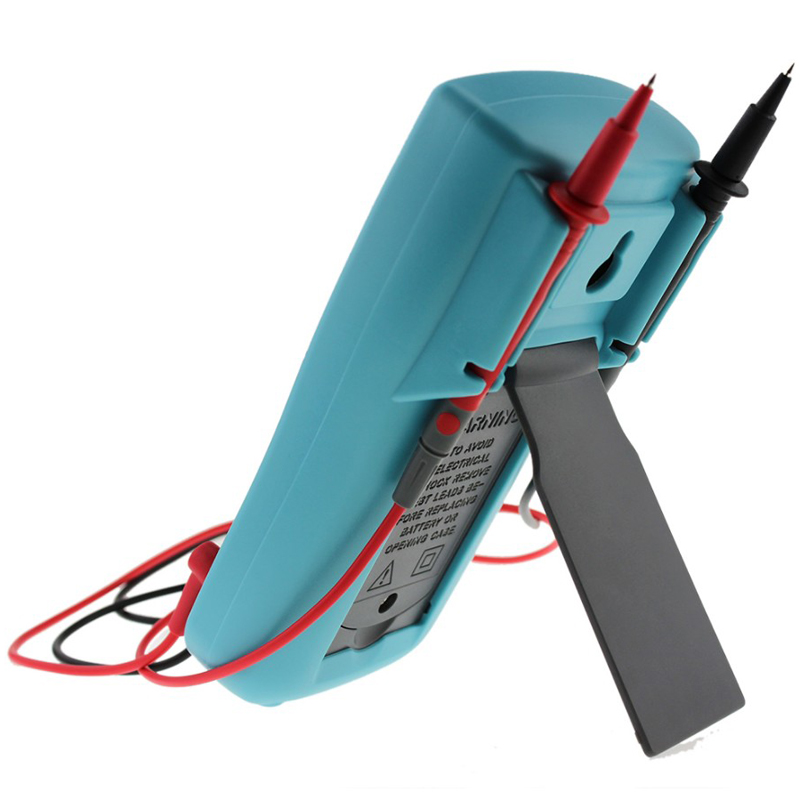

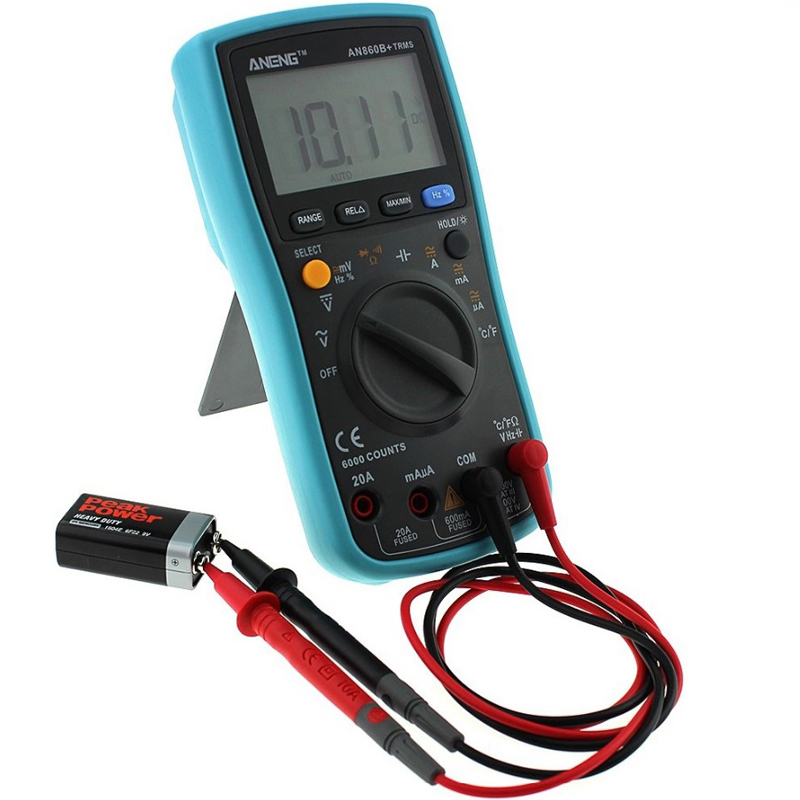

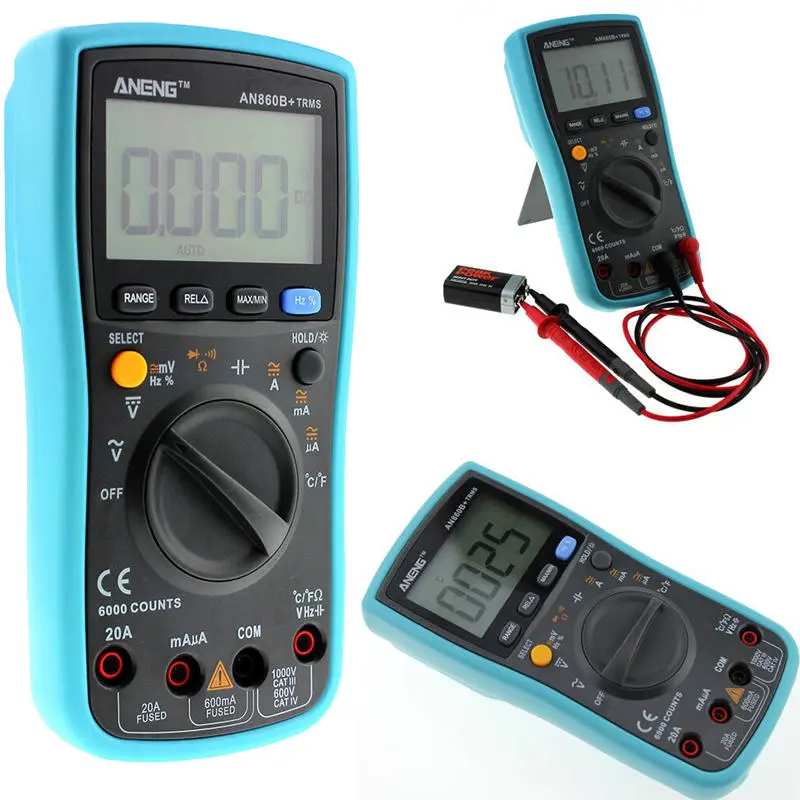

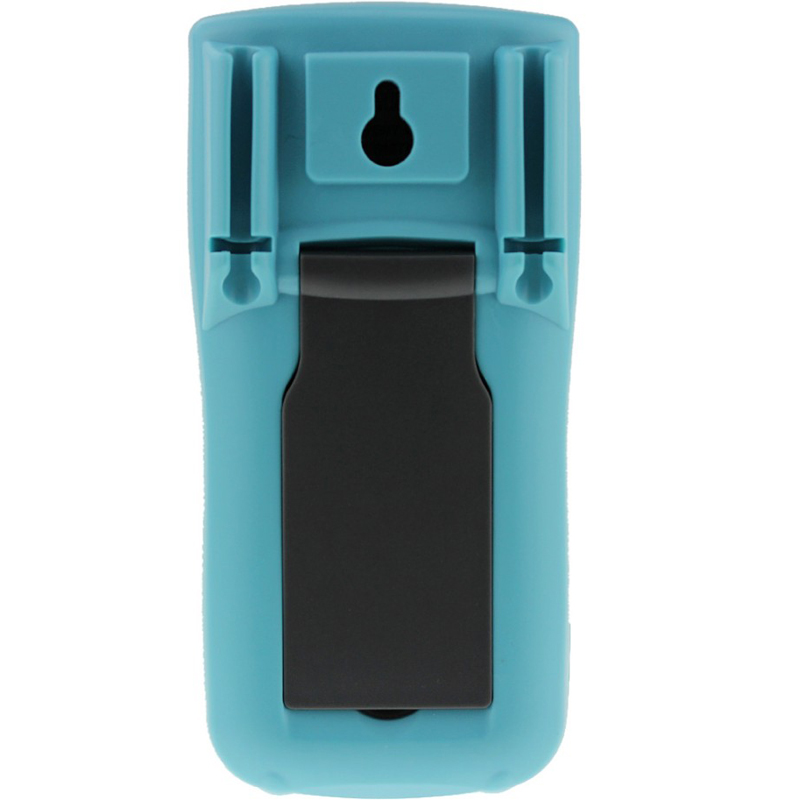

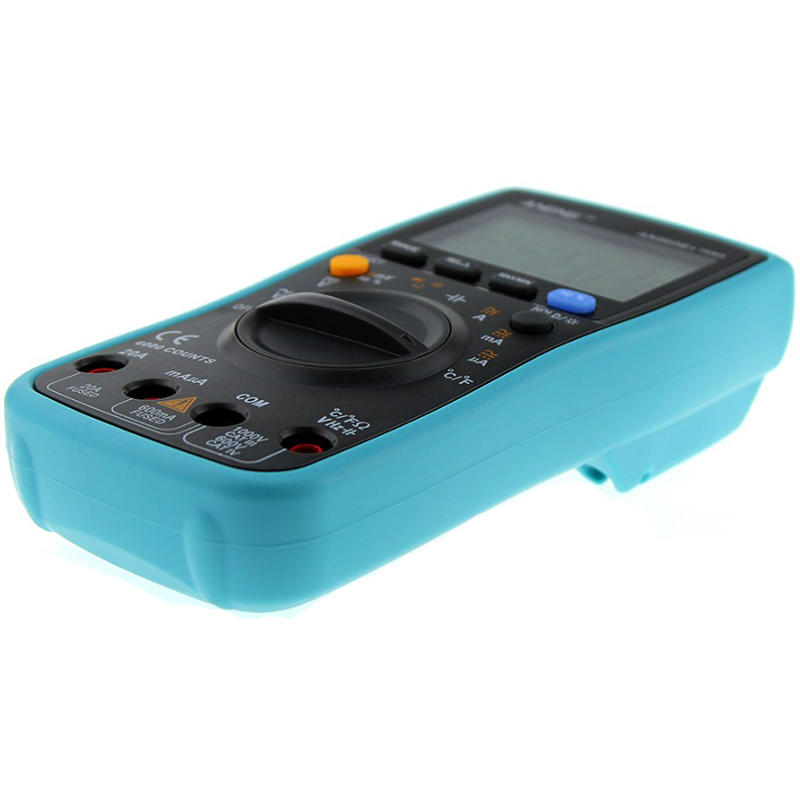

Detail Pictures:
