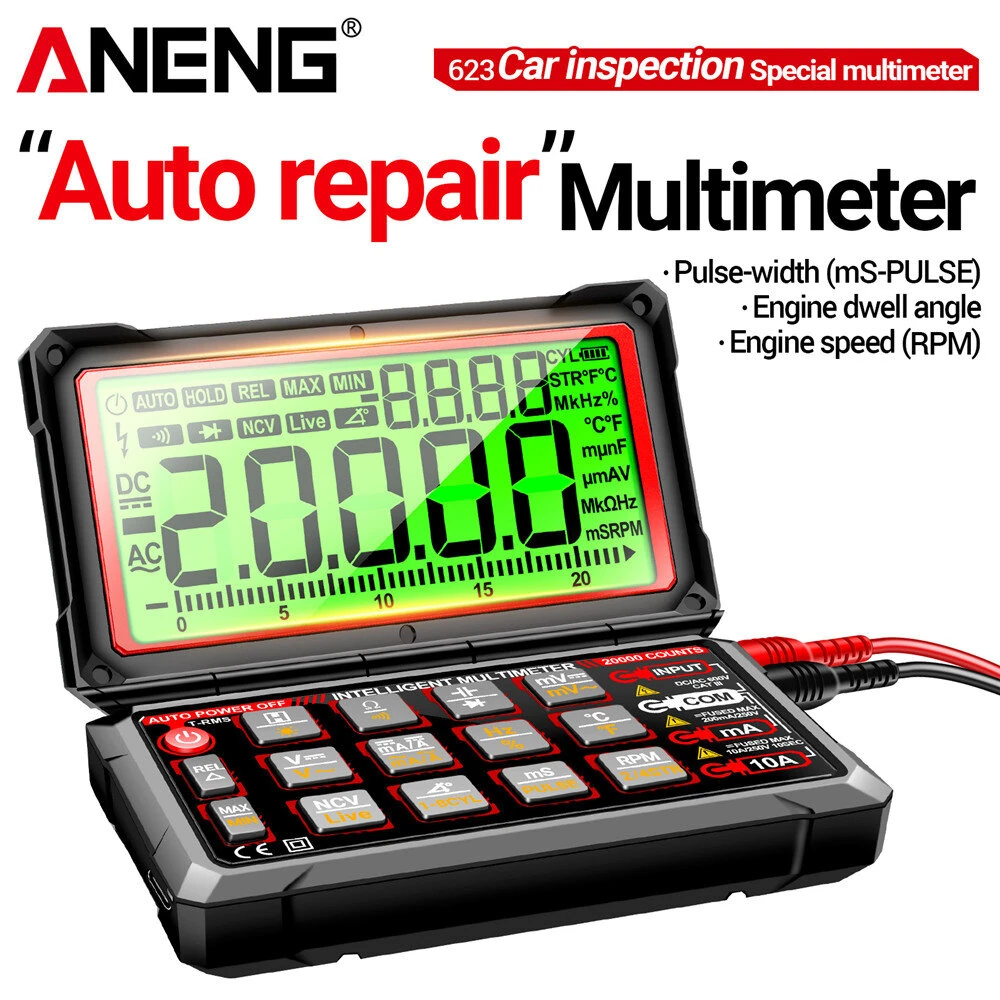

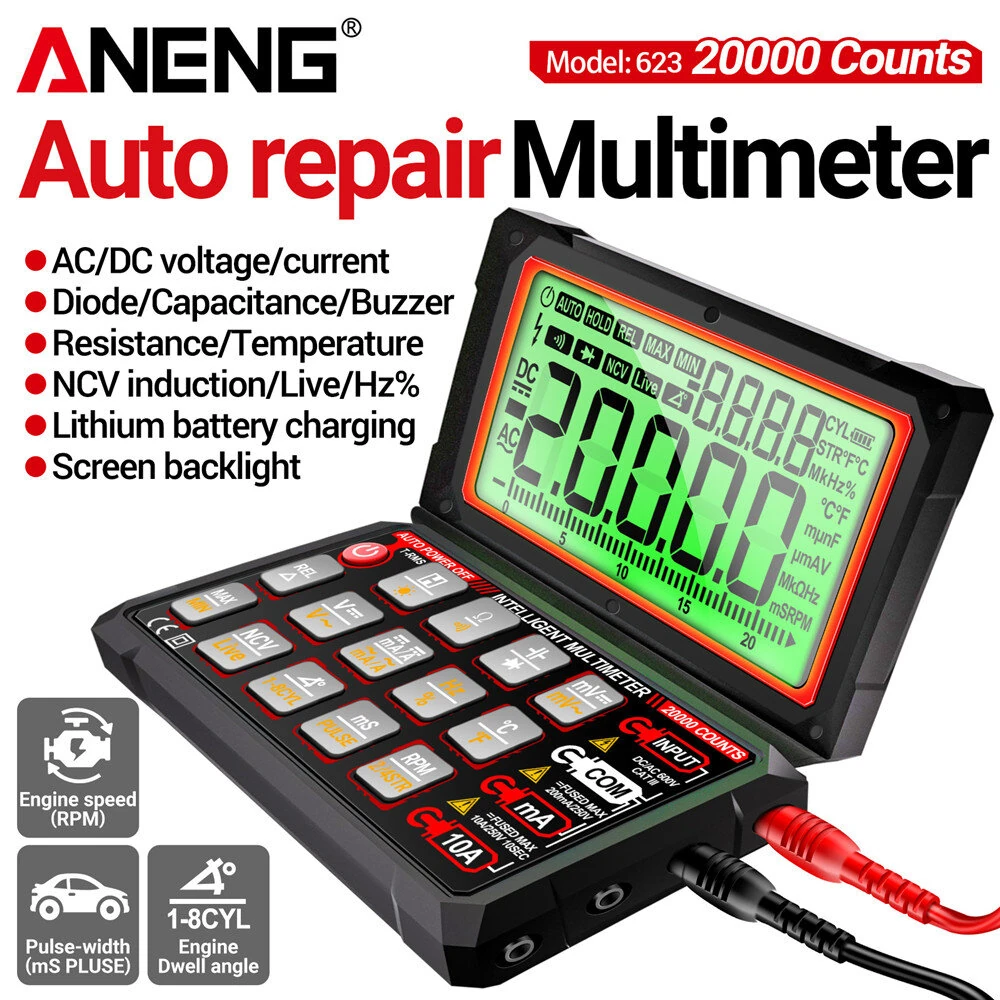

ANENG 623Pro Multimeter - 20000 Counts True RMS | NCV, Temp, Backlit LCD

Product Description

Specifications:

- Model Number: ANENG 623

- Display Count: 20,000

- DC Voltage: 0.5mV-1000V (0.01mV-0.1V resolution)

- AC Voltage: 1mV-750V (0.01mV-0.1V resolution)

- DC Current: 0mA-10A (0.01mA-0.001A resolution)

- AC Current: 0mA-10A (0.01mA-0.001A resolution)

- Resistance: 0??-20M?? (0.1??-0.01M?? resolution)

- Capacitance: 0nF-20mF (0.01nF-0.1mF resolution)

- Frequency: 0Hz-10MHz (0.01Hz-0.1MHz resolution)

- Duty Cycle: 10%-90% (0.1% resolution)

- Temperature: -40??C to 1000??C / -40??F to 1832??F

- Power Supply: 3.7V/1800mAh Lithium Polymer Battery

- Weight: 341g

- Material: ABS

- Dimensions: Folded: 14.7cm x 8.6cm x 3.72cm (5.78in x 3.38in x 1.46in)

- Color: Black

- Screen: LCD Backlit Display

Features:

1. Multifunctional Measurement Capability

- This digital multimeter is equipped to measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, and duty cycle, making it an all-encompassing tool for automotive and electrical tasks.

2. High-Resolution Display

- With a 20,000 count LCD backlit screen, the ANENG 623 ensures clear and precise readings even in low-light conditions, streamlining diagnostics and repairs.

3. Portable and Foldable Design

- The foldable screen and compact dimensions allow for easy storage and portability, making it convenient for use in various environments, including tight automotive spaces.

4. Advanced Safety Features

- Integrated NCV (Non-Contact Voltage) detection and automatic power-off function enhance user safety by alerting to the presence of live wires and conserving battery life.

5. Extended Battery Life

- The built-in 1800mAh lithium polymer battery provides long-lasting performance with the convenience of USB Type-C charging, ensuring reliability during prolonged
