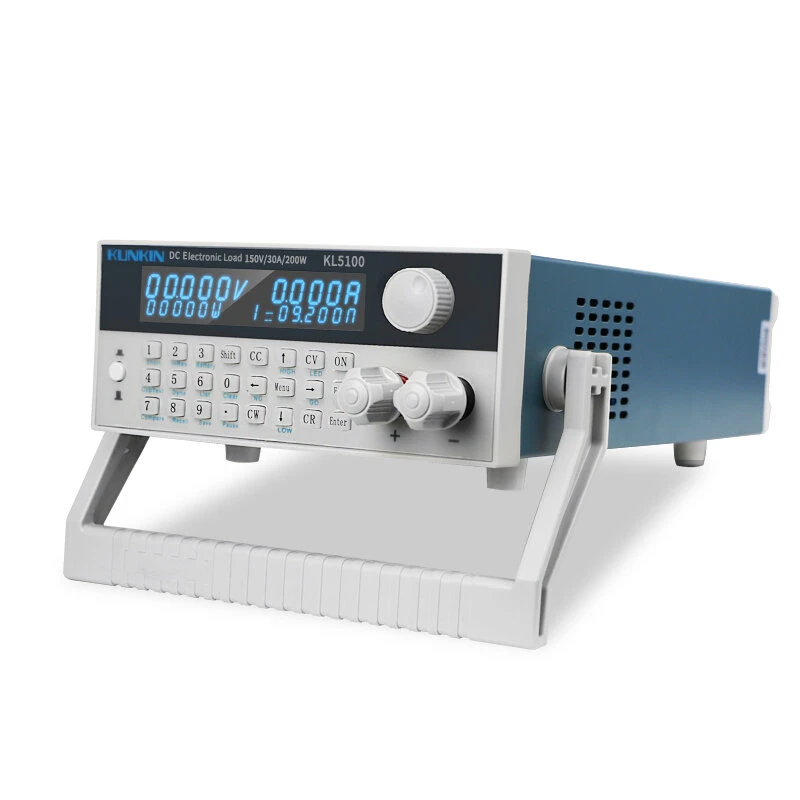

KL5105 Programmable DC Electronic Load - 500W Battery Capacity Tester | 1-500V 0-60A
Product Description
Description:
KL5100 electronic load series is designed for laboratory engineer and simple test of production and development of new electronic load, complete function convenient operation test of high precision is the main feature of the performance of control costs, the ratio of outstanding at the same time, the budget is not enough and require higher ideal choice of the client.
Main features:
Level, car LCD liquid crystal display, brightness is adjustable;
? digital keyboard;
High-speed communication interface;
? measurement with high resolution and high accuracy;
/ over-current, over-voltage/power/overheating/reverse polarity protection;
With constant voltage and constant current, constant resistance and constant power four basic working mode;
With a rotary coding switch, fast easy operation;
? far terminals measurement function;
? automatic testing function;
? battery test functions;
? resistance test functions;
? editable multi-step suite test function;
? short circuit test functions;
Dynamic test function;
Test, short circuit protection function;
, in the case of temperature control, PWM control of high-speed fan;
A built-in buzzer as warnings or tips;
The setting of the power, keep memory function;
, can through the computer software to monitor;
, the machine can be configured 110 v / 220 v ac power supply.
Specification table:
| Refers to the standard type No. | KL5100 | KL5101 | KL5102 | KL5104 | KL5105 | ||
| The input | The input voltage | AC 110V/220VPlus or minus10%,50Plus or minus2Hz | |||||
| Power consumption | Less than20 W | ||||||
| The load input | Load voltage | 1-150V | 1-150V | 1-150V | 1-300V | 1-500V | |
| Load current(Dual channel) | 0-30A | 0-40A | 0-60A | 0-30A | 0-30A | ||
| The maximum load power | 200W | 300W | 400W | 400W | 500W | ||
| Accuracy of measurement | The main current | Plus or minus0.1%+5Ma(24bit A/D,15ppm/Benchmark ??) | |||||
| The primary voltage | Plus or minus0.1%+5Mv(24bit A/D,15ppm/?? benchmark,The input impedance400K??) | ||||||
| Control precision | The main current | Plus or minus0.1%+5Ma(16bit D/A, 15ppm/Benchmark ??) | |||||
| The primary voltage | Plus or minus0.1%+5Mv(16bit D/A, 15ppm/Benchmark ??) | ||||||
| To protect the | overpressure | 155V | 310V | 520V | |||
| A temperature | 85?? | ||||||
| A power | 220W | 320W | 420W | 420W | 520W | ||
| Over current | 30.5A | 40.5 | 60.5A | 30.5A | 30.5A | ||
| Communication interface | Programmable interface | TTLLevel full duplex serial interface (by converter converts232or485) | |||||
| function | Working mode | CC.CV.CR.CW | |||||
| Normal function | Automatic test, dynamic test, battery test,OCPTest etc. | ||||||
| A list of test functions | List of test, trigger test, cycle test, automatically increase or decrease in test and so on | ||||||
| Extend the functionality | External trigger | Square root | Square root | Square root | Square root | Square root | |
| Far end voltage measurement | Square root | Square root | Square root | Square root | Square root | ||
| Using the environment temperature range | 0~500C | ||||||
| Using the environment humidity range | 10~90%RH | ||||||
| DCThe input of casing pressure | Plus or minus250VDC | ||||||
| DCThe input to the chassis insulation resistance | >20M??,500VDCwhen | ||||||
| ACThe input to the chassis insulation resistance | >20M??,500VDCwhen | ||||||
| Overall dimensions (mm)LxBxH | about400x260x110 | ||||||
| Weight (Kg) | 4.0 | 5.0 | |||||
Package includes:
1 x KL5105 Load Meter 1 x Patch Cord (NOTE:Product input voltage: 110V / 220V, and we will send you a plug and adaptor to your country.) 1 x English User Manual

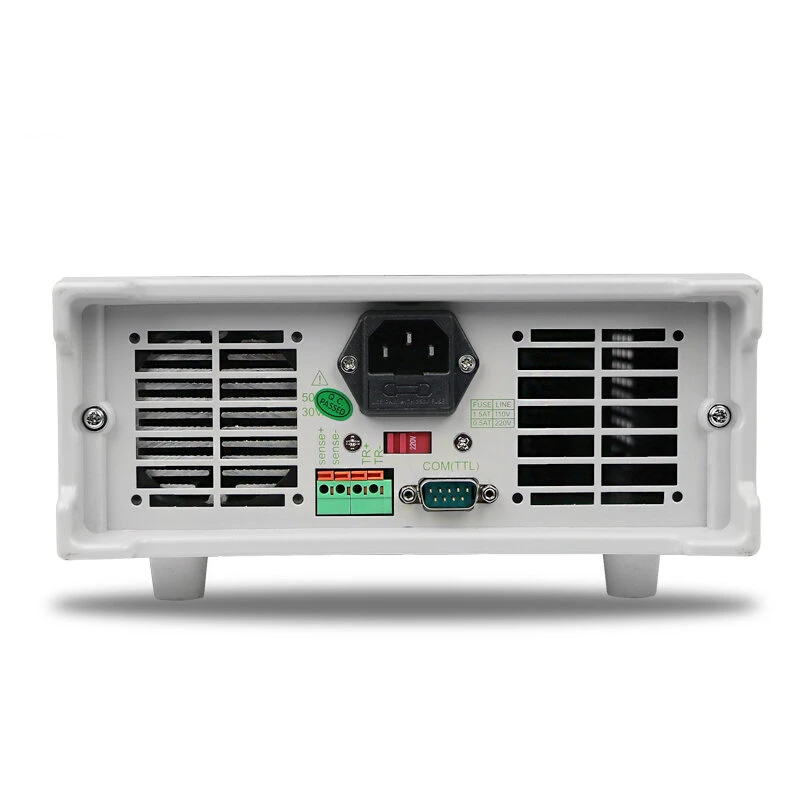

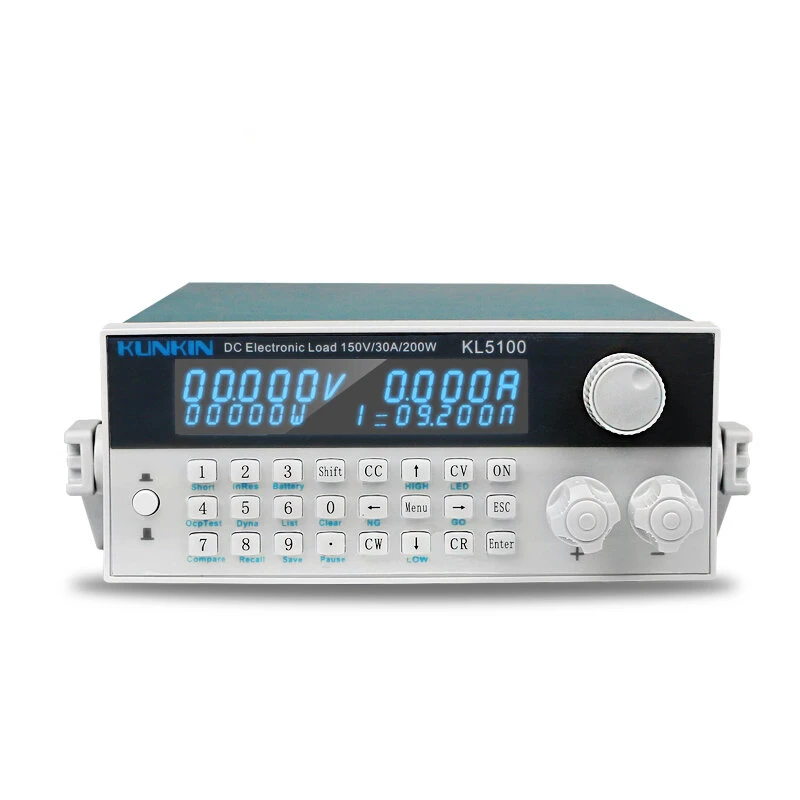

Details pictures:
