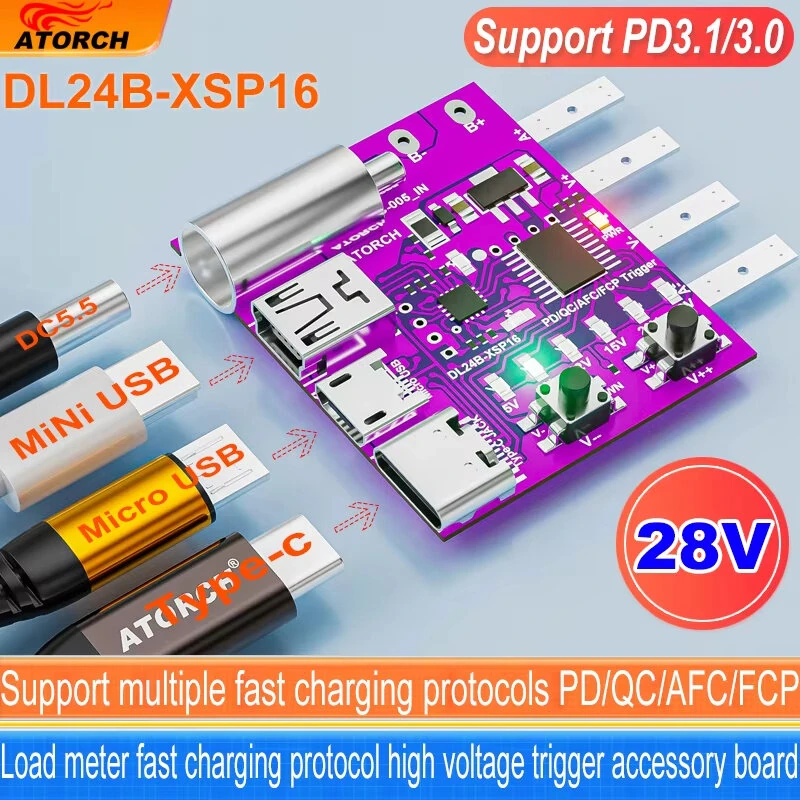

ATORCH PD3.1 Fast Charger Test Board | 140W Voltage Meter Deceiver for DL24 Load Tester

Product Description

Specifications:

Material: PCB + Metal + IC

Type: DL24B-XSP16

Nominal current 3A

Maximum current: 5A

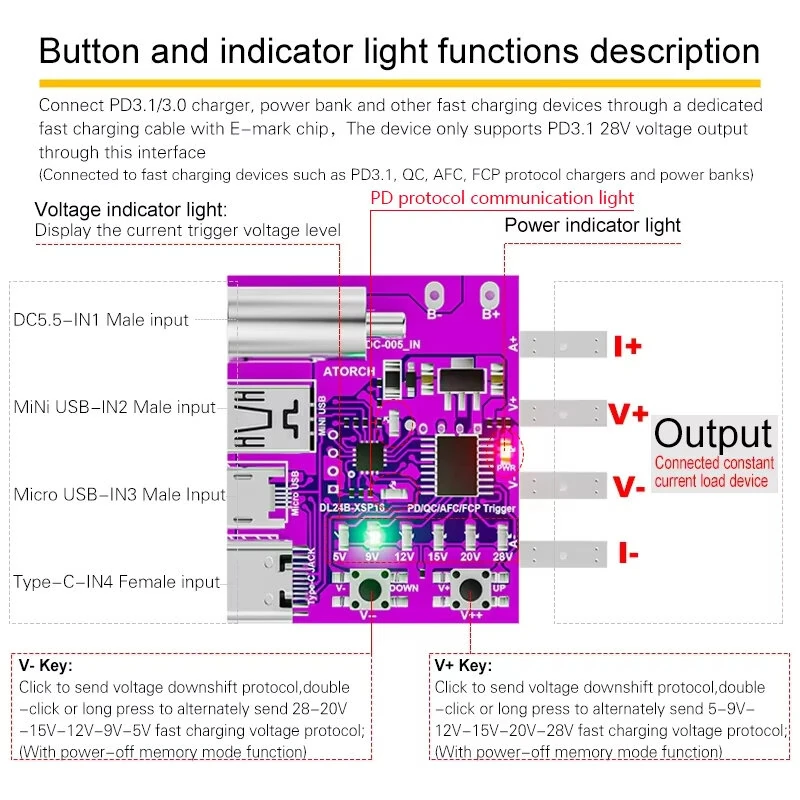

Interface: I+/I- Current Terminal, V +/V- Voltage Wiring

Size: 42mm x 40mm x 1.6mm

Quantity: 1 Pc??Not included Battery and load tester etc??

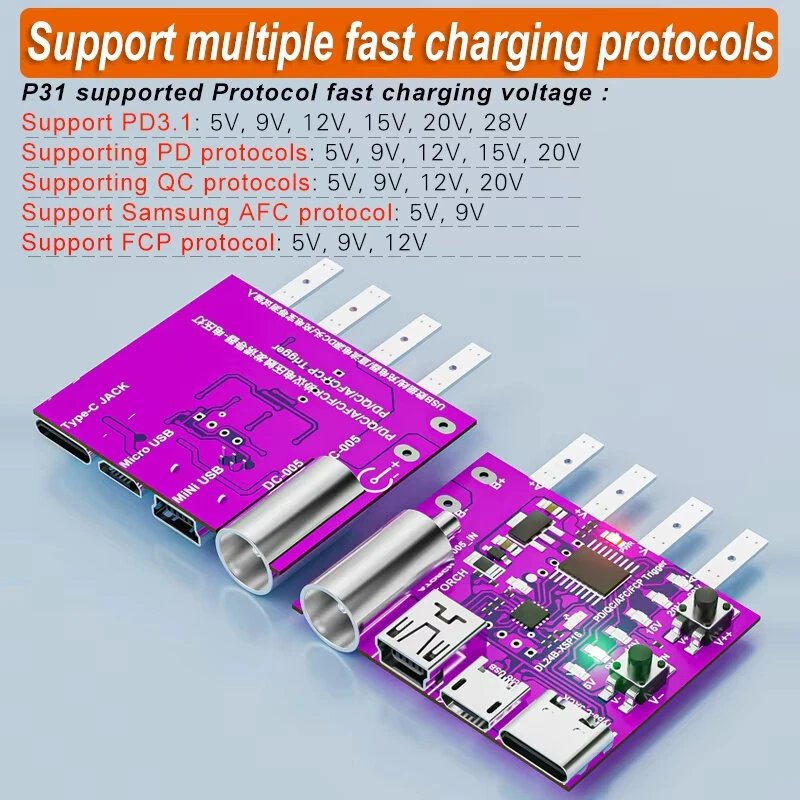

Support agreement:

1??Support PD3.1: 5V, 9V, 12V, 15V, 20V, 28V

2??Supports PD protocol: 5V, 9V, 12V, 15V, 20V

3??Support QC protocols: 5V, 9V, 12V, 20V

4??Supports SamsungAFC protocol: 5V, 9V

5??Supports FCP protocol: 5V, 9V, 12V

6??Supports PD3.1 28V*5A=140W (E-marker cable)

Features:

1. Wide Protocol Support: This test board supports a broad range of fast charging protocols including PD3.1, PD3.0, QC, AFC, and FCP, ensuring compatibility with various chargers and power banks.

2. Versatile Voltage Induction: Capable of inducing multiple voltage outputs (5V, 9V, 12V, 15V, 20V, 28V) for comprehensive aging, quality identification, and performance testing.

3. High Power Capacity: Supports the PD3.1 protocol with up to 140W power delivery (28V * 5A) when used with an E-marker cable, making it highly suitable for high-power applications.

4. Compact Design: The small size (42mm x 40mm x 1.6mm) makes it an easy-to-use and portable solution for your testing needs without taking up much space.

5. Robust Construction: Crafted from PCB, metal, and IC materials, this test board ensures reliable and efficient testing over prolonged usage.

Package Included:

1 x DL24B-XSP16 Test Board
