Nema 23 Closed Loop Stepper Motor Kit - 2.2N.m 57 Servo Motor & Driver Set

Product Description

Description:
Nema 23 2.2N.m Closed Loop Stepper Motor Kits 2 Phase 57 Servo Motor with Hybird Servo Driver Set
Specification:

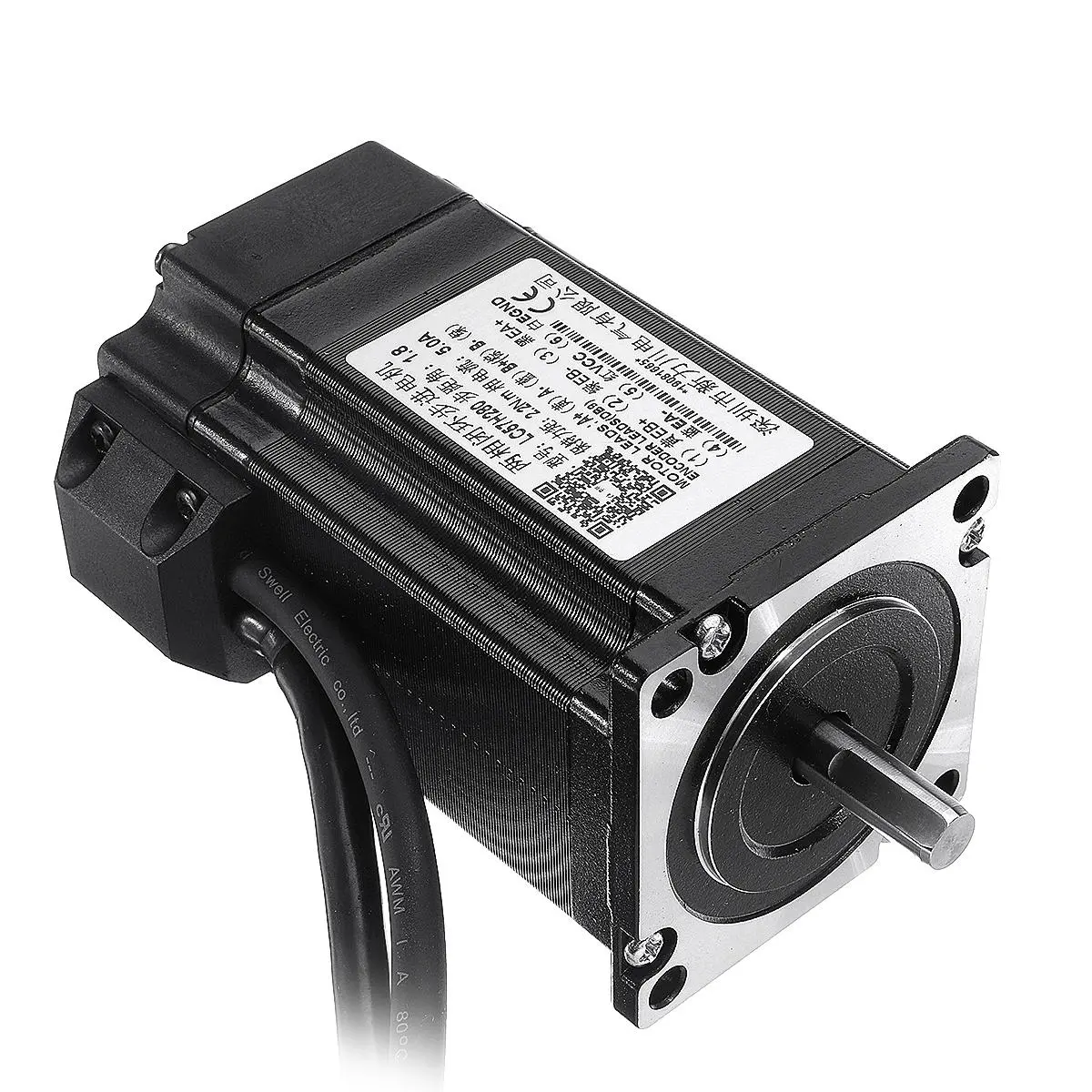

Motor details:
Model: LC57H280
Phase: 2
Step Angle: 1.8 deg
Current: 4.0A
Inertia Of Rotor: 520g.cm2
Holding Torque: 2.2Nm
Shaft Diameter: 8mm
Motor Total Length: 102mm
Motor Length: 80mm
Motor Weight: 1.5Kg
Driver:
Model: LCDA257S
Voltage: VDC20-50V
Max Current: 6A
Subdivision Range: 400-51200ppr
Signal Voltage: +5V(+12Vor+24V series current limiting resistor)
Pulse Width: 2.5??S
Pulse Form: Pulse+Direction/Pulse+Pulse
Pulse Response Frequency: Max 200KHZ
Size:115x69.3x26.5mm
Weight: 0.21Kg
Features:
No lost step, accurate positioning.
100% rated torque drive motor.
Variable current control technology, high current efficiency.
Low vibration and smooth operation at low speed.
To select position over tolerance threshold and alarm polarity.
Rich output control.
Single and double pulses can be selected.
Built-in acceleration and deceleration control to improve start-stop smoothness.
Users can customize the subdivision.
1000 line encoders.
General application parameters do not need to be adjusted, the factory has been set up.

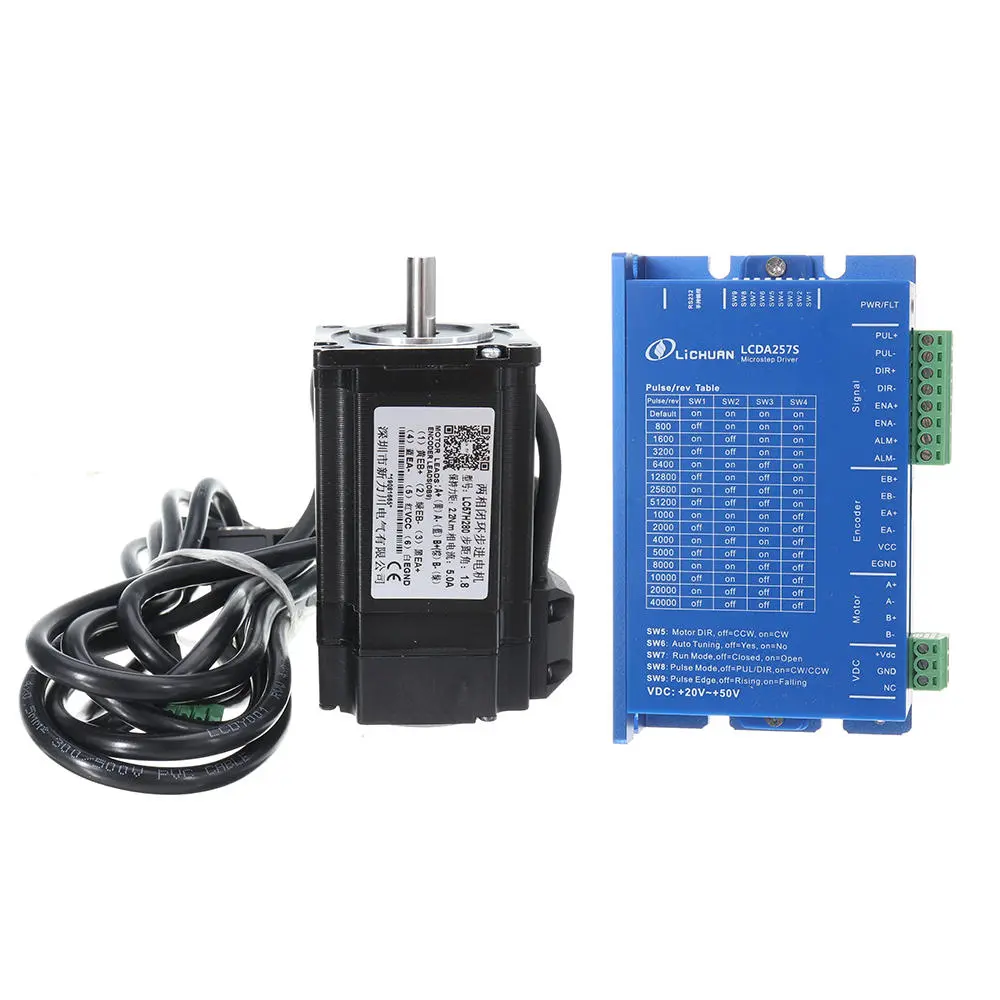

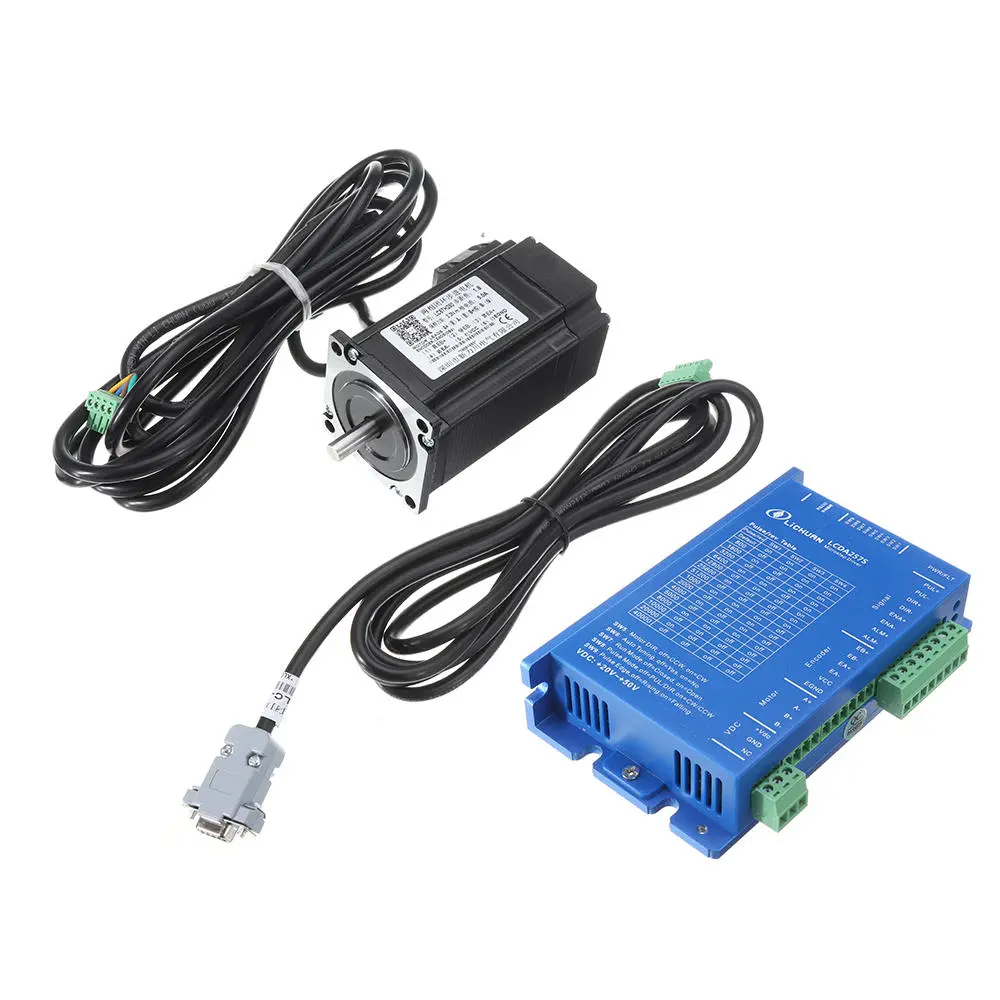

Package Included:
1pcs & Nema23 2.2Nm Closed Loop Stepper Motor
1pcs & Motor Driver

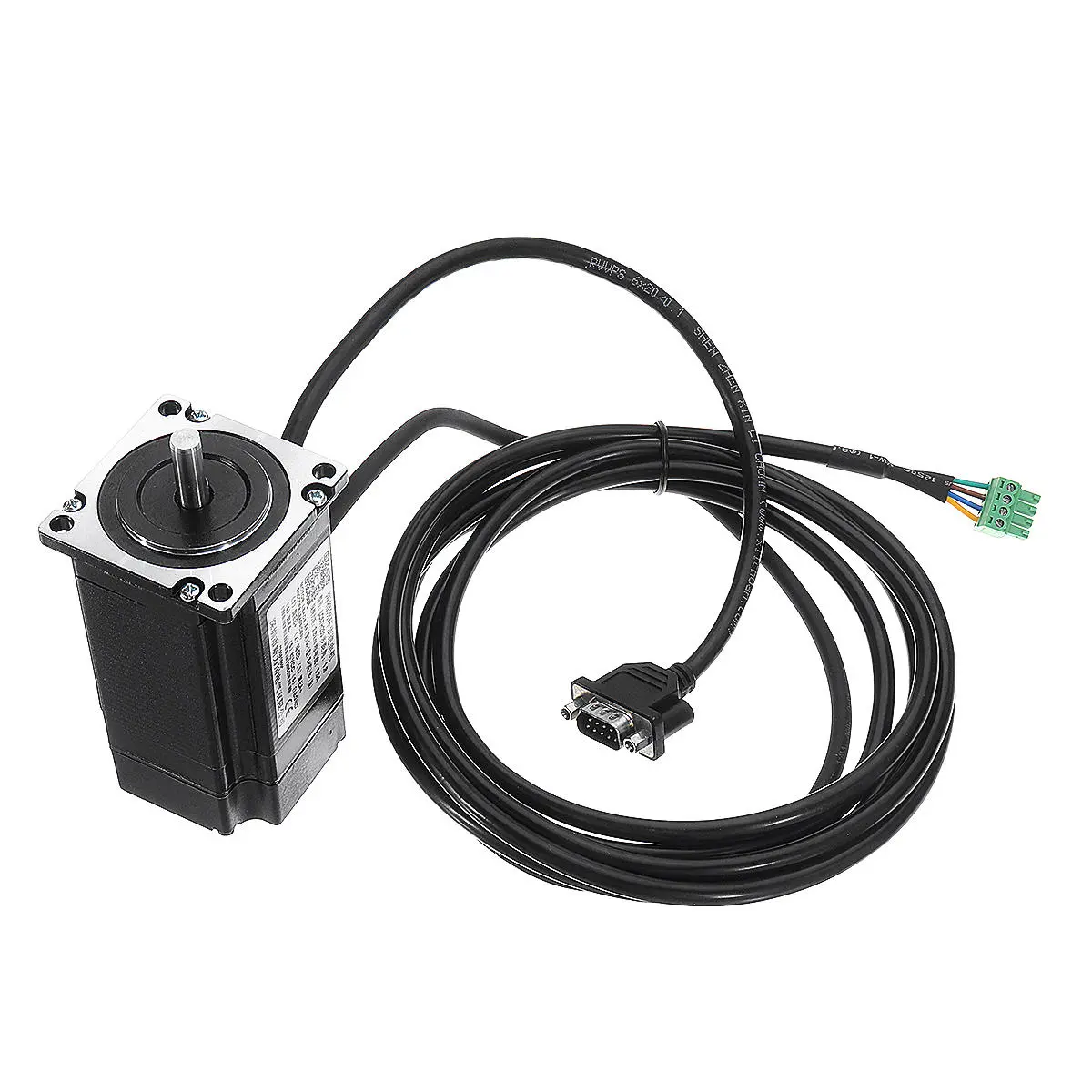

1pcs & 0.5 meters Motor Cables
1pcs & 3 meters Encoder Cables
More Details:
