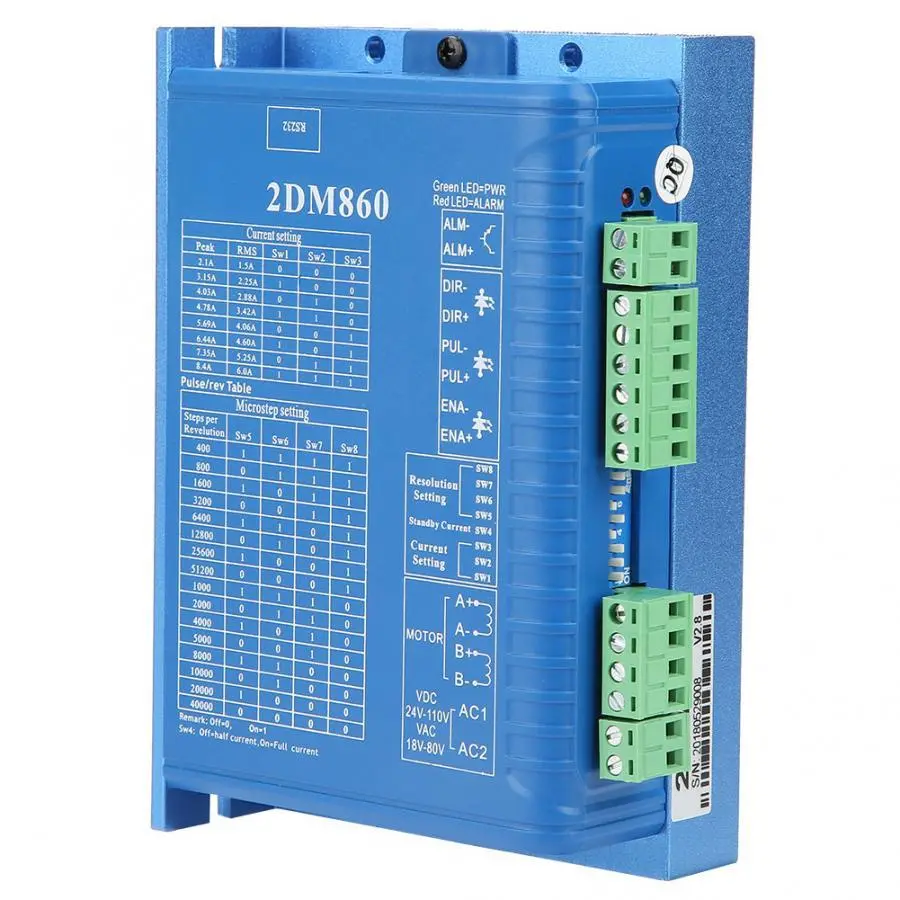

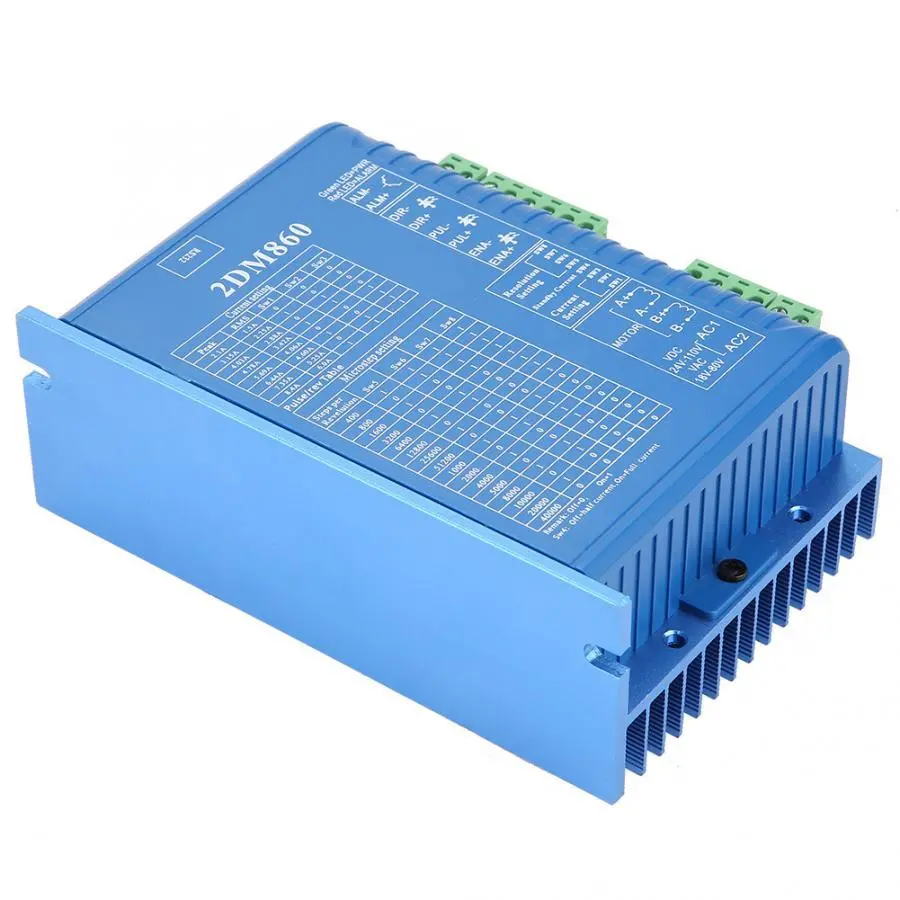

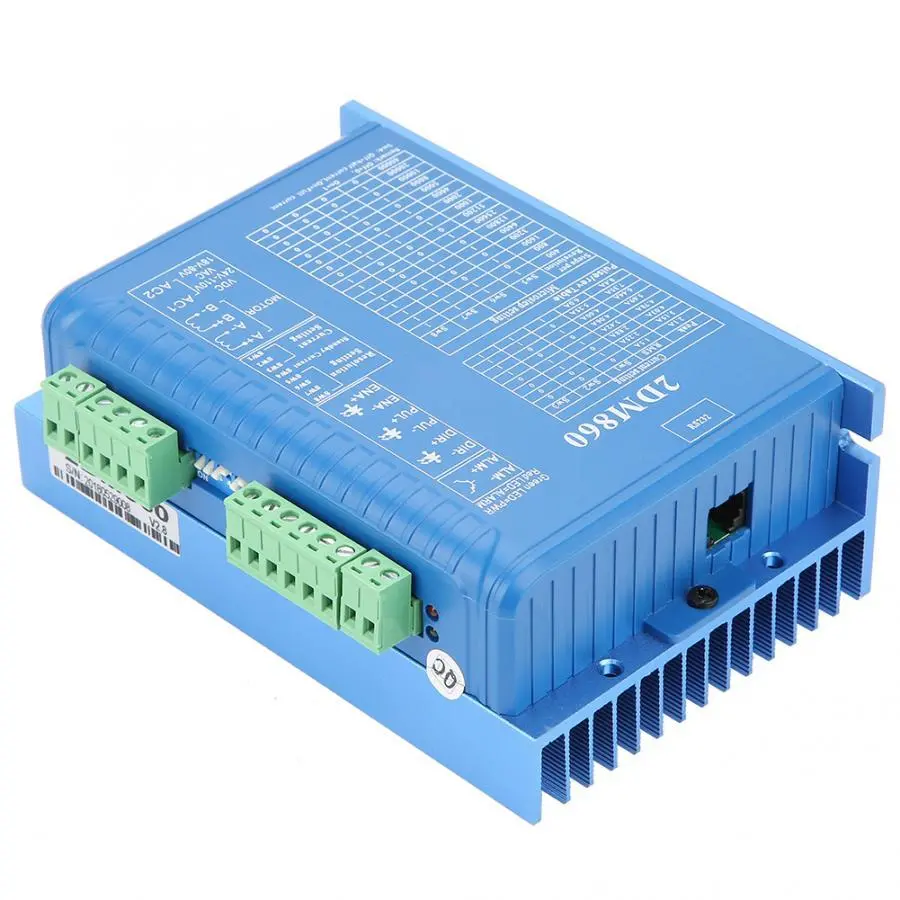

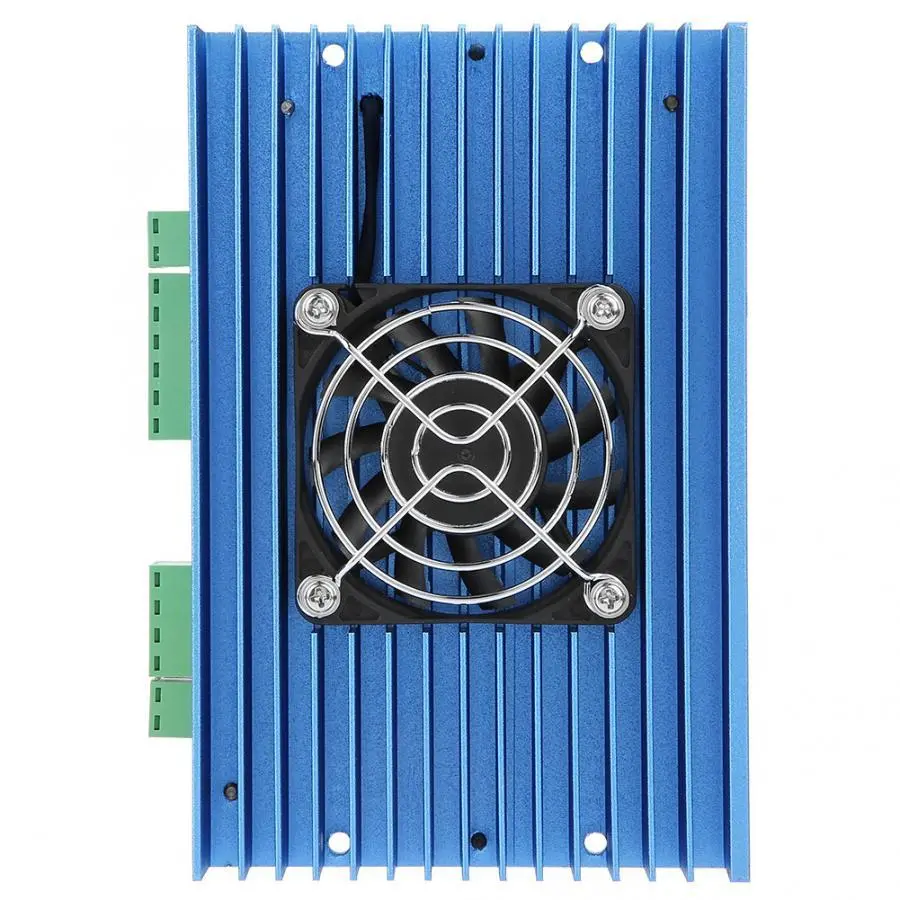

Machifit 2DM860 Stepper Motor Driver | 2 Phase Controller for CNC Router & Engraving

Product Description

Description:
2DM860 Stepper Motor Controller Driver For CNC Router Engraving Machine Step Motor 32-bit DSP Motor Control Stepper Motor Driver

Specification:

Model:2DM860

Rated voltage. 24-110 (V)

Speed response frequency: 50 (KHz)

Fit motor: 86

Current rating: 1.8-7.0A

Control mode: pulse + direction

Fine fraction: 2-256

Features:

• The parameter self-tuning, motor adaptive; new 32-bit DSP control technology, which can drive 4/6/8 wire two phase stepper motor
• Built-in high microstepping, little vibration, low heat, low speed and running smoothly
• Medium and high speed torque compensation;
• Current vector control, with high Current efficiency
• Built-in deceleration control, improve the start-stop smoothness
• With single, double pulse control mode
• with the function of motor running position memory
• Input signal differential optical coupling isolation, compatible with 5 v and 24 v;
• Users can custom microstepping;
• Over-current protection, over voltage protection;
• Automatic detection, can Flexible choose the way of pulse edge count
• A green light means running, the red light said protection or offline;

Package Included:

1 x Stepper Motor Controller Driver
