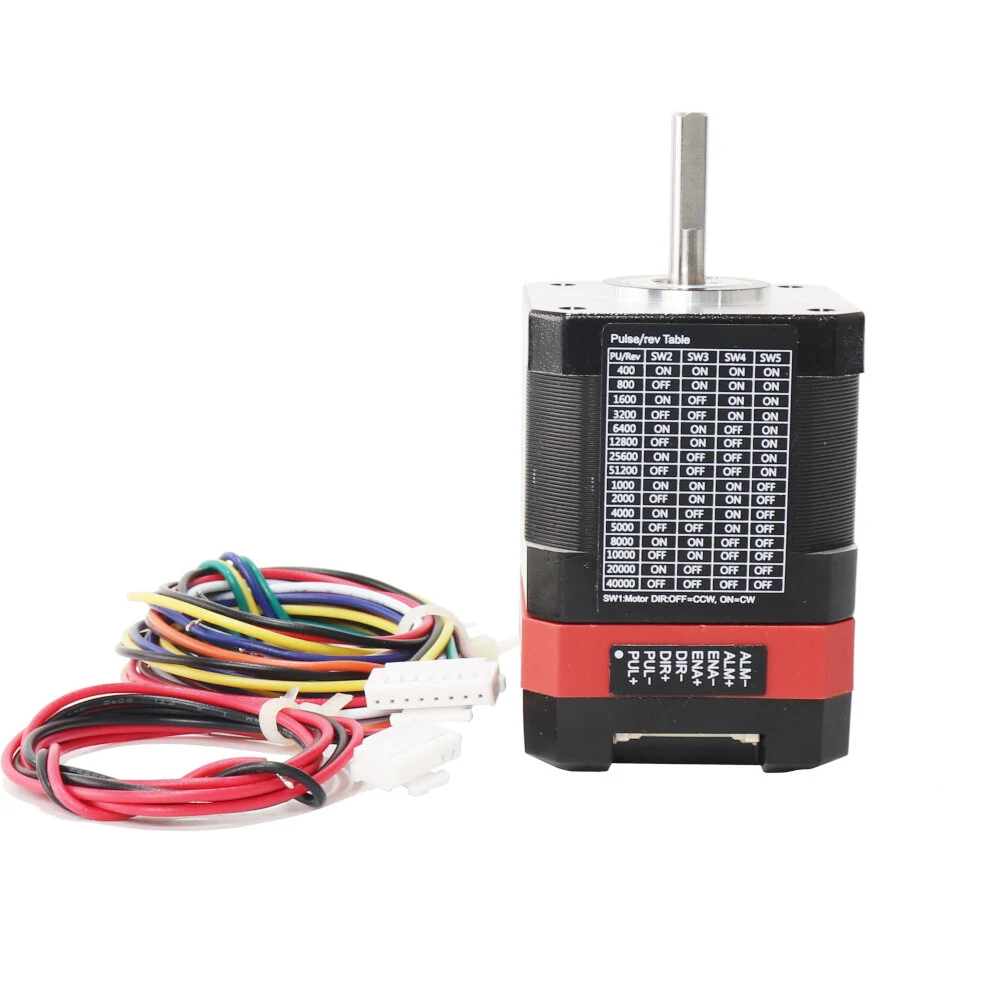

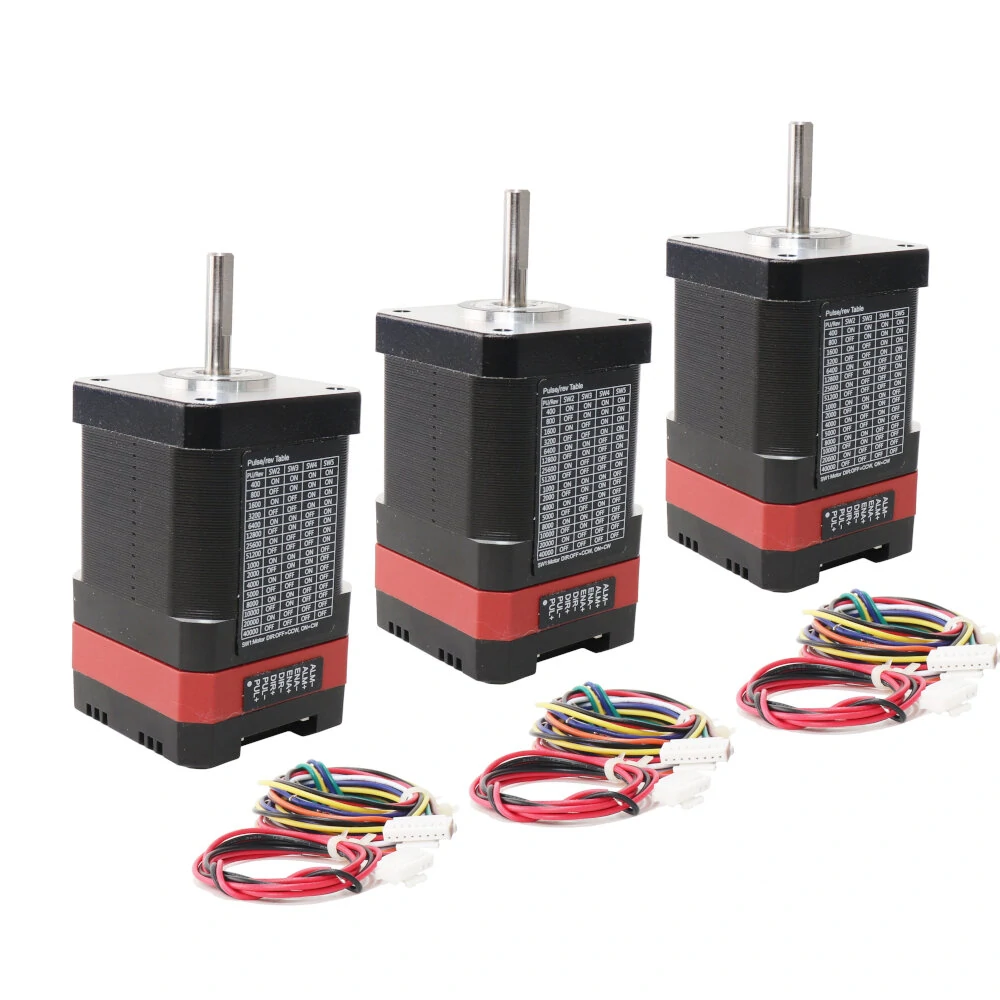

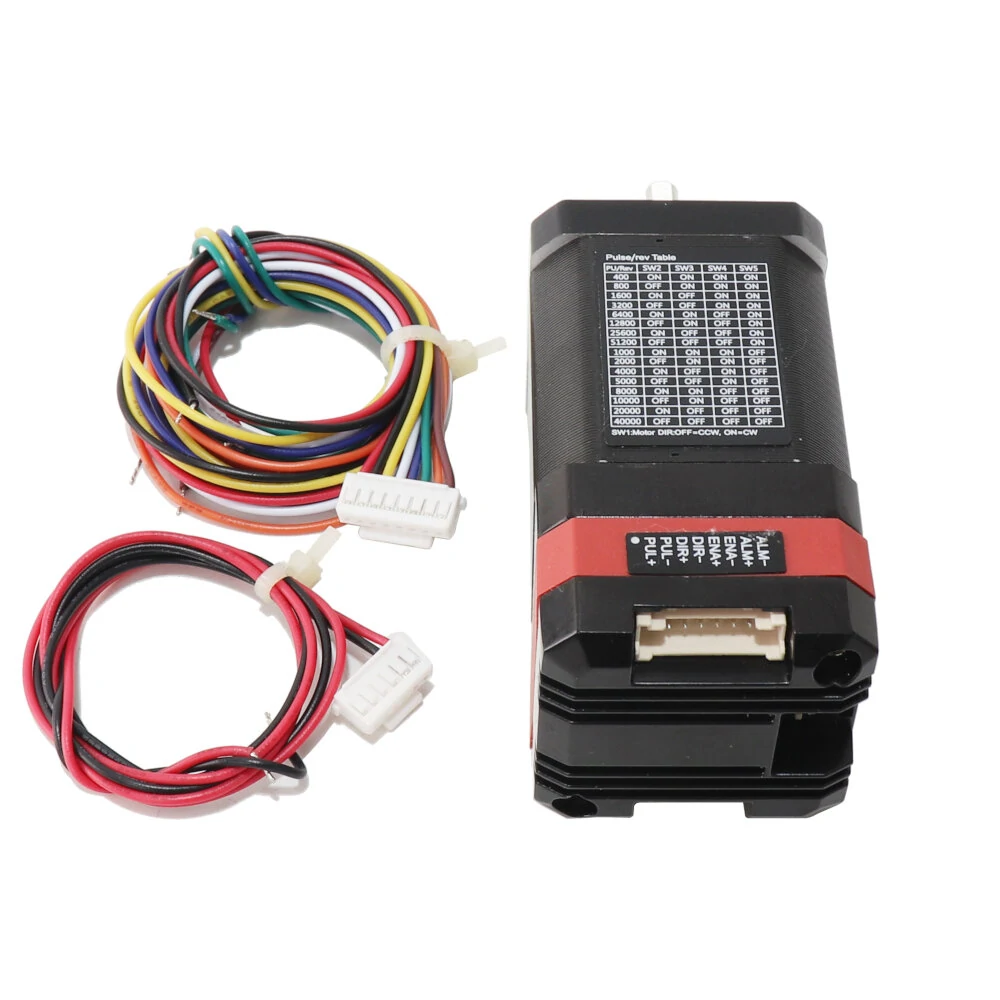

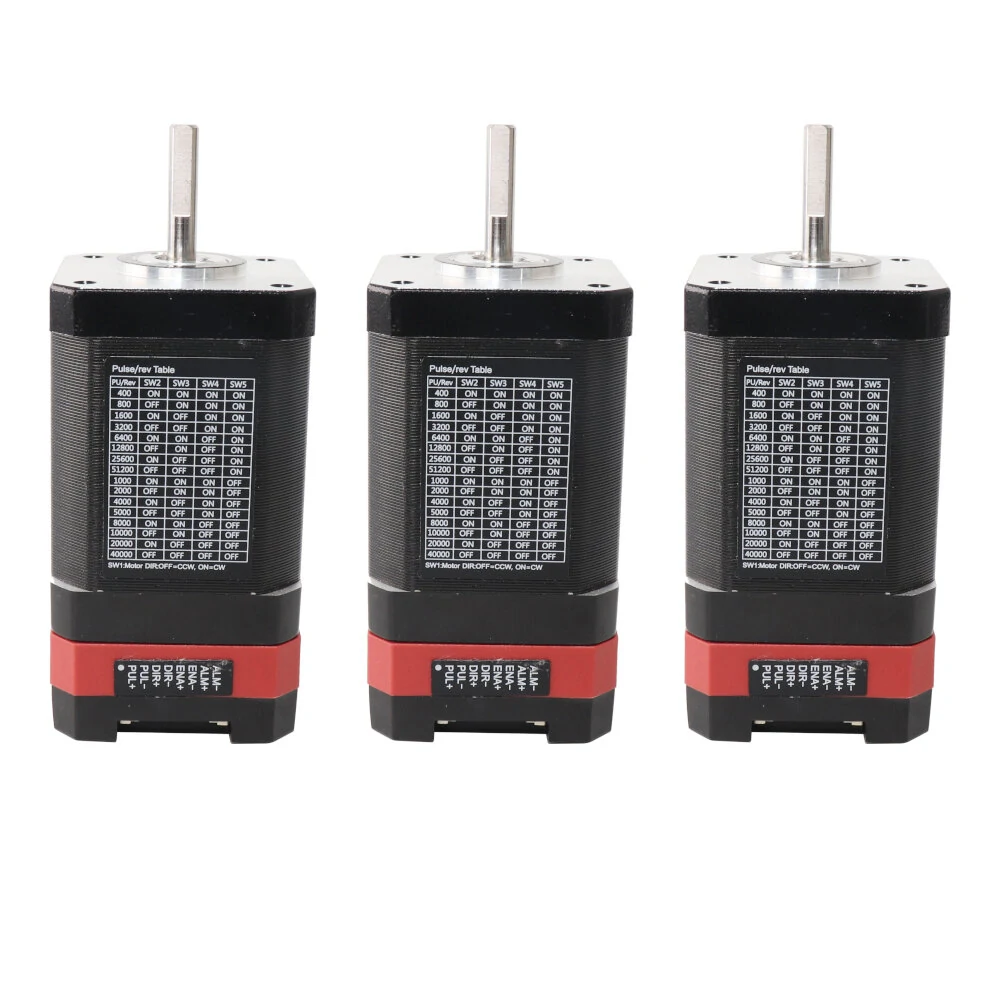

Hanpose Nema17 Closed Loop Stepper Servo Motor | 40/48/60mm | ESS42-P0X/P1X/P2X
Product Description
Description:
Nema17 ESS42-P0X/P1X/P2X 40/48/60MM Closed loop Integrated Stepper Servo Motor With Driver 0.72Nm 2.0A Servo-Stepper Motor
Specifications:
| Product Name | Closed loop Integrated Stepper Servo Motor |
| Brand | HANPOSE |
| Model | 40mm: ESS42-P0X 60mm: ESS42-P1X 80mm: ESS42-P2X |
| Motor Length | 40mm,48mm,60mm |
| Current | 2.0A |
| Certification | ISO |
| Step Angle (Degrees) | 1.8 |
| Type | Permanent Magnet |
| Holding Torque | 0.41/0.53/0.72 |
| Quantity | 1 Pc ?? Motor |
| Model | ESS42-P0x | ESS42-P1x | ESS42-P2x |
| Motor Specifications | 42HS40P2004A2405S | 42HS48P2004A2405S | 42HS60P2004A2405S |
| Phase | 2 | ||
| Step Angle | 1.8?? | ||
| Motor Length | 40mm | 48mm | 60mm |
| Holding Torque | 0.41N.m | 0.53N.m | 0.72N.m |
| Rated Current | 2.0A | ||
| Phase Resistance | 1.2?? | 1.35?? | 1.8?? |
| Phase Inductance | 2.1mH | 2.9mH | 3.7mH |
| Rotor Inertia | 55g.?M2 | 81g.?M2 | 117g.?M2 |
| Motor Weight | 0.3kg | 0.35kg | 0.5kg |
| Insulation Class | B Class | ||
| Operating Temperature | 0-55?? | ||
Features:
- DSP control technology and power angle control technology.
- The maximum speed can reach more than 3000rmp, and the high-speed torque attenuation is much lower than that of the common open-loop driver, which cna greatly improve the high-speed performance and torque Rate of the stepper motor, effectively reduce motor heating and vibration, thereby inmproving the processing efficiency and accureacy of the machine.
- Load-based current control technology can effectively rreduce motor heating and extend motor life.
- The built-in alarm output signal of the driver is convenient for monitoring and control by the host computer.
- The position tolerance alarm function ensures the safe operation of the processing equipment.
Package Included:
| 1 Pc ?? | Servo Motor |
