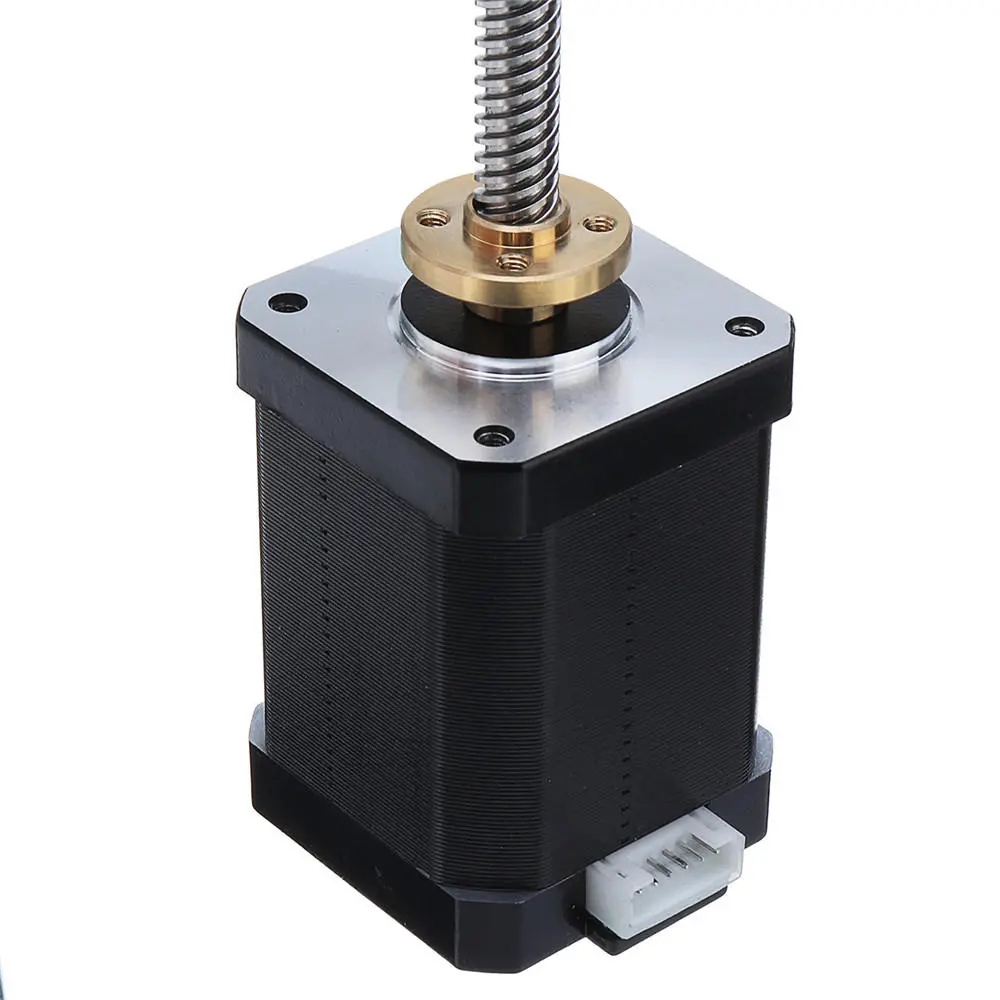

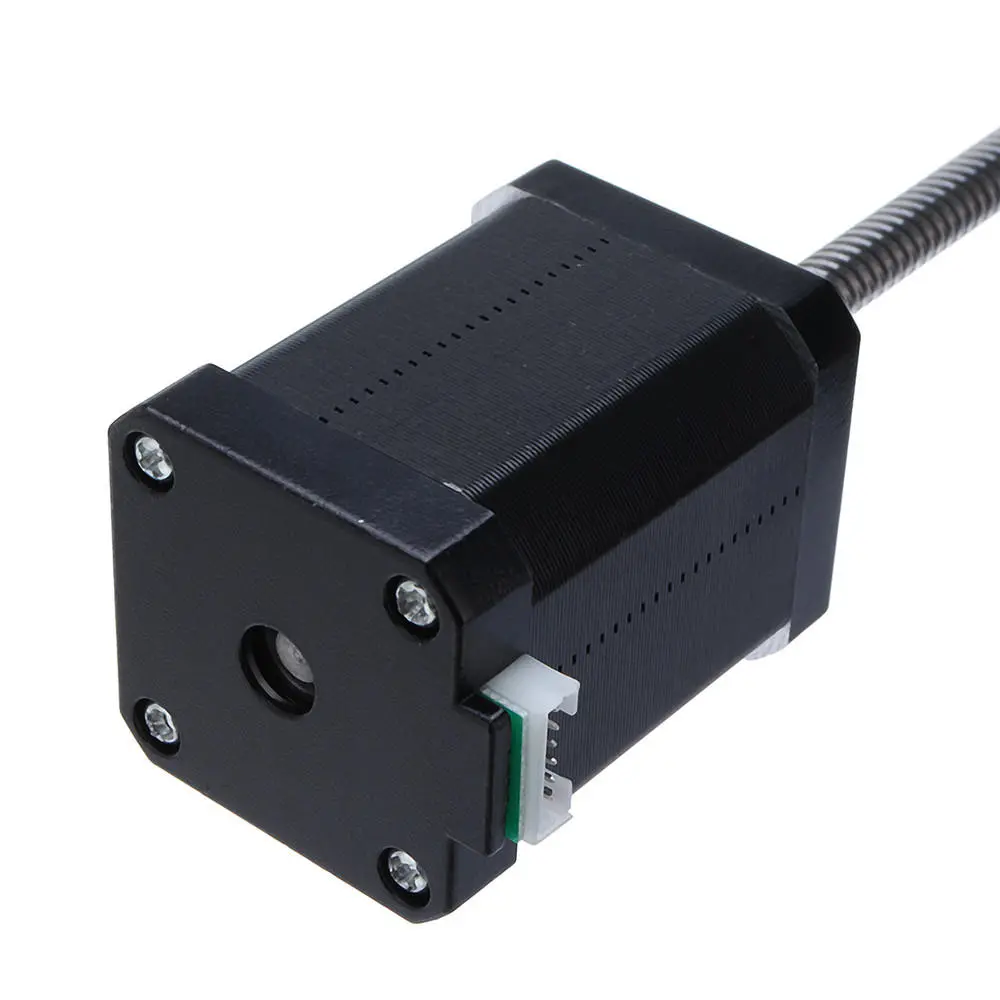

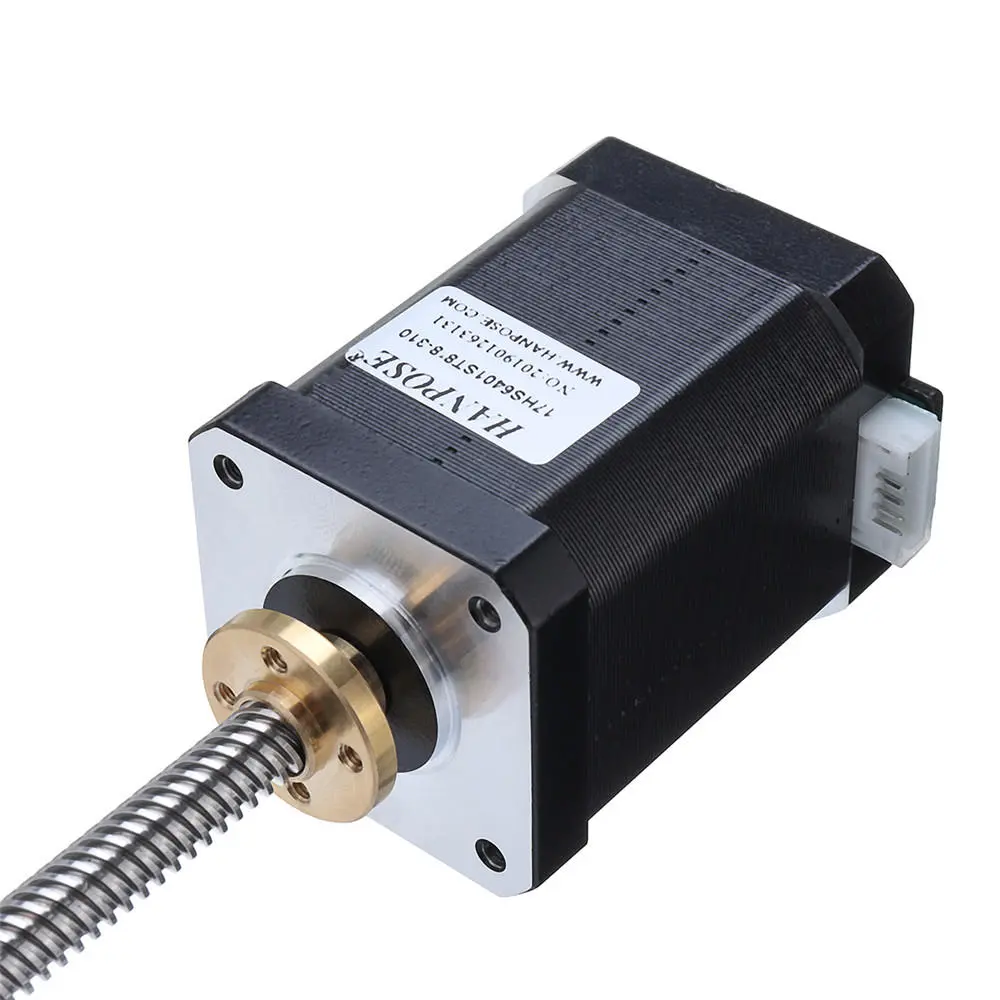

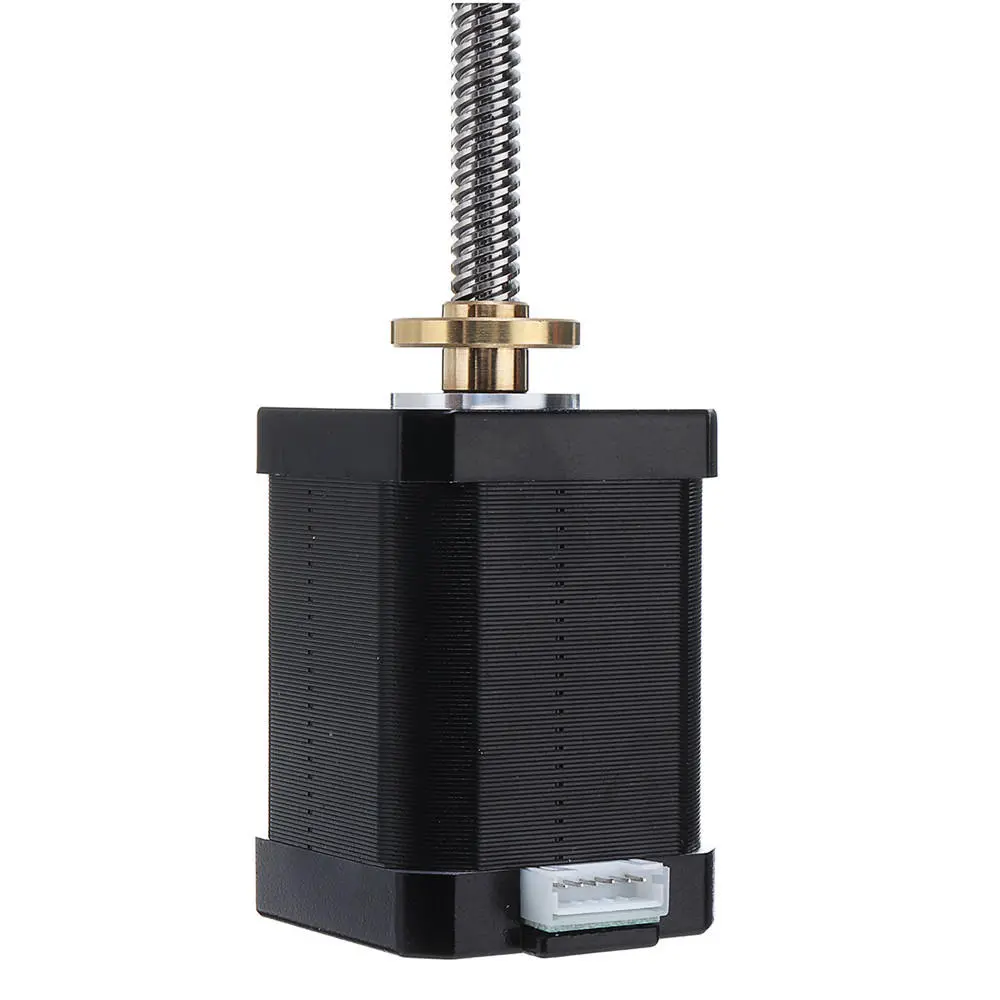

HANPOSE 17HS6401-S Nema 17 Stepper Motor | 73N.cm 60mm 1.7A | Linear Actuator for 3D Printer Z Axis
$47.00
$57.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:HANPOSE 17HS6401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators
60mm 1.7A 73N.cm 4-lead 42 Motor 100-500mm Trapezoidal Lead Screw for 3D printer Z Axis
Certification: CE, ROSH, ISO, FCC
Motor Color: Black(Surface Treatment)
Specification:
| Model | 17HS6401-S T8*8 |
| Motor Type | Hybrid |
| Phase | 2 |
| Step Angle | 1.8?? |
| Motor Size | 42*60 mm |
| Screw Diameter | 8mm |
| Screw Pitch | 8mm |
| Screw Effective Stroke | 100/150/200/250/300/350/400/500mm |
| Outlet way | "4" plug line |
| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Certification | ROHS, Iso, CE, UL, CCC |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Current | Rated Voltage | Resistance /Phase | Inductance /Phase | Holding Torque | Inertia Of Rotor | Lead |
| ( ??) | (L)mm | (A) | (V) | (??) | (mH) | (N.cm) | (G. cm2) | (No.) | |
| 17HS6401S-T8 | 1.8 | 60 | 1.7 | 5.1 | 3 | 6.2 | 73 | 80 | 4 |
General Specification:
| Precision angle step | ??5% (full step, no charge) |
| Resistance accuracy | ??10% |
| Precision inductance | ??20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20??)-(+ 50??) |
| Insulation resistance | 100M?? Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features:
1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Structure is stable, not card machine.
6. Speet uniform, do not lose step. Package Included: 1 X 17HS6401-S T8x8 100-500mm Stepper Motor
