CHIHAI Permanent Magnet Micro Gear Motor - 24V DC 60rpm 1:98.8 Ratio

Product Description

Description:

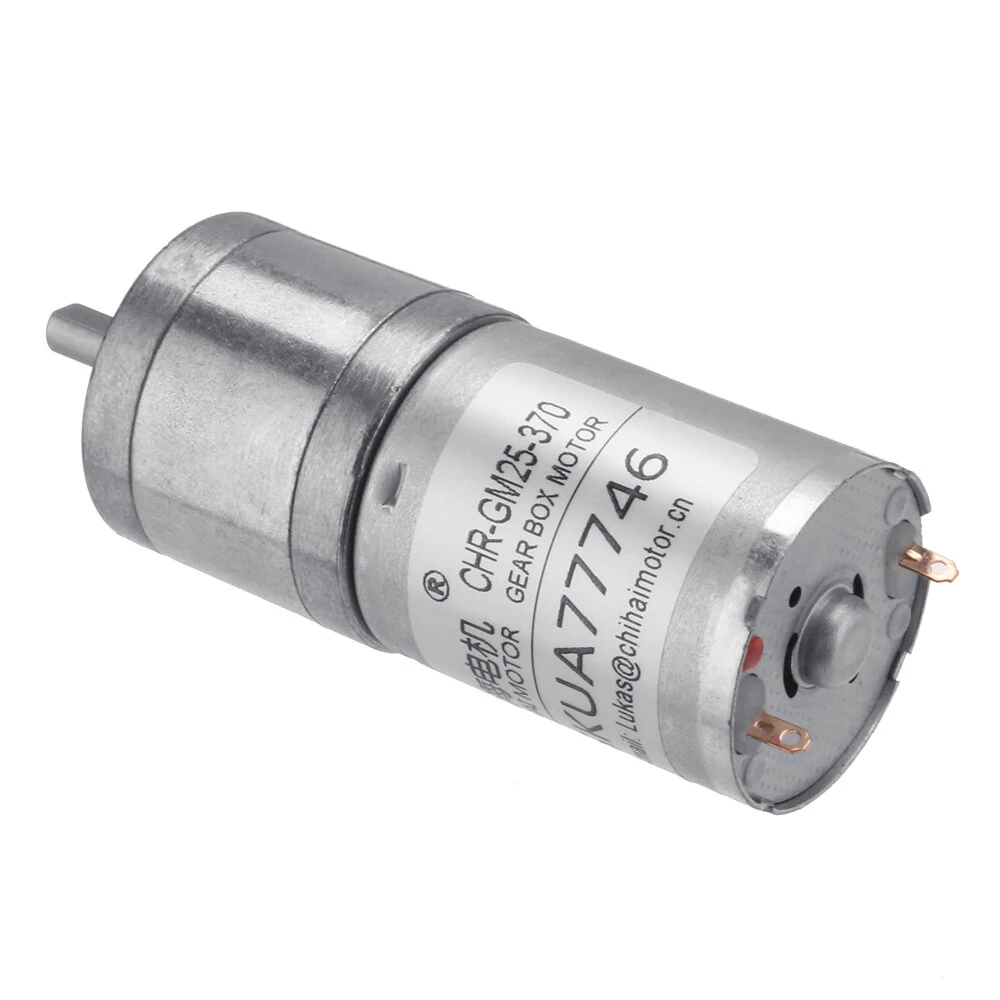

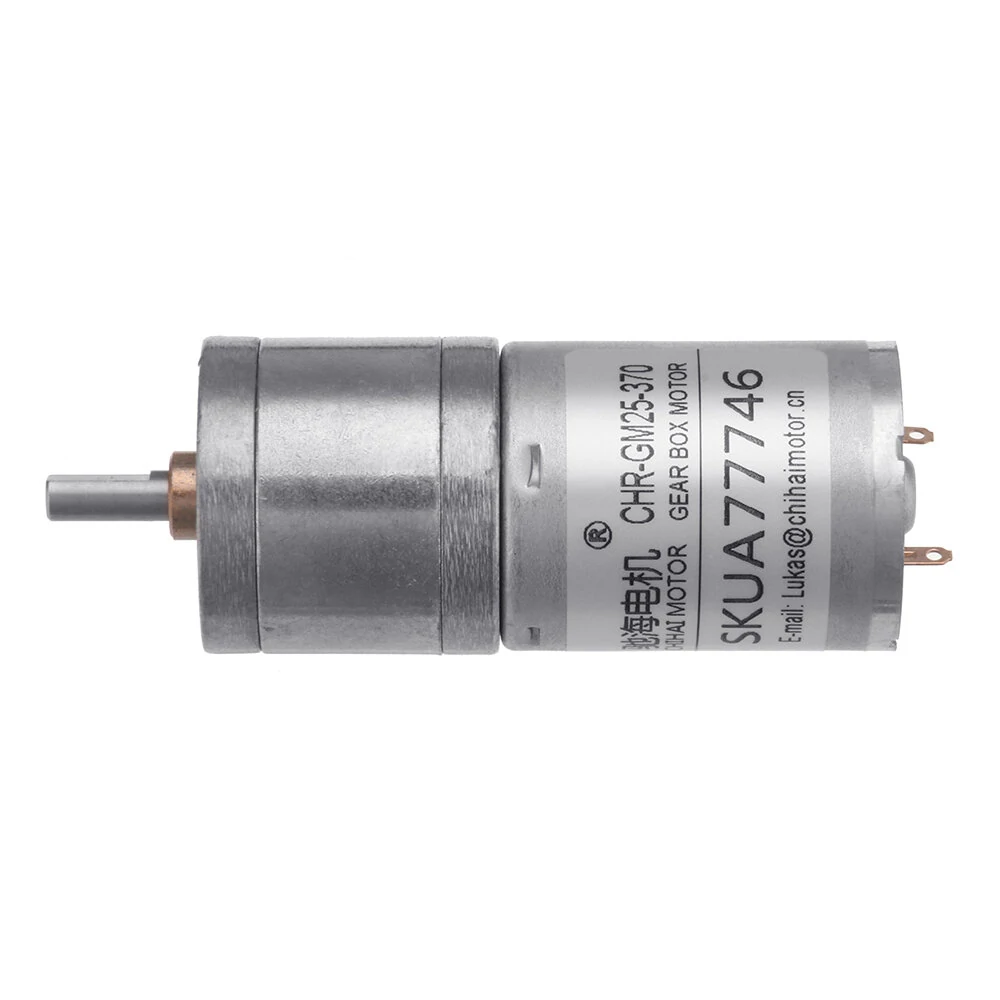

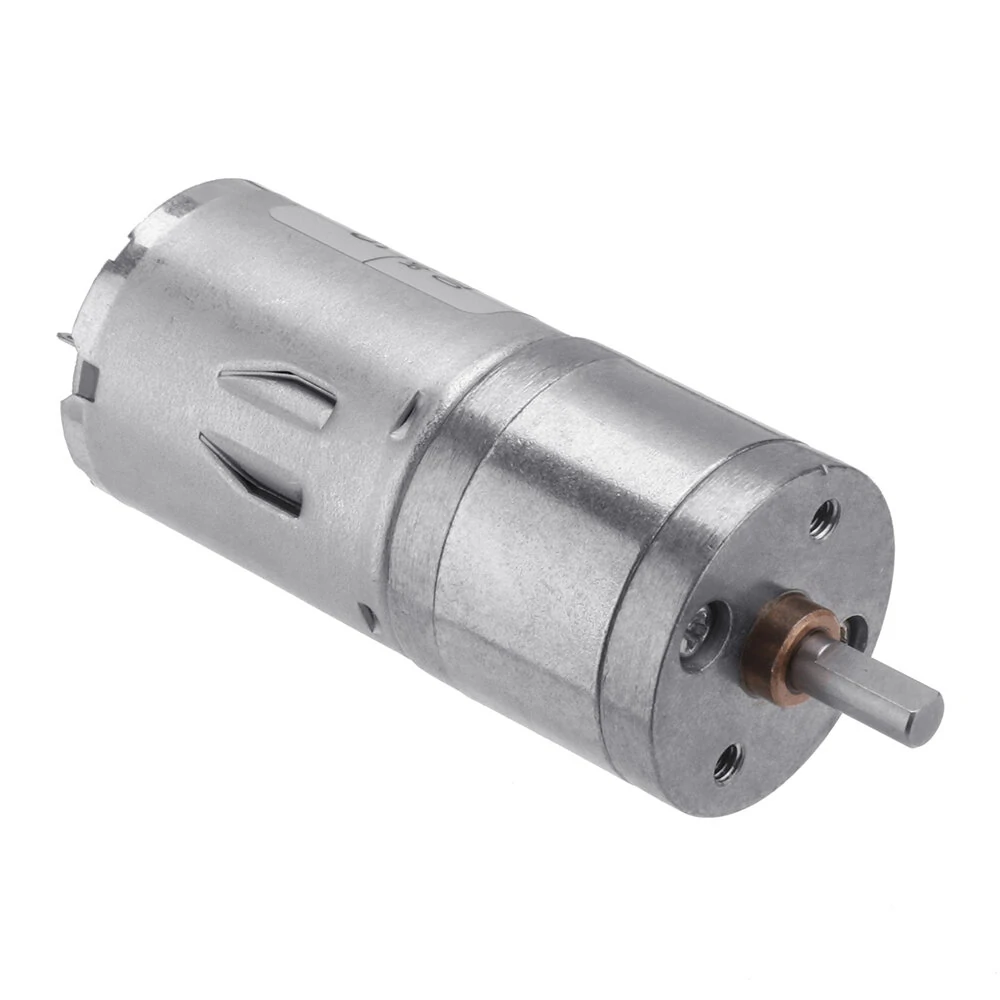

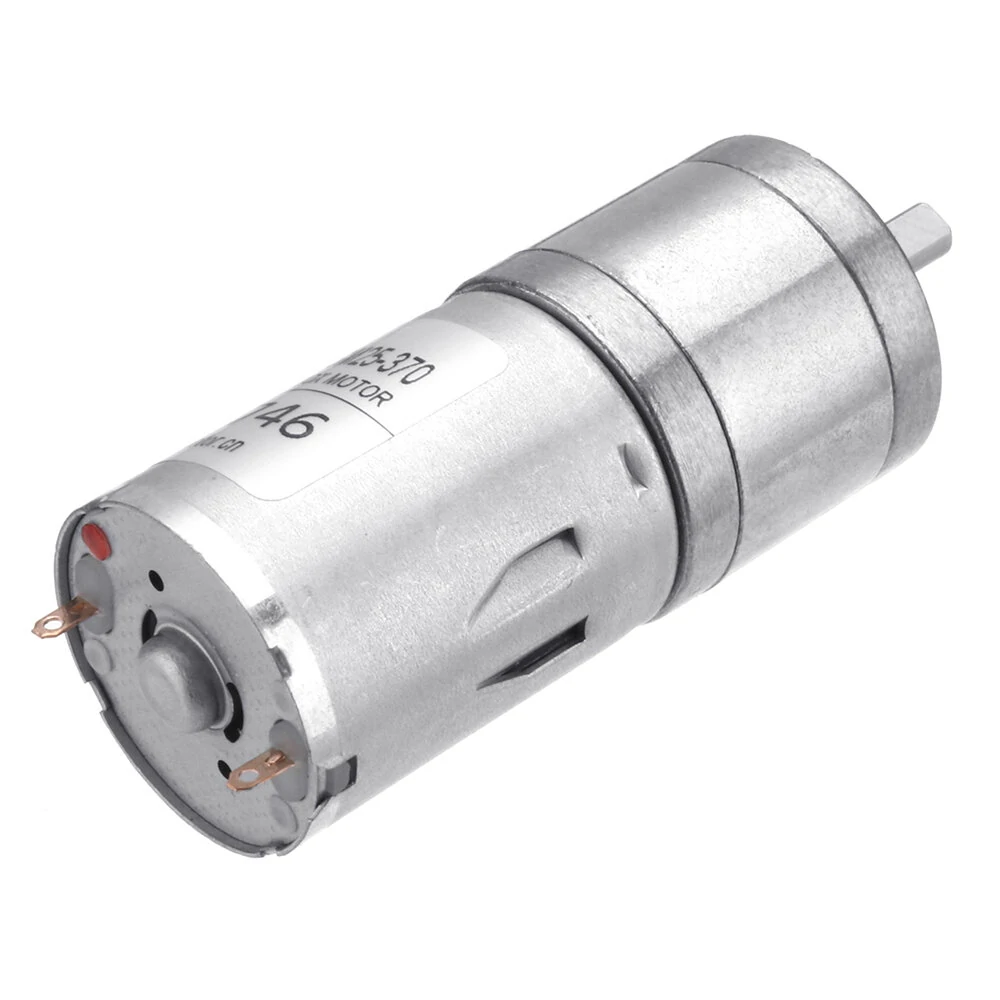

CHIHAI CHR-GM25-370 DC 24V 1:98.8 60rpm brushed motor / permanent magnet micro gear motor.
Specification:
Type: CHR-GM25-370 Outer Diameter: 25mm Shaft diameter : 4mm, D type(thick:3.5mm) Shaft length: 12mm, (D type:8 mm)
Application: Office equipment, robot, camera rocker arm, home appliances.

Voltage	Max. power	Ratio	No load speed		Rated load			Stall		Reducer length (L)mm
			current (A)	speed (RPM)	torque (kg.cm )	speed (RPM)	current (A)	torque (kg.cm )	current (A)
24V	3W	1.98.8	??40	60	4.00	45	??0.16	can't exceed 9.0kg.cm	??0.8	23

Features:
1. All-metal gear: Use all-metal gear material to make it more wear-resistant and extend service life. 2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time. 3. Pure copper wire winding: small resistance, strong electrical, so that the motor torque increased. 4. High torque, adjustable,low energy consumption, low noise, stable life, long life, positive and negative turn.
Package Included:
1 X CHR-GM25-370 motor
