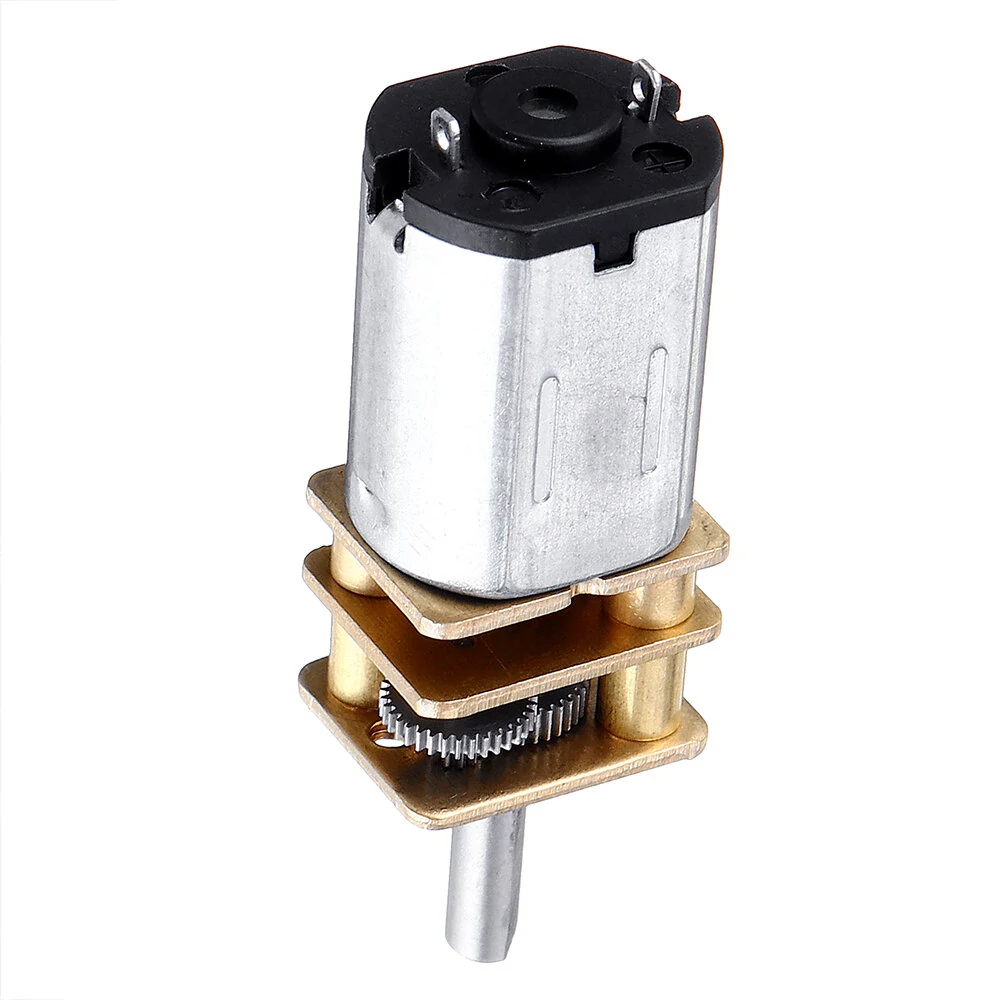

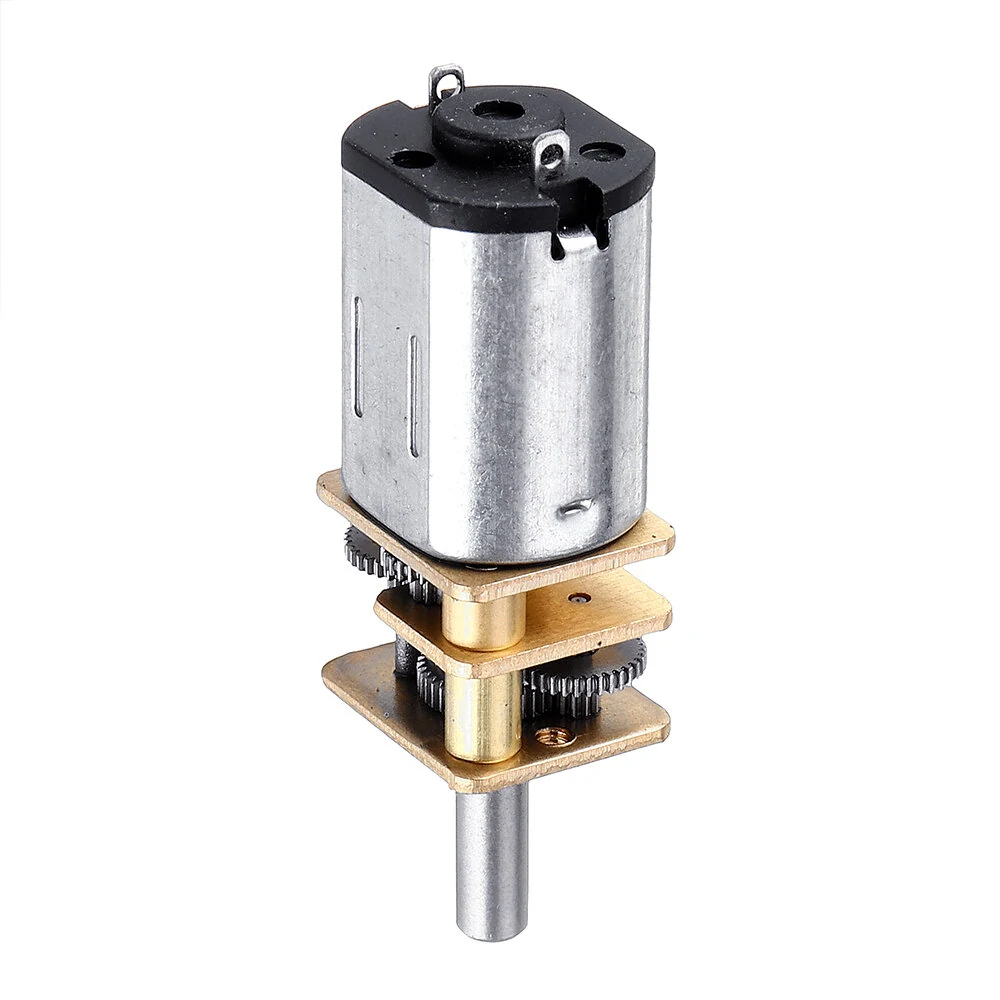

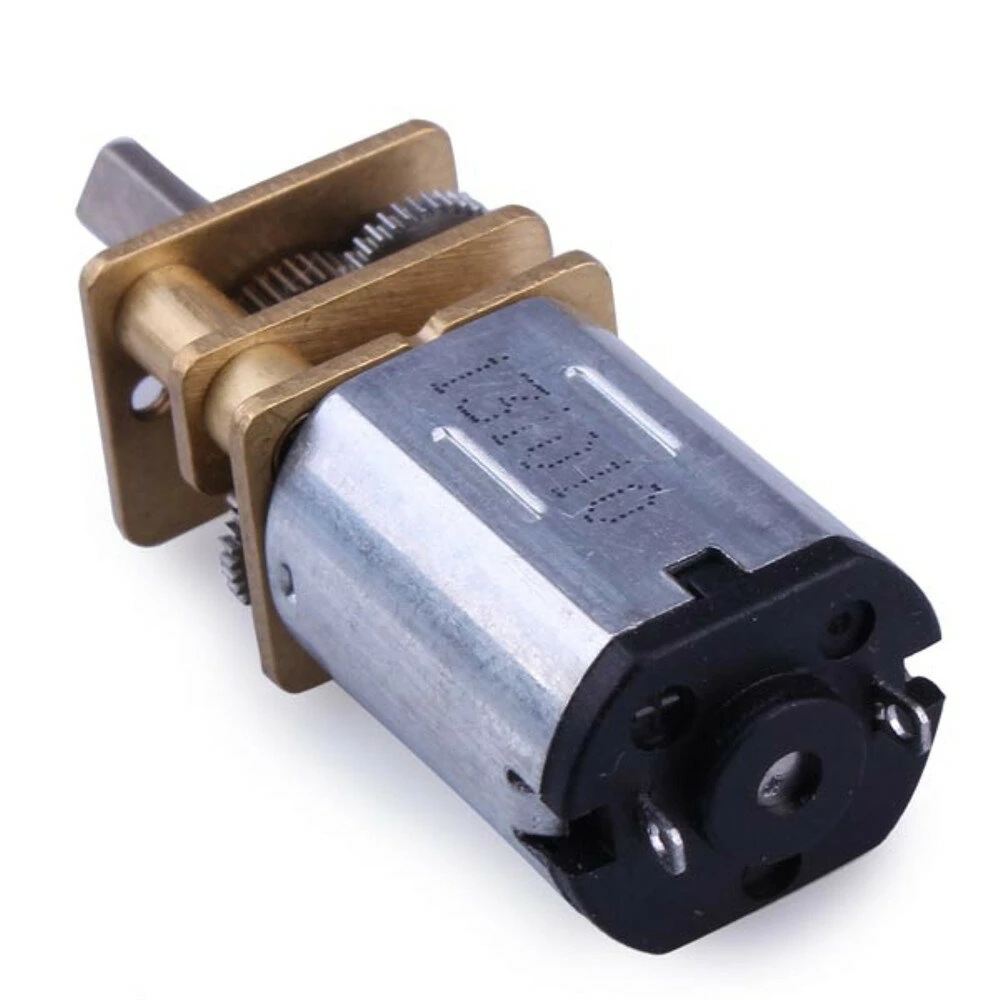

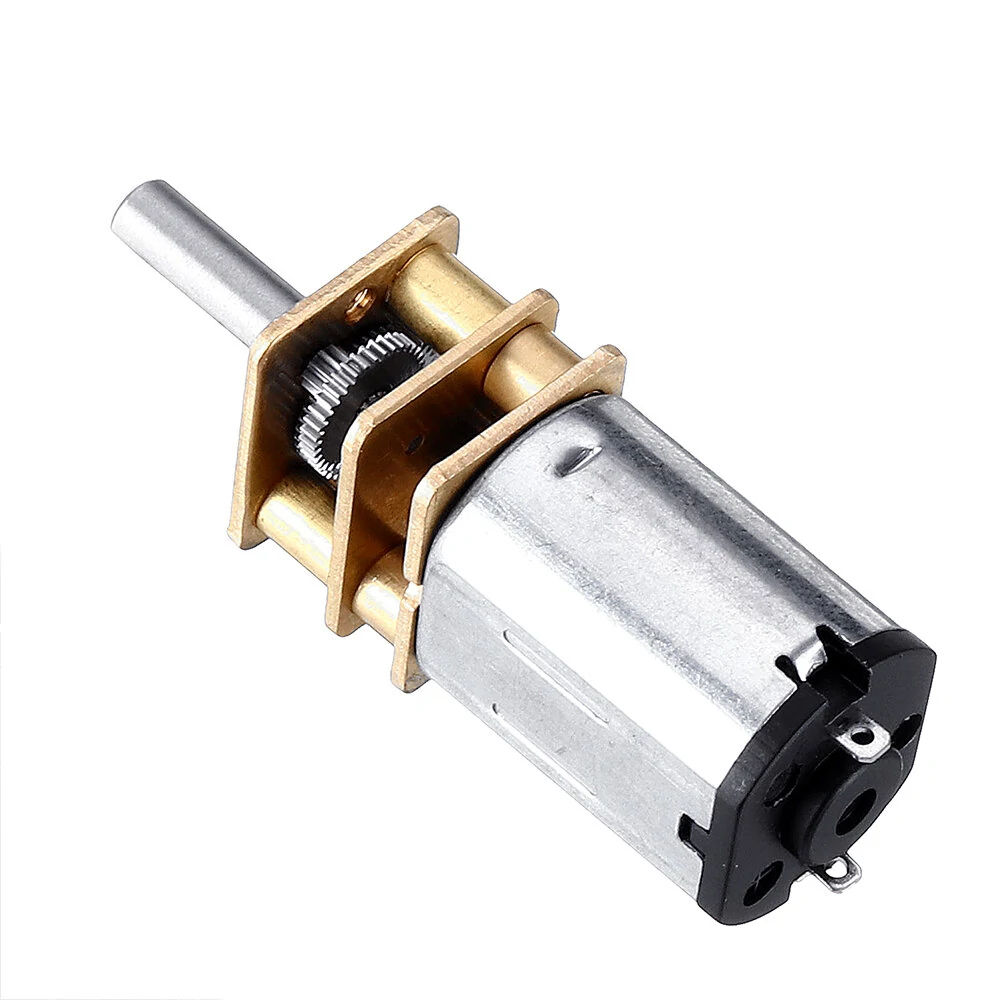

N20 DC Gear Motor - High Torque Miniature Electric Gearbox with Permanent Magnets
Product Description
Description:
Model | Material | Rated Voltage | No Load | At Maximum Efficiency | Stall | Size | |||||
| Speed | Current | Speed | Current | Torque | Torque | Current | |||||
| GM12-N20 | Alloy Gear | DC3.0V | 40RPM | 55mA | 30RPM | 150mA | 49mN.m | 500g.cm | 2kg.cm | 0.45A | 10*12*28mm |
| GM12-N20 | Alloy Gear | DC12.0V | 50RPM | 25mA | 40RPM | 80mA | 78.4mN.m | 800g.cm | 3kg.cm | 0.2A | 10*12*28mm |
| GM12-N20 | Alloy Gear | DC6.0V | 56RPM | 50mA | 40RPM | 150mA | 73.5mN.m | 750g.cm | 3kg.cm | 0.6A | 10*12*28mm |
| GM12-N20 | Alloy Gear | DC6.0V | 160RPM | 50mA | 120RPM | 150mA | 39.2mN.m | 400g.cm | 1.5kg.cm | 0.65A | 10*12*28 |
Specifications: Type: Brushed Motor Depth in the keyway into the 3mm shaft: 10mm N20 DC Gear Motor Miniature High Torque Electric Screwdriver Gear Boxes Motor With Permanent Magnets
Features:
Small volume, torsion big,all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat,Car,Electric Bicycle,Fan,Home Appliance, screwdrivers. Package Included: 1 Pc x Gear Motor More Details:
