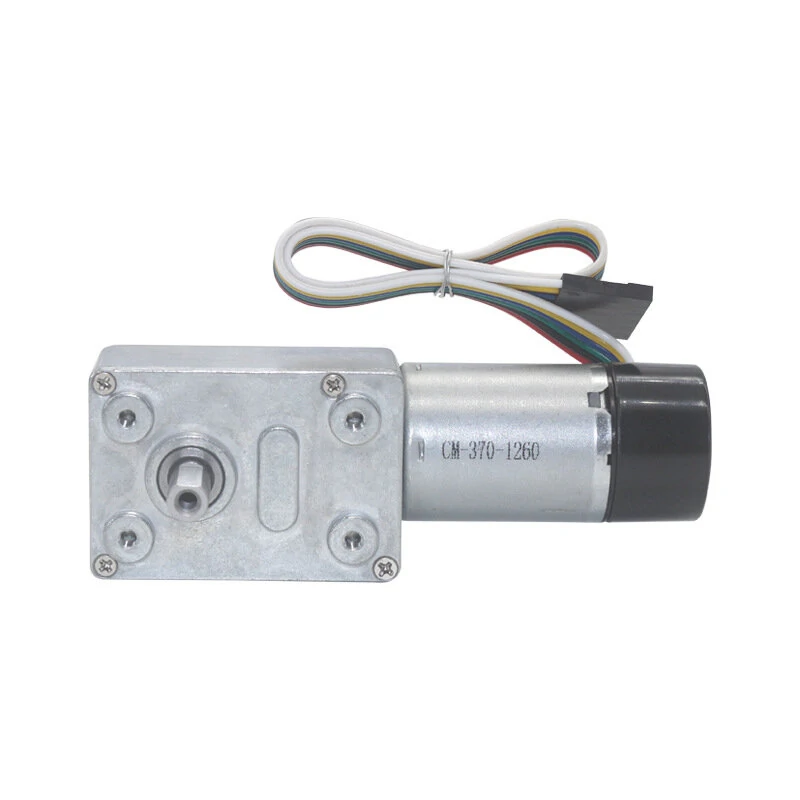

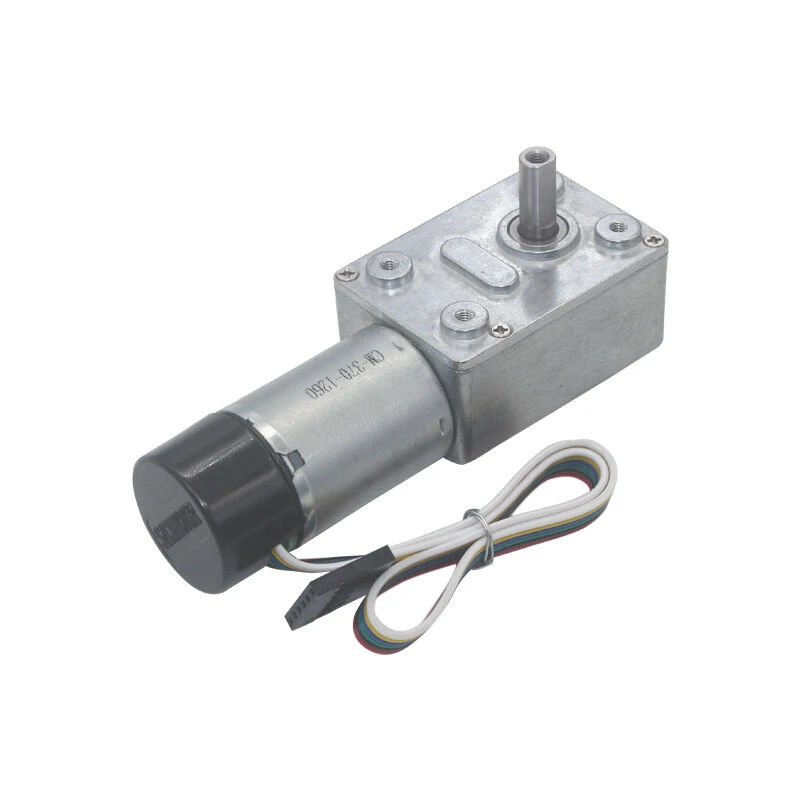

Machifit JGY-370 DC 12V Gear Motor | Worm Self-Locking with Encoder Feedback

Product Description

Descriptions: Machifit JGY-370 12V Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback Specifications: Brand: Machifit Type: Reduction Motor Material: Metal Voltage: DC 12V Weight: 167g Power: 3W Rated Voltage: 3 - 24V Speed Regulation: Yes Rotation In Both Directions: Yes Size: Outer Dia.: 6mm Motor: 46 x 32mm(without shaft) Line Length: 230mm

Reduction Ratio	600	200	65	40
No-load Current (MA)	??40
No-load Speed (rpm)	10	30	90	150
Rated Torque (Kg.cm)	15.9	5.3	0.5	0.2
Rated Speed (rpm)	7.5	22	70	120
Rated Current (A)	??0.3
Maximum Torque (Kg.cm)	30	10	1.6	0.9
Stop Current (A)	0.85

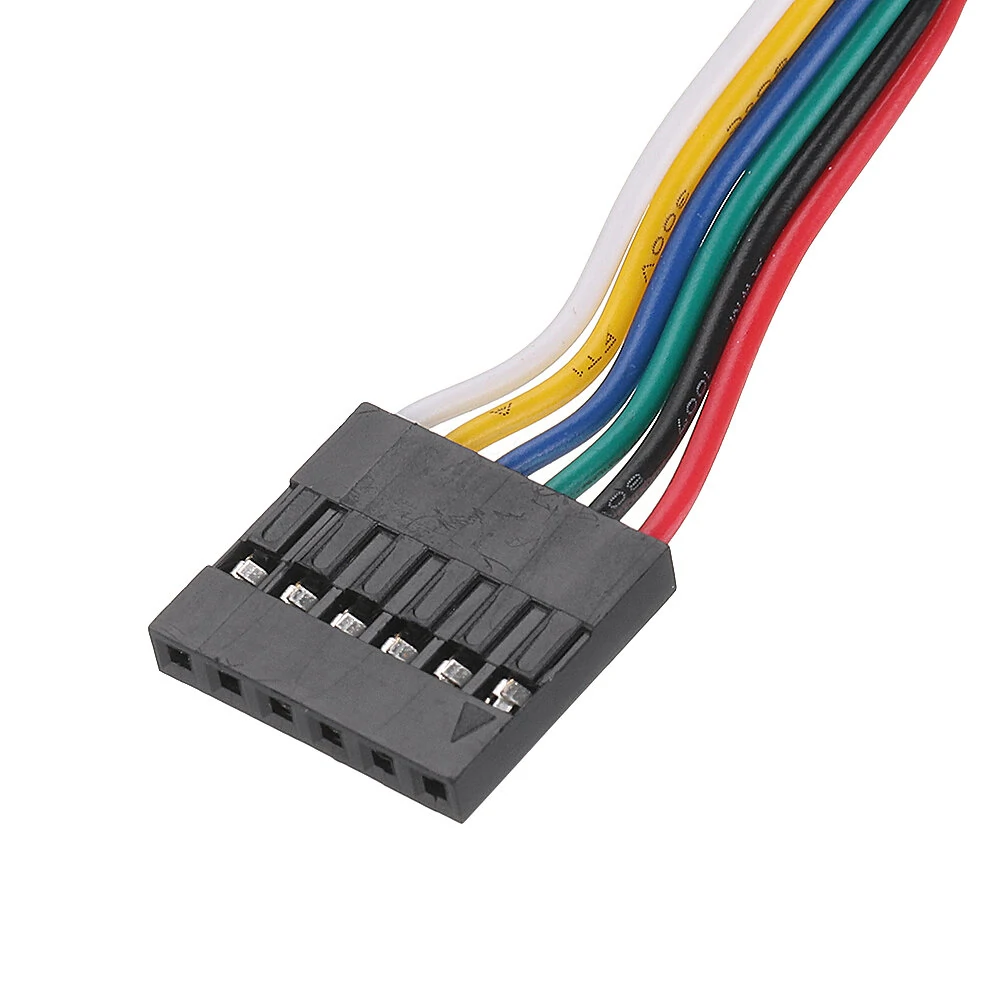

Wiring: Red: red motor + positive Black: black motor - negative Green: Green sensor ground wire - (5-12V) Blue: blue sensor power + (5-12V) Yellow: Signal A output point (11 pulses) White: Signal B output point (11 pulses)

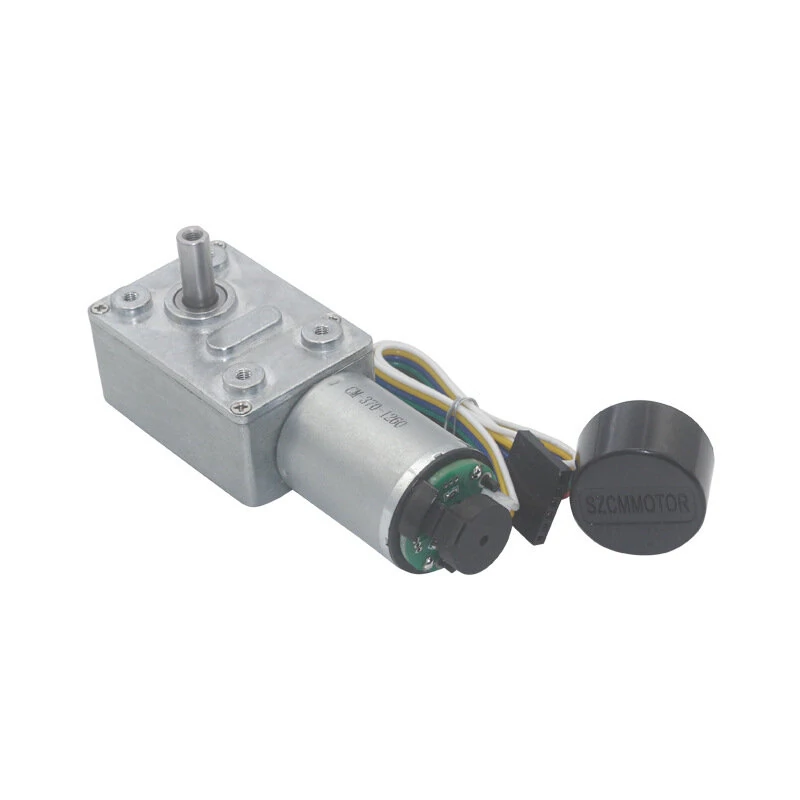

Features: - D-axis Display More fixed, superior thermal conductivity, high hardness and anti-friction; - Internal Gearbox All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere; - Covered Encoder The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating; - High quality motor with a service life of up to 1000 hours; - Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc. Package Included: 1 Pc x 12V Reduction Gear Motor
