Machifit GM12YN20-298 DC12V 67RPM Gear Motor | Metal Gearbox for 3D Pen

Product Description

Description:

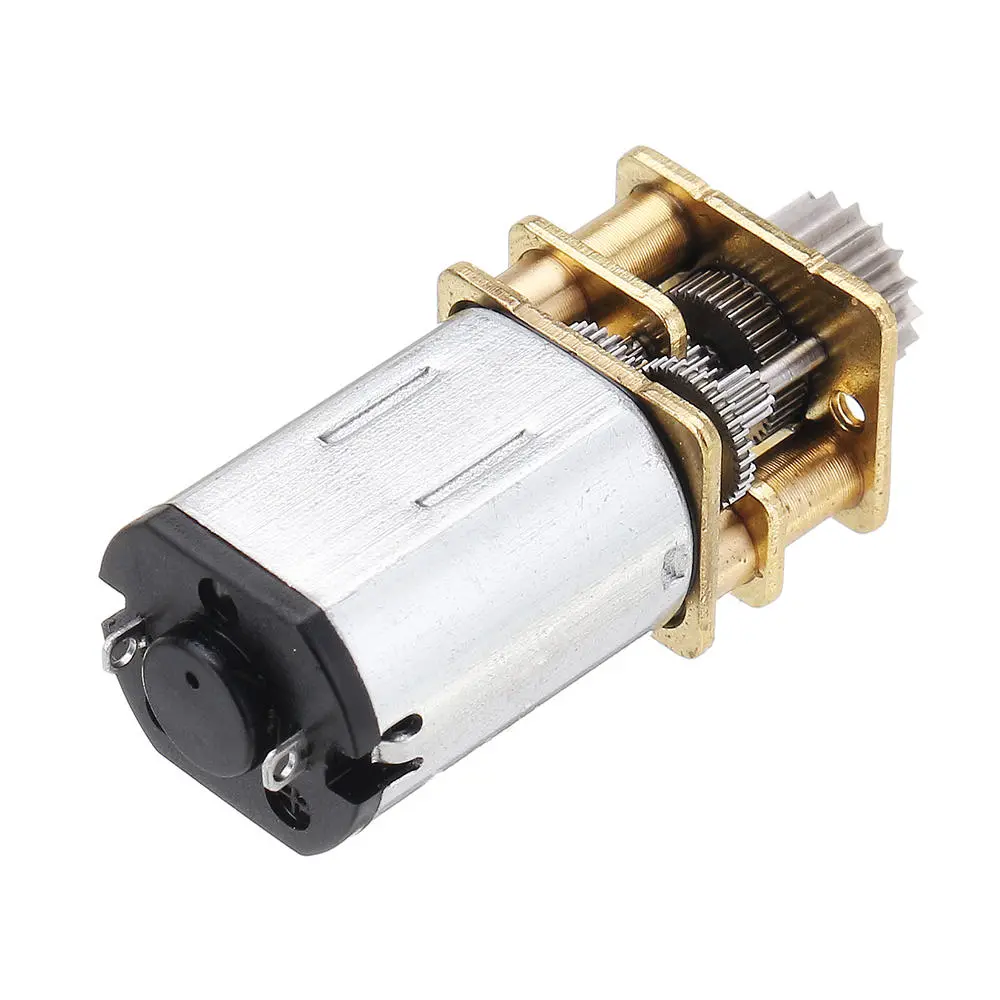

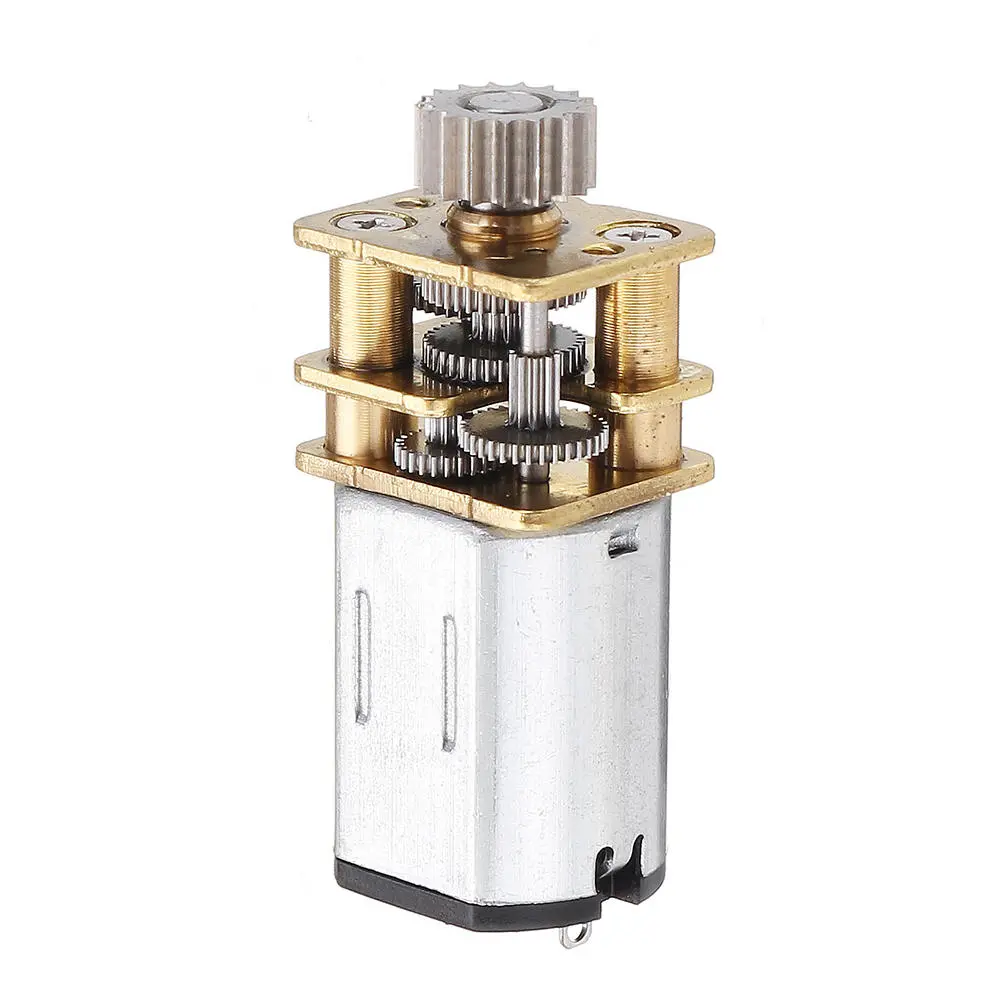

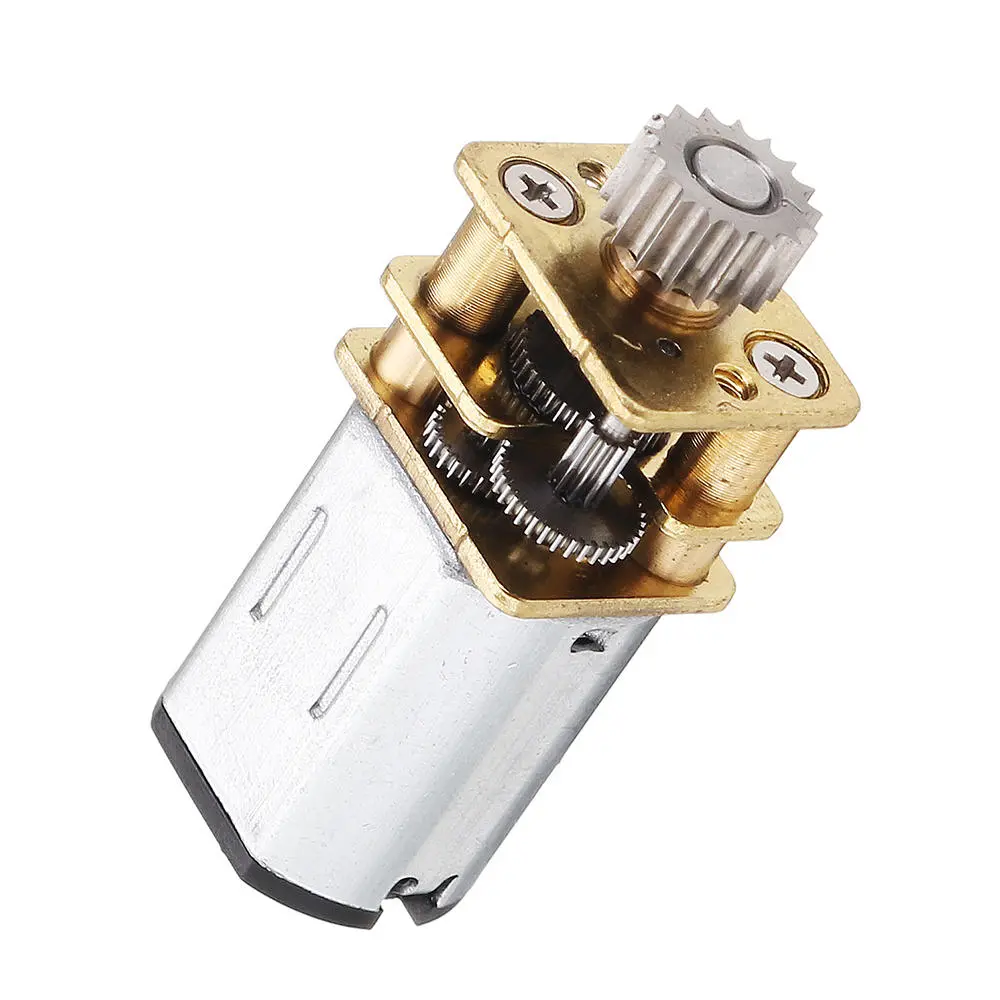

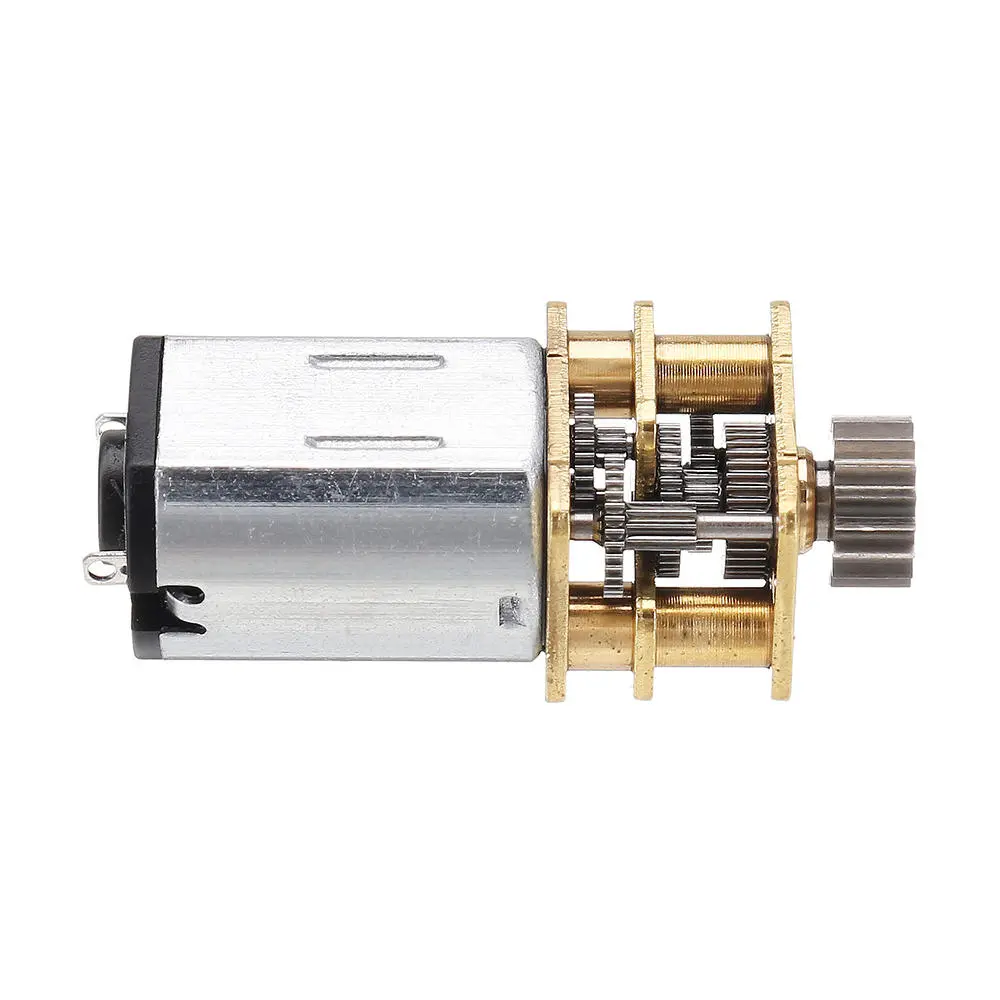

Machifit GM12YN20-298 DC12V 67RPM Cutting gear, metal gearbox, micro gear motor with line cutting teeth is for 3D drawing pen,3D graffiti.
Specification:

Gear ratio	1:298
Voltage	12v
No load speed	60??10%rpm
No load current	??50mA
Direction	CCW
Load torque	100g.cm
Load current	70-100mA max
Load speed	55??10% r/min
Stall current	330 mA max
Stall torque	2400 g.cm
Axial clearance	0.05-0.03.mm
Shaft length	10??0.2mm
Shaft diamete	3??0.1mm
Flat bit size	2.5??0.1mm
Weight	30g

Features:
Technical requirements :
1. Gear box reduction ratio: 298:1.
2. Roughness without note is as Ra 1.6.
3. The gear box is flat and non-bending.
4. The gear box turns flexibly.
5. The output shaft axial clearance is 0.05-0.3mm.
6. All parts meet RoHs requirements.
7. The tolerance of unfilled form position is gb1184-80.
8. The tolerance difference is not indicated according to GB1184-F.
Package Included:
1 x Gear Motor
