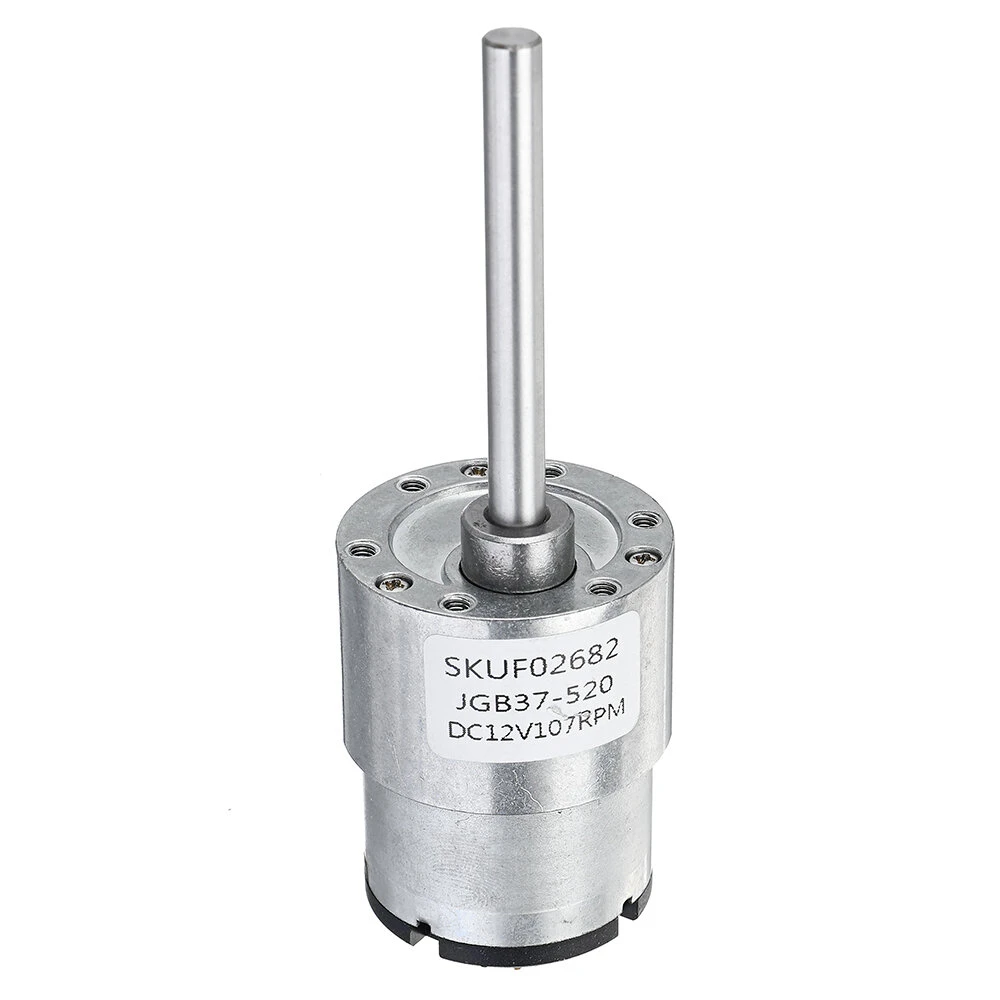

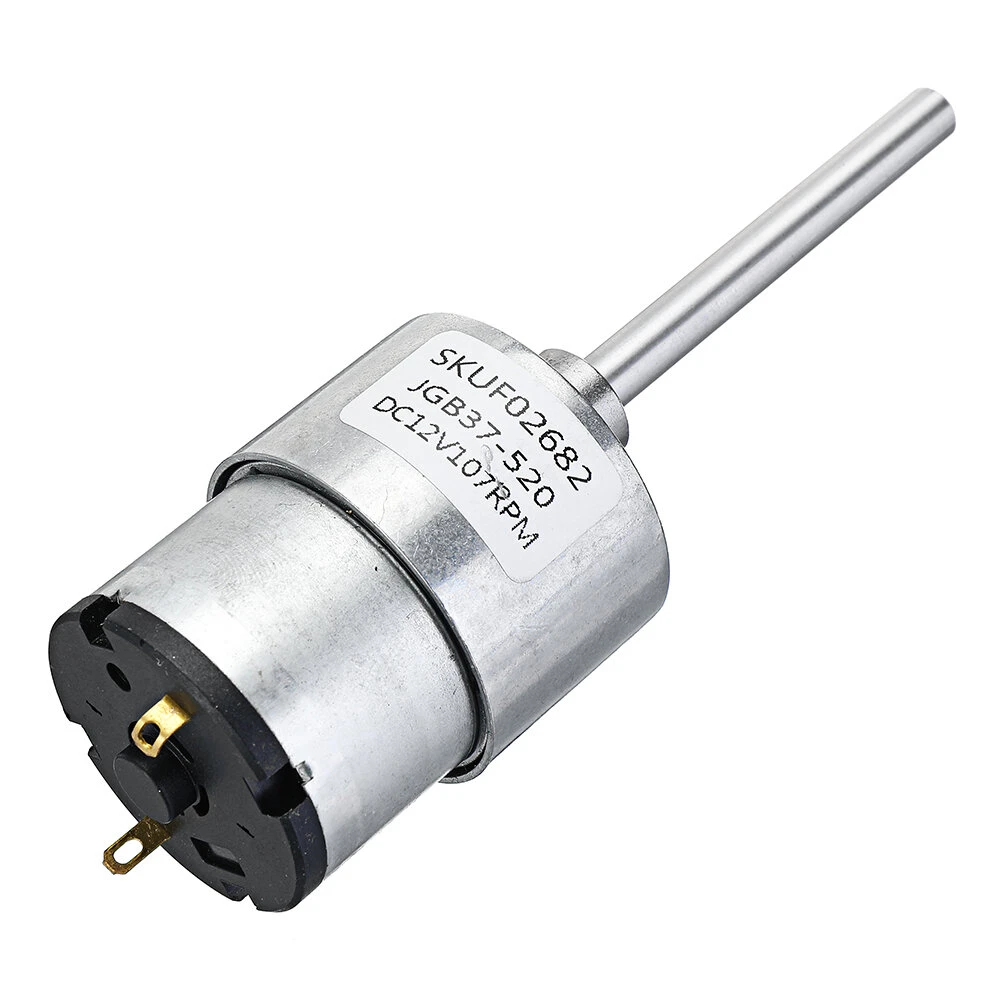

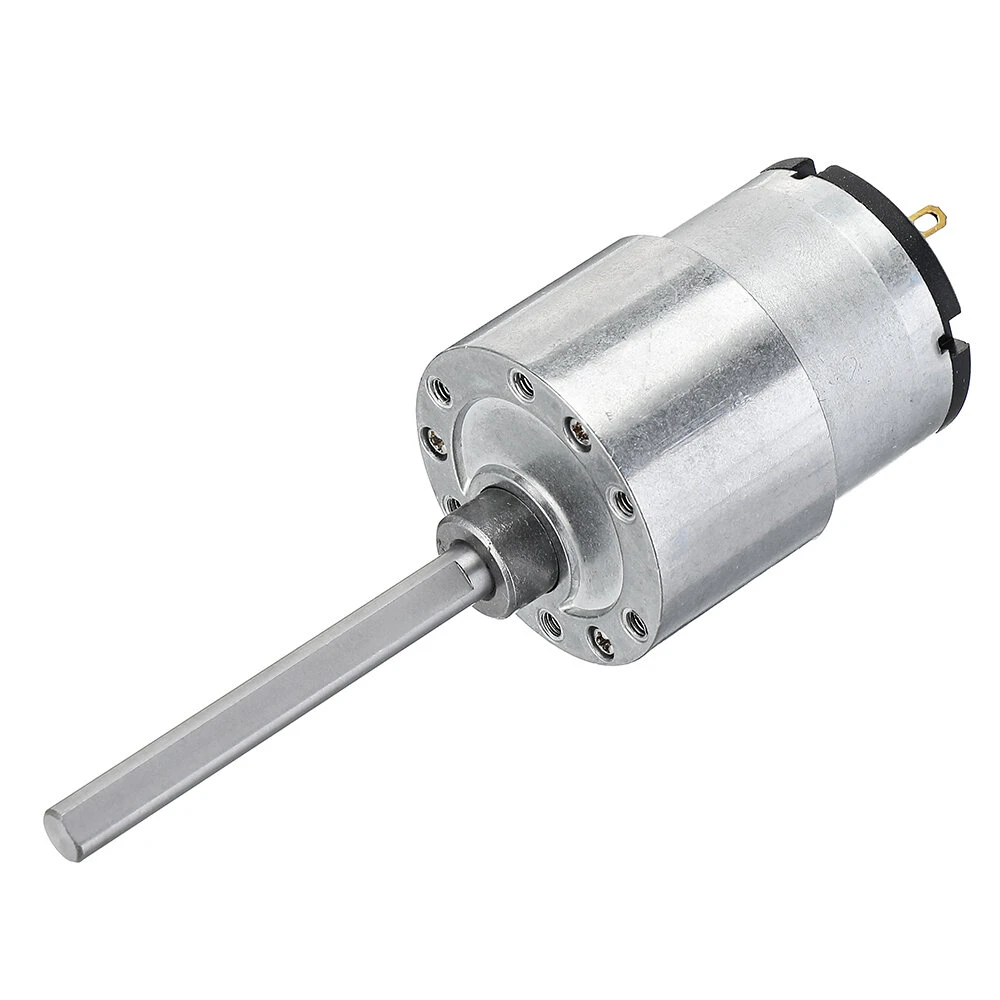

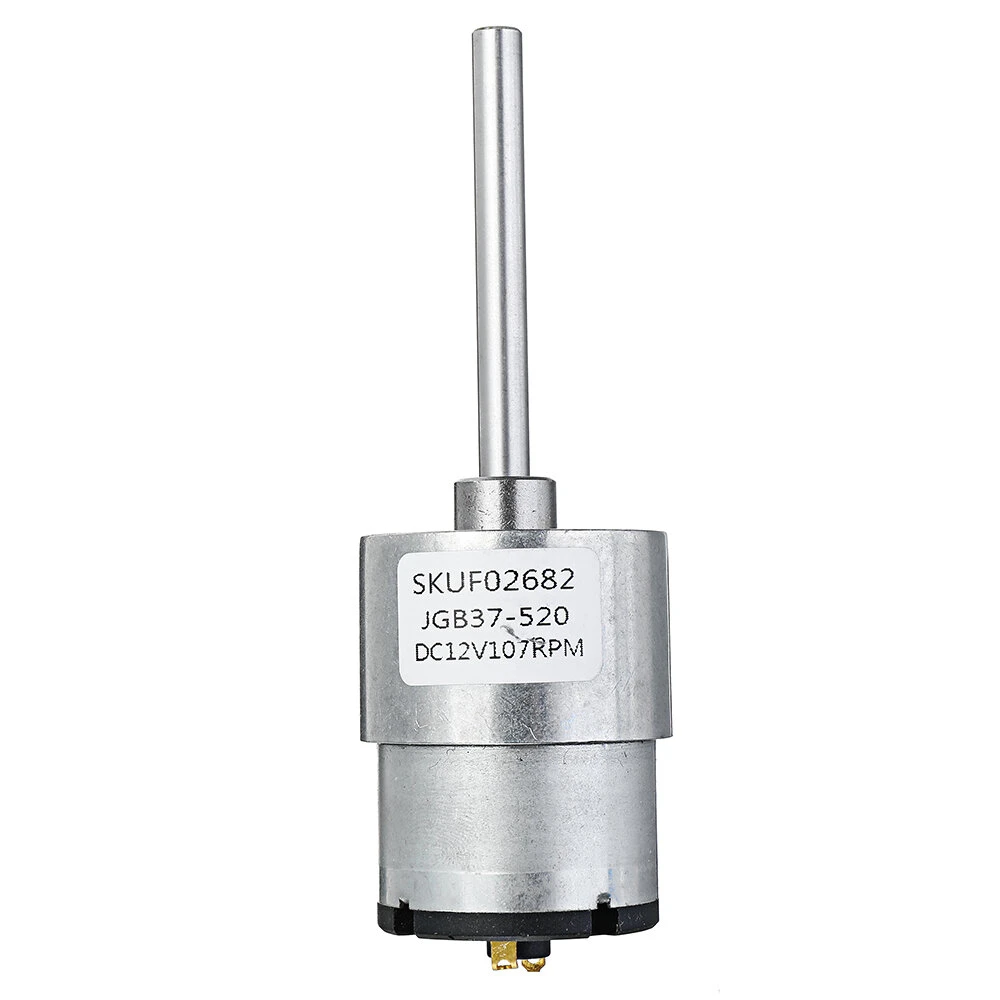

JGB37-520 12V DC Gear Motor - 107RPM 6MM Long Shaft Geared Reducer

Product Description

Descriptions:
JGB37-520 DC 12V Micro Gear Reduction Motor 50mm Extended Shaft Gear Motor
Specifications:Voltage: DC 12VSize(approach):
Output Shaft Dia.: 6mm
Output Shaft Length: 50mm
Motor: 33*23mm (without output shaft)Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ??10%rpm	Torque (kg.cm)	Speed(rpm) ??10%rpm	Current (A)	Torque (kg.cm)	Current (A)	L Size
DC 12.0V	1:56.25	0.06	107	2	90	0.24	5.6	1.2	24

Features:
- All the gear of metal mechanismWear resistance, strong resistance to torsion, smooth transmission, compact structure.- D-shaped double axisD-shaped double shaft, excellent thermal conductivity.- The terminal with red dot or "+" is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor.- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1pc x 12V Extended Shaft Motor
