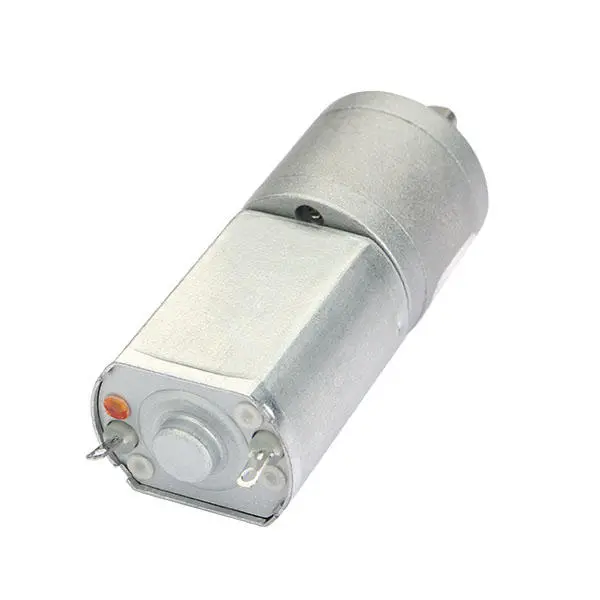

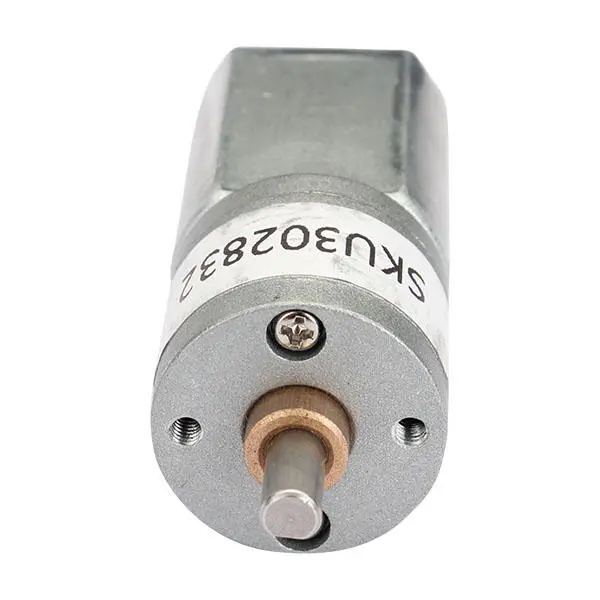

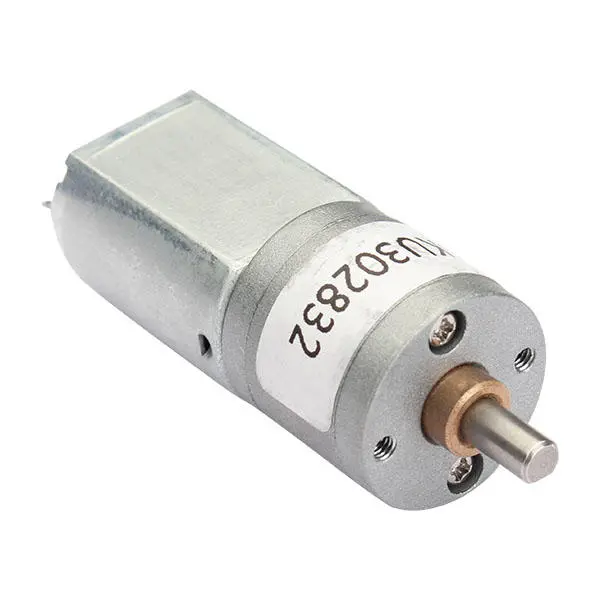

DC 6V 20mm Gear Motor - 22RPM High Torque | Large Torque Motor
$16.00
$19.18
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

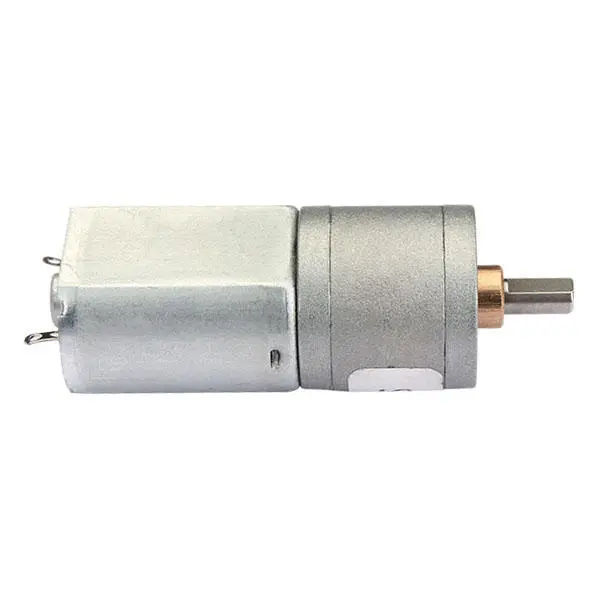

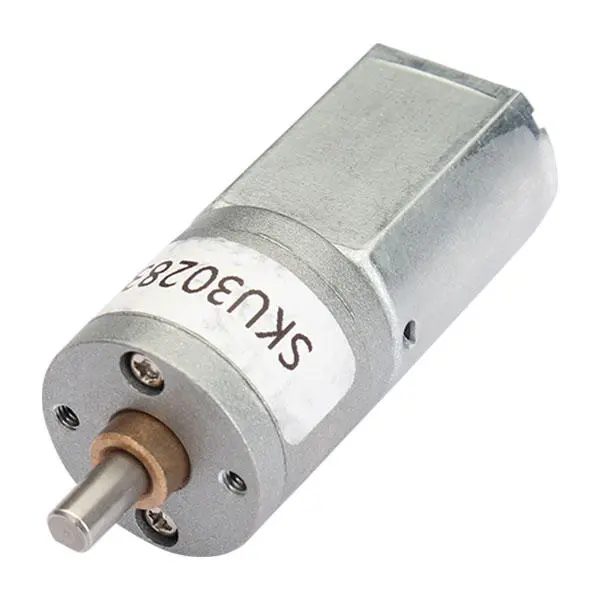

Description:20mm DC 6V 22RPM Large Torque Gear Motor
Specification:
Voltage: DC 6.0V No-load speed: 22rpm Locked rotor torque: 6kg.cm
1. Standard Operating Conditions
| Item | Specification |
| Rated Voltage | DC 6.0V |
| Gear Ratio | 1/195 |
| Rotation | CCW/CW |
| Motor Position | All position in horizontal |
| Temperature | 0 - 30 Degree Celsius |
| Humidity | 30% - 95% |
2. Performance of Motor
| Item | Specification |
| No-load Speed | 4500 +/- 10%rpm |
| No-load Current | 35mA (Max) |
| Stall Current | 420mA (Max) |
| Stall Torque | 50g.cm |
3. Performance of Gear Motor
| Item | Specification |
| Outer Speed | 22 +/- 10%rpm |
| No-load Current | 60mA (Max) |
| Stall Current | 420mA (Max) |
| Stall Torque | 6.0kg.cm (Max) |
| Rated Torque | 3000g.cm |
| Rated Current | 180mA (Max) |
| Rated Speed | 15 +/- 10%rpm |
| Noise | 50dB |
4. Dimension
| Item | Specification |
| The Outside Shafft Length | 10.5mm |
| Shaft End Play | 0.05 - 0.50mm |
| Screw Size | M2.5 |
| Diameter of Shaft | 4 x D 3.5mm |
| Outline Mounting Dimension | Refer to the Outline Drawing |
5. Product Drawings
6. Curve Drawings
Package Included:
1 x Motor
