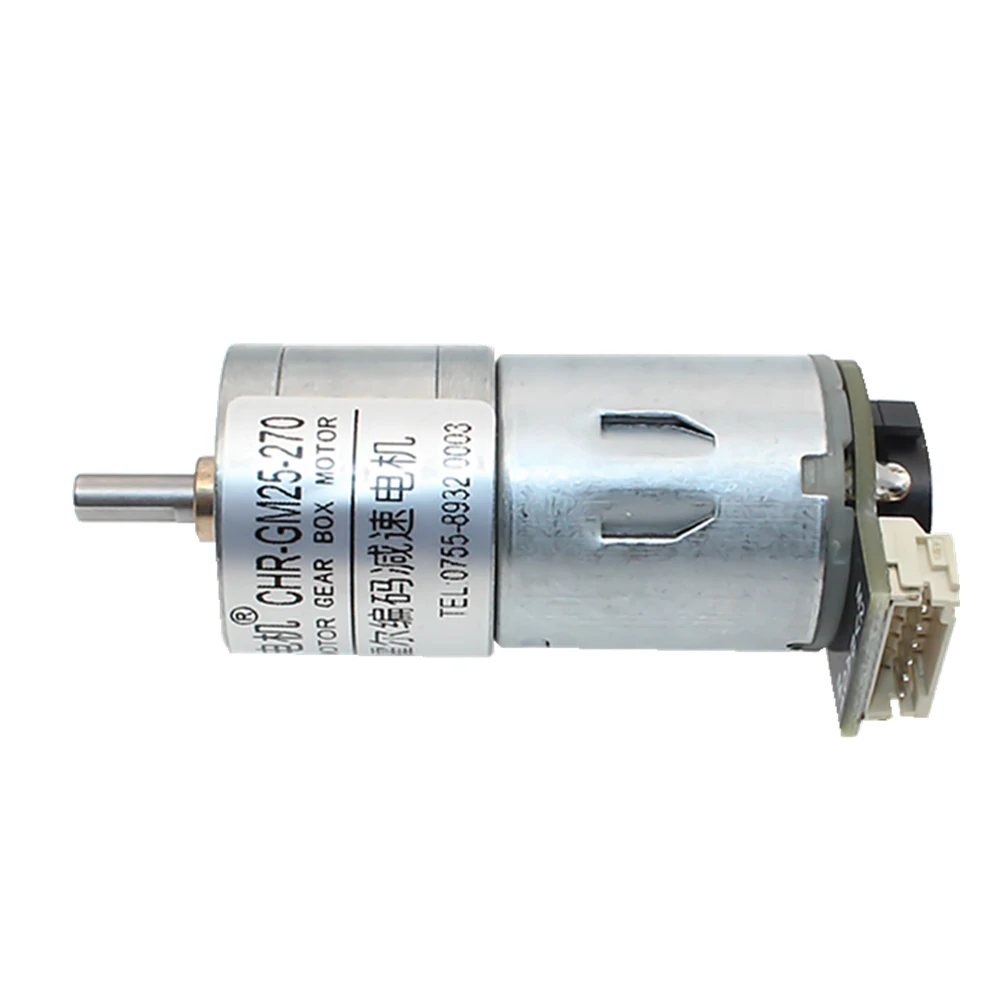

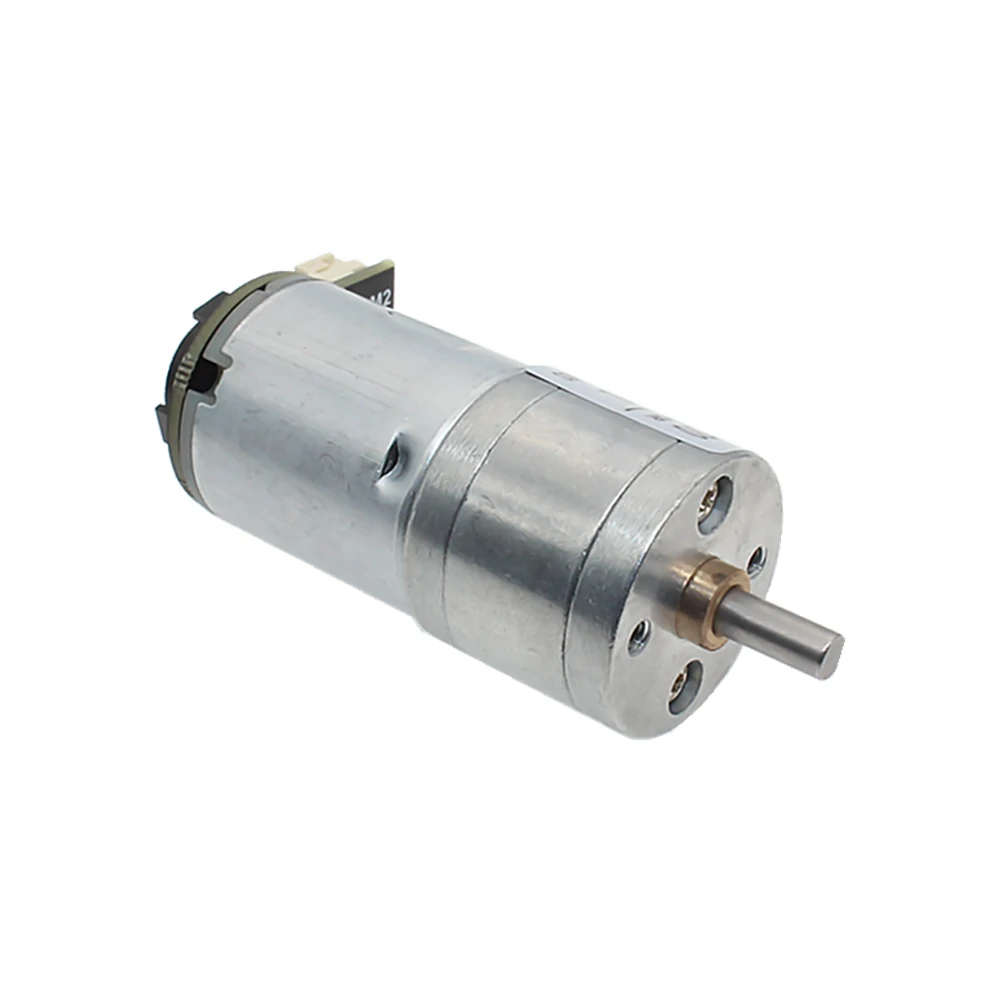

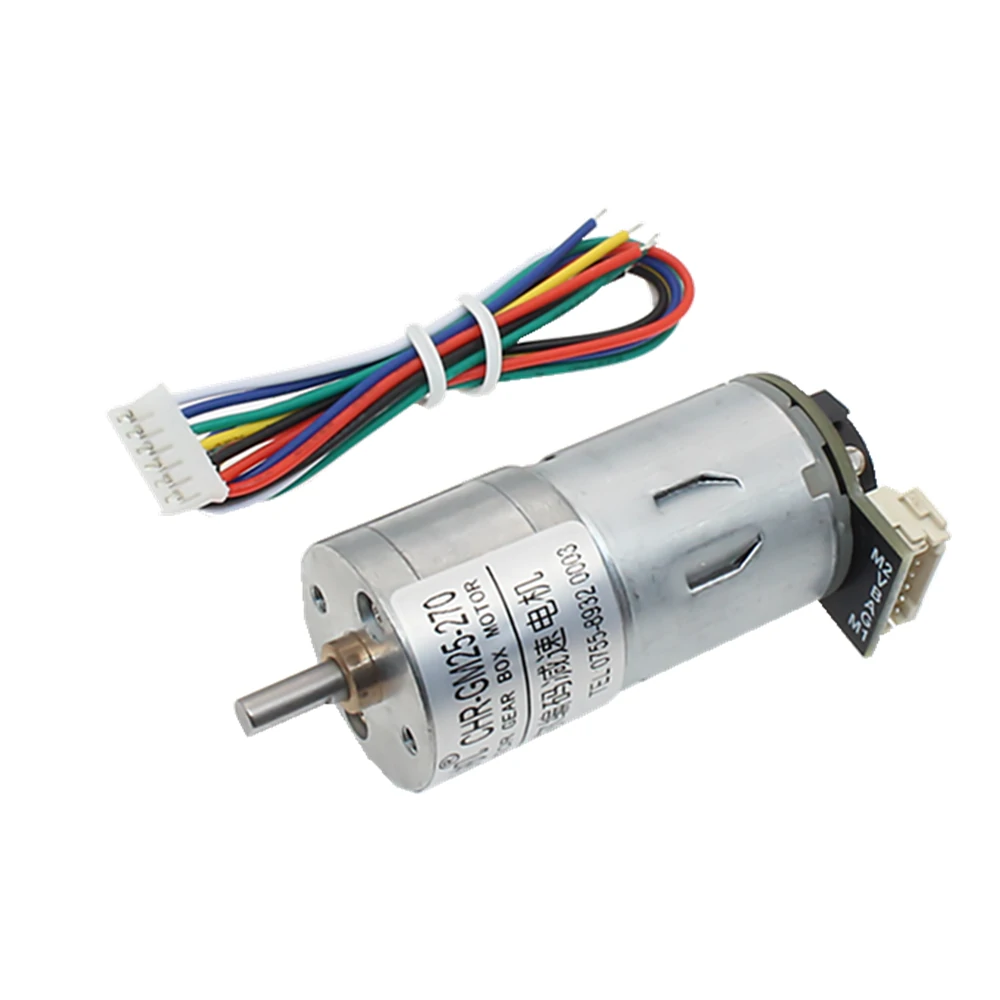

Chihai CHR-GM25-270ABHL DC Gear Motor | 7.4V with Hall Encoder & Speed Dial
Product Description
Description:
CHR-GM25-270ABHL DC7.4V Hall Encoder DC Gear Motor With Encoder Speed Dial Reducer
Specifications:
| Product Name | Hall Encoder DC Gear Motor |
| Material | Metal |
| Voltage | DC 7.4V |
| Power | 2W |
| Applications | For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances, |
| Quantity | 1 Pcs |
Geared motor specifications performance table:
Reduction ratio (change ratio) | 20 | 34 | 44.9 | 74.8 | 98.8 | 165 | 217 | 478 |
No-load current??mA?? | ??150 | ??400 | ??400 | ??400 | ??400 | ??400 | ??400 | ??400 |
No-load speed??rpm?? | 550 | 340 | 255 | 150 | 115 | 68 | 50 | 24 |
Rated torque??Kg.cm?? | 0.5 | 0.7 | 1.1 | 1.8 | 2.4 | 4.0 | 5.0 | 7.0 |
Rated torque??N.m?? | 0.05 | 0.07 | 0.11 | 0.18 | 0.24 | 0.39 | 0.5 | 0.69 |
Rated speed??rpm?? | 380 | 230 | 170 | 105 | 78 | 47 | 36 | 16 |
Rated current??A?? | ??0.9 | ??0.9 | ??0.9 | ??0.9 | ??0.9 | ??0.9 | ??0.9 | ??0.8 |
Stall current??A?? | ??2.5 | ??2.5 | ??2.5 | ??2.5 | ??2.5 | ??2.5 | ??2.5 | ??2.5 |
Reducer length??L?? | 19.0 | 21.0 | 21.0 | 23.0 | 23.0 | 25.0 | 25.0 | 27.0 |
Number of coding lines after deceleration | 224.5 | 341 | 493.9 | 822.8 | 1086.8 | 1815 | 2387 | 5258 |

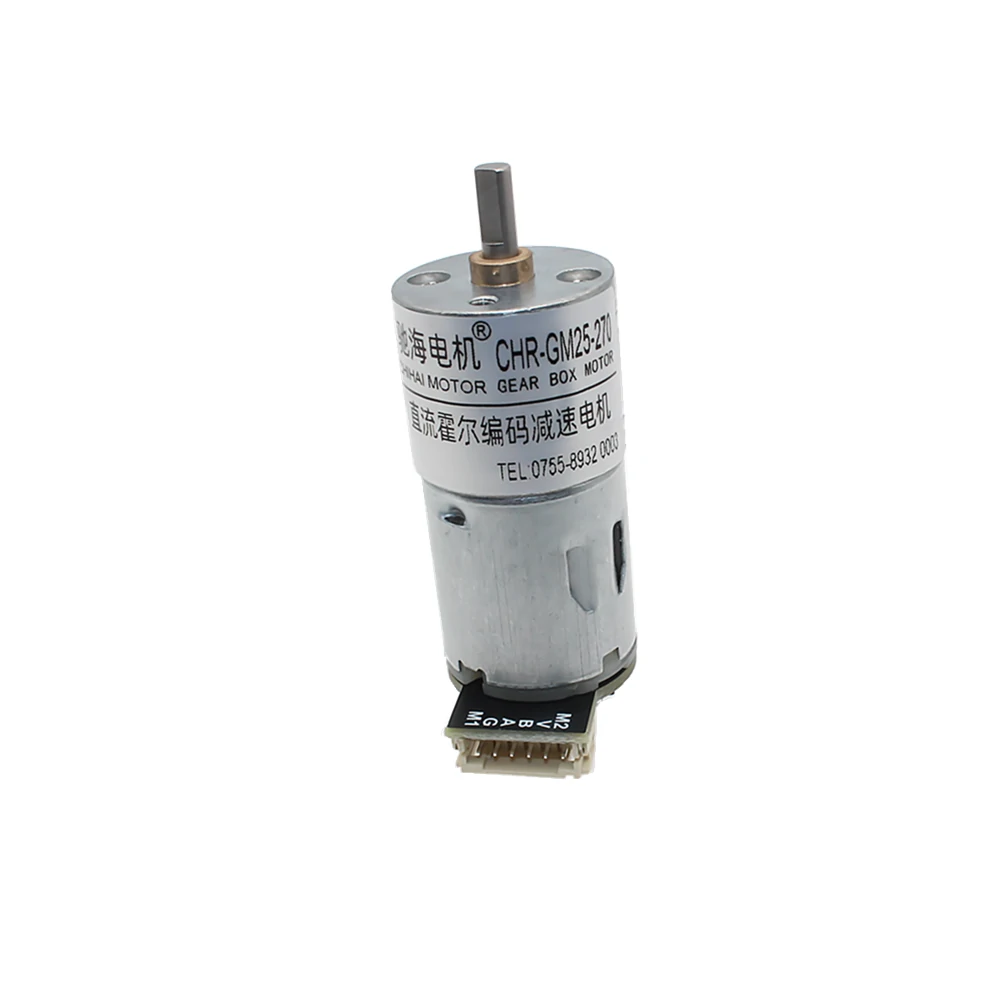

Wiring interface description:
| PIN-1 | M1-Motor input voltage |
| PIN-2 | GND-Hall GND |
| PIN-3 | C1-Hall sensor A Vout |
| PIN-4 | C2-Hall sensor B Vout |
| PIN-5 | VCC-Hall input voltage 3.3/5.0V |
| PIN-6 | M2-Motor input voltage |
Features:
- All the gear of metal mechanism.
Wear resistance, strong resistance to torsion, smooth transmission, compact structure.
- D-shaped double axis
D-shaped double shaft, excellent thermal conductivity.
- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.
- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 x | 7.4V Hall Encoder DC Gear Motor |
More Details:
