DN25 Copper Water Flow Sensor | 4-45L/min Pulse Output Flowmeter

Product Description

Description:

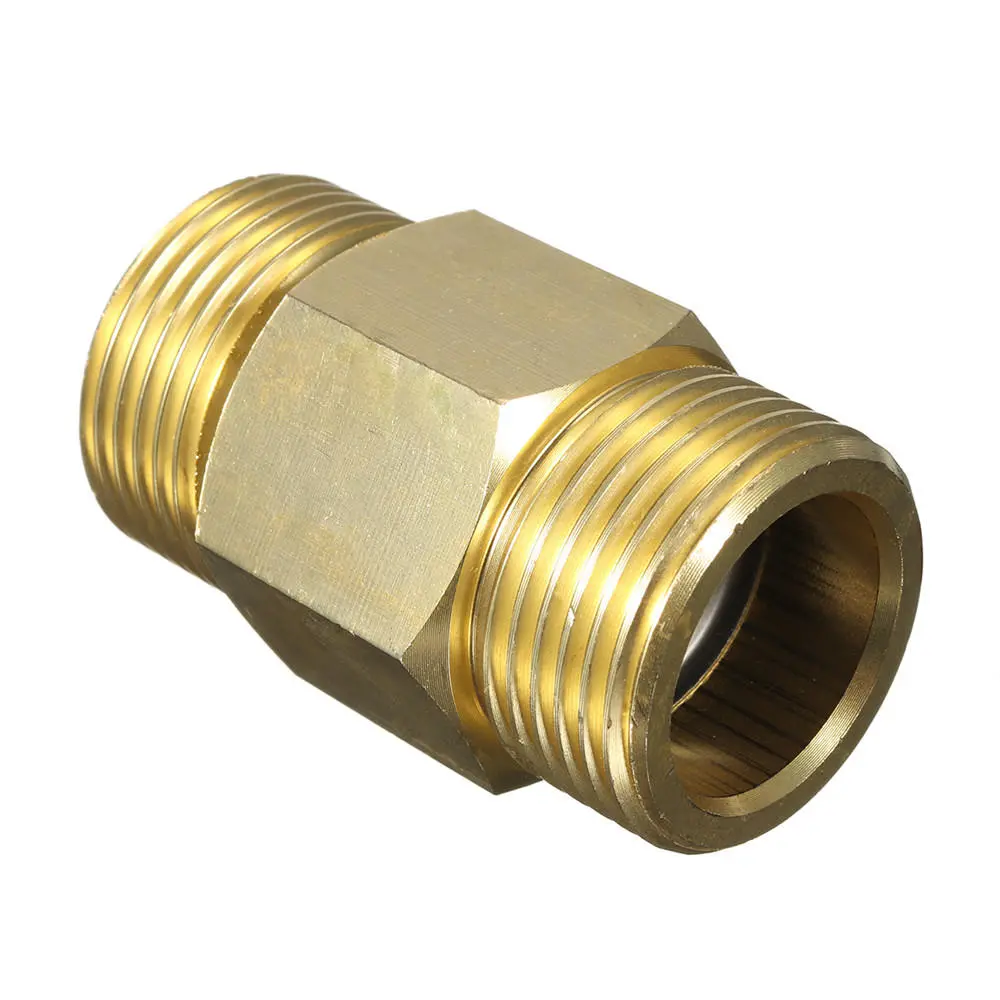

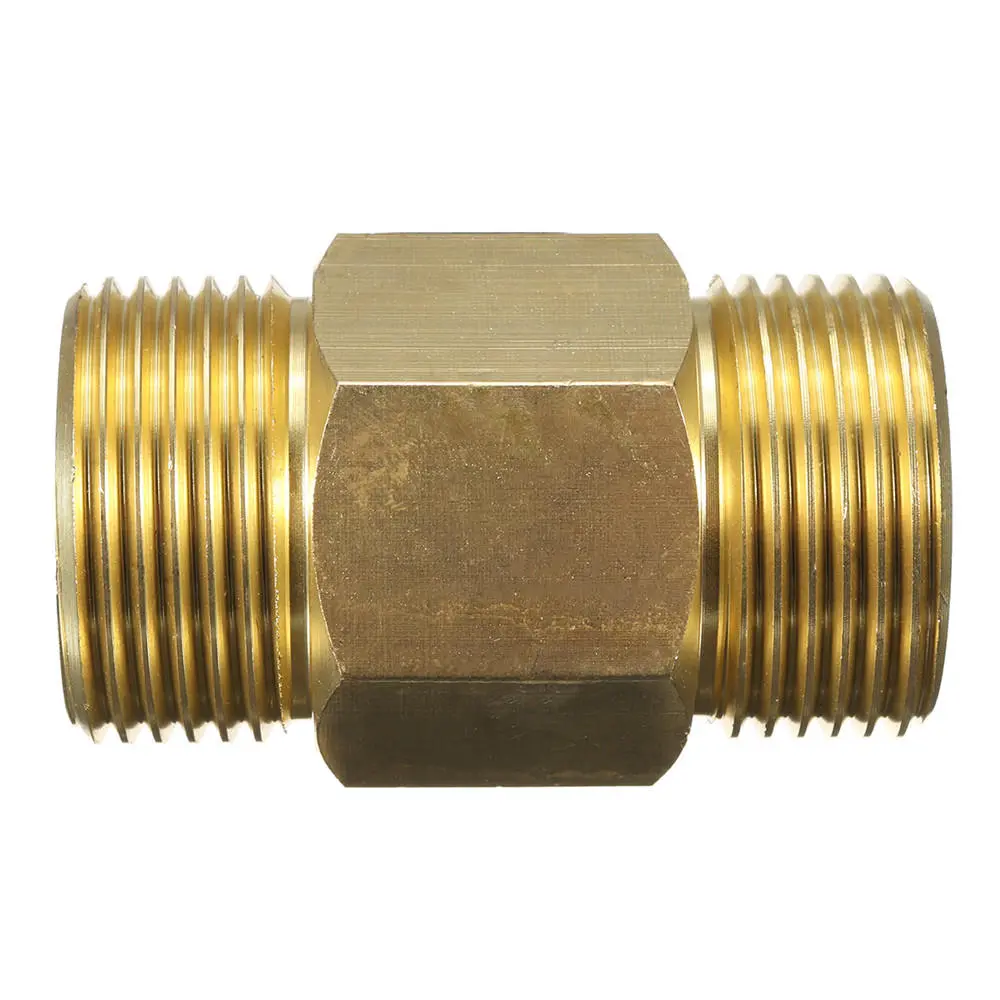

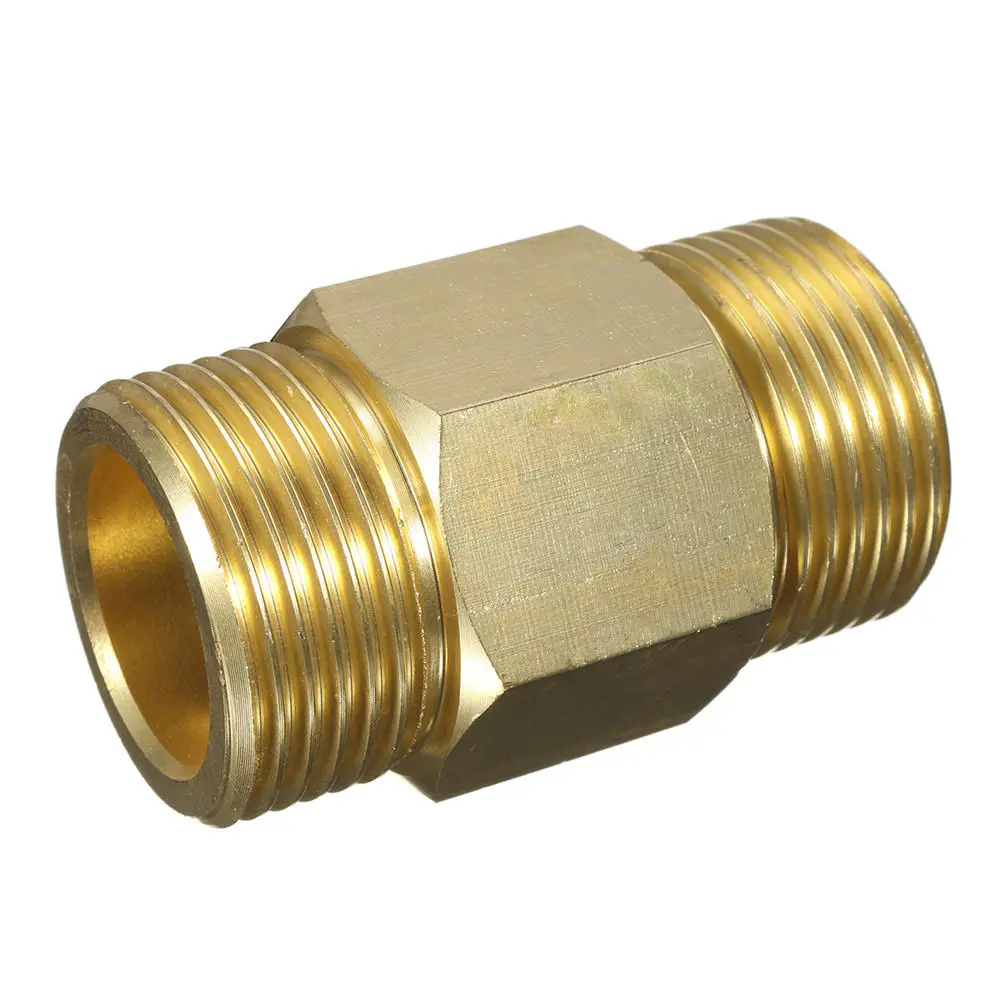

DN25 Copper Water Flow Sensor Pulse Output 4~45L/min Liquid Switch Flowmeter
Specification:
Model:SEN-HZG1WA
Use voltage:DC 5V
Connect way:G1??,60*34*34(mm)
Working voltage range:DC 4.5 ~18V
Max. Working current:15mA
Test range:4~45L/min(m3/h)
Fit media:water
Working pressure:1.75MPa
Outside nominal diameter:G1(mm)
Instantaneous flow pulse characteristics:F=[5Q-3]??10%, F means instantaneous pulse value(Hz),Q means instant flow(L/min)
Insulation resistance??100M??
Electric strength:AC 500V, 50Hz
Precision grade:+-10%
Working temperature:60??
Type:vane-wheel type flowmeter
Features:
This is a small zise product that easy to install.
Made of good quality material, the product is precise and durable, no power consumption.
Suitable for gas water heater, electric water heater, washer, wall-hanging stove, electromagnetic water heater, intelligent IC water meter,cooling system, circulatory system, heating equipment,etc.

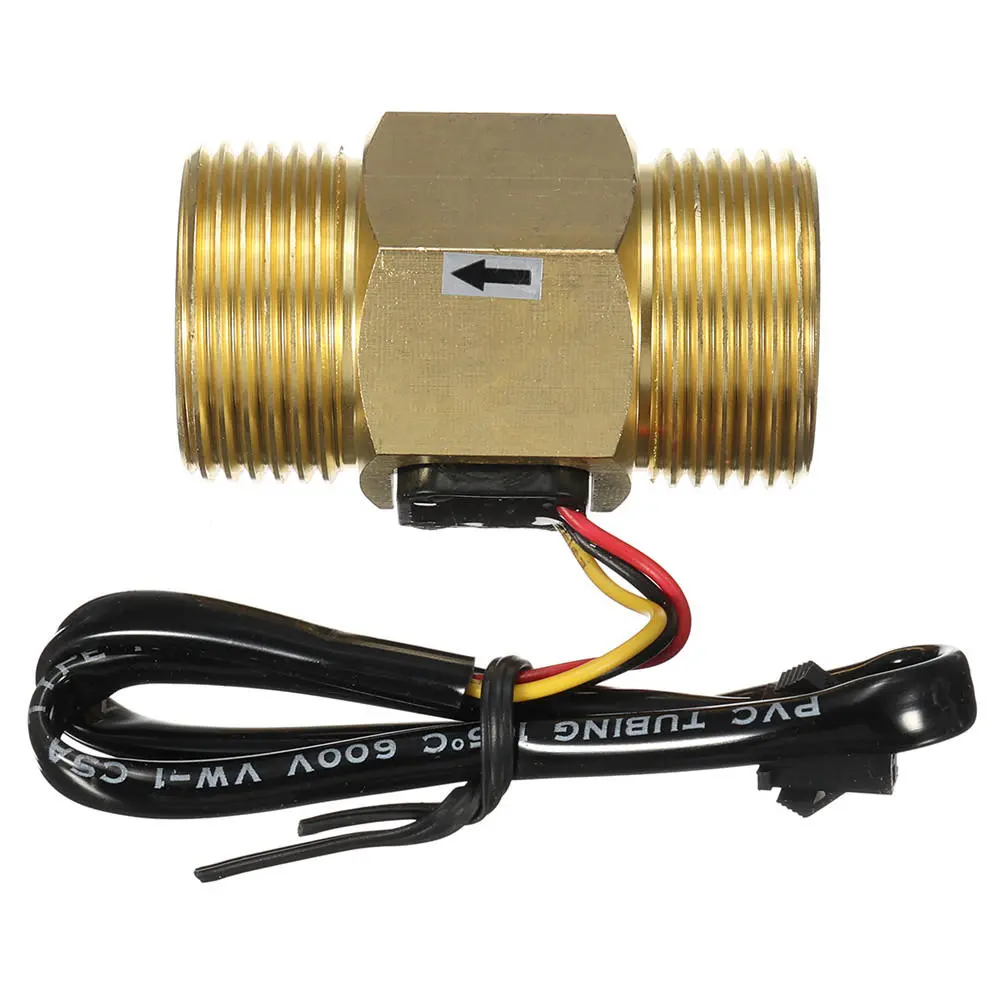

Three lines: red is positive, black is negative, yellow is pulse signal.
Package Included:
1x Sensor
More Details:
