5 Port 2 Position Pneumatic Control Valve | 1/4 Inch PT Port | Hand Lever Operated 4H210-08
$17.00
$20.78
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

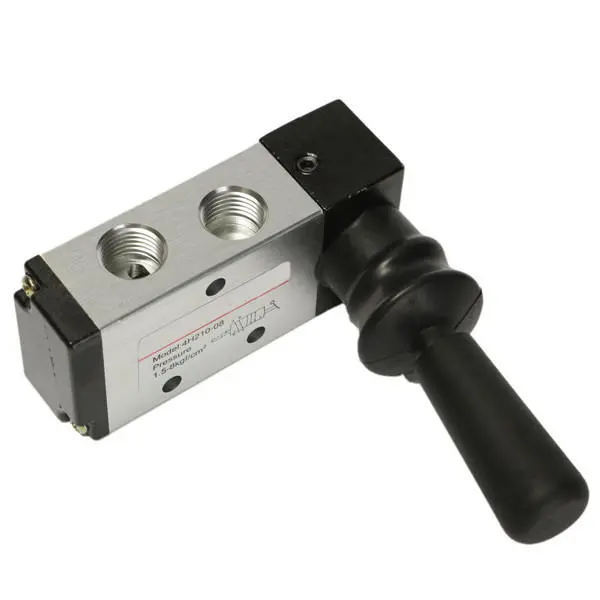

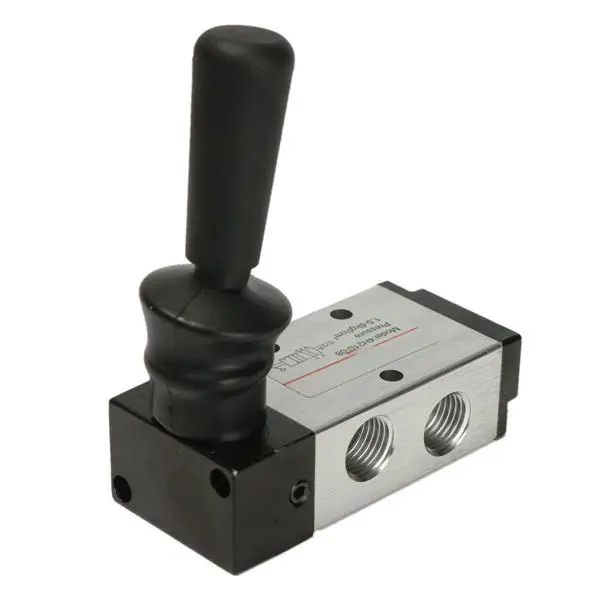

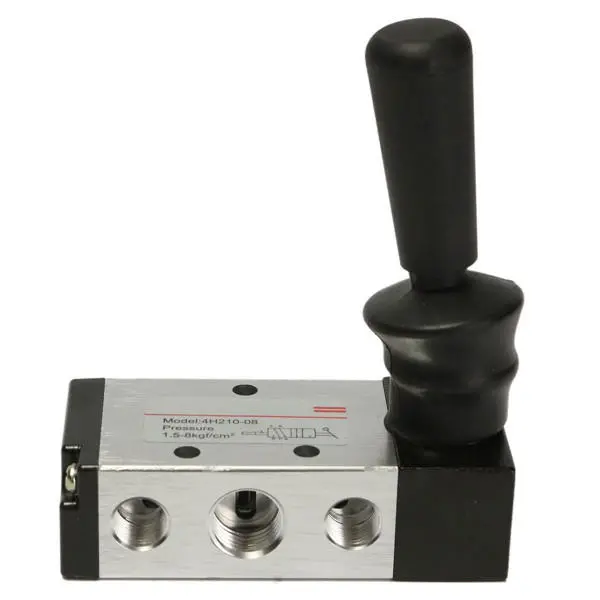

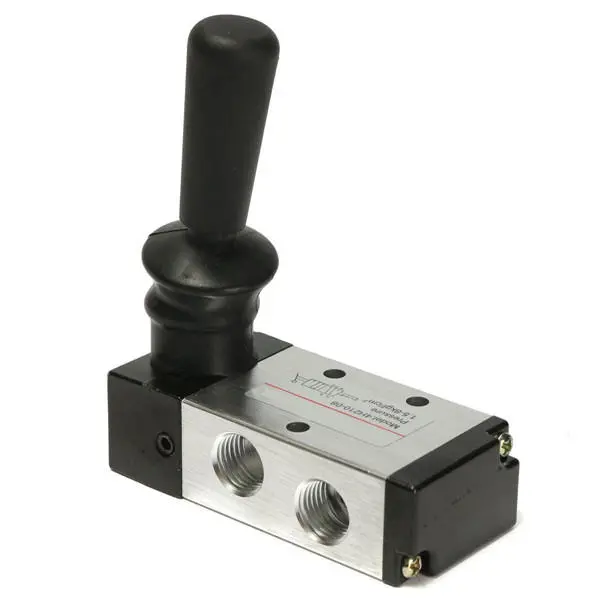

Description:5 Port 2 Position 1/4 Inch Valve PT Hand Lever Operated Control Pneumatic Valve 4H210-08
Specification:
| Model | 4H210-08 |
| Type | 5 port 2 postion hand lever valve |
| Valve type | 2 postion |
| Material | Aluminum |
| Media | Air |
| Operating | Direct acting |
| Orifice size | 16?L2(Cv=1.67) |
| Port size | In= Out=PT1/4" |
| Exhausl | 1/8" |
| Pressure range | 1.5~8Kgf/cm2 |
| Temp Range | -5~60?? |
| Lubrication | Not required |
| Operating angle | +-15% |
| Code | 200 series |
| Dimension | 76.7 * 35 * 22mm |
Package Included:
1x Pneumatic Valve
