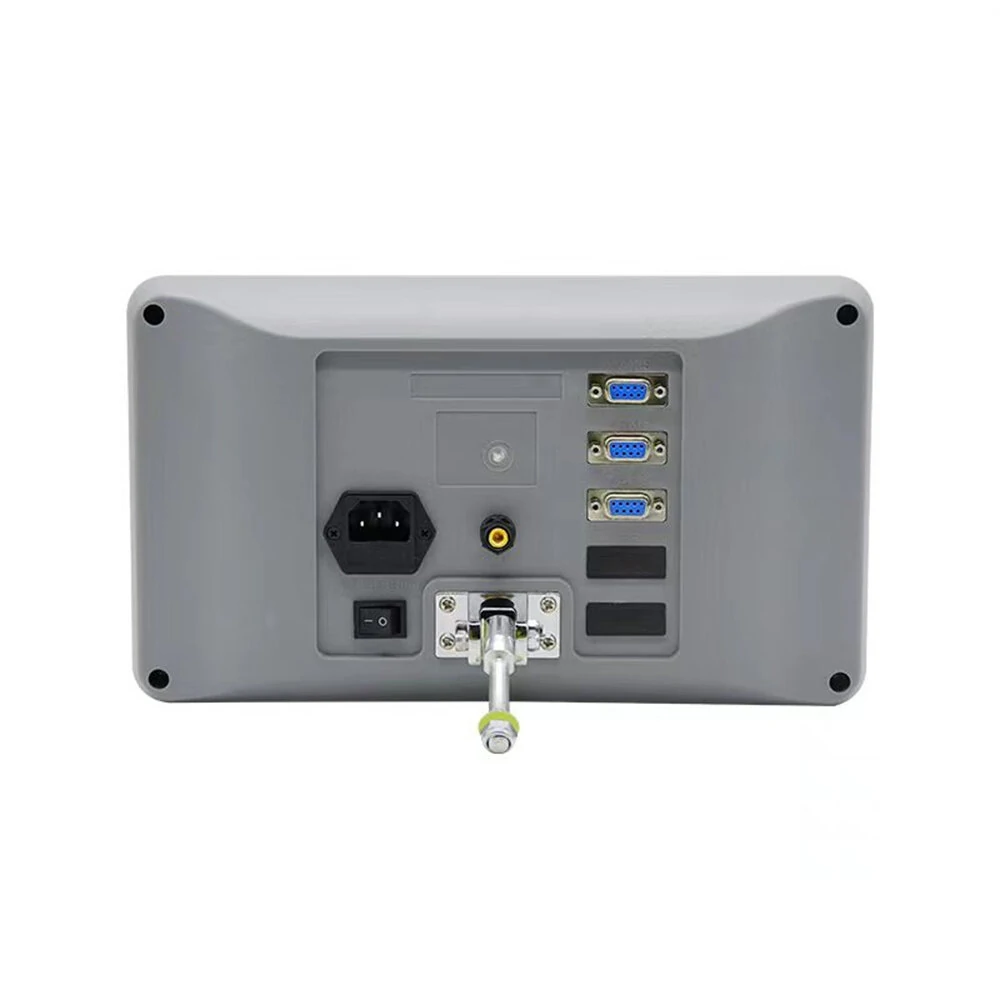

DITRON 3 Axis LED Digital Readout Display Kit | 1.7 True Color LCD | High Precision Measurement Tool

Product Description

Features:

1.7 inch true color LCD screen, easy to recognize.

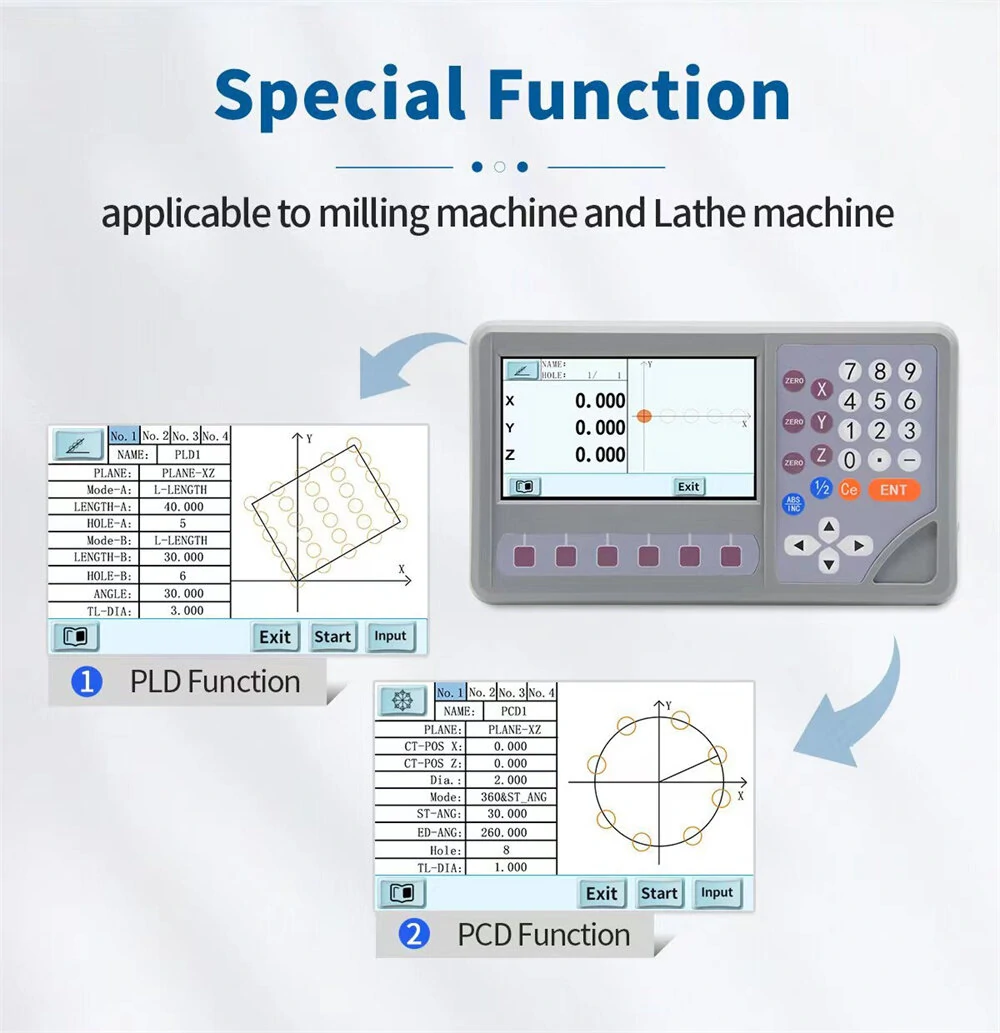

2. By saving drawing function, the DRO allows drawings to be saved in the system, which makes machining much more convenient.

3. Special preview drawing function, after setting the parameters well, the DRO will show the effect of fine machining which makes the operation more visual.

4. Display current tool position function, during machining, the system will display the current tool position according to the drawing, which makes machining much easier.

5. Help function, during machining, if there is any doubt, press the help button to solve it.

6. Custom setting for shortcut keys, operator can set the shortcut keys according to their operating habit.

Specifications:

Voltage Range: AC80V-260V/50HZ-60HZ

Power Dissipation: 15W

Coordinate Display: 3Axis

Working Temperature: -10??~60??

Operating Keypad: Mechanical Keypad

Input Signal: 5V TTL/RS422

Resolution: 0.1um to 50um range

Input Frequency: ??4MHZ

Package Included:

1 x DITRON LED Digital Readout Display Kit
