LMF8UU 8mm Linear Ball Bearing | Round Flange | Smooth Motion

Product Description

Description:

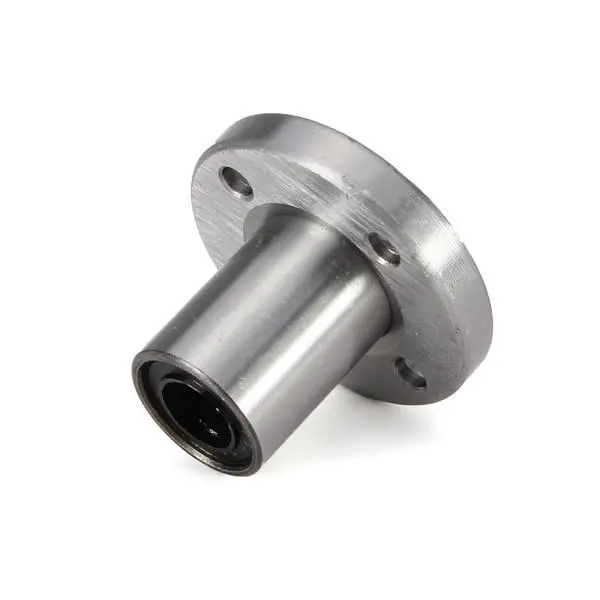

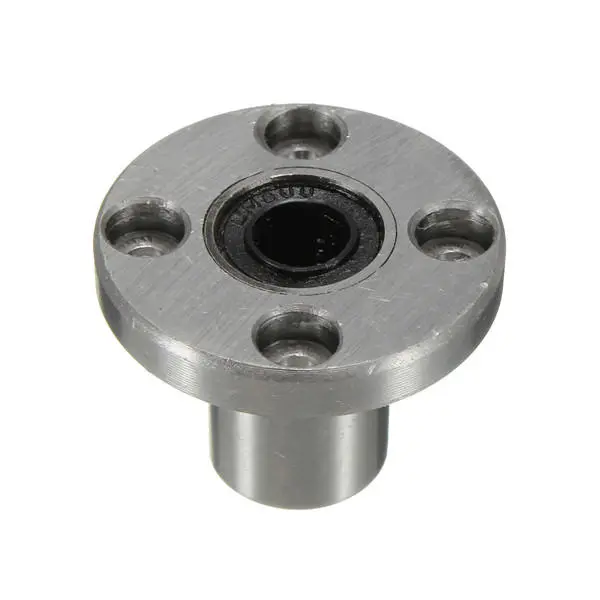

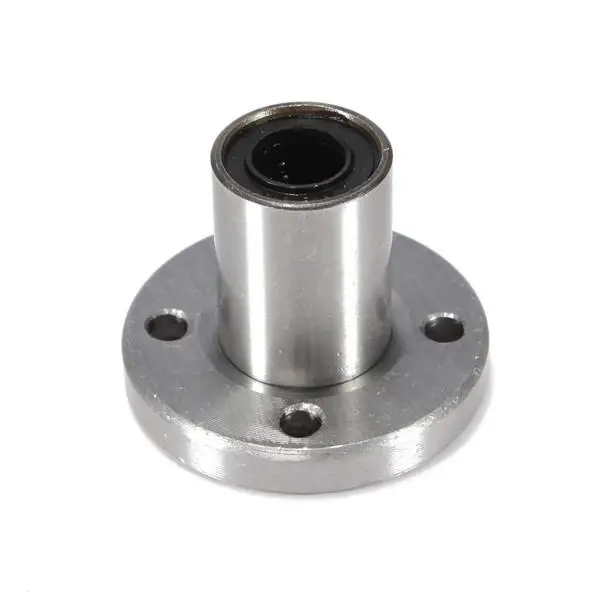

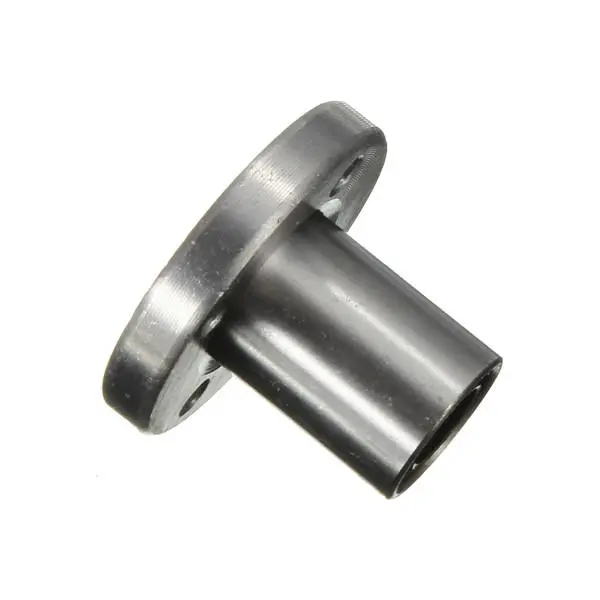

LMF8UU 8mm Round Flange Linear Ball Bearing
Specification:
Type: Linear Moder Number: LMF8UU Inner Diameter: 8mm Material: Steel

Model No.	Number Of Ball Rows	Main Dimensions													Squareness	radial run-out	Basic Load Rating		Weight (g)
		Inscribed Circle Diameter		Outer Diameter		Length		Flange				Hole For Attachment
		dr (mm)	Tolerance	D (mm)	Tolerance	L (mm)	Tolerance	D1	K	H	??	d1	d2	h	0.012	0.012	Dynamic (C)	Static (Co)	0.035
LMF8	4	8	0-0.009	15	0-0.011	24	0-0.20	32	25	5	24	3.5	6	3.1			28	40

Features: These bearings are pre-lubricated with grease. Linear bearing ball cage, hardened coat of both ends ring. High strength, particularly suitable for automated devices. Products with high accuracy. Safe and reliable. Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed. Usage: Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, robotic arm,
precision measurement equipment, office automation equipment, and other large-scale linear slide devices. Package Included:
1 x LMF8UU Linear Bearing More Details:
