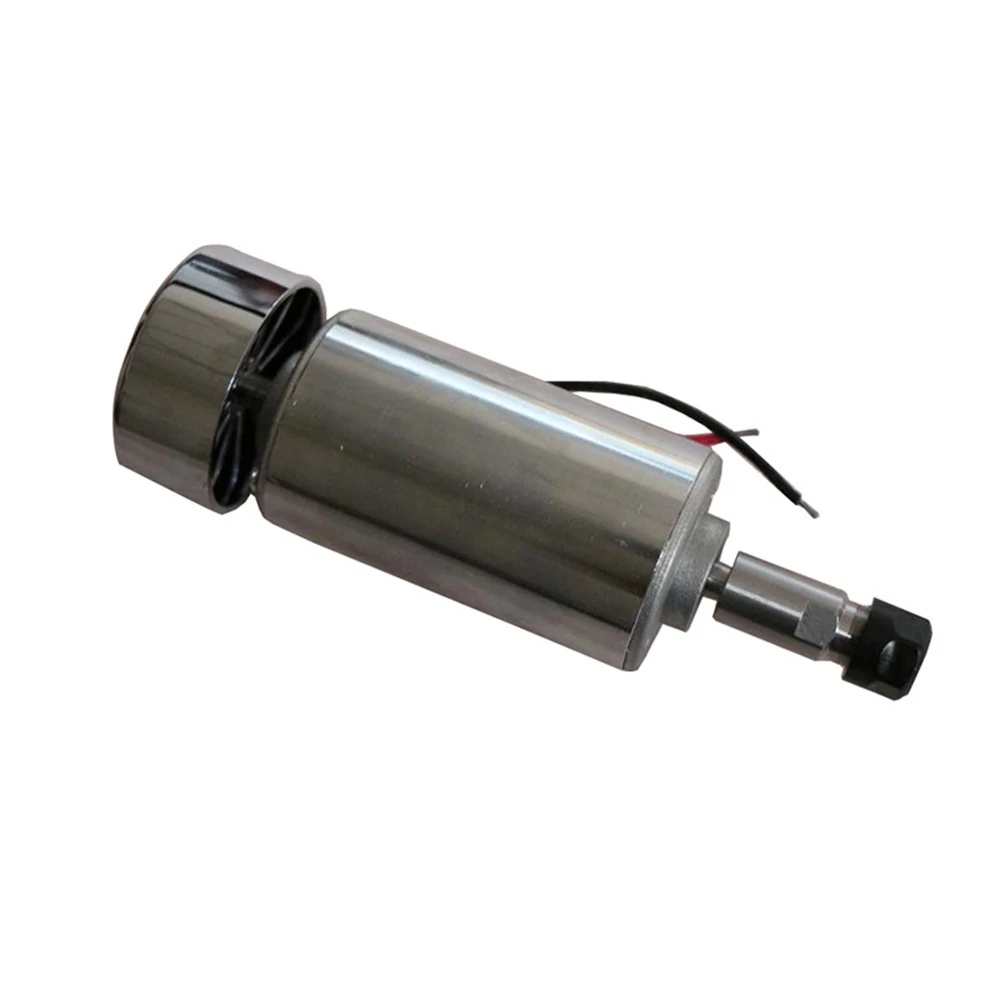

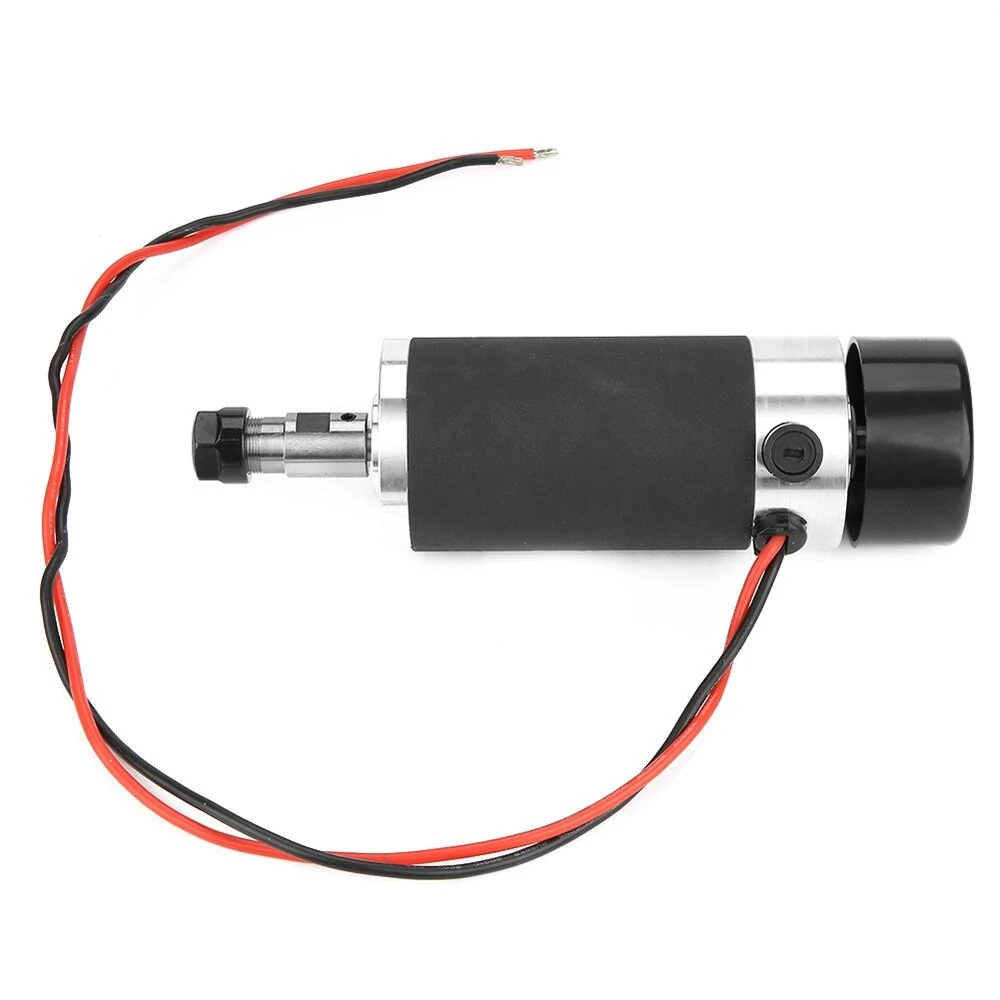

Machifit ER11 48V 500W Spindle Motor | Wood & PCB Engraving Drilling
Product Description
Description:
ER11 48V 300/400/500W High Speed Spindle Motor with External Carbon Brush for Solid Wood PCB Engraving Drilling
Specifications:
Type | Spindle Motor |
Operating Voltage | 48VDC |
Rotating Speed | Idling can reach 12000rpm |
Power | 300W/ 400W/ 500W |
Torque | 400mN.m/ 500mN.m/ 600mN.m |
Insulation Resistance | ??2 Megohms |
Insulation Dielectric Strength | 400V |
Diameter | 52mm |
Chuck Length | 48mm/ 45mm |
Chuck Diameter | 16mm |
Motor Length | 175mm/ 200mm |
Spindle Radial Runout | 0.01-0.03 High Precision |
Use | For solid wood PCB engraving drilling and so on. |
| Power | 300W | 400W | 500W |
| Torque | 400mN.m | 500mN.m | 600mN.m |
| Speed | 12000rpm | 12000rpm | 12000rpm |
| Chuck length | 48mm | 45mm | 45mm |
| Motor length | 175mm | 175mm | 200mm |
Features:
??3 Options??There are 3 options for you to choose, 300W/ 400W/ 500W, you can choose according to your requirement.
??High Quality??Special tool holder, made of special high-quality steel, sturdy and durable, with long service life.
??High Precision??High precision chuck, concentric precision within 0.02mm.
Package Included:(optional)
1 X | Spindle Motor |
